Monitor Audio Creator W3L, į sieną montuojama garso kolonėlė

INFORMACIJA

Monitor Audio Creator W3L - aukštos klasės 3 juostų sieninė kolonėlė su keturiais RDT III žemų dažnių garsiakalbiais, C-CAM vidutinių dažnių garsiakalbiu ir MPD II aukštadažniu. 300 W galia, 36 Hz–60 kHz diapazonas ir iki 123 dB SPL užtikrina itin galingą, detalų ir precizišką garsą.

Dažnių diapazonas: 36 Hz–60 kHz
Jautrumas: 89 dB
Nominali varža: 4 Ω
Minimali varža: 4,5 Ω @ 1,2 kHz
Nuolatinė galia: 300 W
Rekomenduojama stiprintuvo galia: 150–600 W prie 4 Ω / 75–300 W prie 8 Ω

Kaina nurodyta už 1 vnt.

APRAŠYMAS

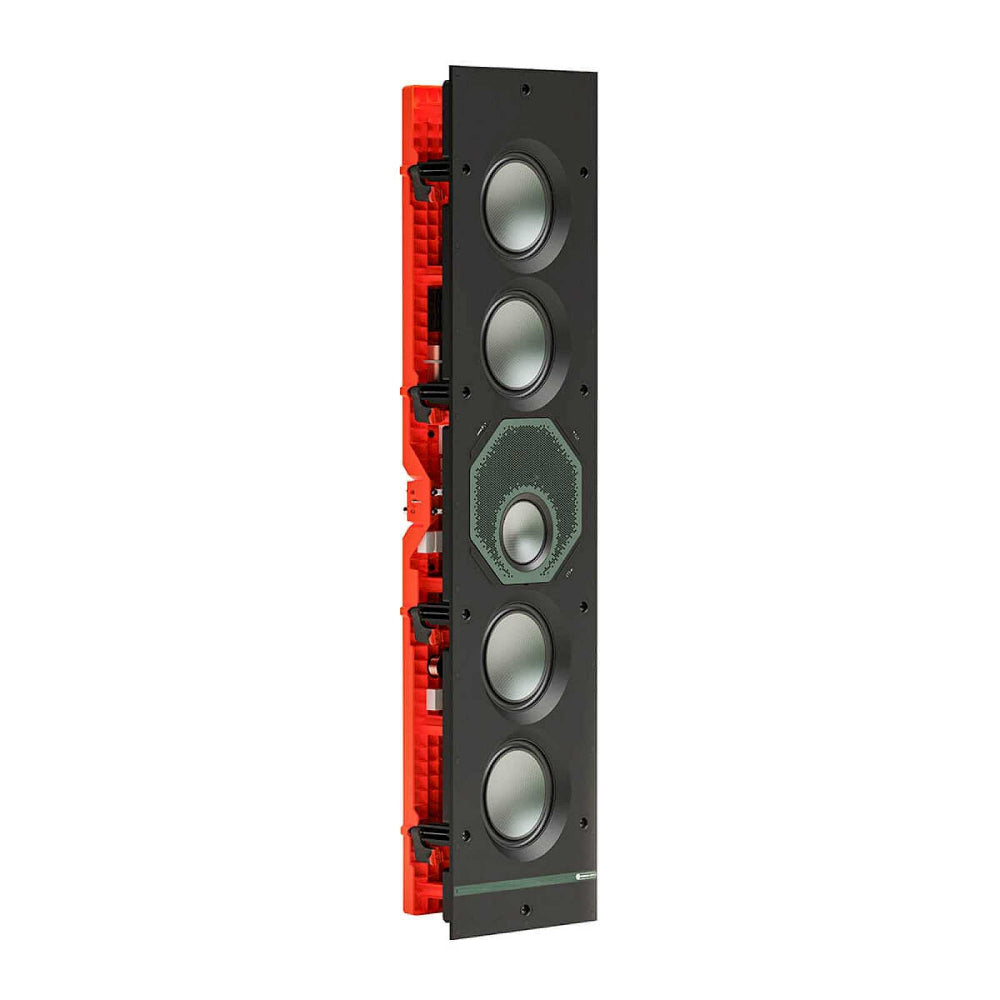

This high-performance, large-sized Tier 3 in-wall loudspeaker is a three-way model featuring four RDT III bass drivers, a C-CAM midrange driver, and an MPD II transducer. It has a cut-out dimension of 880 x 202 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:

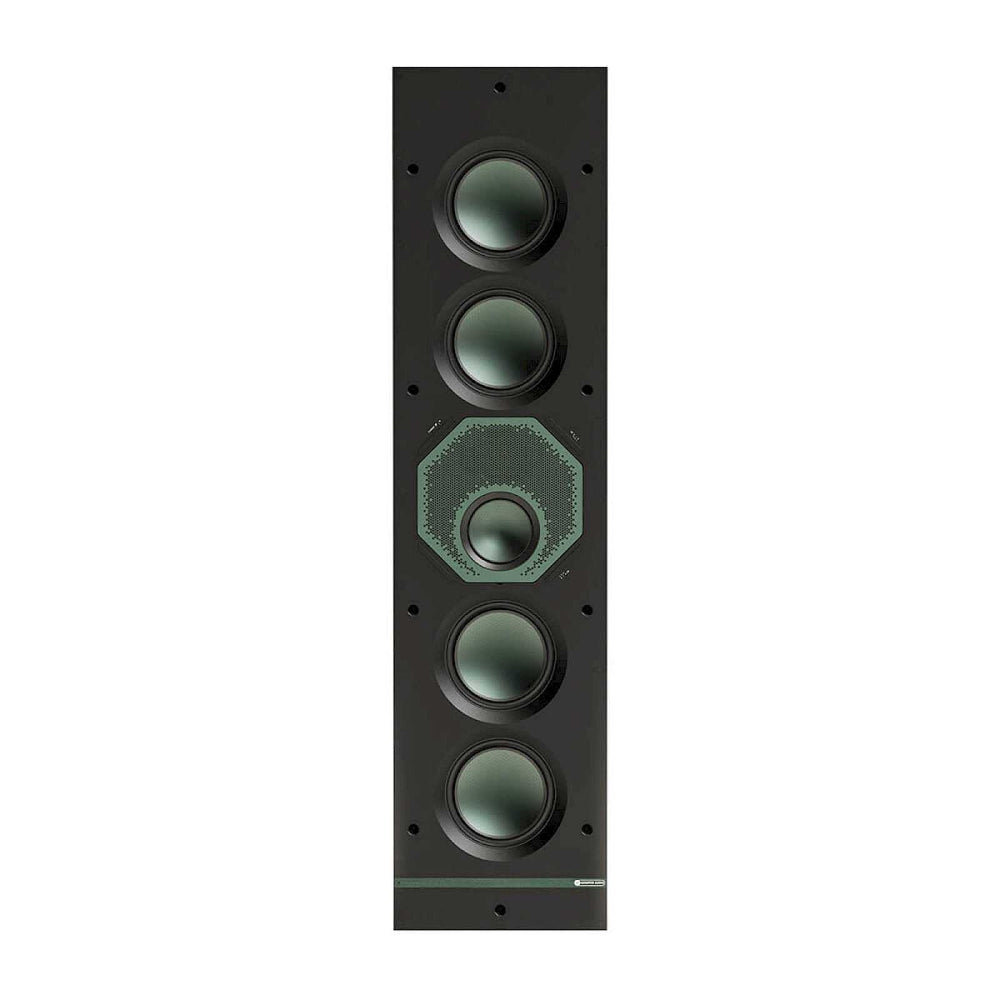

Ideal for installations where high-performance acoustics are desired  | Three-way design  |  1 x 1" MPD II transducer  |  4 x 5" RDT III bass drivers  |  1 x 3" C-CAM midrange driver  |  Quik-Link speaker cable connector for quicker installation  |  Tri-Grip II for easy and secure fitment

"Incredible detail and musicality".
- Ecoustics

British High-Fidelity Architectural Sound Redefined
This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and four RDT III bass drivers.

This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of its acoustic technology was developed. This really is the last word in installed performance.

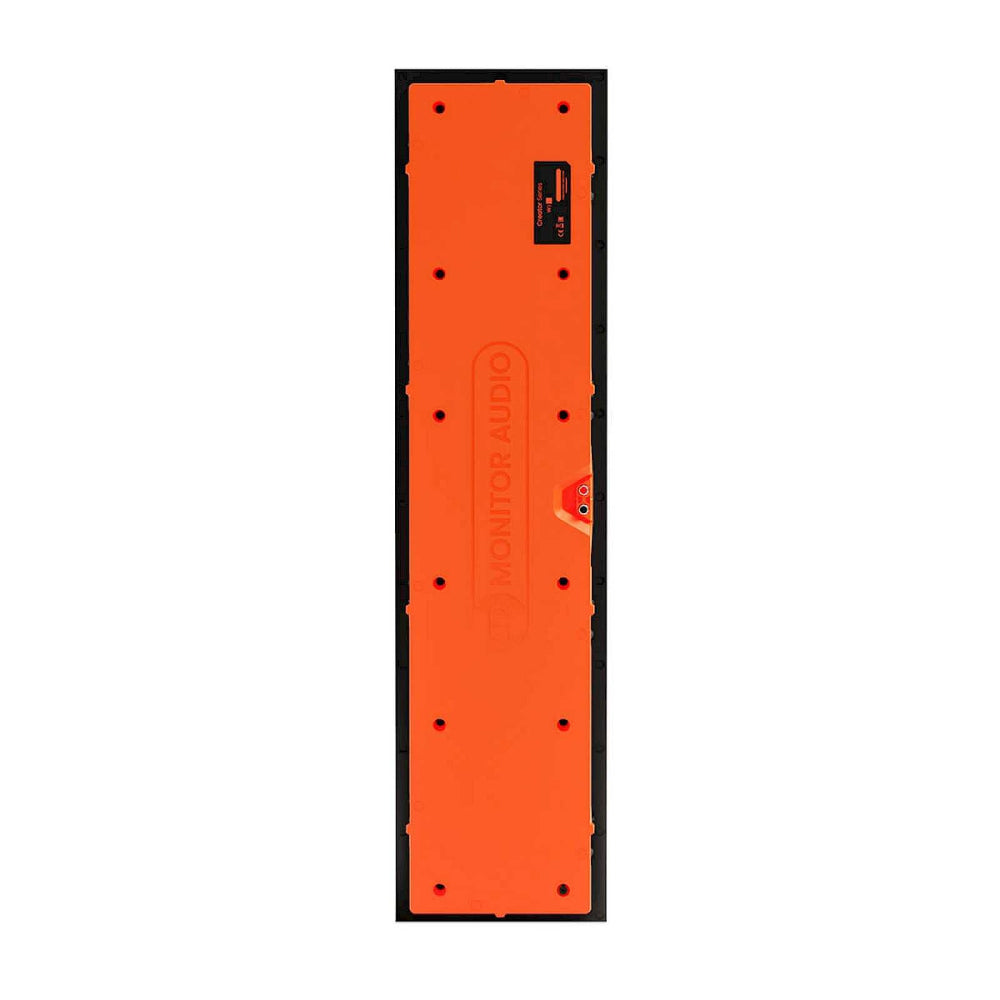

It has a cut-out dimension of 880 x 202 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.

How Your Reviews Drive Monitor Audio's Excellence
At Monitor Audio, we strive for audio excellence, and your feedback on Trustpilot is crucial to our journey. In today's market, trust is built on authentic experiences. Your reviews provide invaluable insights for potential customers, guiding them towards the superior, high-fidelity sound and quality, that Monitor Audio delivers. By sharing your thoughts, you directly influence our commitment to continuous improvement, helping us refine our products and services to meet your highest expectations.

TECHNINIAI DUOMENYS

System Format
3–Way

Frequency Response, Installed (-6dB)
36 Hz – 60 kHz

Sensitivity (2.83Vrms@1m, Installed)
89 dB

Nominal Impedance
4 Ohms

Minimum Impedance (20Hz to 20kHz)
4.5 Ohms @ 1.2 kHz

Maximum Peak SPL (AES75, Z-weighted)
123 dB

Continuous Power Handling (CTA 426-B)
300 W

Recommended Amplifier Power
(RMS, Music Signal)
150 – 600 W into 4 ohms
75 – 300 W into 8 ohms

Bass Alignment
Sealed

Crossover Frequency
LF/HF: 700 kHz
MF/HF: 3.25 kHz

Drive Unit Complement
4 x 5" (127 mm) RDT III bass driver
1 x 3" (76 mm) C-CAM midrange driver
1 x MPD II transducer

Mounting Depth
85 mm (33/8")

Cutout L x W
880 x 202 mm (345/8 x 715/16")

Pre-Construction Bracket
WL-B

External Dimensions with all accessories fitted (H x W x D)
909 x 231 x 93 mm (221/16 x 91/8 x 39/16")

Weight (each)
12.4 kg (27 lb 5 oz)

Cabinet Finish
Matte black & Orange & Green

Sold As
Single Unit

Warranty
Lifetime
