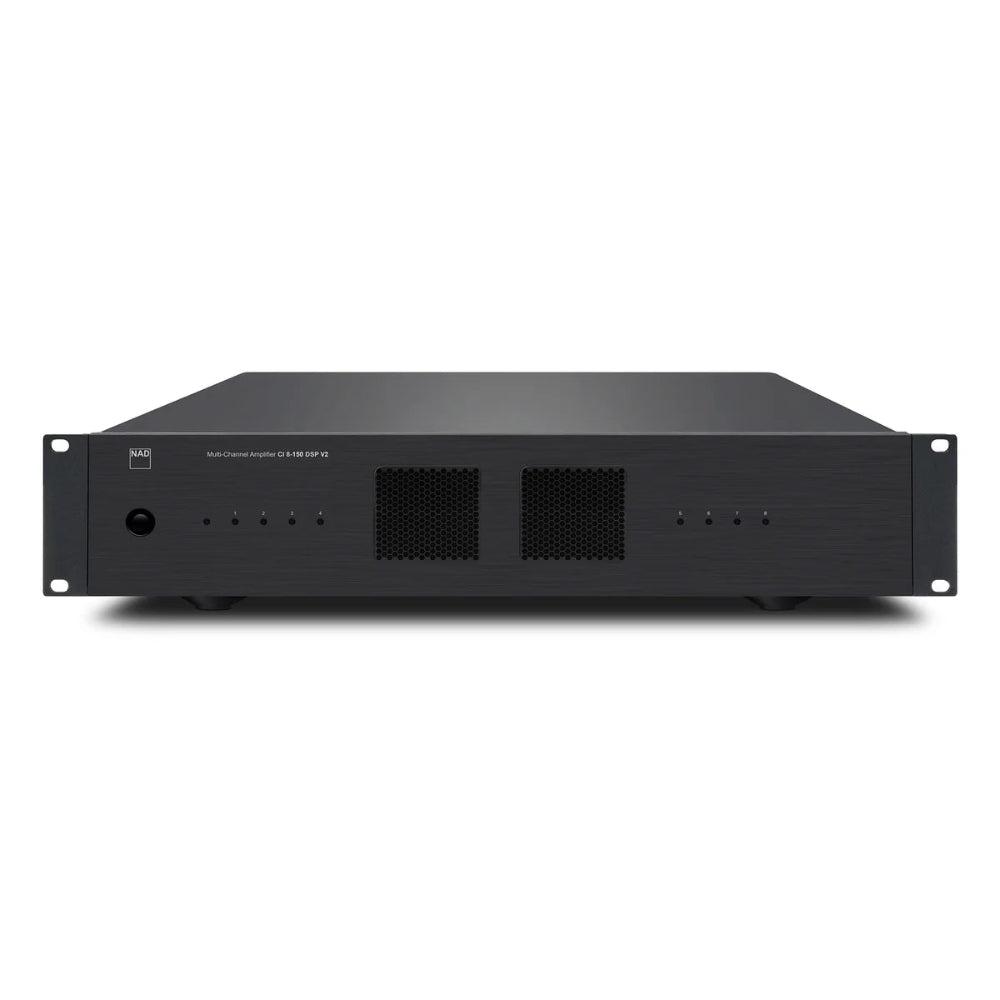

NAD CI 8-150 DSP v2, 8-ių kanalų stiprintuvas su DSP

INFORMACIJA

NAD CI 8-150 DSP v2 - profesionalus 8 kanalų stiprintuvas su integruotu DSP, sukurtas aukštos kokybės multiroom ir namų kino sistemoms. Šis modelis pasižymi galingu, švariu ir stabiliai valdomu garsu net ir sudėtingiausiose instaliacijose. Naudojant pažangią HybridDigital™ technologiją ir Hypex nCore stiprinimo modulius, stiprintuvas užtikrina maksimalų efektyvumą bei tikslų garso atkūrimą kiekvienoje zonoje. Integruotas DSP leidžia tiksliai sureguliuoti garsą pagal patalpą ir kolonėles.

Galia: 150 W / kanalas (8 Ω, visi kanalai), 180 W / kanalas (4 Ω), 280 W (bridge režimas, 8 Ω)
THD: 0.02%
Triukšmas ir signalas: 90 dB
Dažnių diapazonas: 20 Hz – 20 kHz

APRAŠYMAS

The NAD CI 8-150 DSP V2 Multi-Channel Amplifier is designed to deliver the most refined audio performance to the rack space. Powerful, controlled sound with precision required for the most demanding installated audio systems. With eight channels of high- performance amplification and onboard digital signal processing, it provides installers with the tools to optimise audio for each zone and loudspeaker. Built on NAD’s HybridDigital™ amplification platform, the CI 8-150 DSP V2 delivers clean, efficient power while maintaining stability during continuous operation.

KEY FEATURES
8 channels of Hybrid Digital amplification with custom
Hypex nCore output stages, for high end distributed audio and home theatre systems
150 watts per channel Full Disclosure Power -  continuous into 8 ohms, all channels running.
Setup and configuration via intuitive webUI
Integrated DSP for system optimization
Bridgeable channel pairs for high-power configurations

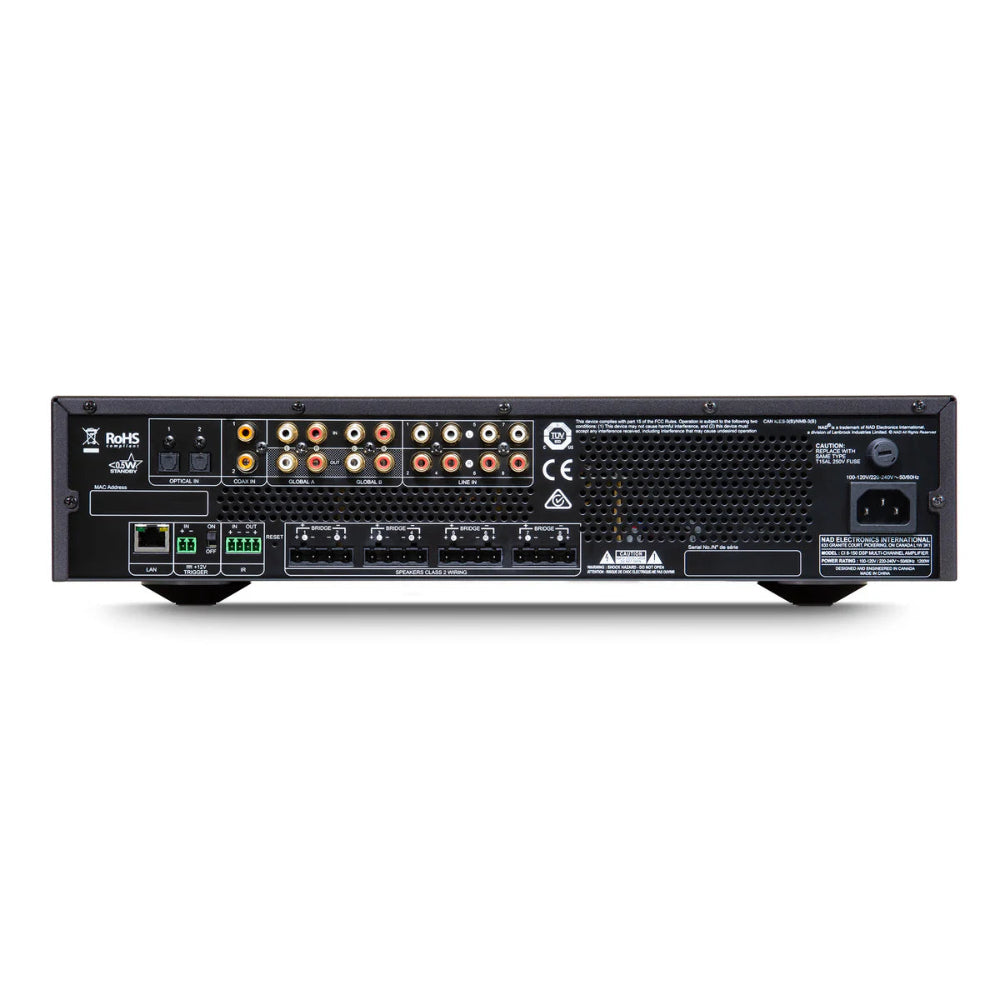

Rack-mount chassis for professional installations Line-level & Digital inputs
Flexible power options via signal sense and 12v trigger

Power Where It Matters Most
With 150 watts available per channel, the CI 8-150 DSP V2 is designed for zones that demand the very best sonic performance. It is well suited for larger rooms, high end loudspeakers, or home theatre systems. Using NADs HybridDigital amplification with customized Hypex nCore output stages combined with a robust power supply and high current output and load invariant design the CI8-150 DSP v2 can deliver the most satisfying sound in the most demanding environments. Channels can be bridged, providing enough power to drive architectural subwoofers.

Full Diclosure Power
NAD has always provided real world power specification for amplifiers; we refer to this as FDP (or Full Disclosure Power). It means that the power rating provided refers to continuous power, with all channels driven simultaneously into an 8ohm load, using a full frequency test tone and with THD at rated power. This is especially important when delivering high performance audio systems where meeting a clients expectations on performance and reliability are essential, and allows the integrator to specify an amplifier that will meet the demands of the system.

Integrated DSP for System Accuracy
The CI 8-150 DSP V2 incorporates onboard digital signal processing to help installers fine-tune performance to the loudspeakers and environment. DSP allows for precise adjustment to achieve balanced output and consistent tonal response across zones, while providing protection for the speakers with the use of Peak and RMS Limiters as well as setting crossovers for integrated subwoofers.

Intuitive Setup and Control
NAD’s DSP amplifiers are configured via an intuitive web UI. A Dashboard provides real time critical information, power settings, I/O, Zone configuration and DSP can all be configured from within this clean and simple interface.

TECHNINIAI DUOMENYS

GENERAL
Continuous output power into 8 ohms    150 W (ref. 20 Hz-20 kHz at rated THD - all channels driven)
Continuous output power into 4 ohms    180 W (ref. 20 Hz-20 kHz at rated THD - all channels driven)
Continuous output power into 8 ohms at Bridged mode    280 W (ref. 20 Hz-20 kHz 0.02% THD - all channels driven)
THD (20 Hz – 20 kHz)    0.02% (1 W to 120 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio    90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (All channels driven)    160W(1kHz8ohms 0.1%THD)
Clipping power into 8 ohms at Bridged mode    300 W (1 kHz 0.1 % THD - all channels driven)
IHF Dynamic Power (all channels driven) - 8 Ohms    180W
IHF Dynamic Power (all channels driven) - 4 Ohms    280W
IHF Dynamic Power (two channels driven) - 8 Ohms    200W
IHF Dynamic Power (two channels driven) - 4 Ohms    360W
IHF Dynamic Power (Bridged mode, All channels driven) - 8 Ohms    520W
IHF Dynamic Power (Bridged mode, All channels driven) - 4 Ohms    670W
IHF Dynamic Power (Bridged mode, Two channels driven) - 8 Ohms    600W
IHF Dynamic Power (Bridged mode, Two channels driven) - 4 Ohms    800W
Peak output current    26A(1ohm,1ms)
Damping Factor    150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response    ±0.5dB(20Hz-20kHz)
Channel Seperation    75 dB (1 kHz)
Maximum undistorted input level    3300 mV
Input sensitivity (for 150 W in 8 ohms, maximum volume)    1450 mV
Analog Input audio sense threshold (one channel with signal)    3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level    3-30Vdc
Standby power    0.5 W
DIMENSION AND WEIGHT
Gross dimensions (W x H x D)*    483x90x435mm
Shipping Weight    17.6 kg (38.8 lbs)
*Specifications subject to change without notice.
