NAVLINKZ CAM-E-Q32, Priekinė vaizdo kamera automobiliui

179.00 €

NAVLINKZ CAM-E-Q32, Priekinė vaizdo kamera automobiliui yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

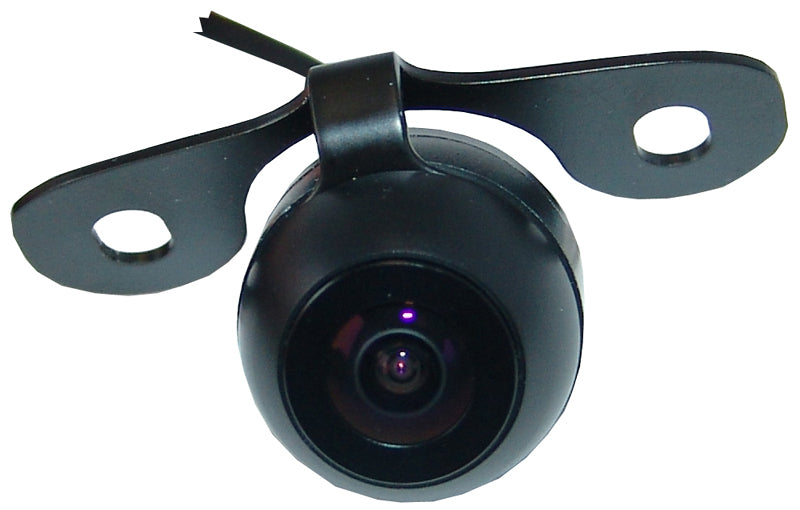

Mini priekinio vaizdo kamera su laikikliu ir  180° matymo kampu.

  • Sensorius 1/4inch CMOS low-light sensitive sensor MT9V136.
  • Rezoliucija: 720 x 480 PX.
  • Vaizdo formatas: NTSC colour.
  • Atsparumo standartas: IP69K.
  • RCA jungtis.



Mini butterfly camera NTSC 1/4inch CMOS low-light sensitive sensor with wide angle 180° diagonal. Can be used as rear-view or front camera, because mirroring is switchable. No guide lines. IP69K.

Savybės

  • Mini butterfly camera
  • Usable as rear-view and front camera - mirroring is switchable
  • Sensor type 1/4inch CMOS low-light sensitive sensor MT9V136
  • Pcture format NTSC colour
  • Resolution 720x480 Pixel
  • Bezel F1.2
  • Minimal illumination 0.5 Lux
  • 480 TV lines
  • Angle horizontal 140°, vertical 95°, diagonal 180°
  • Protection class IP69K
  • Camera and holder colour black

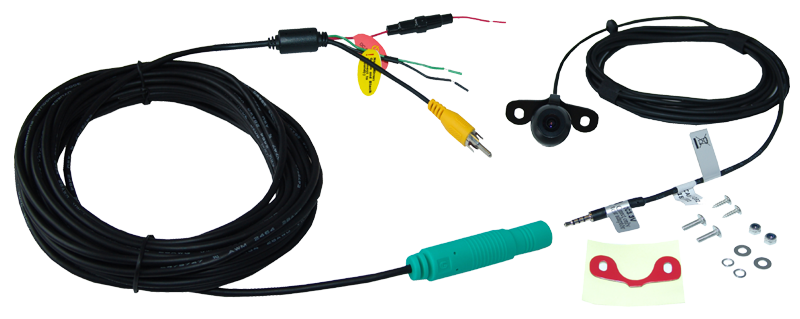

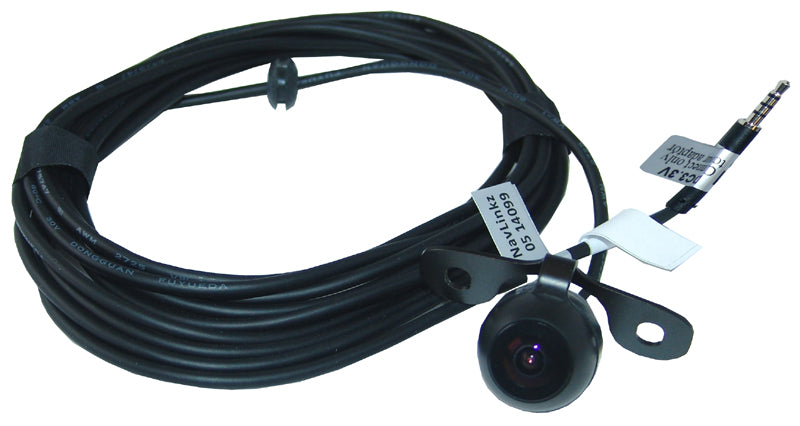

  • Total cable length 10.90m
  • Video-connector RCA male connector
  • System connector camera 2.5mm jack, 4 contacts
  • Diameter camera connector 4.5mm



SPECIFIKACIJOS

Operating voltage +12V DC (6V ~ 28V)
Current consumption 32mA
Power consumption 0.4W
Weight incl. cable about 225g
Operating temperature range -30°C to +75°C

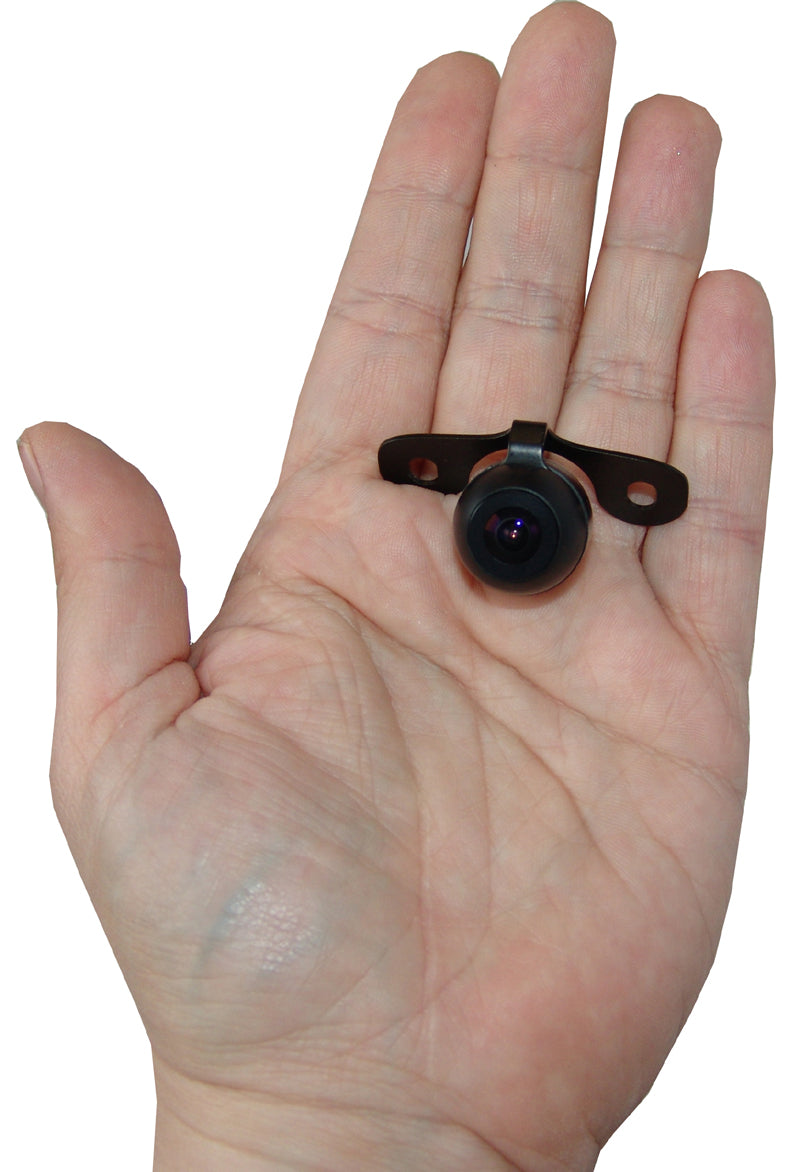

Dimensions camera without holder
Diameter 19.2mm, Length 19.8mm
