NAVLINKZ CAM-Q181, Universali priekinio-galinio vaizdo kamera

NAVLINKZ CAM-Q181, Universali priekinio-galinio vaizdo kamera

Galinio vaizdo kamera, palengvinanti automobilio parkavimą atbuline eiga.
Tinkama visoms negamyklinėms multimedijos sistemoms, turinčioms linijinį vaizdo signalo įėjimą galinio vaizdo kamerai.

• Sensoriaus tipas: CMOS 1/4 inch HD.
• Matymo kampas: 180°.
• Atsparumo standartas: IP69K.

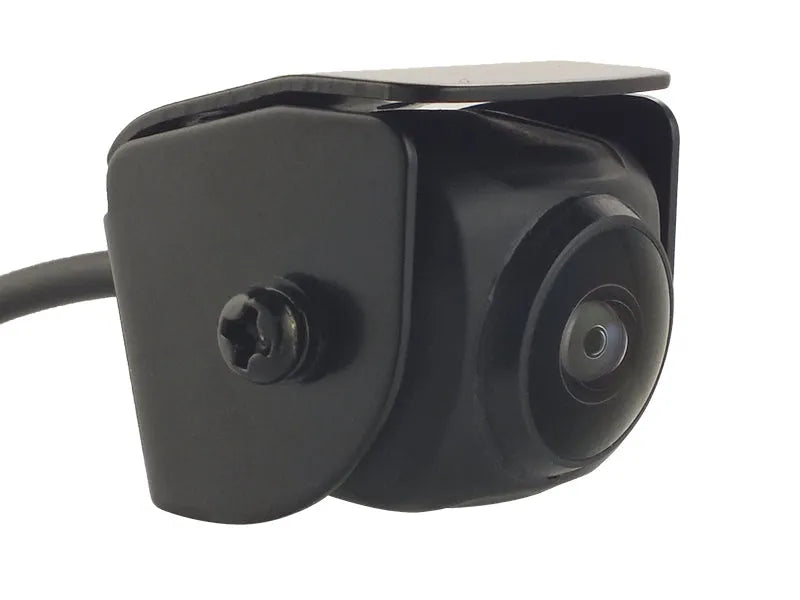

Mini NTSC mount-under-front- and rear-view camera in black metal housing. Simple installation through threaded tube with cable guide and counter nut. Horizontal base frame and vertical mounting possible. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

SPECIFIKACIJOS

• Mini camera NTSC in metal housing (black)
• Cable-guided thread tube with counternut
• System cable with throughput, e.g. for reverse signal

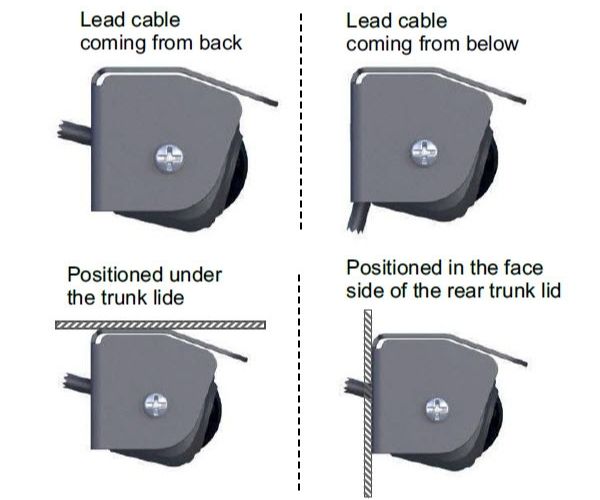

• Horizontal mount-under and vertical mount-on possible
• Mirroring can be switched off - suitable also as front camera
• Sensor type CMOS 1/4 inch HD NTSC low-light sensitive
• Bezel F1.2
• Light sensitivity 0.01Lux, 800 TV lines
• Angle horizontal=140°, vertical=105°, diagonal=180°
• Guide-lines‘ width selectable between car and truck
• Guide-lines can be switched off
• Protection class IP69K
• Suitable for permanent operation (ACC)
• Video connection: RCA male connector

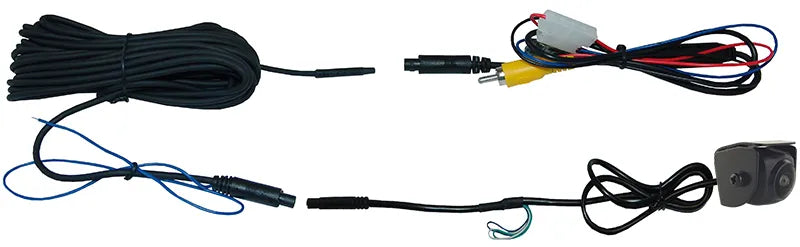

• System cable of camera: 4pin 3V

Dimensions

Specifications
