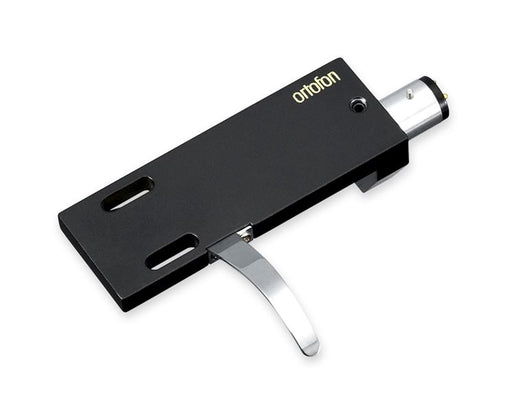

LH-4000 yra pagrindinis aukštos kokybės ausinių korpusas, sukurtas specialiai "HiFi" įrenginiams.
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.
Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.
A - Headshell length
B - Headshell width
C - Mounting distance max.
D - Mounting distance min.
E - Screw diameter max.
HEADSHELL MODEL | A Headshell length |
B Headshell width |
C Mounting distance max. |
D Mounting distance min. |
E Screw diameter max. |
SH-4 | 51.5 mm | 20.0 mm | 45.4 mm | 36.4 mm | 3.0 mm |
LH-2000 | 50.3 mm | 20.0 mm | 43.4 mm | 35.3 mm | N/S |
LH-4000 | 51.9 mm | 19.1 mm | 45.6 mm | 39.5 mm | N/S |
LH-6000 | 47.5 mm | 19.1 mm | 42.4 mm | 36.6 mm | N/S |
LH-8000 | 50.3 mm | 18.8 mm | 42.2 mm | 33.0 mm | N/S |
LH-9000 | 52.0 mm | 20.0 mm | 44.9 mm | 38.1 mm | N/S |
LH-10000 | 50.0 mm | 19.4 mm | 42.4 mm | 42.4 mm | 2.7 mm |
