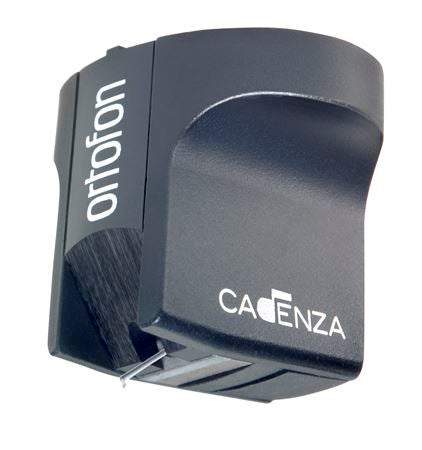

Ortofon MC Cadenza Black, patefono galvutė

3,499.00 €

Ortofon MC Cadenza Black, patefono galvutė yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

"Cadenza Black" optimizuotas taip, kad užtikrintų nuostabų tonų neutralumą, dinamiką ir garso grynumą.

  • Stylus tipas: Nude Shibata on Boron cantilever
  • Dažnių juosta: - 20 Hz - 20 kHz - +1.5/0.
  • Spaudimo galia: 2.0-2.5 g (20-25 mN).

The Cadenza Black model is using a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminium.
It also uses the WRD/Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression and MC A95 cartridges, controlling the high and low frequency damping separately.
The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Cadenza Black is high performing on areas like detail, consistency and sound staging.


SPECIFIKACIJOS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.33 mV
  • Channel balance at 1 kHz - < 0.8 dB
  • Channel separation at 1 kHz - > 27 dB
  • Channel separation at 15 kHz - > 20 dB
  • Frequency response 20 Hz - 20 kHz - +1.5/0
  • Tracking ability at 315Hz at recommended tracking force *) - 90 µm
  • Compliance, dynamic, lateral - 16 µm/mN
  • Stylus type - Nude Shibata on Boron cantilever
  • Stylus tip radius - r/R 6/50 µm
  • Tracking force range - 2.0-2.5 g (20-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
    *) Typical value
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 10 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge colour - Black/Black
  • Cartridge weight - 10.7 gram



INSTRUKCIJOS

User Manual (EN).
