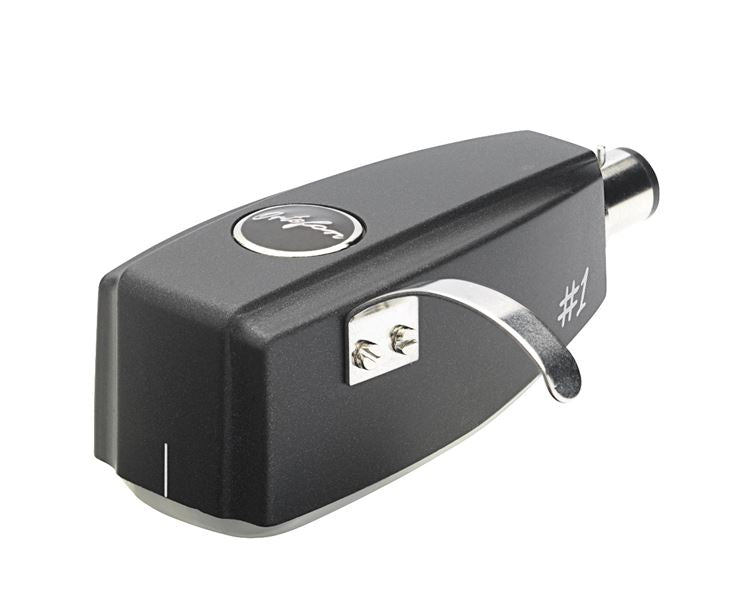

Ortofon SPU #1 S, patefono galvutė

699.00 €

Ortofon SPU #1 S, patefono galvutė yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

Atitinkamai sferinis ir elipsinis stylus'as. SPU #1 E elipsinis plunksnos profilis užtikrina detalesnį garso atkūrimą ir platų vaizdavimą.

  • Dažnių diapazonas: 20-20.000 Hz ± 3 dB
  • Stylus type: Spherical.
  • Rekomenduojama sekimo jėga 3.0-5.0 g (30-50 mN).
  • Sekimo kampas - 20°.



Perfect all-rounders for the newcomers to the world of SPU

The SPU #1 S and SPU #1 E feature:
-    Respectively Spherical and Elliptical stylus. The SPU #1 E elliptical stylus profile provides more detailed sound reproduction and expansive imaging.
-    High Purity Copper armature windings and terminal leads
-    Grinded wood and resin composite housing

These SPU cartridges embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.  Excellent price-to-performance ratio.

SPECIFIKACIJOS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.18 mV
  • Channel balance at 1 kHz  -  1.5 dB
  • Channel separation at 1 kHz  -  20 dB
  • Channel separation at 15 kHz  -  10 dB
  • Frequency response - 20-20.000 Hz ± 3 dB
  • Tracking ability at 315Hz at recommended tracking force *)  - 60 µm
  • Compliance, dynamic, lateral - 10 µm/mN
  • Stylus type - Spherical / Elliptical
  • Stylus tip radius - R 18 µm  / r/R 8/18 μm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force, recommended - 4.0 g (40 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 2 ohm
  • Recommended load impedance  > 10 ohm
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge colour - Black matte
  • Cartridge weight - 28 g

INSTRUKCIJOS

User Manual (EN).
