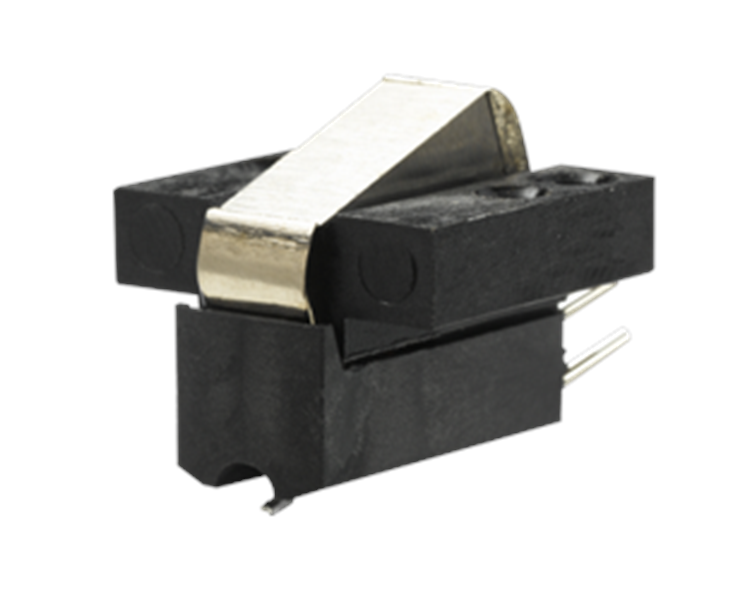

Ortofon SPU Classic N E, patefono galvutė

"SPU Classic NE" yra "Moving Coil" (MC) kartridžas su eliptinio profilio stylusu, kuris užtikrina detalesnį garso atkūrimą.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 999.00 €
Kaina: 999.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Ortofon SPU Classic N E, patefono galvutė

"SPU Classic NE" yra "Moving Coil" (MC) kartridžas su eliptinio profilio stylusu, kuris užtikrina detalesnį garso atkūrimą.

  • Dažnių diapazonas - 20-20 000 Hz + 1,5/- 0 dB.
  • Stylus type- Nude Eliptical.
  • Rekomenduojama sekimo jėga - 3.0-5.0 g (30-50 mN).
  • Sekimo kampas - 20°.



The SPU Classic NE is sold without the integrated headshell unit.
The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using the SPU N adaptor.
Those with vintage SPU-type headshells can use the Classic NE to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.



SPECIFIKACIJOS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz  < 1 dB
  • Channel separation at 1 kHz  > 20 dB
  • Channel separation at 15 kHz  > 10 dB
  • Frequency response - 20-20.000 Hz + 3/- 2 dB
  • Tracking ability at 315Hz at recommended tracking force *)  - 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force, recommended - 4.0 g (40 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 2.0 ohm
  • Recommended load impedance > 10 ohm
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge colour - Black matte
  • Cartridge weight - 13 g



INSTRUKCIJOS

User Manual (EN).
