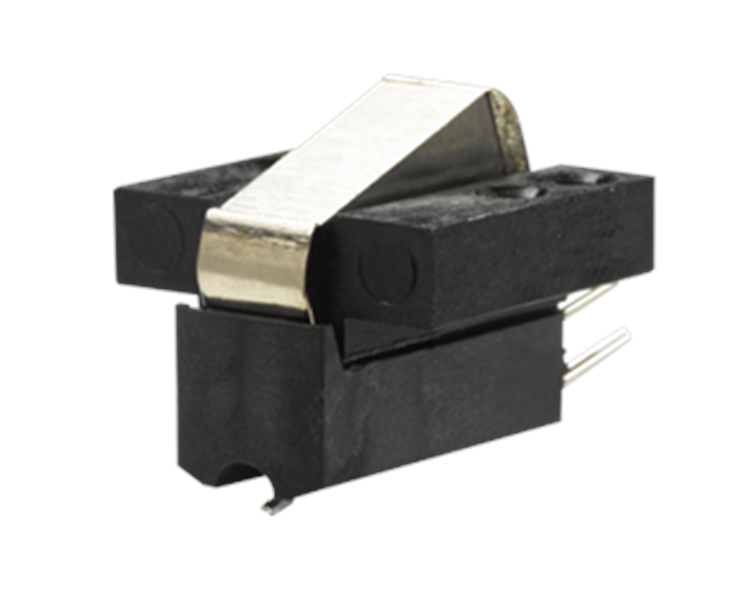

Ortofon SPU Classic N, patefono galvutė

"SPU Classic N" yra "Moving Coil" (MC) kartridžas su eliptinio profilio stylusu, kuris užtikrina detalesnį garso atkūrimą.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 899.00 €
Kaina: 899.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Ortofon SPU Classic N, patefono galvutė

"SPU Classic N" yra "Moving Coil" (MC) kartridžas su eliptinio profilio stylusu, kuris užtikrina detalesnį garso atkūrimą.

  • Dažnių diapazonas - 20-20 000 Hz ± 3 dB.
  • Stylus type- Nude Spherical.
  • Rekomenduojama sekimo jėga - 3.0-5.0 g (30-50 mN).
  • Sekimo kampas - 20°.



The SPU Classic N provides the same sound reproduction properties as the SPU Classic GM series

The SPU Classic N is sold without the integrated headshell unit.
The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.
Listeners who wish to mount the SPU Classic on a traditional headshell may do so by using the SPU N adaptor.
Those with vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.



SPECIFIKACIJOS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz  < 1 dB
  • Channel separation at 1 kHz  > 20 dB
  • Channel separation at 15 kHz  > 10 dB
  • Frequency response - 20-20.000 Hz ± 3 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Spherical
  • Stylus tip radius - R 18 µm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force, recommended - 4.0 g (40 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 2.0 ohm
  • Recommended load impedance  > 10 ohm
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge colour - Black matte
  • Cartridge weight - 13 g

INSTRUKCIJOS

User Manual (EN).
