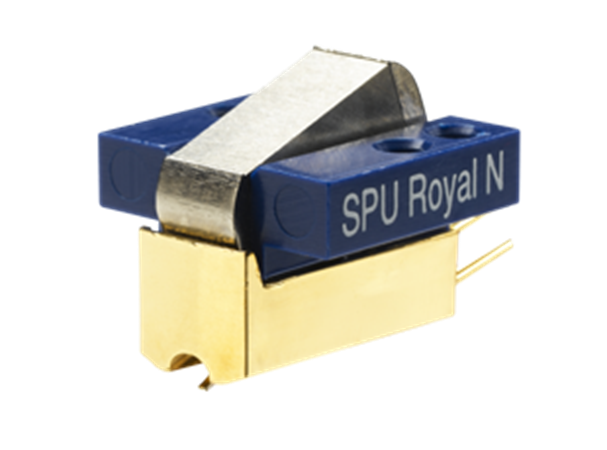

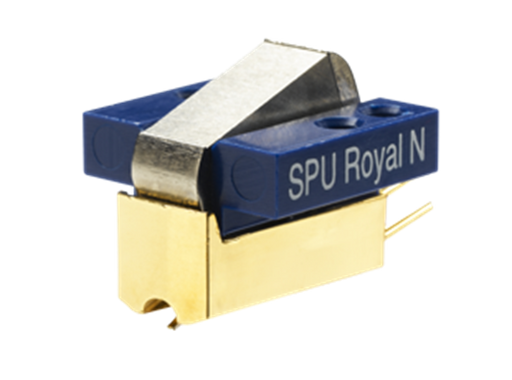

Ortofon SPU Royal N, patefono galvutė

€2,399.00 EUR

Ortofon SPU Royal N, patefono galvutė - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Pridėtas unikalus "Ortofon" "Replicant 100" stylusas ir sumažinta antgalio masė užtikrina atvirą ir detalų garso atkūrimą, kad klausymasis būtų išskirtinis.

  • Dažnių diapazonas - 20-20 000 Hz + 1,5/- 0 dB.
  • Stylus type- "Nude Ortofon Replicant 100.
  • Rekomenduojama sekimo jėga - 3,0 g (30 mN).
  • Sekimo kampas - 20°.



The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.



SPECIFIKACIJOS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz  > 25 dB
  • Channel separation at 15 kHz  > 20 dB
  • Frequency response - 20-20.000 Hz + 1,5/- 0 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Ortofon Replicant 100
  • Stylus tip radius - r/R 5/100 µm
  • Tracking force range - 2.5-3.5 g (25-35 mN)
  • Tracking force, recommended - 3.0 g (30 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 7 ohm
  • Recommended load impedance > 100 ohm
  • Coilwire material - Goldplated silver
  • Cartridge colour - Shiny black
  • Cartridge weight - 13 g



INSTRUKCIJOS

User Manual (EN).
