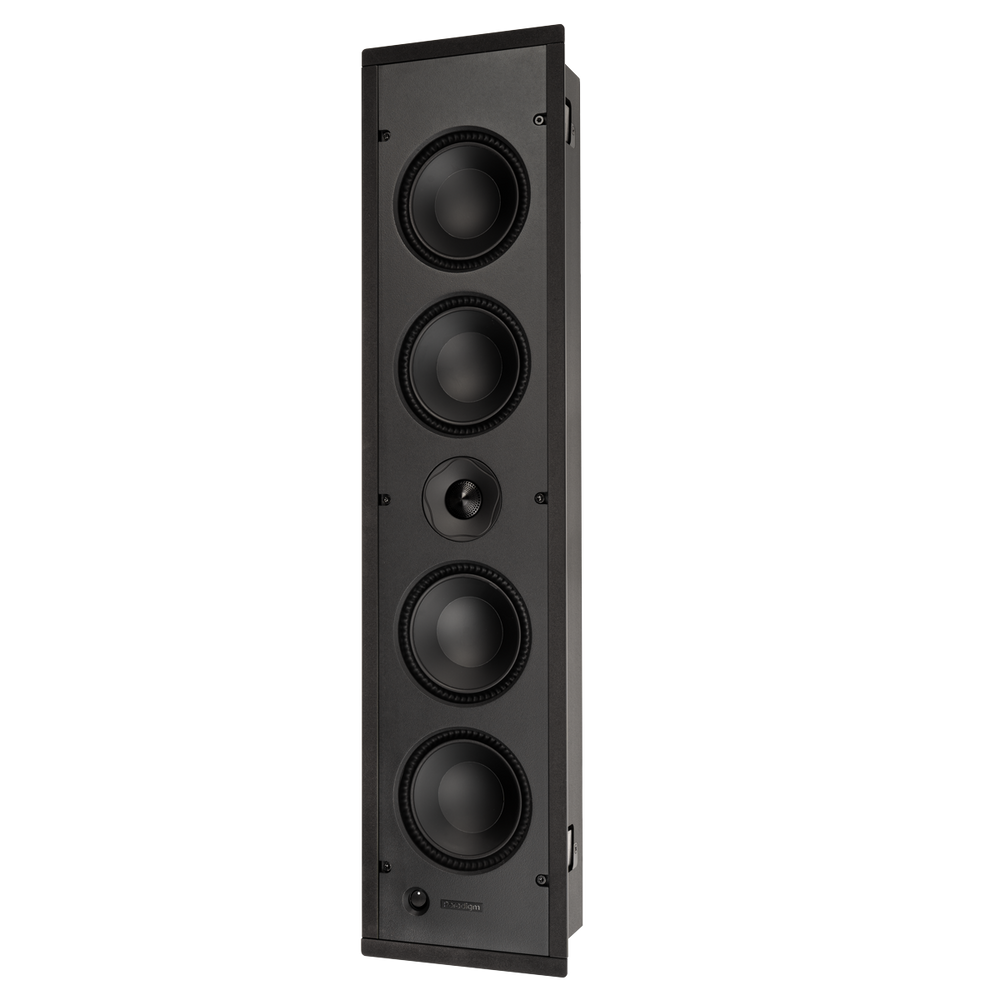

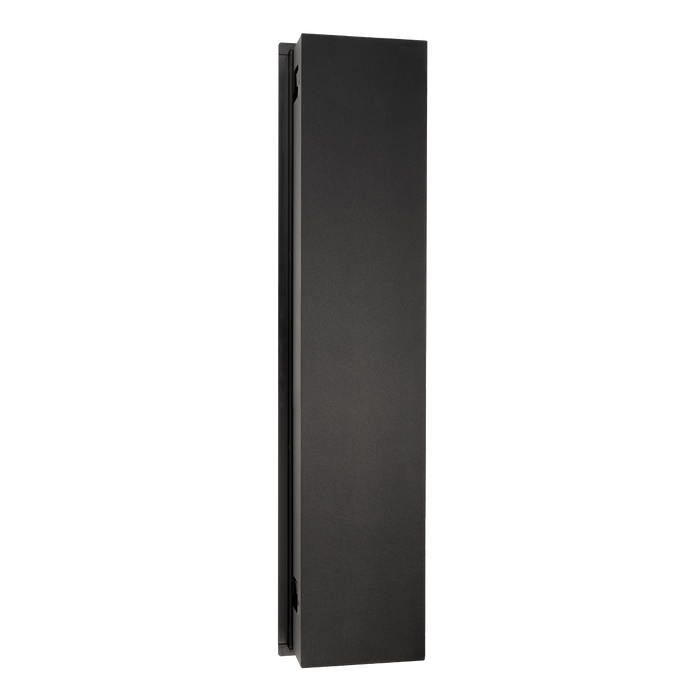

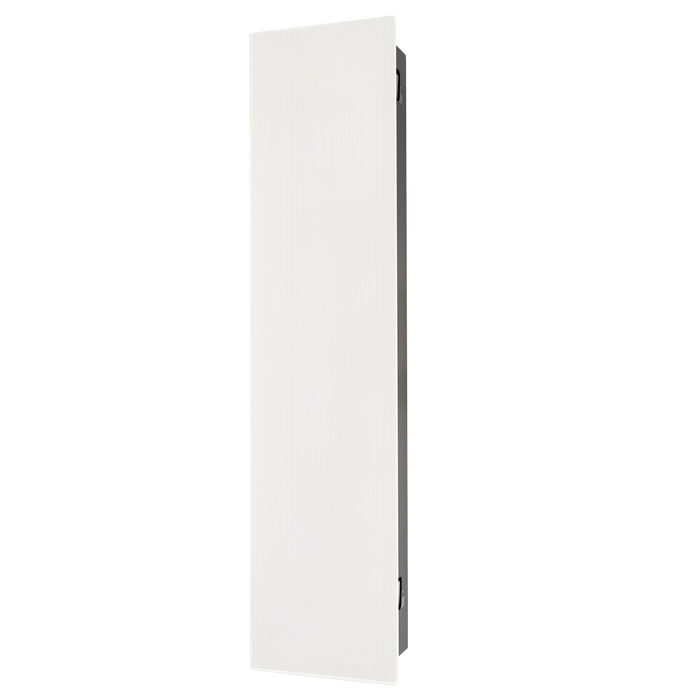

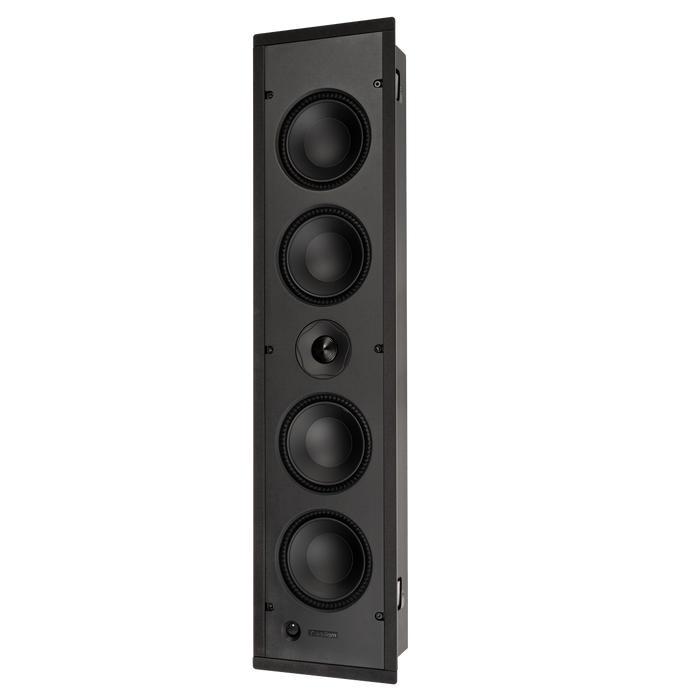

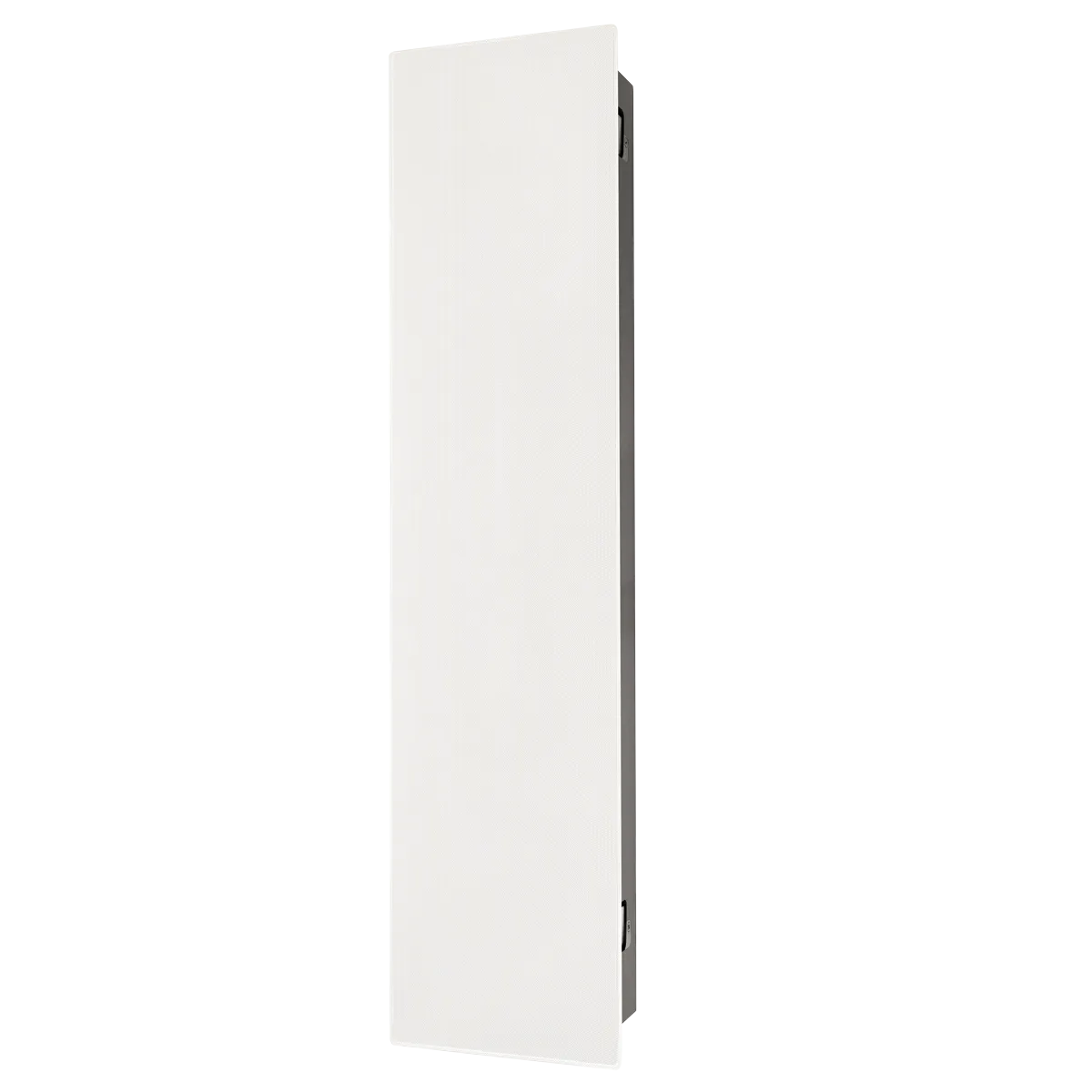

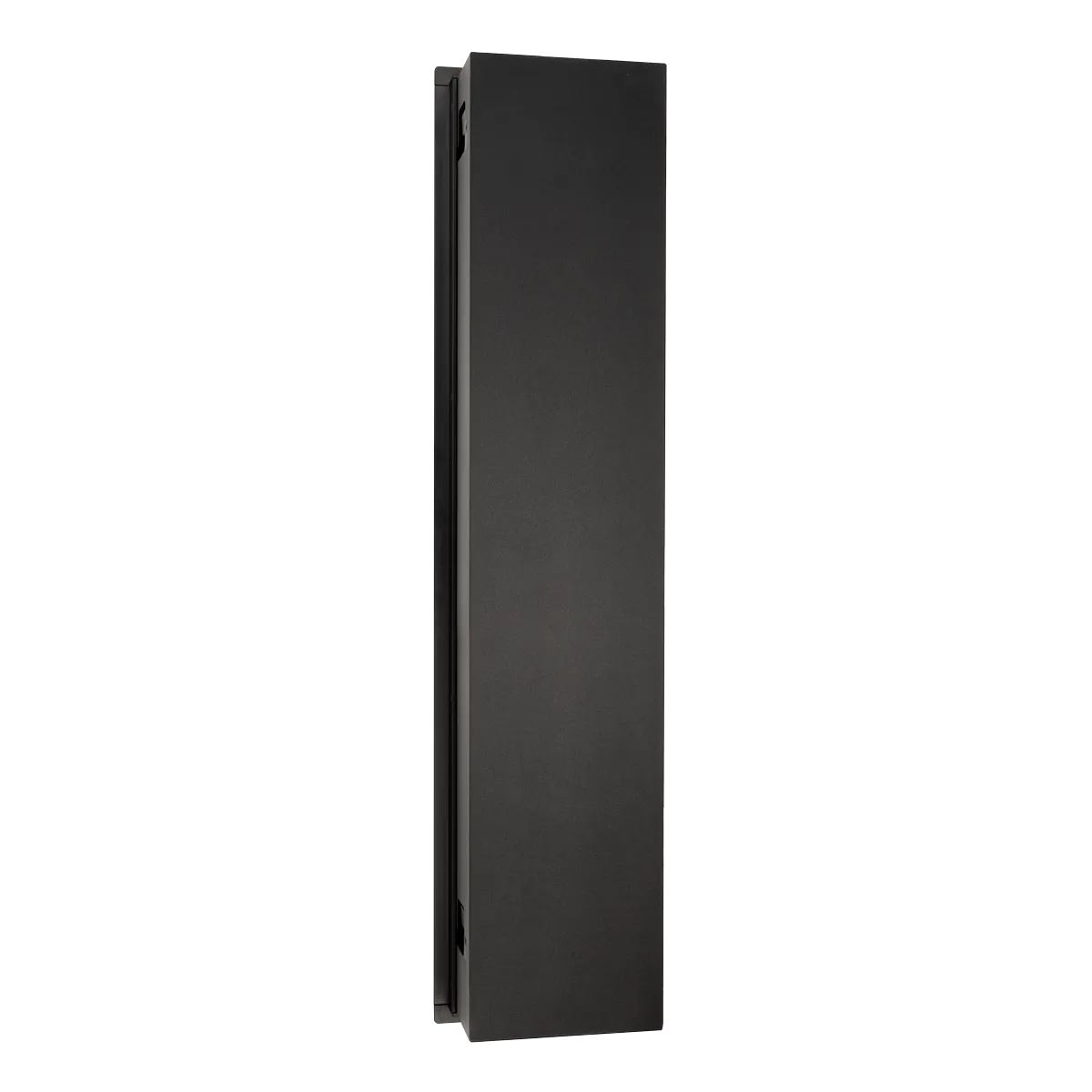

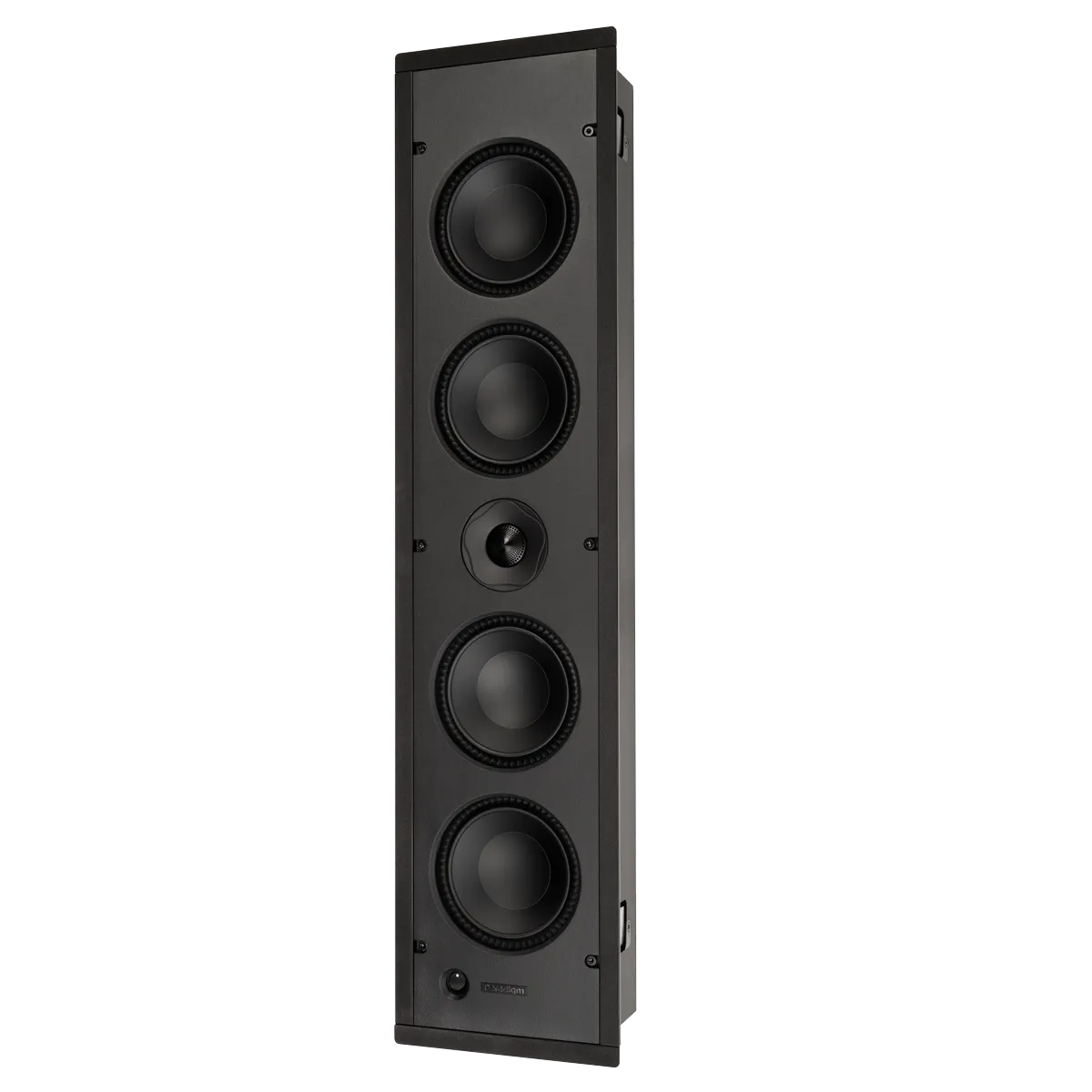

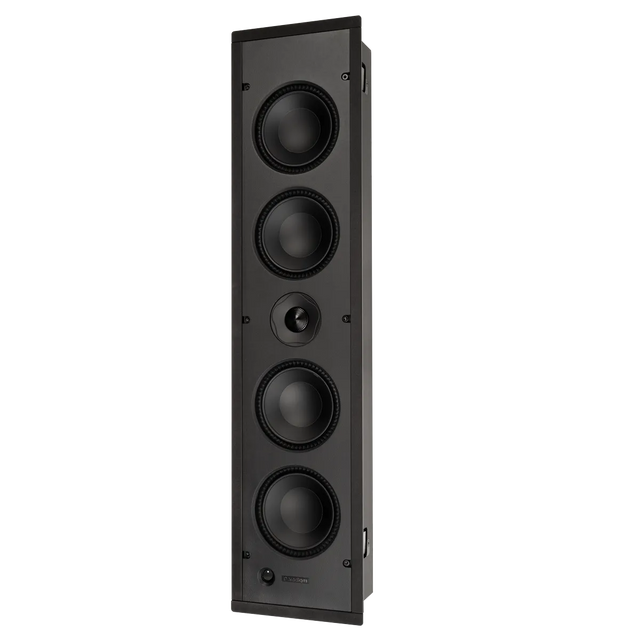

Paradigm CI Elite E3 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.)

3,000.00 €

Paradigm CI Elite E3 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.) - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

"CI Elite" serija yra pagaminta Kanadoje ir turi visus mūsų "CI PRO" serijos technologinius privalumus, tačiau tuo neapsiribojome.

  • Rekomend. stiprintuvo galia: 15-200W.
  • Jautrumas: 92 dB.
  • Dažnių juosta: 93 Hz - 19 kHz.
  • Išpjovos matmenys: 78.8cm x 16.0cm.
  • Minimalus montavimo gylis:  9.8 cm.
  • Dažomas paviršius.






Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

Aluminum Magnesium
(AL-MAG™) Cones

Similar to the goals we had in mind when developing the AL-MAC™ tweeter, AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.

Advanced
Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Oversized, 1.5” High-Power Handling Voice Coil

motor structure dramatically increases maximum output level and reduces power compression.

Patented† Active Ridge Technology (ART™) surrounds

made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Advanced Features for a Solid and Secure Installation

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)

Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)

Pocketed screw holes help to hold the drill steady, making installation a snap.

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.


SPECIFIKACIJOS

DESIGN 3-driver, dual passive radiators, 2-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System, Machined Aluminum Baffle
CROSSOVER 3rd-order electro-acoustic at 2.3 kHz
FREQUENCY RESPONSE ON-AXIS ±3 dB from 93 Hz - 22 kHz
HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER Two 5.5” (13.9cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
LOW FREQUENCY EXTENSION 57 Hz
SENSITIVITY ROOM / ANECHOIC 92 dB / 89 dB
FREQUENCY RESPONSE 30° OFF-AXIS ±3 dB from 93 Hz - 19 kHz
SUITABLE AMPLIFIER POWER RANGE 15-200 W
MAXIMUM INPUT POWER 130 W
IMPEDANCE Compatible with 8 ohms
WEIGHT 23.0 lbs (10.4 kg)
FINISHES White, paintable grille, black speaker
PASSIVE RADIATORS Two 5.5” (13.9cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
CUT-OUT DIMENSIONS 31”x 6-5/8” (78.8cm x 16.0cm)
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 		3-7/8” (9.8cm)
DIMENSIONS HXWXD (INCLUDES GRILLE). 32” x 7-5/8” x 4-1/8” (81.4cm x 19.5cm x 10.5cm)



INSTRUKCIJOS

User Manual (EN).
