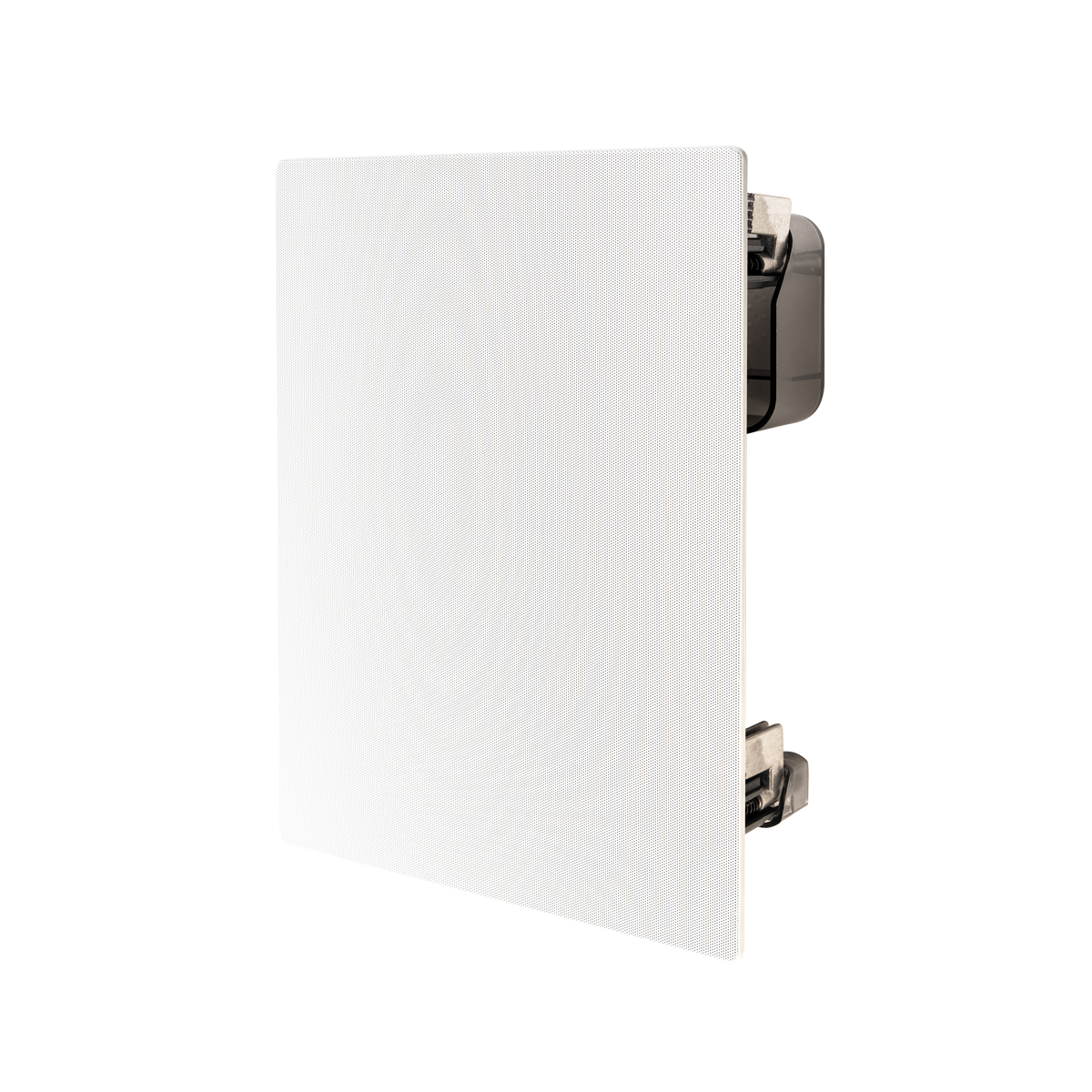

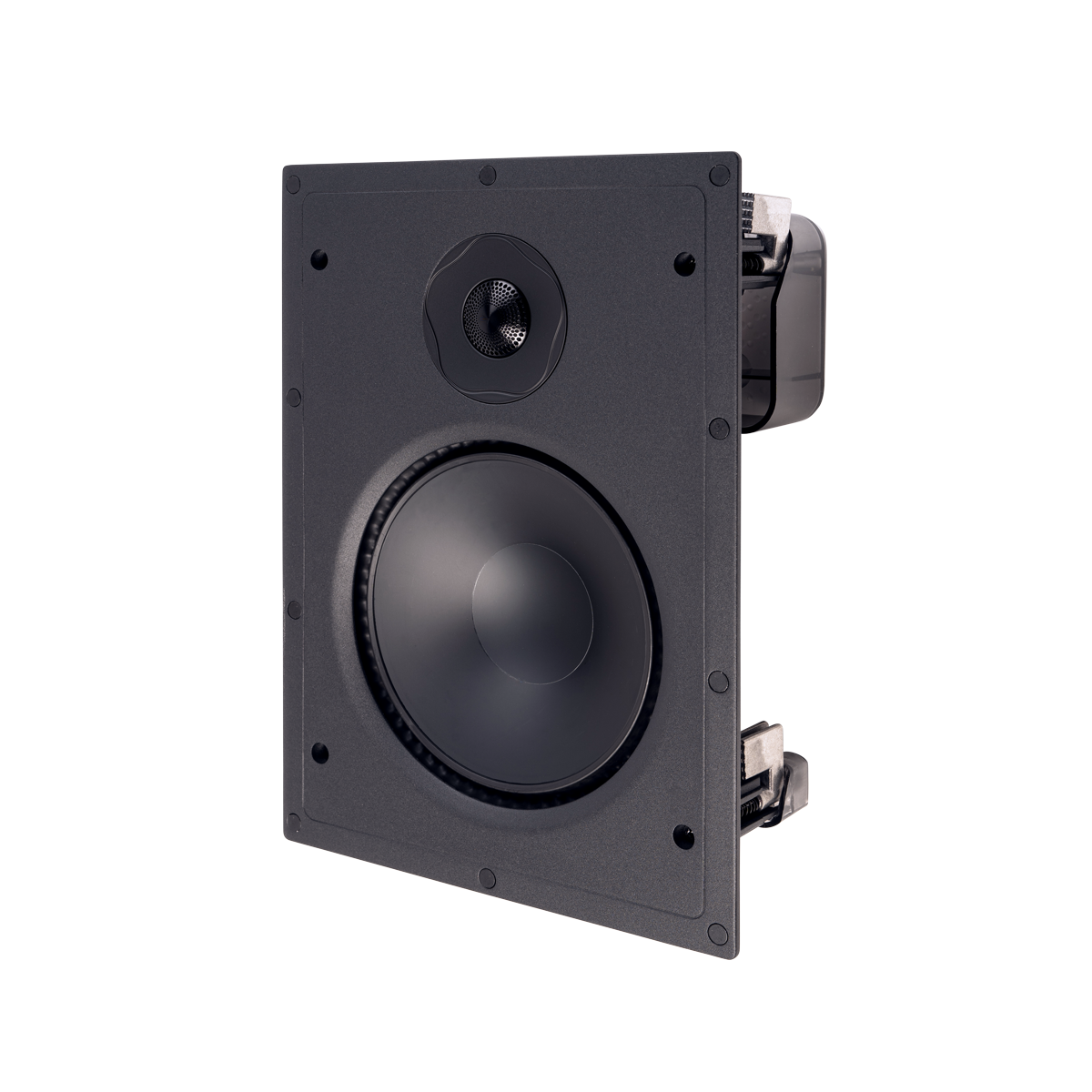

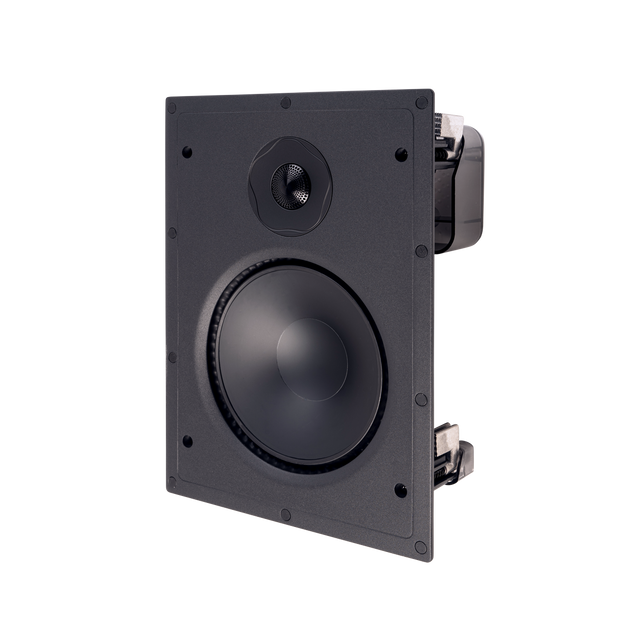

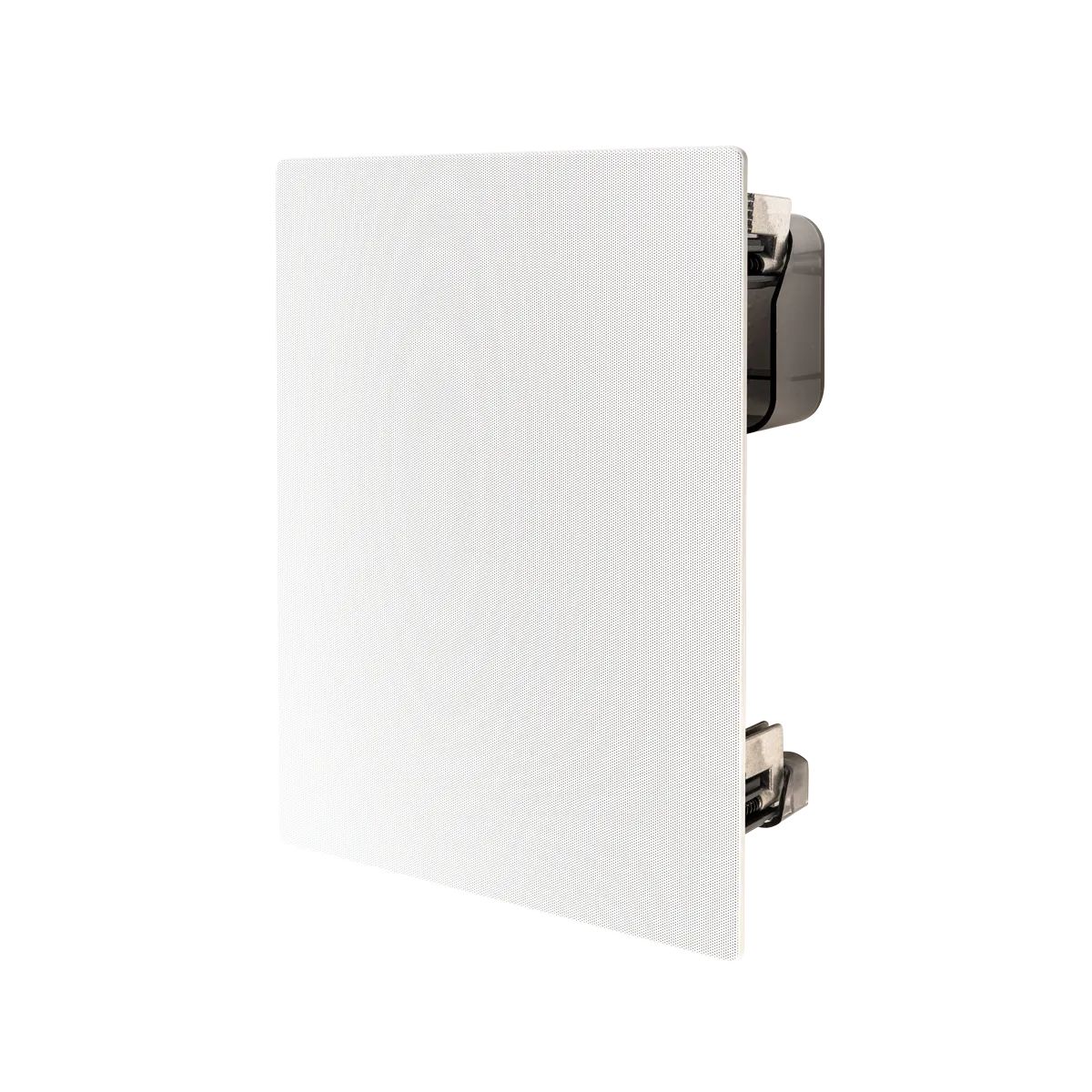

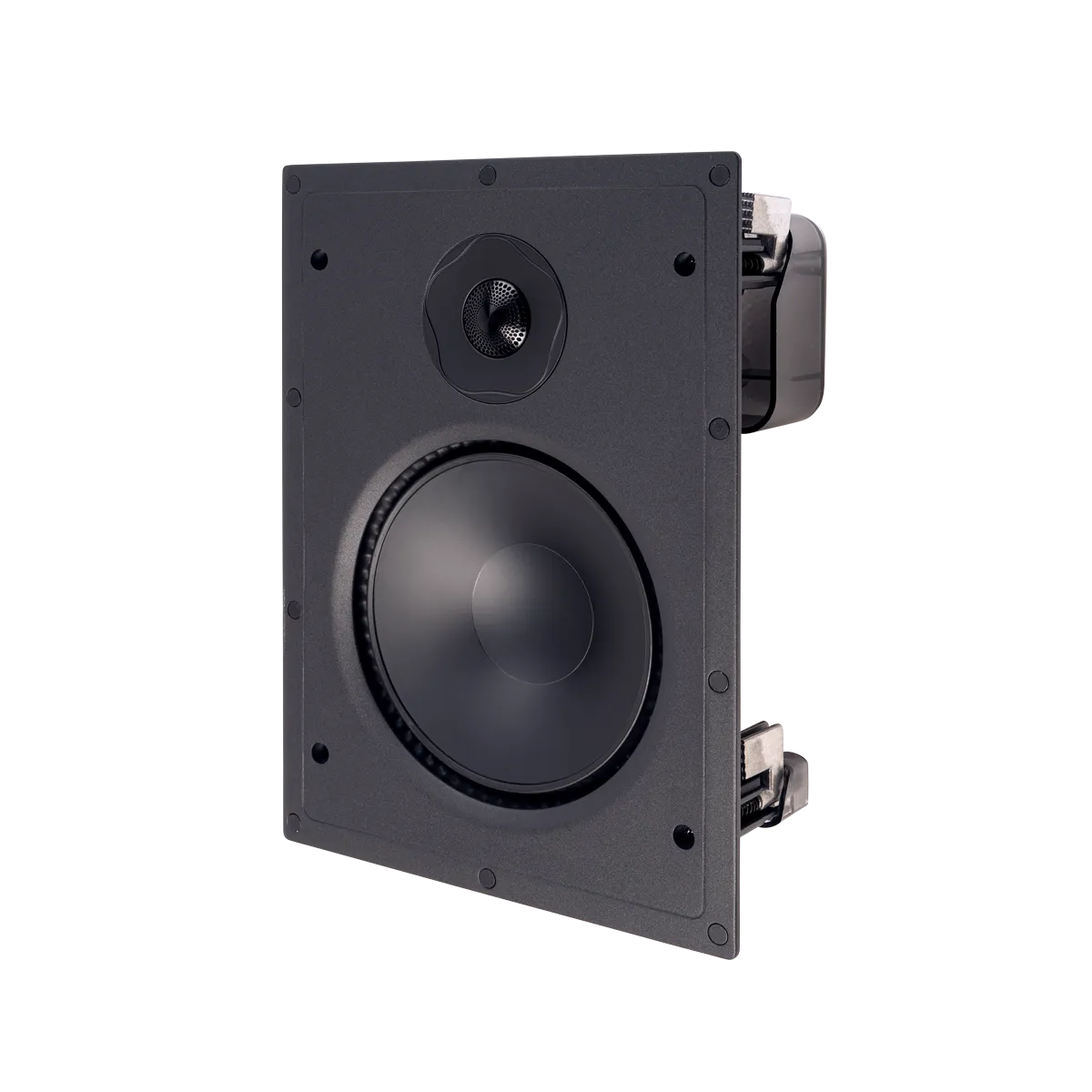

Paradigm CI Elite E80-IW v2, į sieną montuojama garso kolonėlė (montavimo gylis: 8.6 cm.)

"CI Elite" serija yra pagaminta Kanadoje ir turi visus mūsų "CI PRO" serijos technologinius privalumus, tačiau tuo neapsiribojome.
€1,100.00 EUR

Paradigm CI Elite E80-IW v2, į sieną montuojama garso kolonėlė (montavimo gylis: 8.6 cm.) - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

"CI Elite" serija yra pagaminta Kanadoje ir turi visus mūsų "CI PRO" serijos technologinius privalumus, tačiau tuo neapsiribojome.

  • Rekomend. stiprintuvo galia: 15-180W.
  • Jautrumas: 92 dB.
  • Dažnių juosta: 57 Hz - 18 kHz.
  • Išpjovos matmenys: 29.3cm x 20.5cm.
  • Minimalus montavimo gylis:  8.6 cm.
  • Dažomas paviršius.





APRAŠYMAS


Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.



Aluminum Magnesium
(AL-MAG™) Cones

Similar to the goals we had in mind when developing the AL-MAC™ tweeter, AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.

Advanced
Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.



Oversized, 1.5” High-Power Handling Voice Coil

motor structure dramatically increases maximum output level and reduces power compression.

Patented† Active Ridge Technology (ART™) surrounds

made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.


Advanced Features for a Solid and Secure Installation


FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

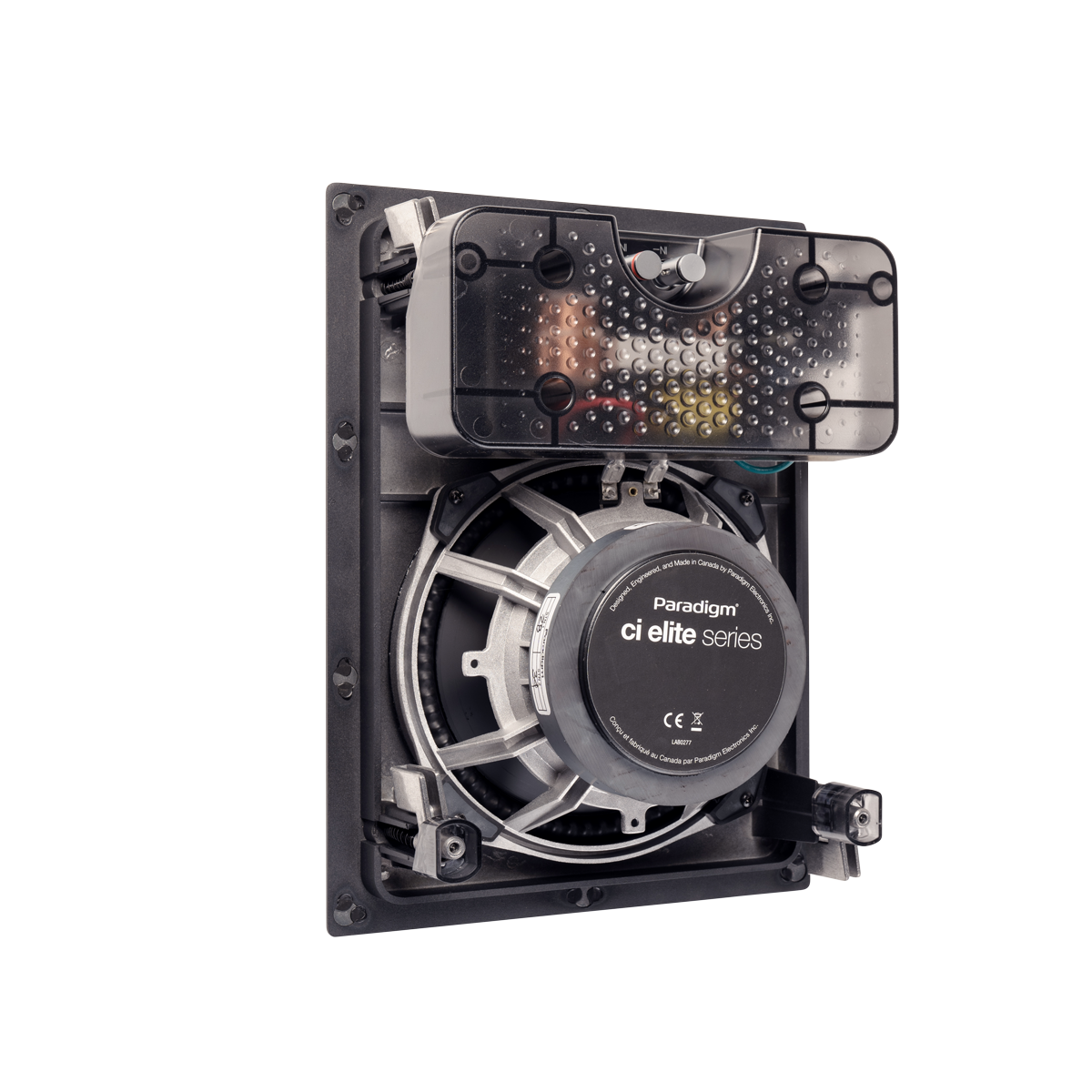

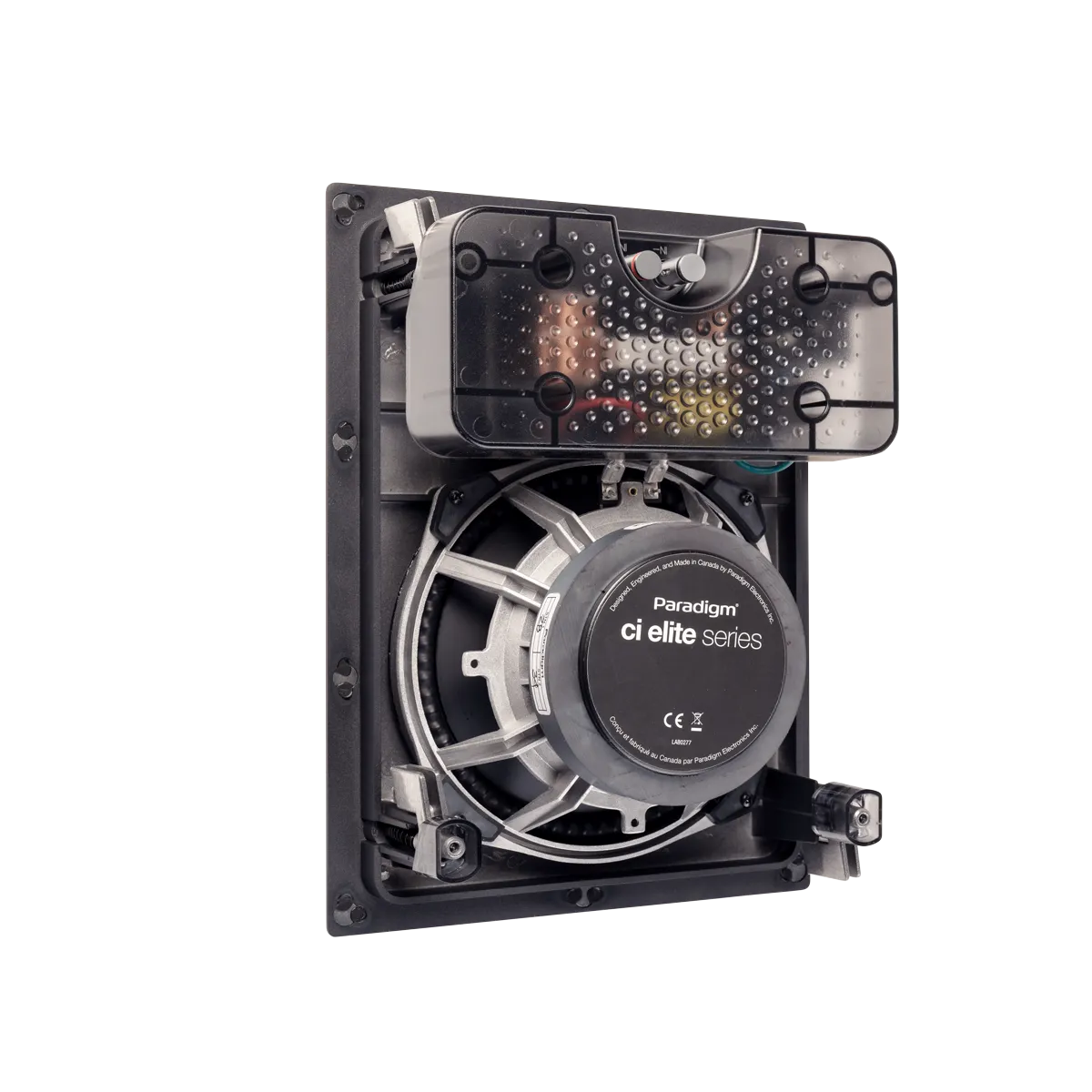

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping. (CI Pro/Elite Models Only)


Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)


Pocketed screw holes help to hold the drill steady, making installation a snap.


Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.


Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.


Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.


Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.



TECHNINIAI DUOMENYS

SPECIFIKACIJOS

DESIGN 2-driver, 2-way in-wall, Advanced SHOCK-MOUNT™ System, Die-Cast Aluminum Baffle
CROSSOVER 3rd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS ±3 dB from 57 Hz - 22 kHz
HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
LOW FREQUENCY EXTENSION 33 Hz
SENSITIVITY ROOM / ANECHOIC 92 dB / 88 dB
FREQUENCY RESPONSE 30° OFF-AXIS ±3 dB from 57 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE 15-180 W
MAXIMUM INPUT POWER 120 W
IMPEDANCE Compatible with 8 ohms
WEIGHT 8.6 lbs (3.9 kg)
FINISHES White, paintable grille, black speaker
CUT-OUT DIMENSIONS 11-9/16” x 8-1/16” (29.3cm x 20.5cm)
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 		3-3/8” (8.6cm)
DIMENSIONS HXWXD (INCLUDES GRILLE). 12-5/8” x 9-1/4” x 4” (32.1cm x 23.4cm x 10.2cm)
