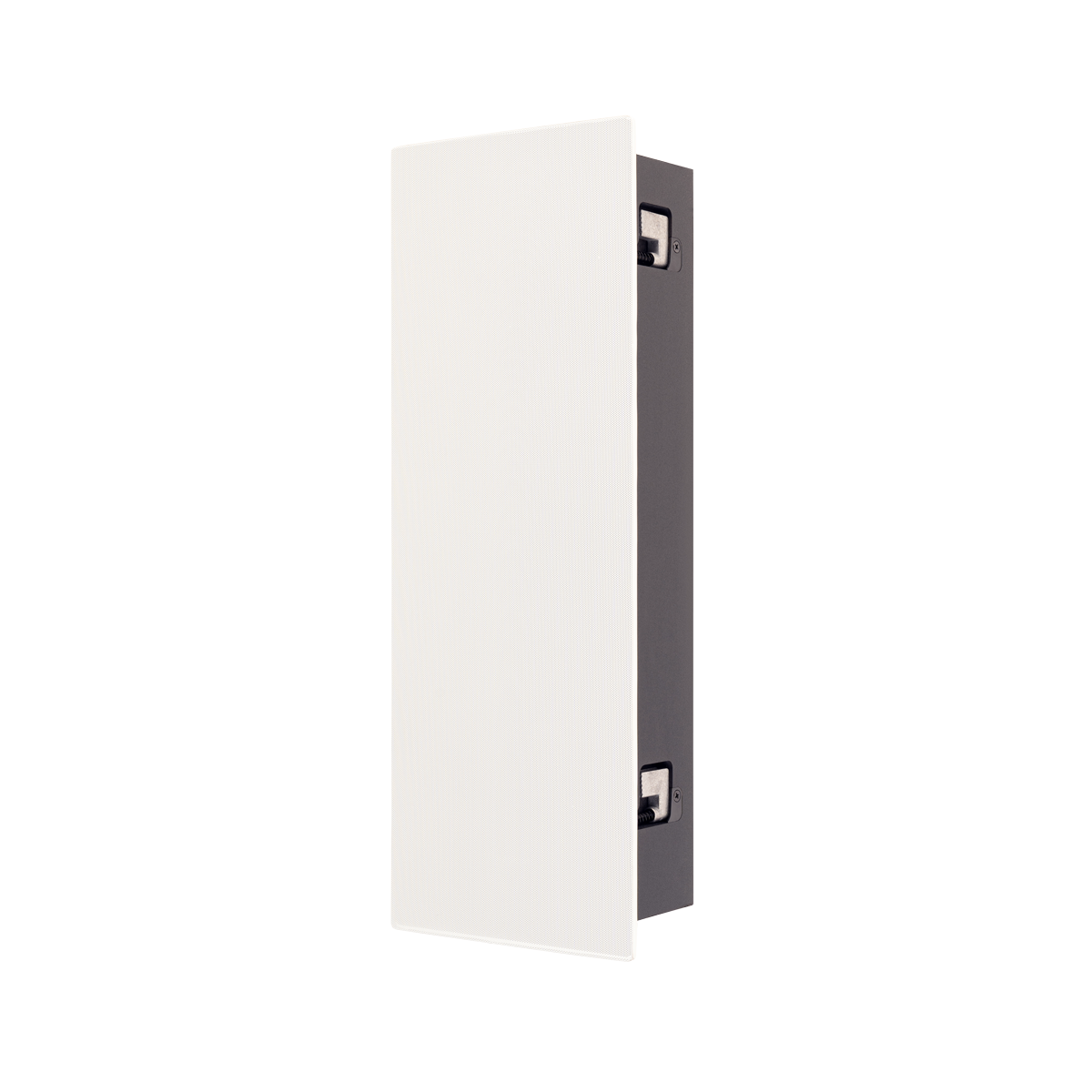

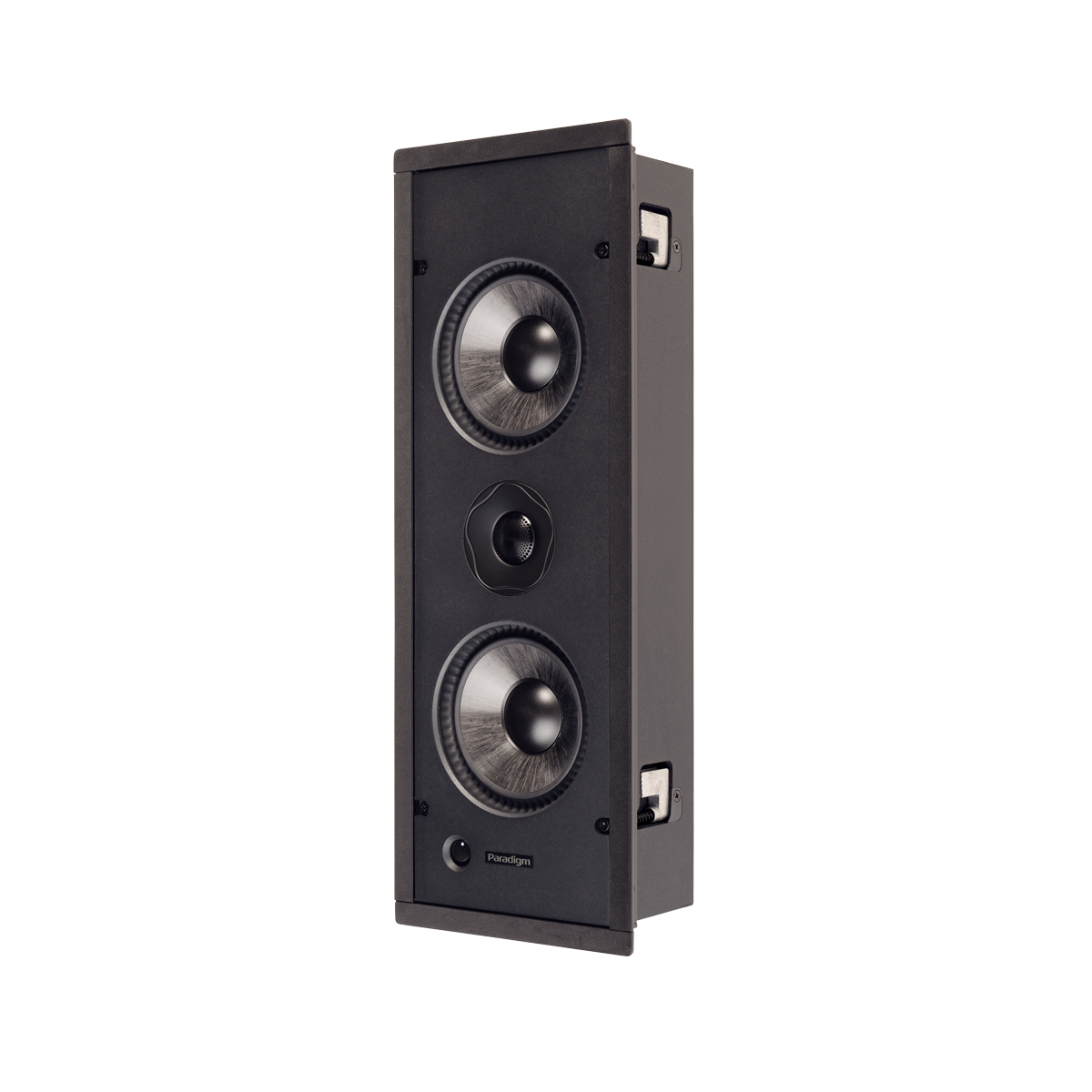

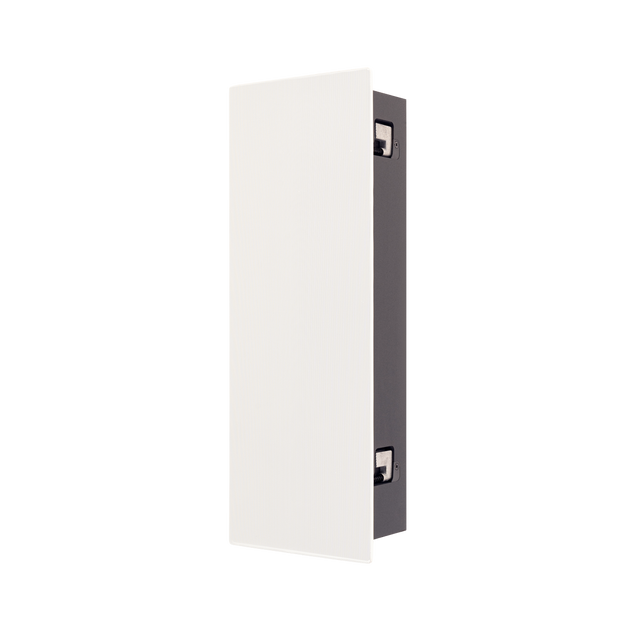

Paradigm CI Pro P1 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.)

Name: Paradigm CI Pro P1 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.)
Brand: Paradigm
SKU: CI Pro P1 LCR v2
Price: 1600.0 EUR
Availability: InStock

1,600.00 €

Paradigm CI Pro P1 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.) yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

Kanadoje gaminami CI PRO serijos garsiakalbiai pakyla į aukštesnį lygį dėl patentuotos technologijos, patobulintų komponentų ir išskirtinės "Paradigm" garso kokybės.

Rekomend. stiprintuvo galia: 15-120W.
Jautrumas: 92 dB.
Dažnių juosta: 94 Hz - 19 kHz.
Išpjovos matmenys: 49.8cm x 16.8cm.
Minimalus montavimo gylis: 9.8cm.
Dažomas paviršius.

APRAŠYMAS

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced
Shock-Mount™ System

(baffle/basket isolation) Like the CI Elite Series, we’ve added the same great Advanced Shock-Mount™ System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Reduced Edge Diffraction (RED™) Technology

significantly reduces the adverse effects of diffraction while improving frequency response.

Advanced Features for a Solid and Secure Installation

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)

Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)

Pocketed screw holes help to hold the drill steady, making installation a snap.

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

DESIGN	3-driver, 2-way, shallow enclosure in-wall design, Advanced SHOCK- MOUNT™ System
CROSSOVER	2nd-order electro-acoustic at 2.2 kHz
FREQUENCY RESPONSE ^ON-AXIS	±3 dB from 94 Hz - 22 kHz
HIGH FREQUENCY DRIVER	1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER	Two 5.5” (13.9cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
LOW FREQUENCY EXTENSION	74 Hz
SENSITIVITY ROOM / ANECHOIC	92 dB / 89 dB
FREQUENCY RESPONSE ^{30° OFF-AXIS}	±3 dB from 94 Hz - 19 kHz
SUITABLE AMPLIFIER POWER RANGE	15-120 W
MAXIMUM INPUT POWER	90 W
IMPEDANCE	Compatible with 8 ohms
WEIGHT	15.0 lbs (6.8 kg)
FINISHES	White, paintable grille, black speaker
CUT-OUT DIMENSIONS	19-5/8” x 6-5/8” (49.8cm x 16.8cm)
MINIMUM MOUNTING DEPTH ^{(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)}	3-7/8” (9.8cm)
DIMENSIONS ^{HXWXD (INCLUDES GRILLE).}	20-5/8” x 7-5/8” x 4-1/8” (52.4cm x 19.4cm x 10.5cm)

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
