Park easily and safely

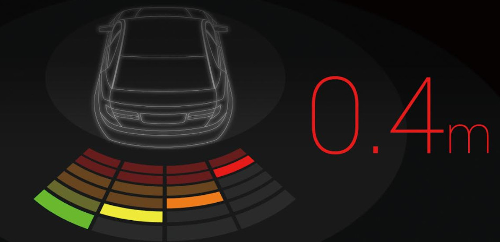

Pioneer's optional rear parking sensors ND-PS1 are easy to install and are designed to be connected directly to Pioneer's SPH-10BT. When connected, you can park easily and safely thanks to the audio and visual illumination warnings on the headunit.

Additionally, when used in conjunction with Pioneer's SPH-10BT and Pioneer Smart Sync app, you can also experience the parking assist display on your compatible smartphone screen.

Control box specification

• Nominal voltage: 14.4 V DC
• Operating voltage: 10.8 ~ 15.1 V DC
• Rated current: 10 ~ 30 mA at 14.4 V DC
• Detection Range: 0.3 m ~ 2.5 m
• Operation temperature range: -30°C ~ 80°C
• Dimensions (WxHxD): 105.3 mm x 21.8 mm x 56.0 mm
• Weight: 50 g / 1 pc

Cable length

• Power cable: 1 m
• Connection cable: 5 m

Sensor specifications

• Center frequency: 40 kHz
• Directivity X-axis: 70°
• Directivity Y-axis: 70°
• Maximum input voltage: 120 Vp-p (at 40 kHz)
• IP code: IP67
• Dimensions: φ 23.5 mm x 19.8 mm (exclude cable)
• Cable length: 2.5 m
