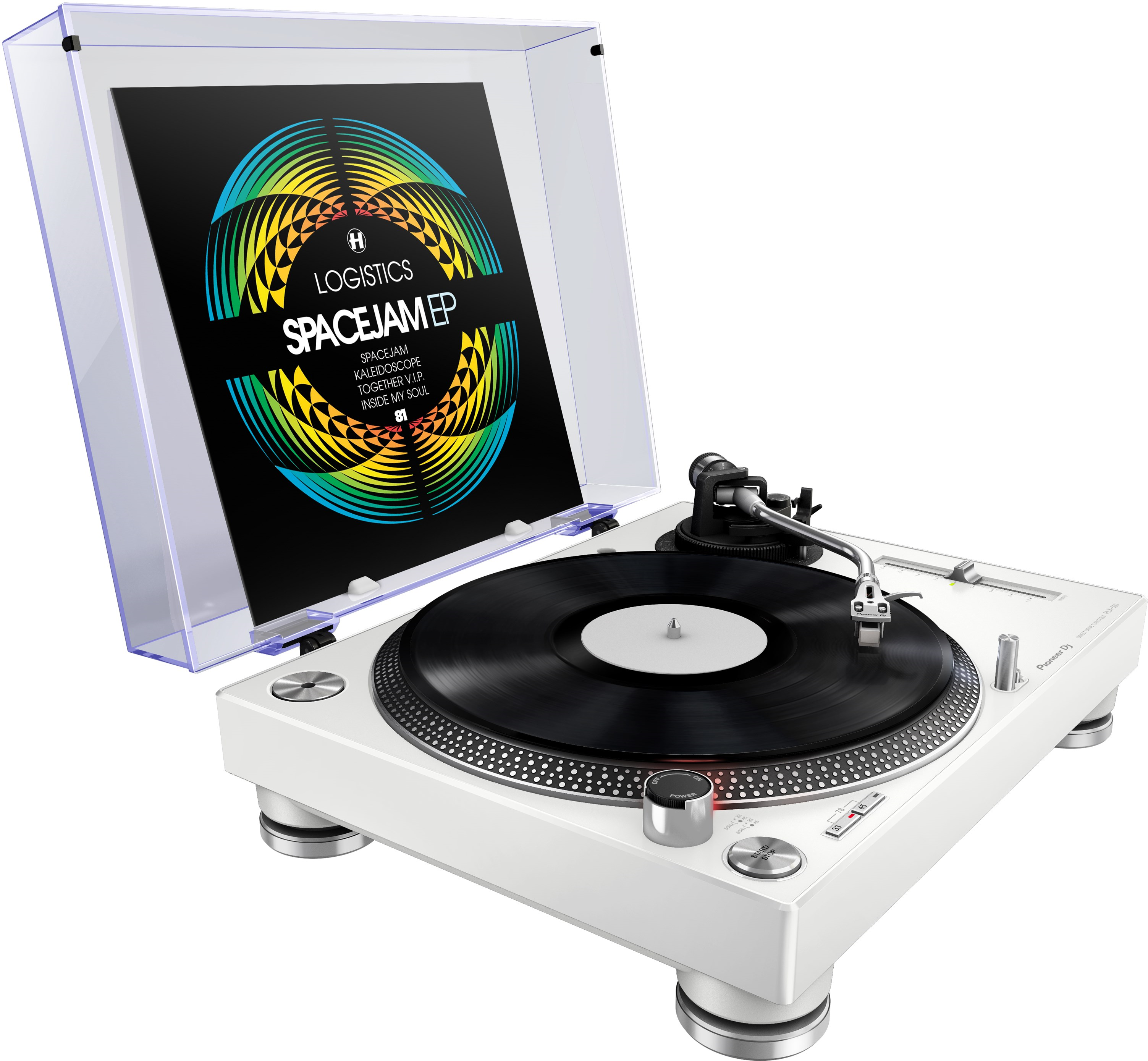

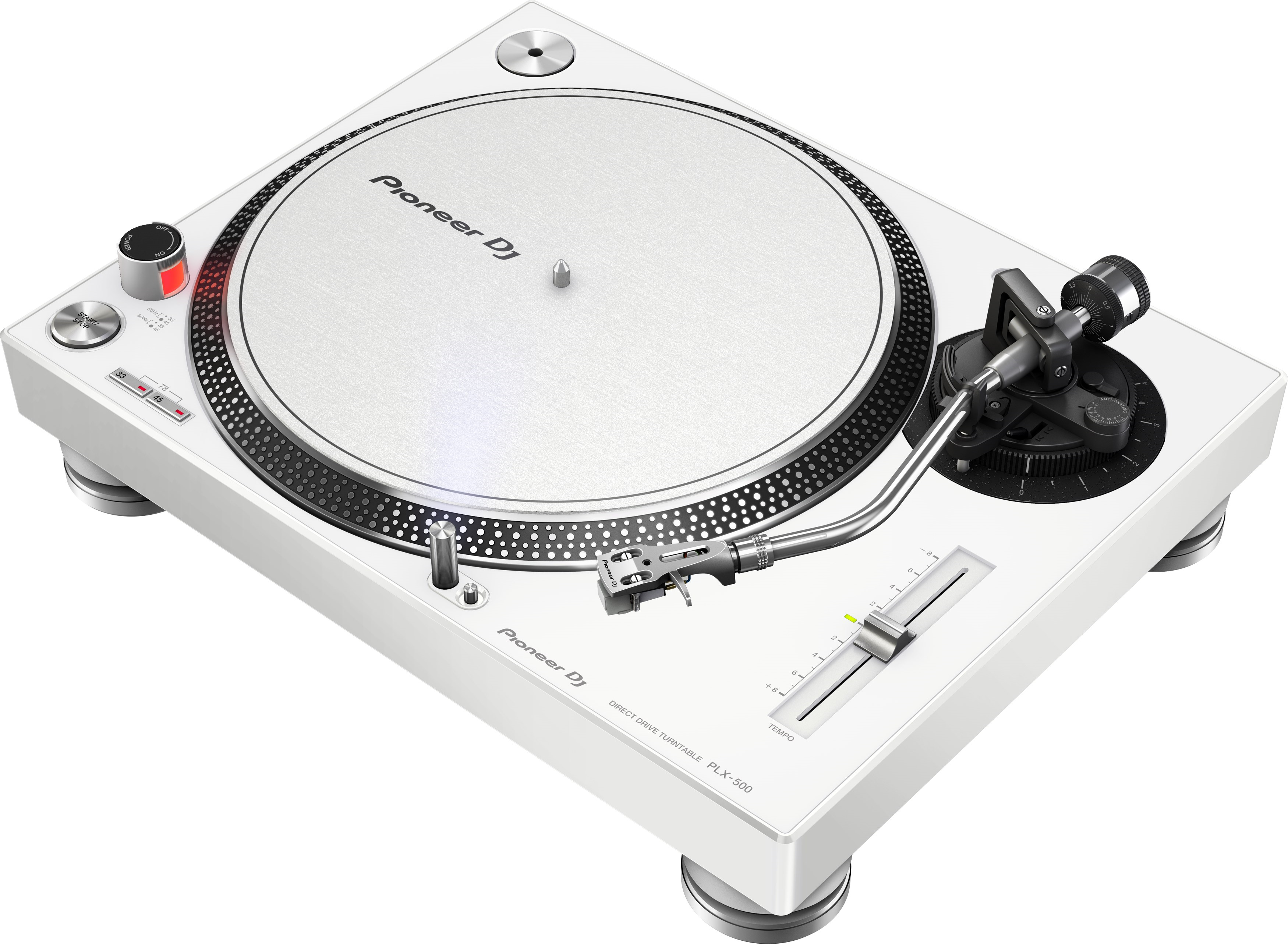

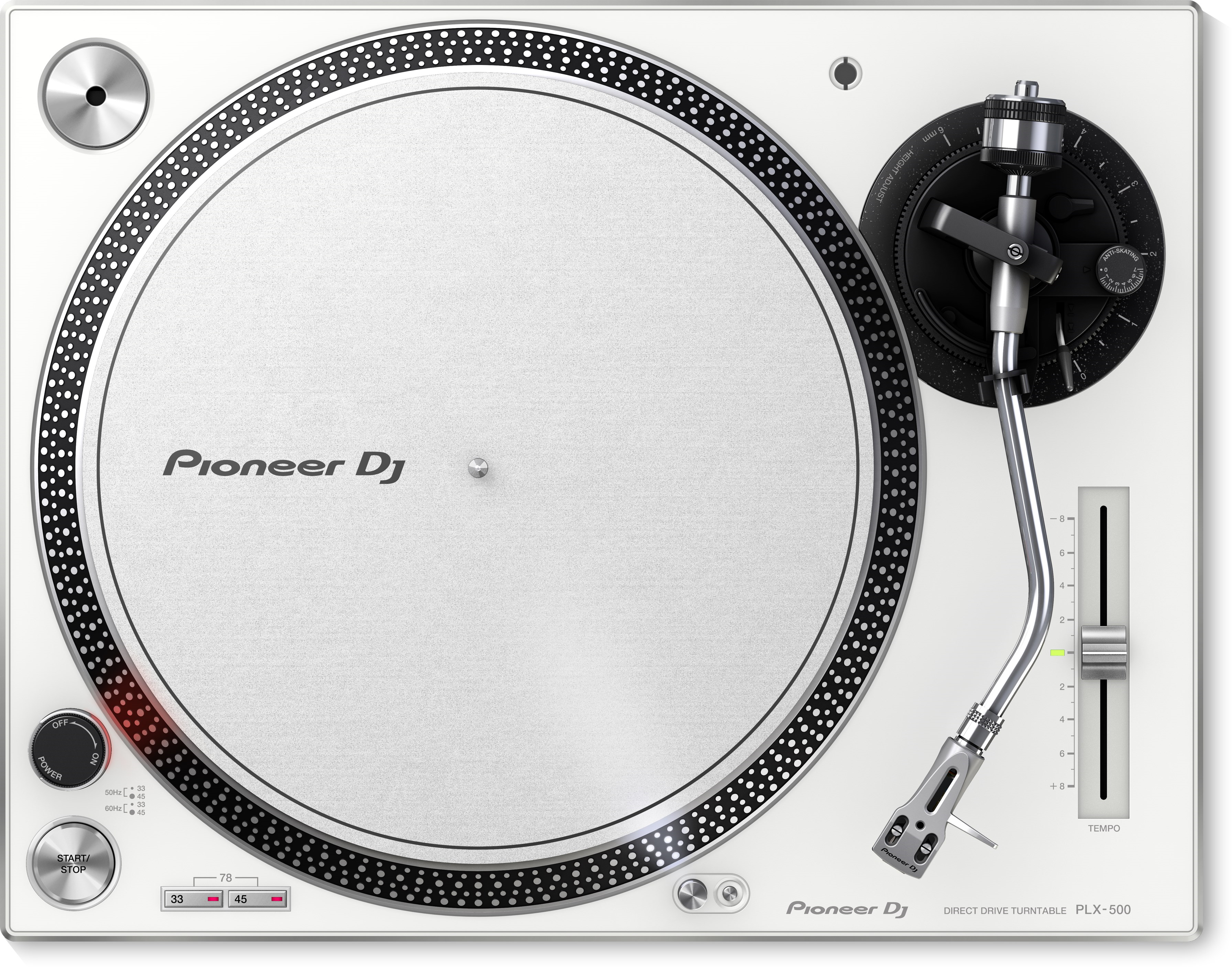

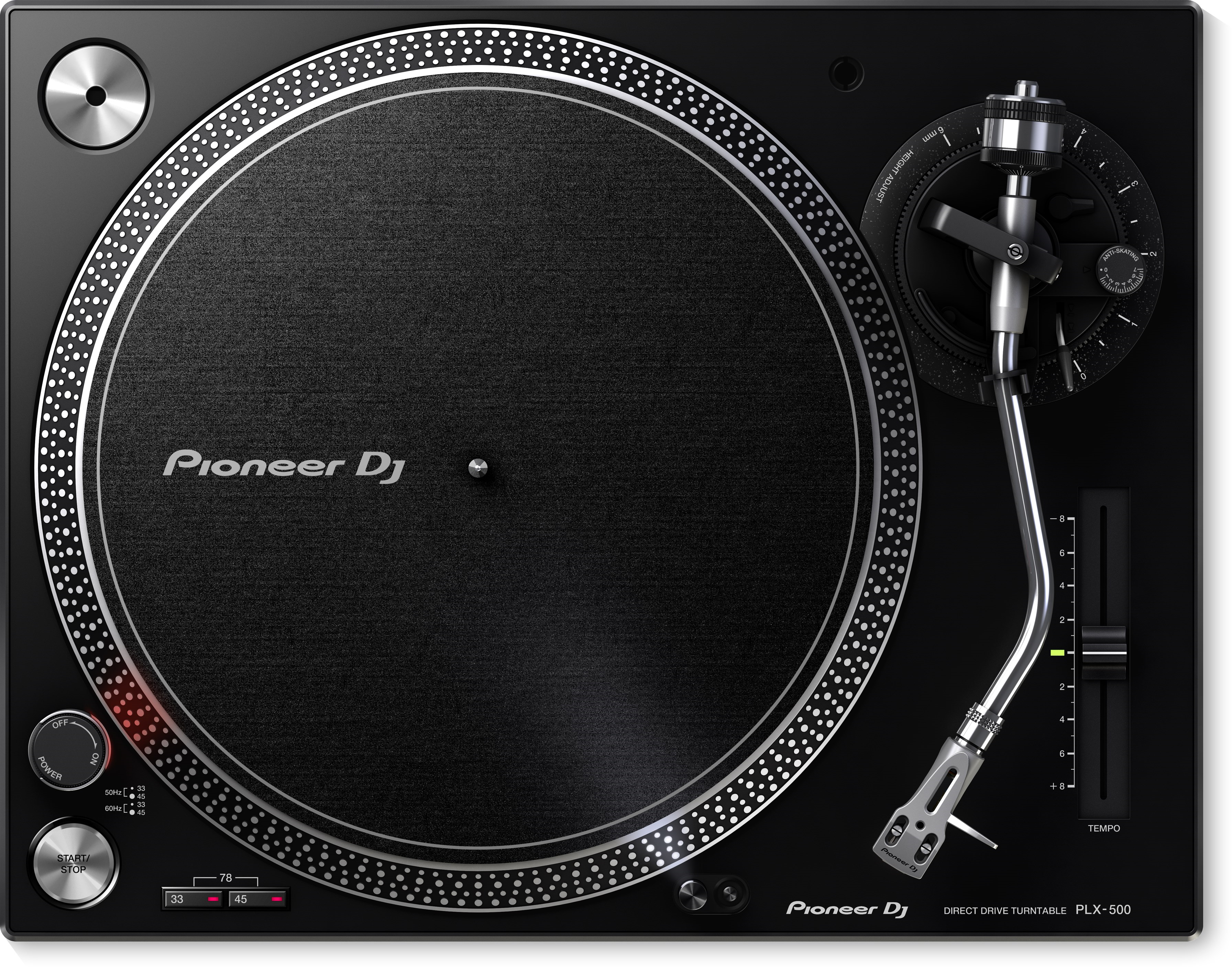

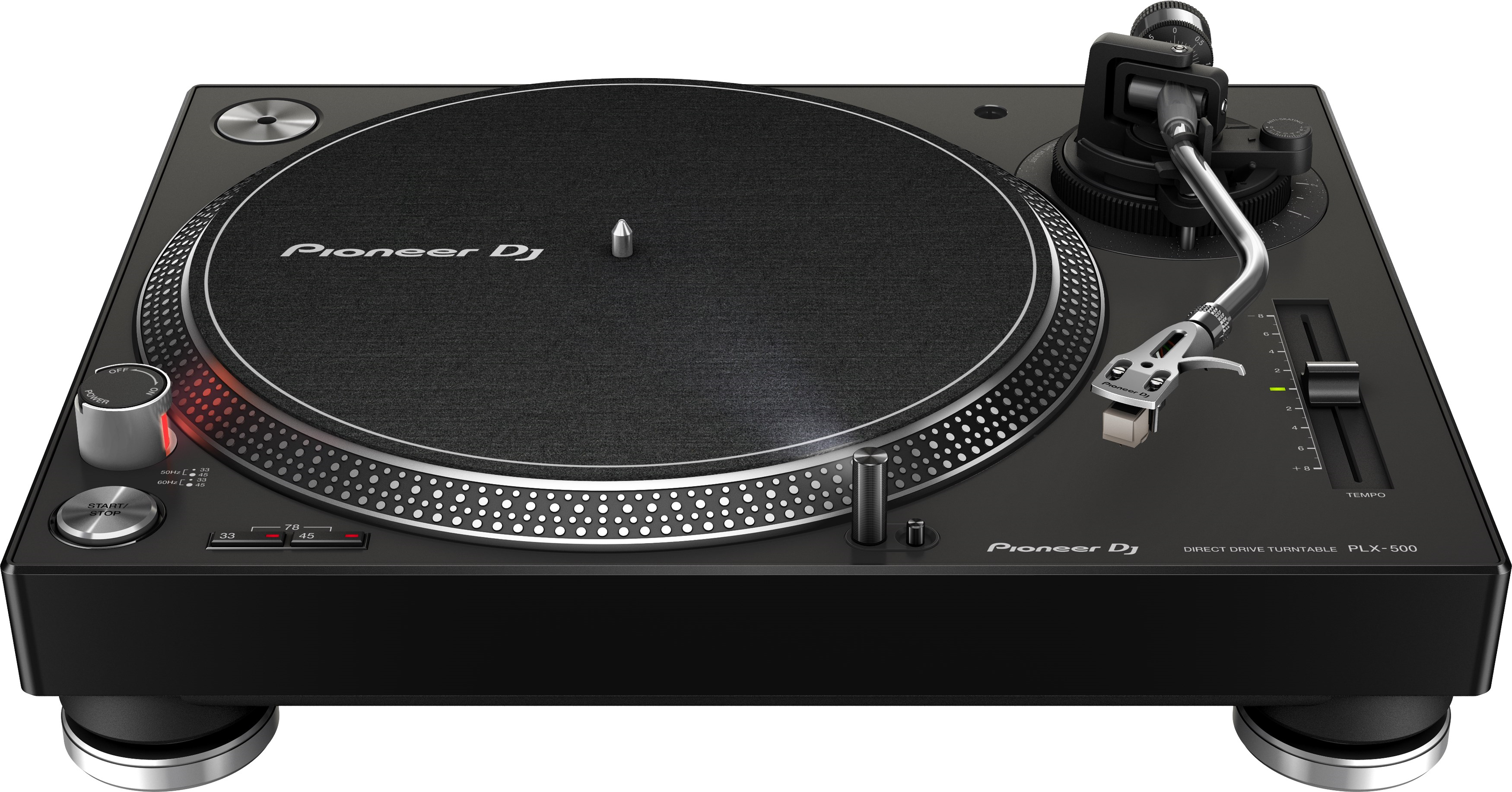

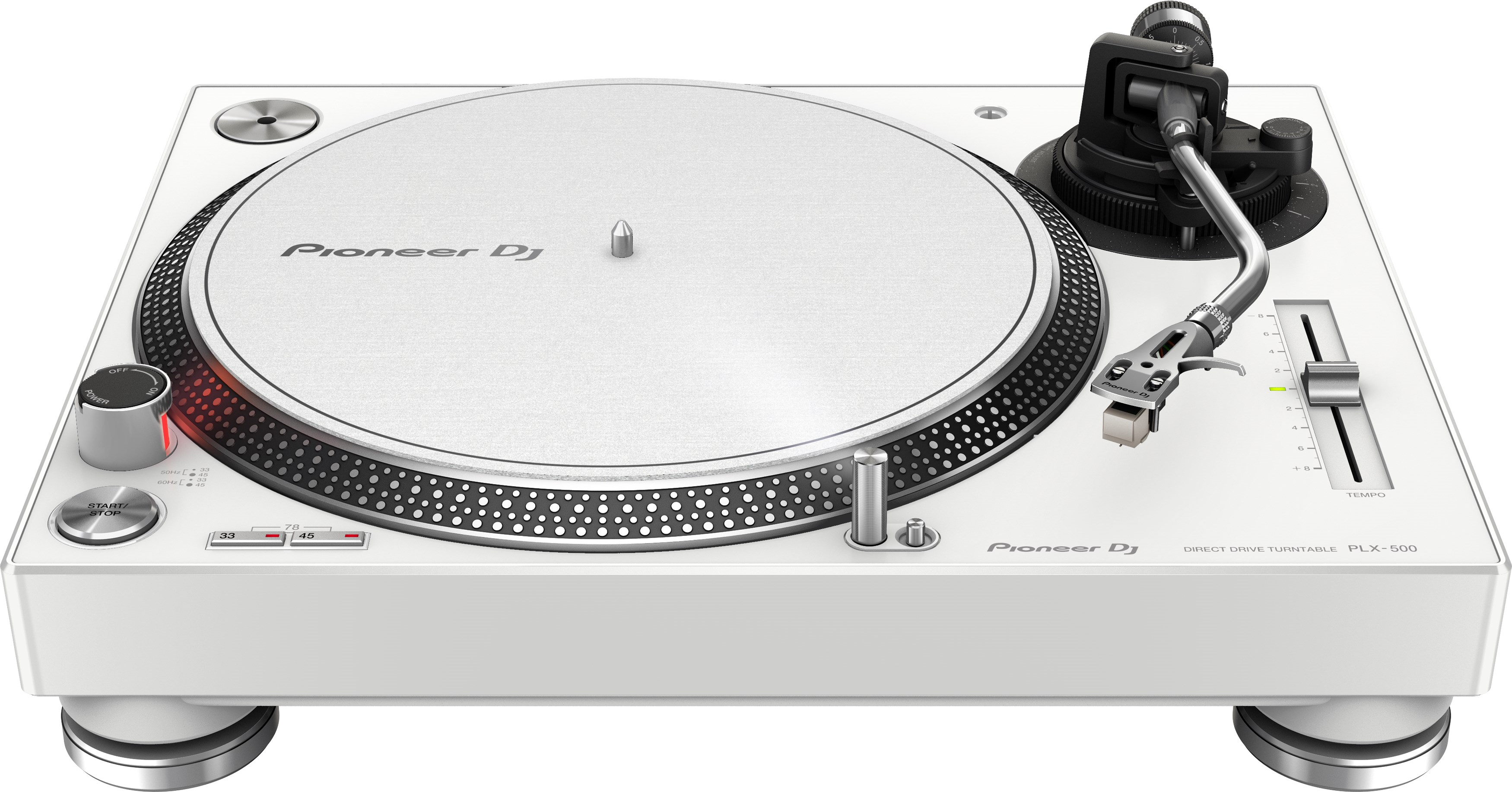

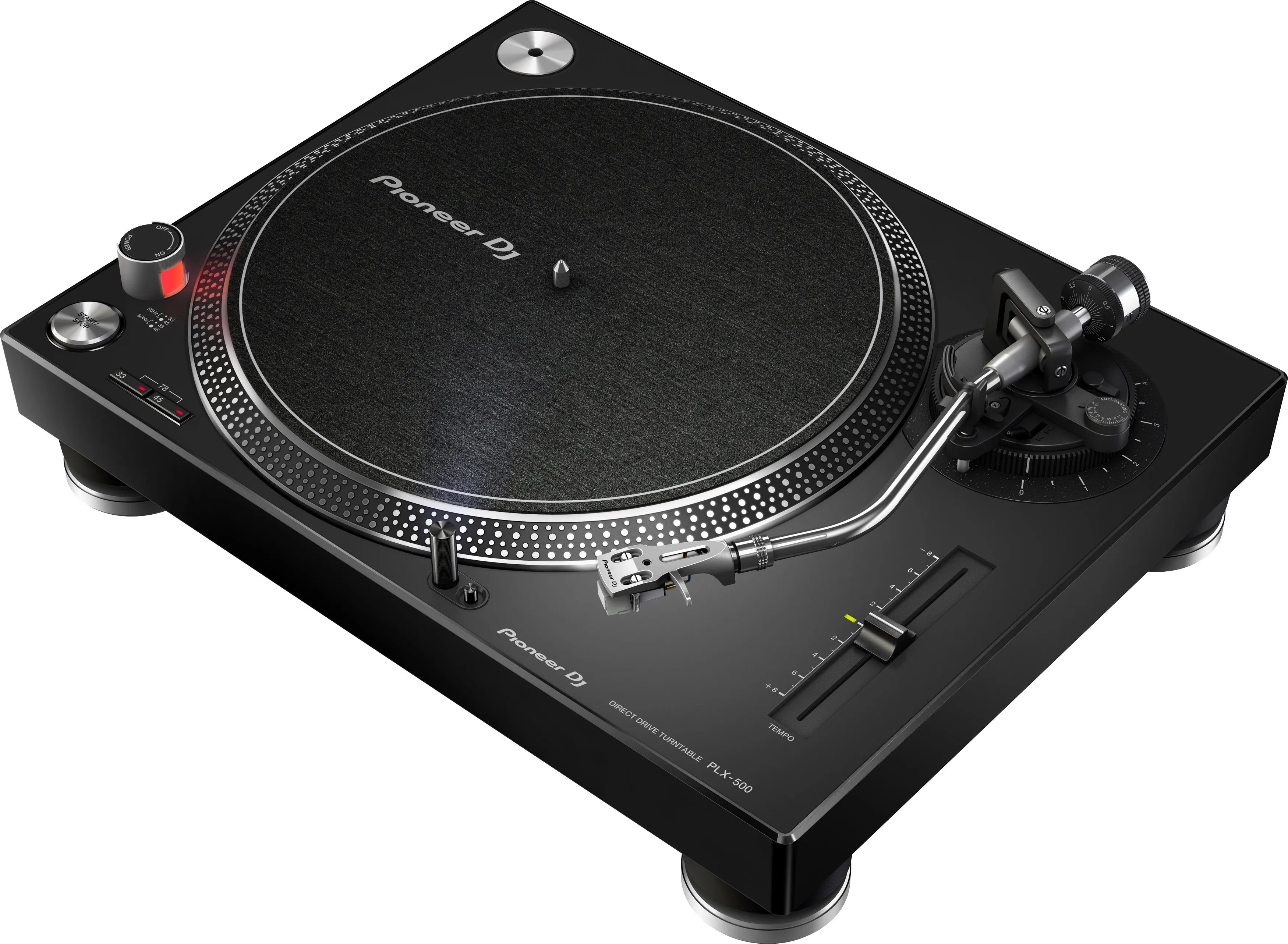

Plokštelių grotuvas Pioneer PLX-500

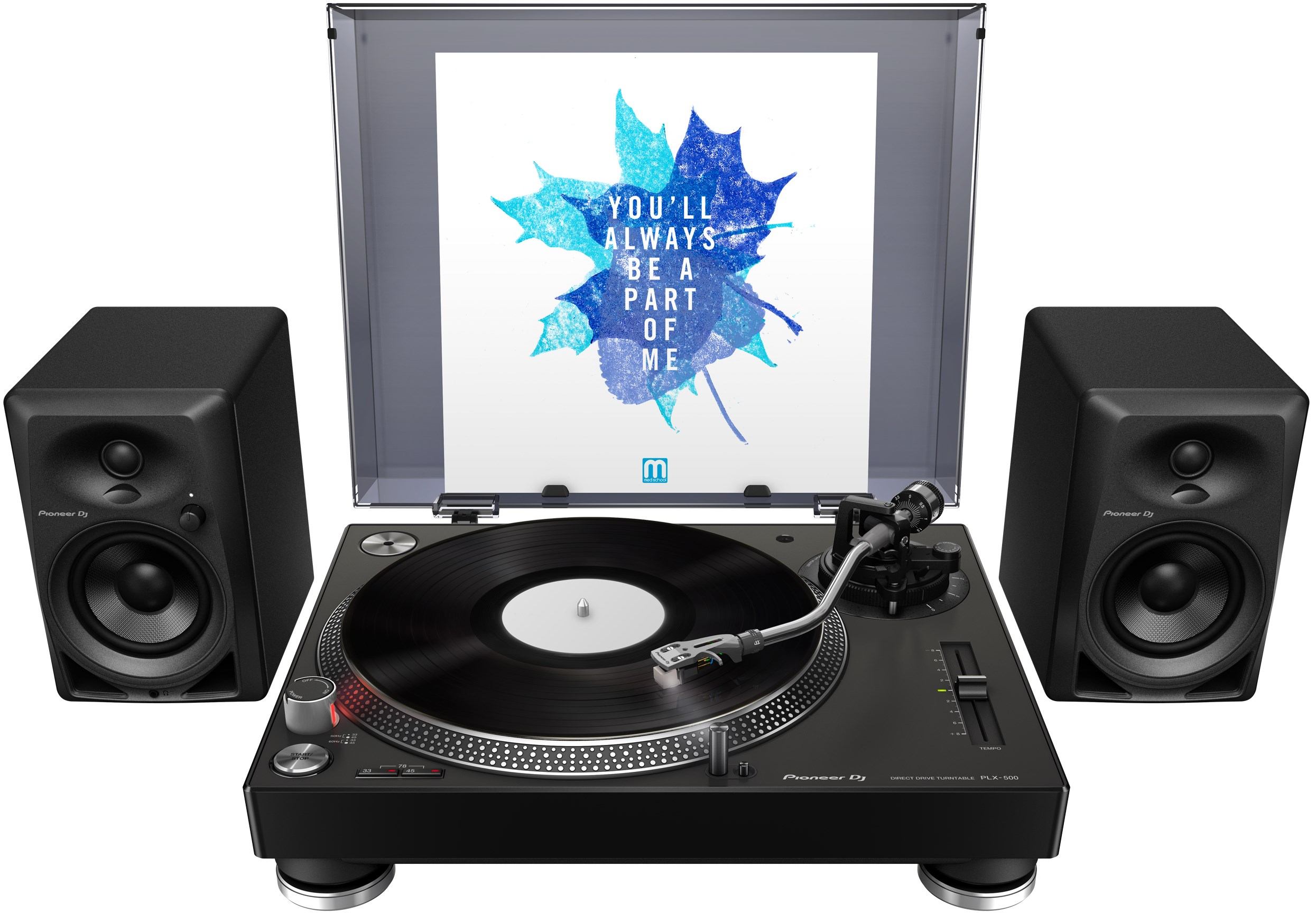

The PLX-500 inherits the layout of the PLX-1000 professional turntable and produces a warm, clear analogue sound. The perfect deck if you want to start playing with vinyl or if you just want to listen to your record collection at home.

• S/N santykis: 50 dB
• Iškraipymas: < 0.003 %
• Stabdymo sistema elektroninė
• Sukimosi greitis: 33⅓, 45, 78 rpm
• Sukimosi reguliavimas: ±8 %
• Variklis: 3 fazių
• Plokštelė: Aliuminio 332 mm

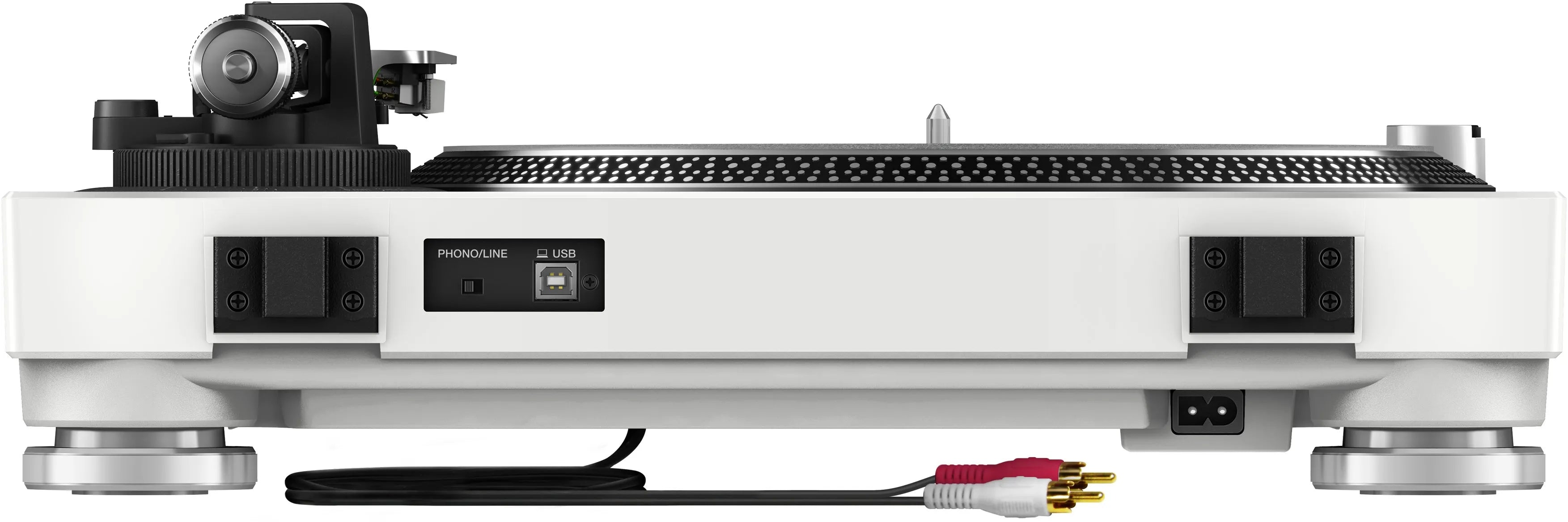

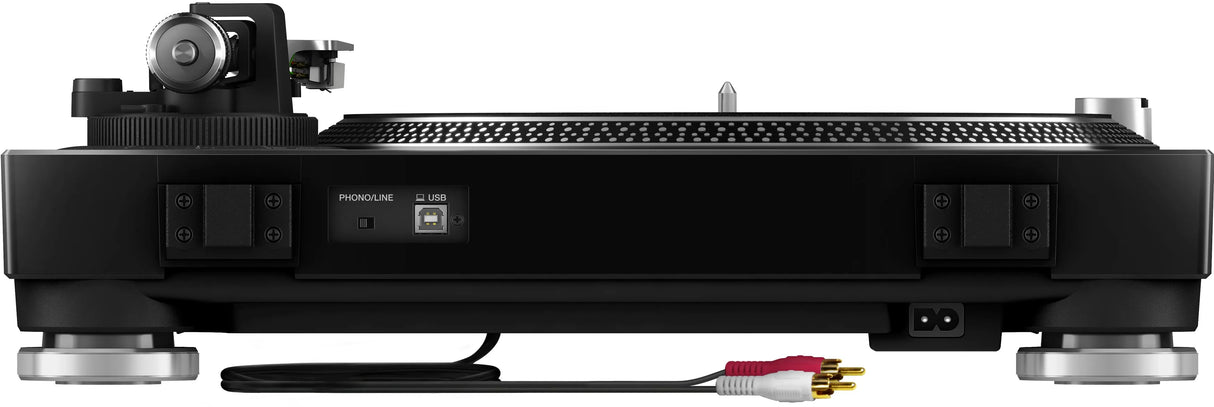

• Išėjimai: 1 PHONO/LINE (RCA)
• USB: 1 USB B port
• Matmenys: 450 x 368 x 159 mm  /  Svoris: 10.7 kg

VIDEO

APRAŠYMAS

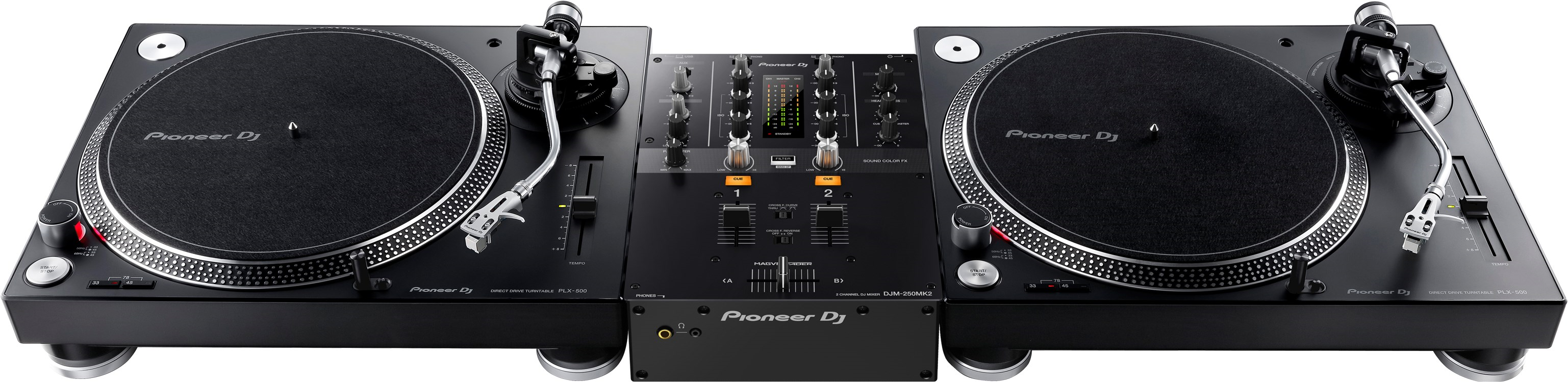

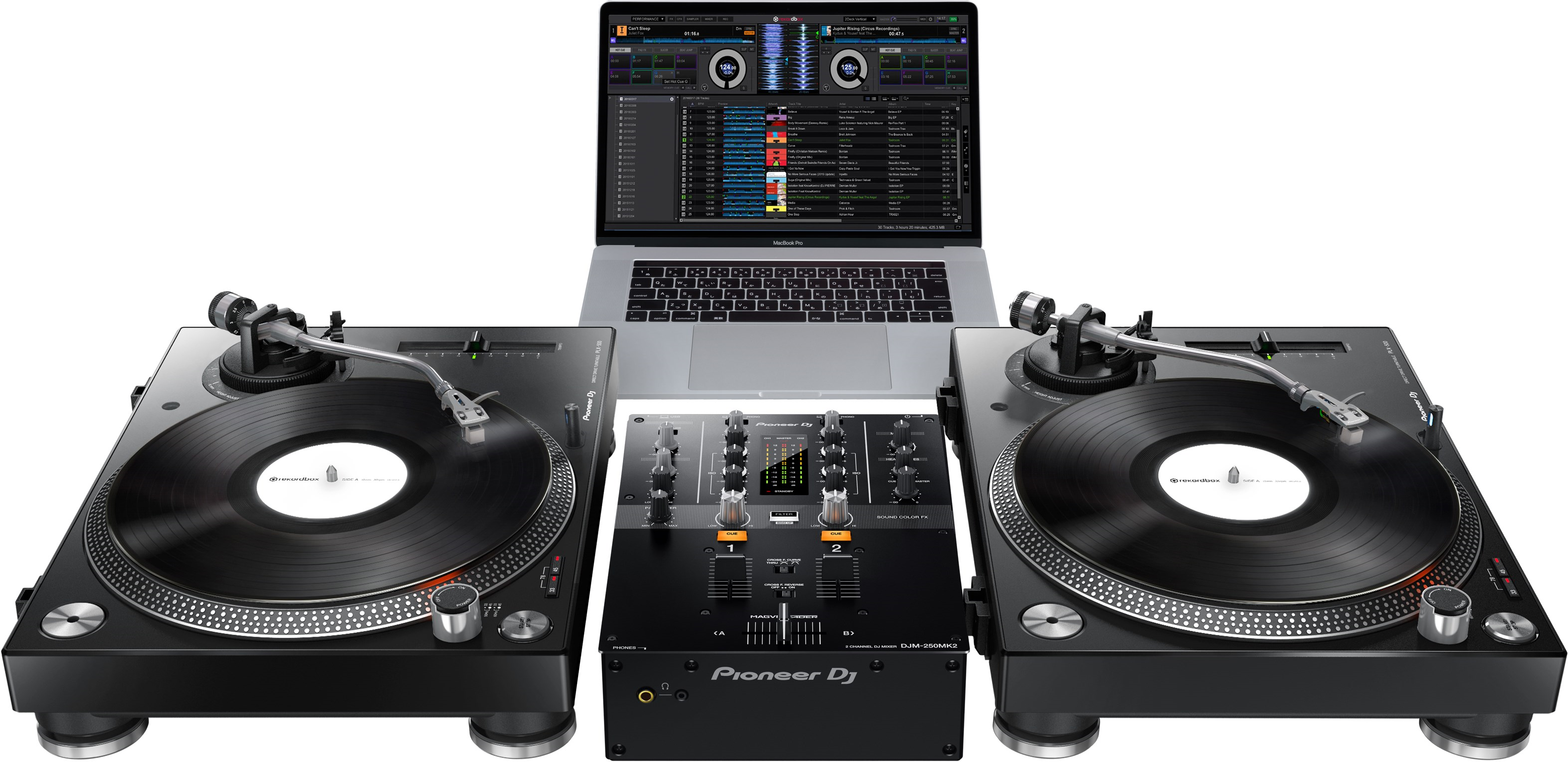

Solidly built with excellent vibration damping and precise audio playback, this high-torque deck has a USB out so you can make digital recordings of your vinyl collection in our free rekordbox software. You can also combine the PLX-500 with the rekordbox dvs Plus Pack, a compatible mixer and the RB-VS1-K Control Vinyl to play and scratch with digital files.

SĄVYBĖS

DOKUMENTAI

Vartotojo vadovas

TECHNINIAI DUOMENYS

• Drive Method Servo-type direct drive
• Platter Aluminium, die-casting diameter: 332 mm
• Motor 3-phase, brushless DC motor
• Braking System Electronic brake
• Rotation Speed 33⅓, 45, 78 rpm
• Rotation Adjustment Range ±8 %
• Wow and Flutter < 0.15% WRMS
• Signal-to-Noise Ratio 50 dB
• Starting Torque > 1.6 kgf・cm
• Start Time Within 1 sec (at 33⅓ rpm)

• Arm Type:
  Universal type S-shape tone arm
  Gimbal-supported type bearing structure
  Static balance type
• Overhang 16 mm
• Effective Length 230.5 mm
• Tracking Error Within 3°
• Height Adjustment Range 6 mm
• Stylus Pressure Variable Range 0-4 g (1 scale 0.1 g)
• Proper Cartridge Weight < 9.5 g
• Cartridge type VM

• USB: 1 USB B port
• Outputs: 1 PHONO/LINE (RCA)
