RVC CAM-E-PC01 NTSC CMOS 170° , galinė kamera

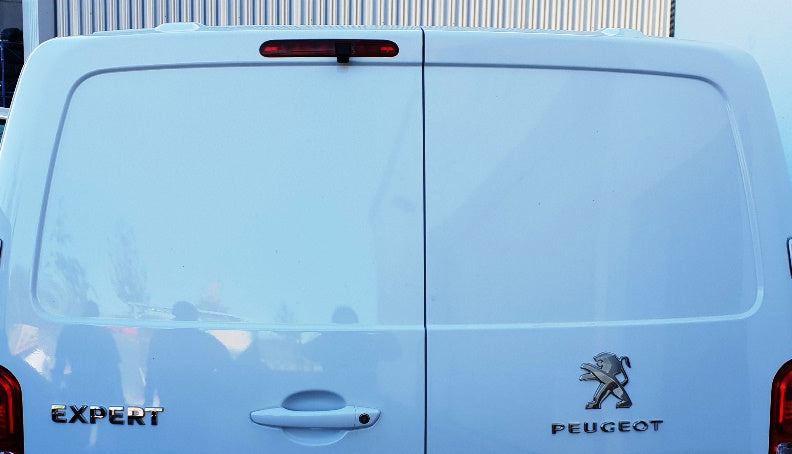

Galinė kamera įmontuota į stabdžių žibintą. Tinka Peugeot Expert 3/Traveler nuo 2016 ir Citroen Jumpy 3, Toyota Proace nuo 2017.

• Sensorius: 1/3 inch CMOS.
• Atparumo standartas IP 69K.
• Rezoliucija: 510 x 482 px.
• Kabelio iligis: 10 m.

Vehicle-specific exchange brake light illumination-glass with rear-view camera. For vehicles with tailgate and double door. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

TECHNINIAI DUOMENYS

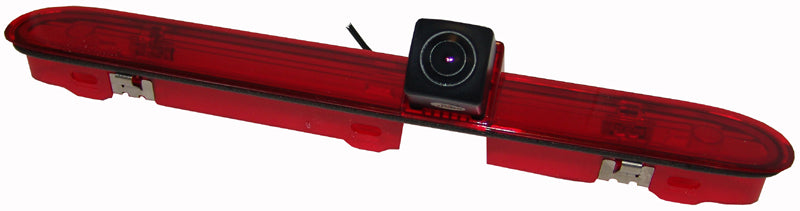

• Camera with vehicle-specific exchange brake light illumination-glass
• Sensor-type 1/3inch CMOS
• NTSC format (700 TV lines)
• Resolution: 480i (510 x 482 pixel)
• Focal length 2.8mm
• Angle horizontal 170°, vertical 80°
• Mirroring (fixed)
• Protection class IP 69K
• Camera colour: black

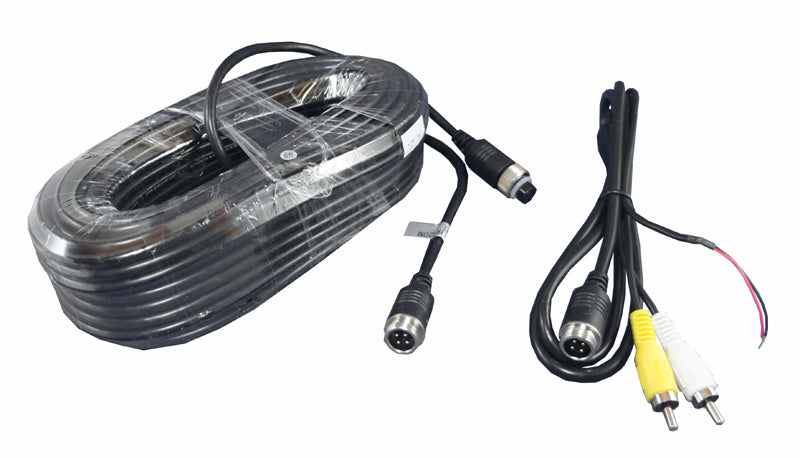

• 10m extension cable (4pin-KO)
