Silent Angel Munich M1T, tinklo grotuvas

INFORMACIJA

Silent Angel Munich M1T - kompaktiškas ir funkcionalus tinklo muzikos grotuvas, sukurtas tiems, kurie siekia aukščiausios garso kokybės ir nori maksimaliai išnaudoti savo HiFi sistemą. Šis įrenginys leidžia mėgautis aukštos raiškos muzikos srautais ir įvairiais skaitmeniniais garso šaltiniais be kompromisų, išlaikant gryną ir natūralų garsą.

Skaitmeniniai išėjimai: AES/EBU x 1, I2S x 1 (I2S išėjimas nesuderinamas su Holo Audio DAC), Koaksialinis x 1 (iki PCM 384KHz ir DSD128)
USB garso išėjimas: palaiko iki PCM 768KHz ir DSD256 (DSD 11.2 MHz)
Maksimalus energijos suvartojimas: 10 W
Palaikomi muzikos formatai: AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE

APRAŠYMAS

Easy to Use, Pleasant User Experience

• Easy to set up & connect to an external DAC or speaker(s) through digital audio outputs
• Stay connected to digital music. Play and enjoy anytime without a PC involved.
• Master your music at your fingertips via mobile app, VitOS Orbiter.
• New Update: Munich M1T is now officially MQA-supported and certified.

Mobile App, VitOS Orbiter

Easily locate and set up a new device, browse and stream music. Listen to all your favorite songs with details displayed such as bitrate, sample rate, bit depth and format (e.g. DSD, WAV or FLAC).

Superior Hardware System

The M1T is born to pursue superior audio performance without any compromise.

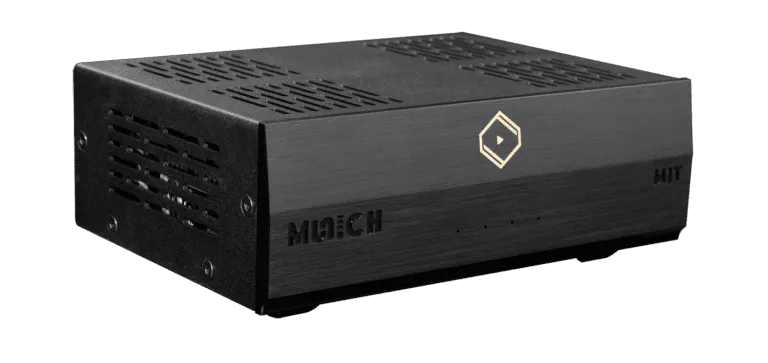

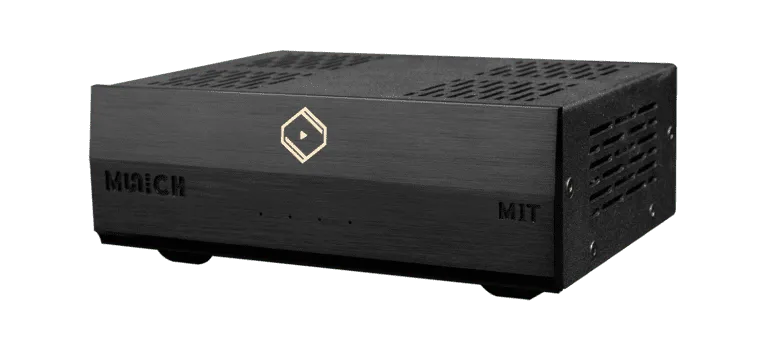

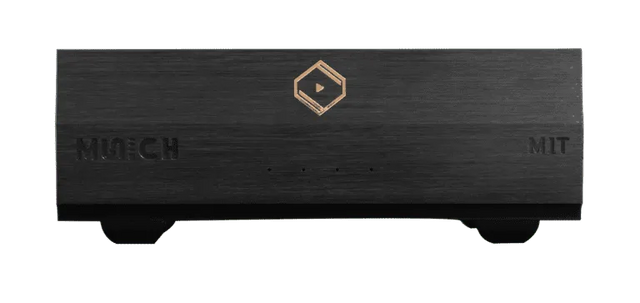

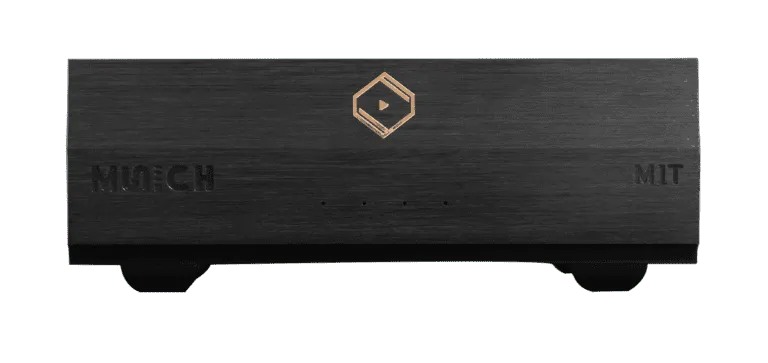

• Elegant metal enclosure with a solid aluminum alloy front panel
• High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
• Substantial system memory for large streaming buffers and caches to run multiple applications simultaneously
• Digital output: AES/EBU, I2S, Coaxial. Sampling rate up to PCM 384KHz & DSD 5.6MHz (DSD128)
• USB-Audio output: Up to PCM 768KHz & DSD 11.2MHz (DSD256)
• Advanced circuitry with high quality components
• Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
• A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference
• Gold plated ports (Coaxial & AES/EBU)

Obtain More Audio Sources For HiFi Systems

• High-resolution streaming services and Internet radios
• Play various music file formats and SACD files(Native DSD up to DSD256, and DoP up to DSD128).

Stream and Play in an Audio Network

• Play high-resolution streaming services and Internet radio
• Roon Ready player
• Play music from network shared storage (over SMB/CIFS)
• DLNA renderer (player)

Further Upgrade - The Combo Setup



Power Source Purifier



Connect the M1 to the Forester F1 linear power supply (supplying 5V 2A DC) to further improve power source and reduce the noise signal.

Network Purifier

Use the Bonn N8 as the hub. Connect audio devices to the N8 switch and create an isolated audio network. (*Related models: N8, N8 Pro, and N16-LPS)

TECHNINIAI DUOMENYS

Available Color    Black
Power Consumption    10W at max

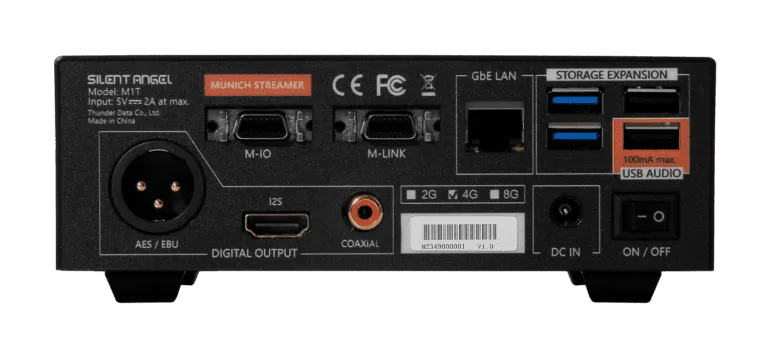

Digital Outputs    AES/EBU port x 1
I2S port x 1*
Coxial port x 1
- Supports up to PCM 384KHz and DSD 5.6M (DSD128)

* I2S output signal is not compatible with Holo Audio's DAC
USB Audio    USB Audio port x 1
- Supports up to PCM 768KHz and DSD 11.2M (DSD256)
USB    USB 3.0 x 2
USB 2.0 x 1
- Above USB ports are for external storage
M-IO    M-IO x 1*
*Reserved. To be enabled by future firmware upgrade
M-LINK    M-LINK x 1*
*Reserved. To be enabled by future firmware upgrade
Ethernet    1 GbE RJ45 x 1
Music Format    AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE
Gapless Playback    Supported
MQA Handling    The M1T will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port.
LED Indicator    Mute LED x 1
Power LED x 1
Digital Output LED x 2*
*Yellow light on when in DSD format / Green light on when in PCM format
Temperature    Operating: 32 ~ 86 °F
Storage: -4 ~ 158 °F
Humidity    Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
Dimensions    6.11(W) inch x 1.99(H) inch x 4.34(D) inch
Weight    2.21 lbs

DOKUMENTAI

Vartotojo vadovas (EN)
