Sonus Faber Arena 10, sieninė garso kolonėlė (montavimo gylis: 150mm)

Sukurtas papildyti "Arena 30" modelį pasirinktinėse konfigūracijose arba papildyti "Arena 30" modelį ar "Arena 20" daugialypio erdvinio garso efektų kanalu.

• Rekomend. stiprintuvo galia: 400W (RMS).
• Dažnių juosta: 40-31,580 Hz .
• Jautrumas 88.5 dB/W/m.
• Varža: 3.5-4 Omai.

APRAŠYMAS

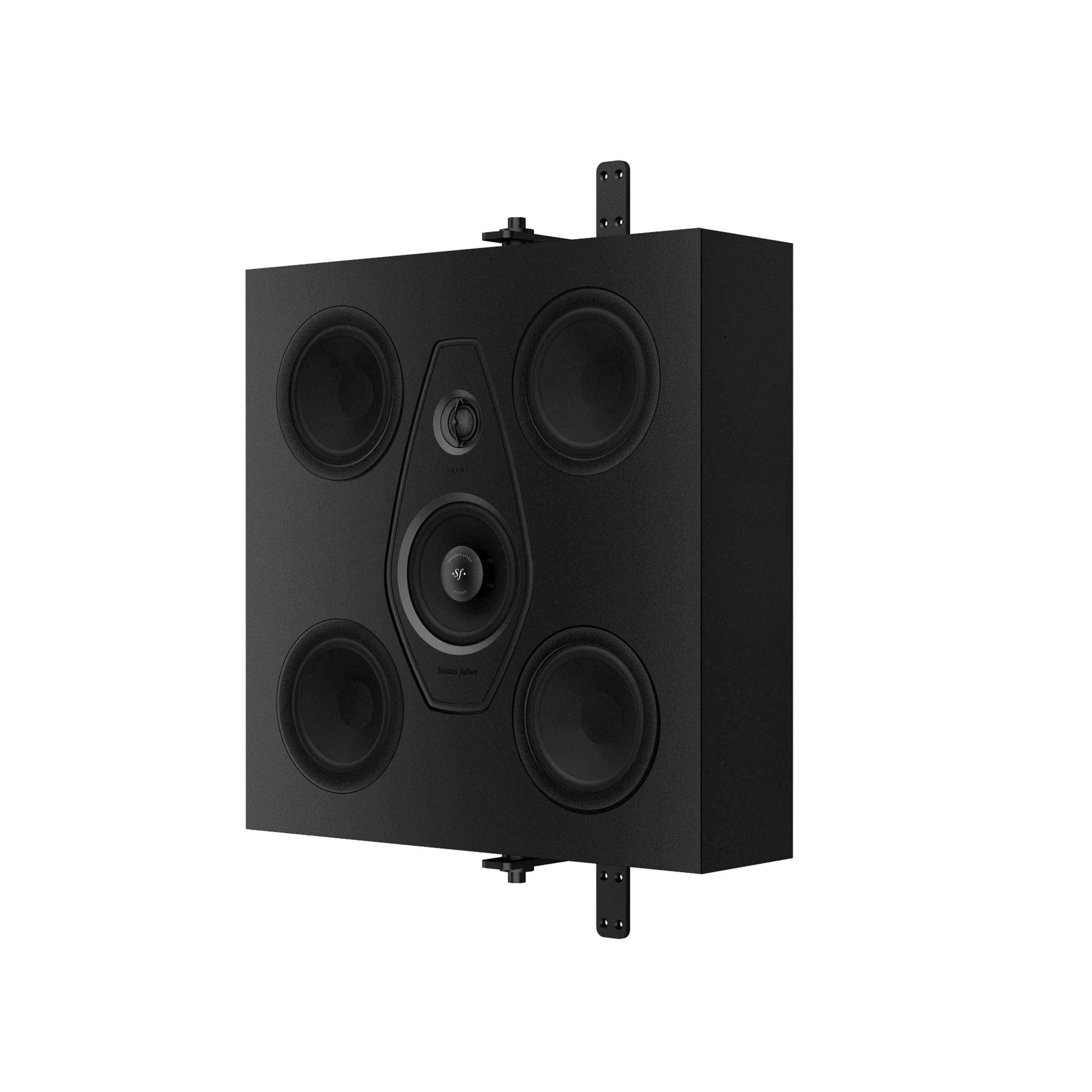

Created to complement the Arena 30 model in custom configurations or to add a multi-dimensional surround sound effects channel to the Arena 30 model or the Arena 20, the Arena 10 is an elegant and sophisticated 3-way/6-speaker speaker that incorporates some of the most significant technological developments of Sonus Faber , especially highlighting the renowned set of transducers for mids and highs “Voice of Sonus Faber ”.

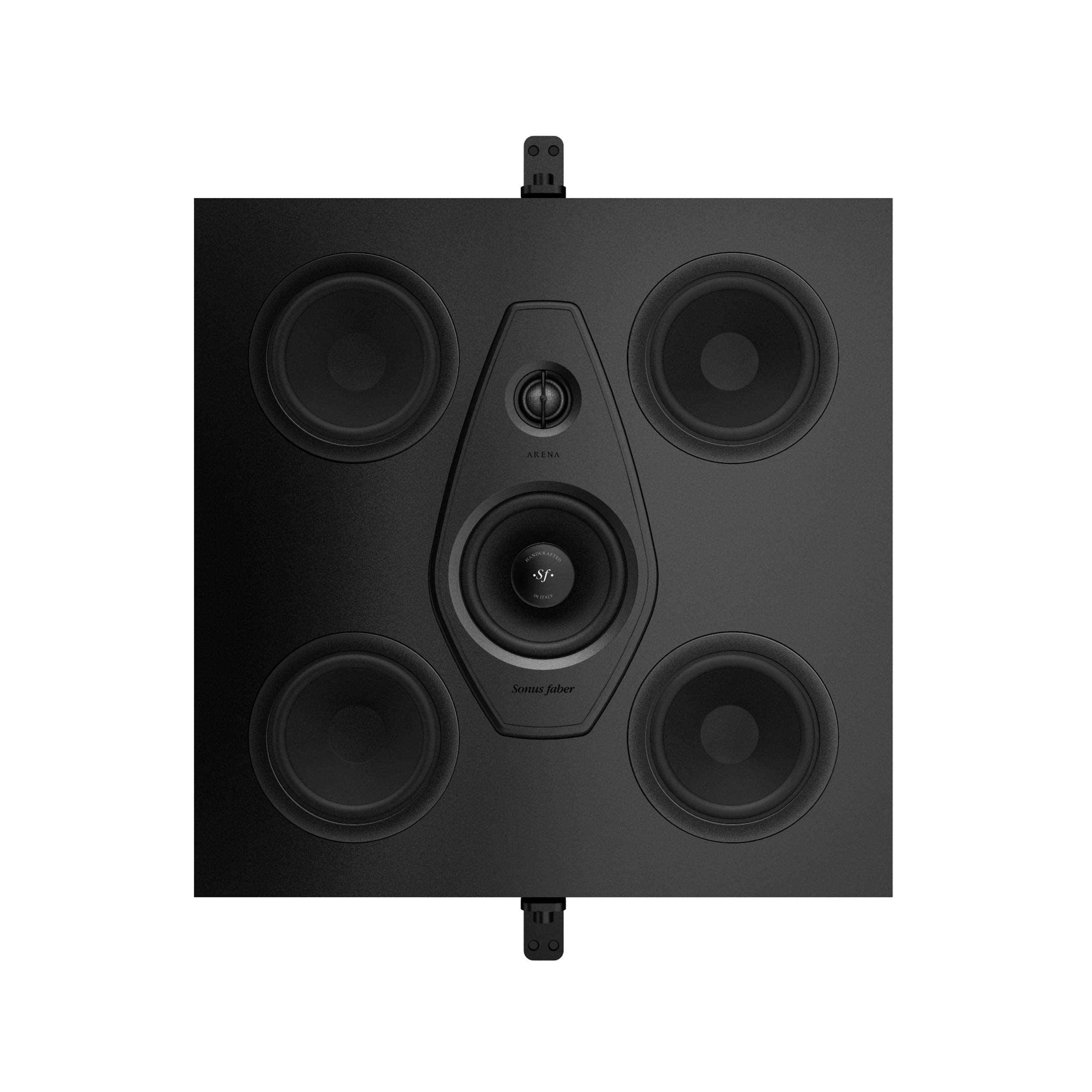

With a square-shaped, very shallow hermetic enclosure designed to facilitate installation on both ceilings (for 3D audio) and walls without compromising final performance, the Arena 10 exhibits an exceptionally wide frequency response curve and unusual bass. for a design of its category, thanks to the use of 4 165 mm woofers, 1 159 mm midrange speaker and 1 19 mm super tweeter.

All of these transducers benefit from the advanced engineering of their counterparts used in the Arcugnano company's series of High Fidelity and Home Theater speakers, the result being an extremely neat, spacious, rich and powerful reproduction of any audiovisual content.

For its part, filter circuitry made with very high quality components ensures seamless integration of the aforementioned set of transducers, while a nominal impedance of 4 ohms guarantees compatibility with a wide range of attack electronics.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

• Very high-performance 3-way/6-speaker speaker box.

• Designed for all types of high-level custom residential installations.

• Suitable for multidimensional surround sound (3D audio).

• Hermetic enclosure.

• Recessed into wall and ceiling.

• “Voice of Sonus Faber ” mid and high transducer set.

• 19mm dome super tweeter.

• Midrange speaker with 159 mm diameter.

• 4 165 mm diameter woofers.

• Crossover filter made with audiophile grade components.

• Frequency response of 40-31,580 Hz (cutoff points at -3 dB).

• Sensitivity of 88.5 dB/W/m.

• Nominal impedance of 4 ohms and minimum of 3.5 ohms.

• Associated amplifier power: maximum 400 W RMS.

• Maximum sound pressure level of 111 dB at 1 m.

• Maximum dimensions: 590 x 590 x 150 mm (W x H x D).

• Minimum mounting depth: 150 mm.

• Weight: 25kg.
