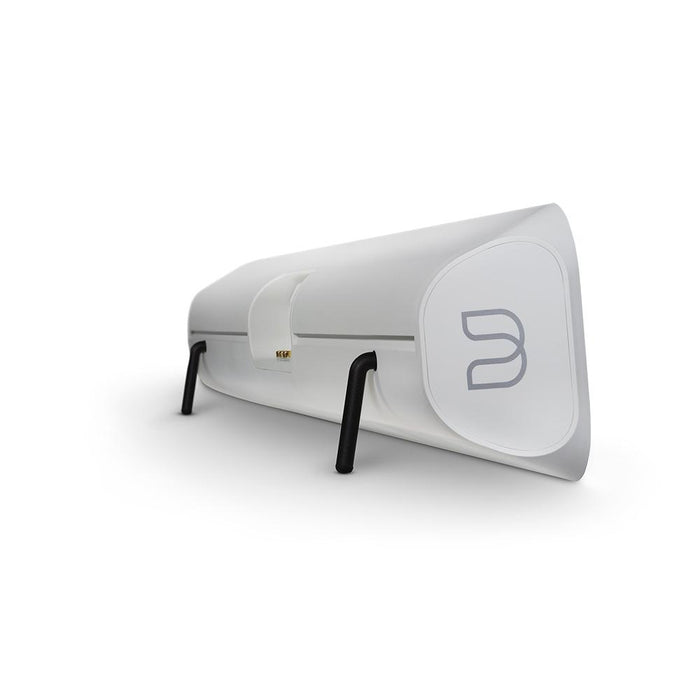

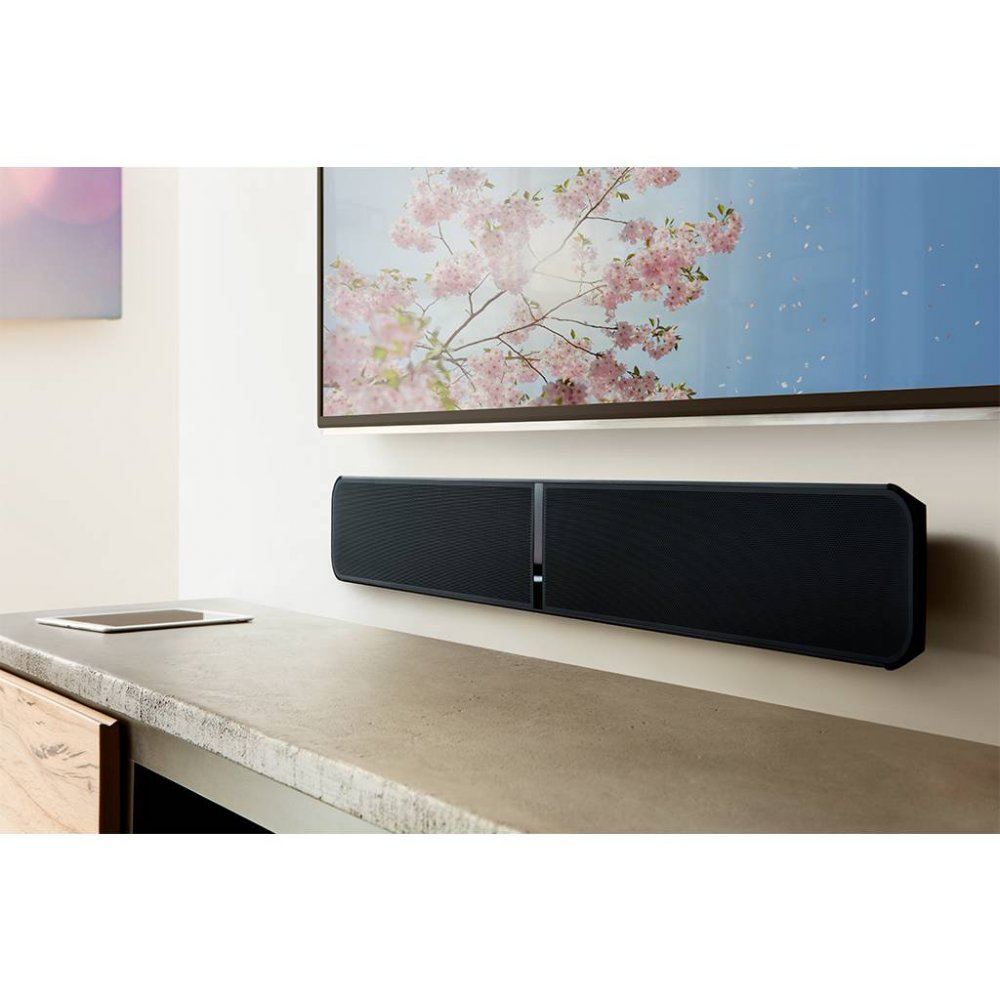

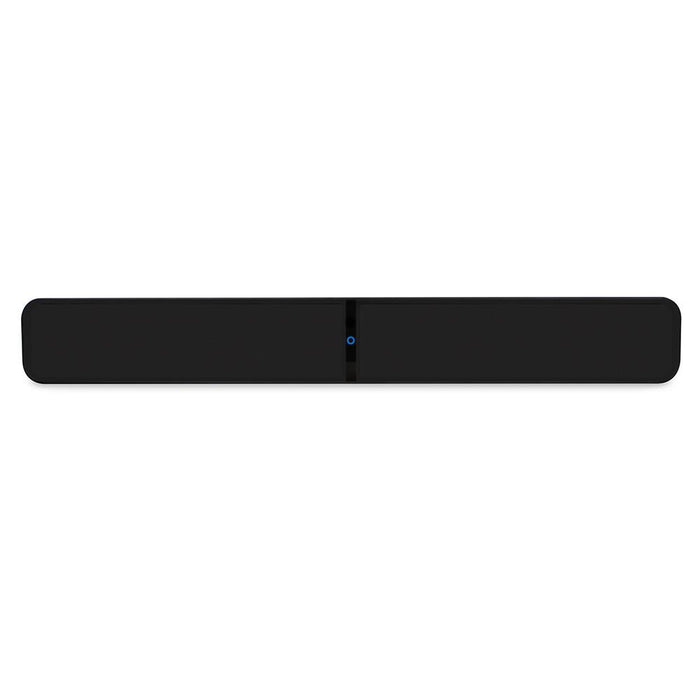

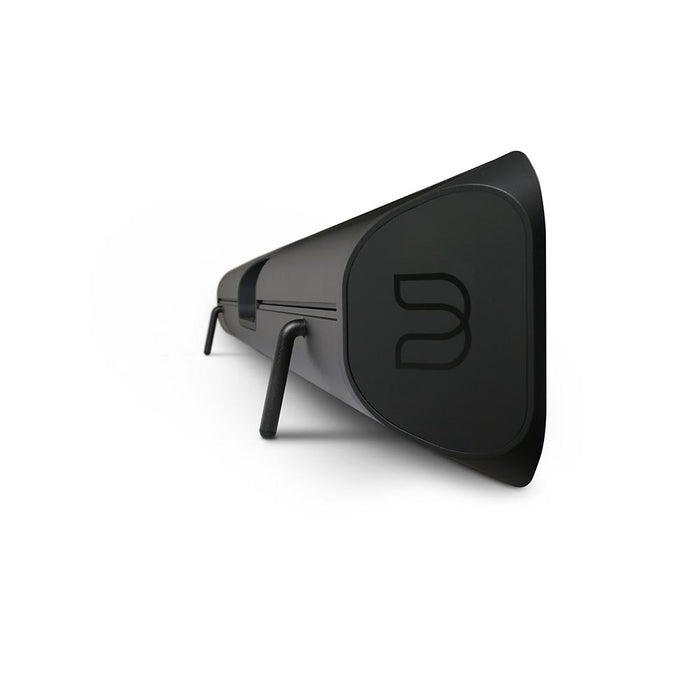

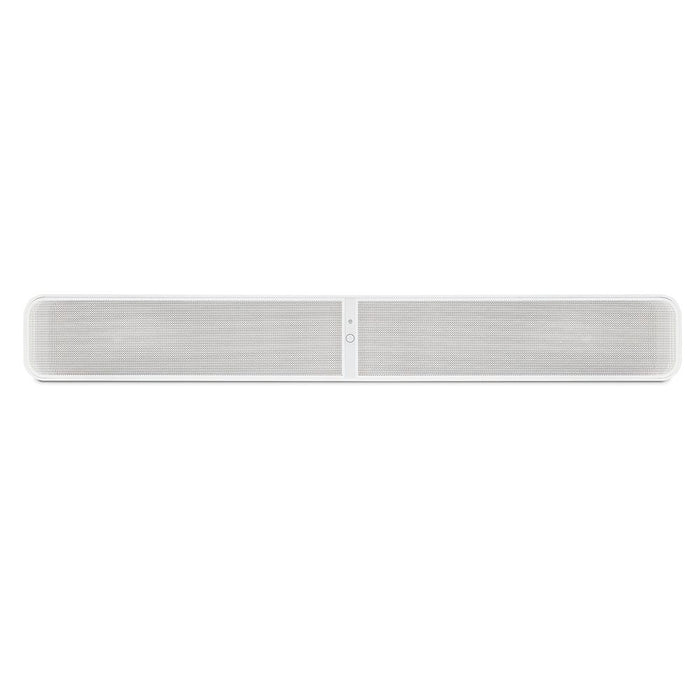

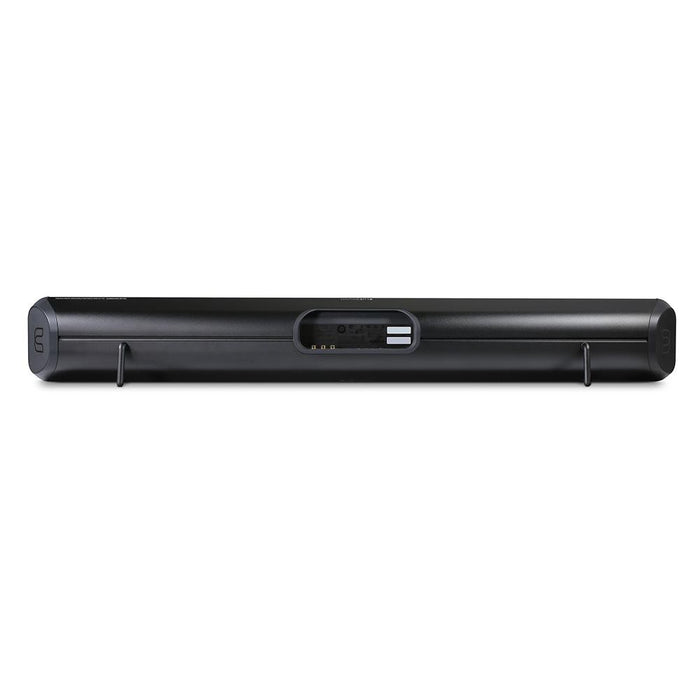

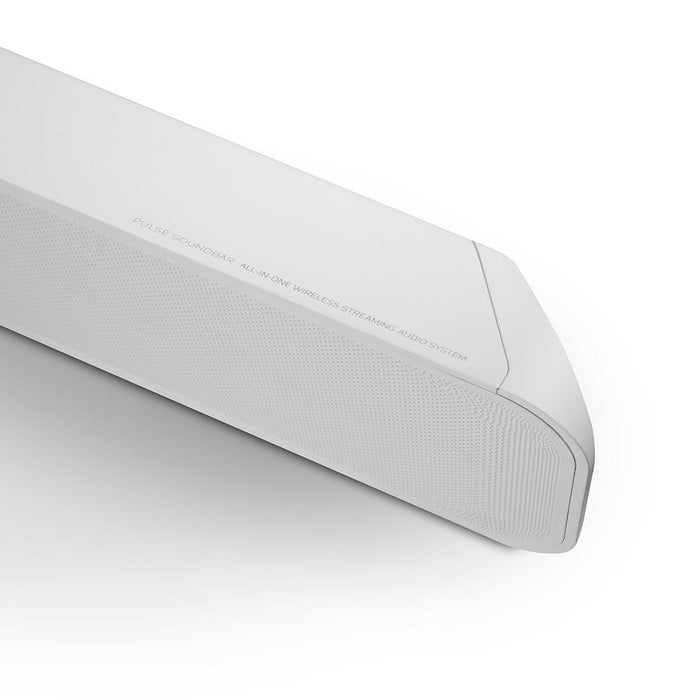

SoundBaras Bluesound Pulse Soundbar

AUDIO

Supported File Formats

MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi-Res formats - FLAC, MQA, WAV, AIFF

Surround Formats

Dolby Digital

Native Sampling Rates

32 - 192 kHz

Bit Depths

16 - 24

Performance

Frequency Response: +/_ 1dB 70Hz - 20kHz, 3dB down @ 55Hz,

With Sub: +/_ 1dB 30Hz - 20kHz, 3dB down @ 25Hz

Distortion:

THD+N - 0.030%

Power Output

120 watts of DirectDigital power

Speakers

Tweeter : 2 x 3/4” (19mm) Soft Dome
Mid-Range : 2 x 2” (50mm) Treated Paper Cone, Rubber Surround
Woofer : 2 x 4” (102mm) Rubber Surround

Supported Operating Systems

Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista 7-10 Apple Macintosh 7-10

Free Internet Radio

TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive, Radio.com

Supported Cloud Services

Spotify, Amazon Music HD, TIDAL, Deezer , Qobuz, HighResAudio (VAULT Required), Napster, KKBox, Bugs, Taihe Music ZONE, SoundMachine, IDAGIO, OraStream

Integration Partners

Control4, RTI, Crestron, URC, push, iPort, ELAN, Lutron, roon

Album Art

JPG

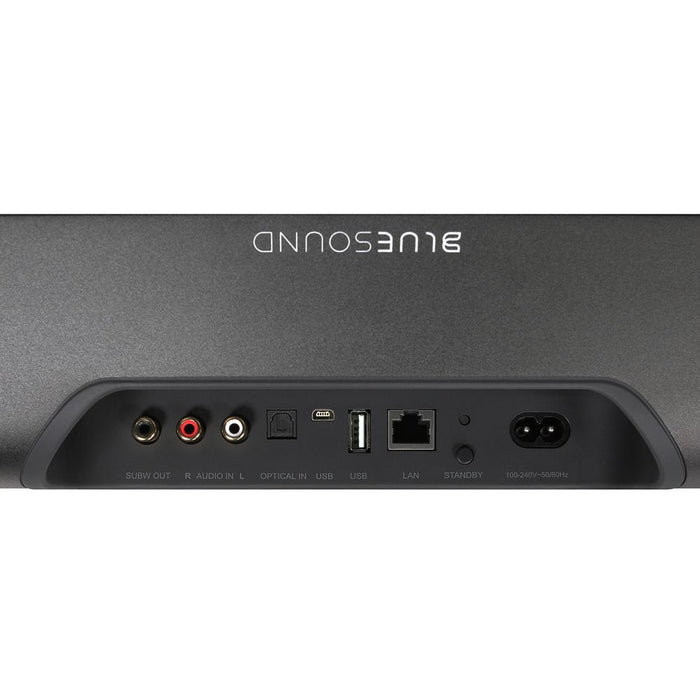

CONNECTIVITY

Network

Gigabit Ethernet RJ45
802.11 b/g/n WiFi

USB

1 x Type-A (Fat32 Formatted) port for connection to USB memory sticks and supported peripherals
1 x Type-B (mini) for product servicing

Digital/Analog Input

Optical, RCA Line In

Output

Subwoofer out (RCA)
Subwoofer out (wireless for BluOS subs only)

Wireless

aptX® Bluetooth wireless built-in

Power

Universal bi-pin AC Cord input (100 - 240AC)

USER INTERFACE

Mobile

Free Android and iOS App Available Online at Google Play and Apple App Store

GENERAL

Processor

ARM Cortex - A9, 1 GHz

Unit Weight

15 lbs / 6.8 kg

Gross Dimensions

1073mm x 141mm x 70mm (42.25” x 5.5” x 2.75”)
(not including wall bracket or kickstands)

Accessories

120V AC Power Cord
230V AC Power Cord
Stereo RCA to RCA Cable
Ethernet Cable
Two Kickstand Feet
Two Kickstand Extenders
Wall Mount Bracket
Wall Mount Bracket Template

Storage Environment

-10° C to 50° C, 20% to 80% relative humidity

Operating Environment

0° C to 40° C
