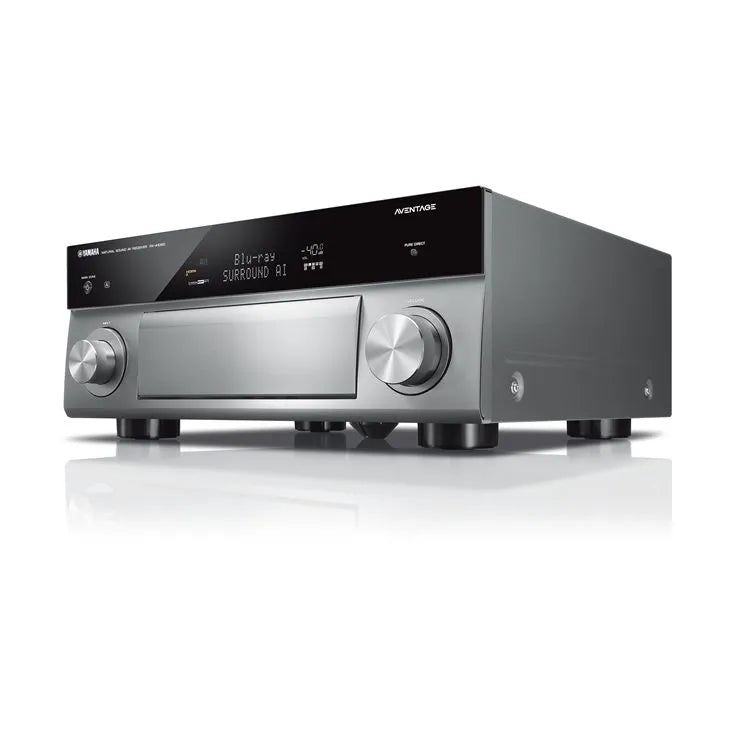

Tinklinis AV resyveris Yamaha AVENTAGE RX-A1080 7.2 MusicCast

Tinklinis AV resyveris Yamaha AVENTAGE RX-A1080 7.2 MusicCast

• 7-channel powerful surround sound
• --- 110 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
• --- 165 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
• --- 170 W per channel (4 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• Surround:AI automatically optimises the surround effect in real time
• Dolby Atmos® and DTS:X™ with CINEMA DSP HD3
• YPAO™-R.S.C. with multi-point measurement and precision EQ
• Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
• Amazon Alexa voice control compatibility* (*Availability varies by region)
• Highly rigid construction including Anti Resonance Technology (A.R.T.) Wedge　
• High quality parts for optimum performance
• Professional quality digital audio by ESS DAC
• MusicCast multi-room technology
• Music streaming services built-in
• HDMI® (7 in / 3 out) with Dolby Vision™ and Hybrid Log-Gamma
• Phono input for vinyl playback

AV Receiver

• Amplifier Section: Channel 7.2
• Rated Out: (1kHz, 1ch) 170W (4o, 0.9%)
• Rated: (20-20k Hz, 2ch) 110W (8o, 0.9%)
• Max Out: 1kHz (JEITA): 165W (8O, 10%)
• Dyn Power: (8/6/4/2) 135/165/210/280W

• Surround:AI: Yes
• CINEMA DSP: HD3
• DSP Programs: 24
• Dialogue Level Adj: Yes
• Dialogue Lift: Yes
• DSP: Virtual/Silent cinema
• Virtual Presence + Surround Back
• Dolby: Atmos/TrueHD/Dig+/surround
• DTS: X/HD Master Audio

Audio

• Pure Direct: Video on mode
• Compressed: Enhancer for BT
• Optimisation: YPAO R.S.C
• Adaptive DRC + A.R.T Wedge
• Bi-amp Capability: Yes
• Audio Delay: 0-500ms
• 384kHz/32-bit DAC: SABRE Premier

• Pass-through: (4K/ 60p, 4:4:4)
• 3D Pass through: HDMI
• HDMI: eARC, Audio Return Chan
• HDMI upscaling: HDMI to HDMI
• Deep Color/x.v.Color/24Hz
• Refresh Rate /Auto Lip-Sync

• MusicCast Surround: Yes
• HDMI In/Out: 7/2
• Support: HDCP2.2/HDR10/BT.2020
• HDMI CEC: SCENE, Device Control
• USB In: Memory, Portable Player
• Network Port: Yes
• Wi-Fi: (2.4 / 5 GHz)
• Bluetooth: SBC / AAC
• Front AV In: USB / Analogue
• Digital In/Out: Optical 3/0
• Digital In/Out: Coaxial 3/0
• Analog In/Out: 9 (front 1)/0
• Phono input: Yes
• Component Vid In/Out: 2/0
• Composite Vid In/Out: 4/0
• Preout: 7.2-channel
• Headphone Output: 1

Tuner Section

• FM/AM Tuner: FM only
• DAB Tuner: Yes

User Interface

• On-screen display: GUI
• SCENE: 8 sets
• App Control: iPhone/iPad/Android
• Web Browser Control: Yes
• Remote Control Unit: Yes
• Zone 2 Audio Out: Preout/ HDMI
• Powered Zone: Zone 2
• Zone Vid: Component / Composite
• Zone HDMI: HDMI Switching
• Zone B Output: HDMI
• RS-232C Interface: Yes
• +12V Trigger Output: Yes
• Remote (IR) Input/Output: 1/1

General

• Standby Consumption (IR): ≤0.1W
• Dimensions (WHD): 435 x 182 x 439mm
• Weight: 14.9kg
