Van Den Hul D.I.Y 4mm, Banana tipo jungtys

Lengvai naudojamos Banana tipo jungtys- konektoriai.

  • 24k auksu padengtas pagrindas.
  • Itin aukšto lygio kontakto pojūtis.
  • AWG 12 (Ø2 mm).

Versatile and easy-to-assemble DIY gold plated connectors. They offer high quality contact over long periods of intensive use and are very effective in keeping oxidation away.

  • 24 carat gold plated, screw-on, solderless connectors

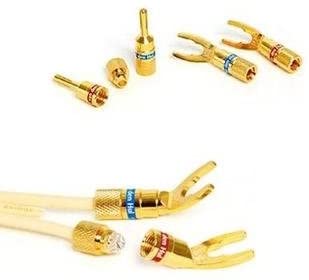

  • Available in packs of four angled spades (fork) or banana plugs with red or blue rings for polarity identification
  • Only suitable for multi-strand loudspeaker cable and wire types. Minimum values: AWG 12 (Ø2 mm), for the bare conductor, and Ø 6.5 mm for jacket diameter
  • The banana and the angled fork spade screw-on terminals are WBT binding post fitting. Both offer excellent mating properties and minimal contact resistance.
  • The high pressure clamping ensures low loss electrical connection and maximum signal transfer

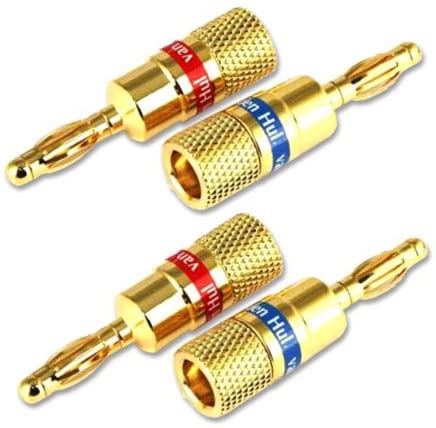

  • Banana terminal (standard Ø4 mm pin)
  • Angled fork spade terminal fits studs from Ø 6.0 mm to Ø 8.5 mm.
  • Easy assembly instructions (4 steps):
  1. Strip off 14mm of the multi-strand cable/wire jacket
  2. Insert the stripped end through the screw-on collar
  3. Fan out the strands and evenly fold them encircling the collar
  4. Insert the banana pin/spade blade and screw-on to the collar



  • These connectors fit the following cables and wires:



SPECIFIKACIJOS

The CLEARTRACK CS – 12 HF
The CLEARWATER CS – 14 HYBRID
D – 352 HYBRID CS – 14
The GOLDWATER CS – 16
The INSPIRATION HYBRID CS – 122 HYBRID
The SKYLINE HYBRID SCS – 16
The SNOWLINE SCS – 18
The TEATRACK HYBRID
The TWIN
The WIND Mk II HYBRID
