Wharfedale DOVEDALE, grindinės garso kolonėlės

INFORMACIJA

Wharfedale DOVEDALE - tai garso kolonėlės, kuriose klasikinis dizainas dera su moderniausiais inžineriniais sprendimais. Šios trijų krypčių, ant stovų montuojamos garso kolonėlės atkartoja originalių modelių proporcijas ir išlaiko legendinį, šiltą ir natūralų garsą, tačiau pasižymi gerokai pagerintomis techninėmis charakteristikomis.

Rekomenduojama stiprintuvo galia: 25-250W
Dažnių diapazonas: 36Hz ~ 20kHz(+/-3dB)
Jautrumas: 89dB (2,83 V @ 1 m)

Kaina už porą, stovai įeina į komplektą.

APRAŠYMAS

A True Classic

Dovedale has an unmistakable family resemblance. It is a three-way standmount model – a rarity in the modern era, retaining similar proportions to the classic Dovedale models of yesteryear. Its wood-veneered cabinet has a vintage look, yet the standard of finish is distinctly contemporary – a tribute to the skilled craftsmanship required to produce such a loudspeaker.

The original Dovedale models – dating back to the W2 in 1959, which was updated to the W2 / Dovedale in 1965 – were well known for their rich and natural sound quality. The new model retains these attributes but upgrades the performance in every department, with free-breathing dynamics and incredible definition across the bass and midrange.

A celebration of the Landmark goth anniversary of the Wharfedale brand. The Wharfedale Dovedale is more than just a reintroduction of a classic model. This is a speaker that exudes authenticity. Designed to appeal to the dedicated music-lover.

More than a Reintroduction

Class lasts a lifetime! The Wharfedale Dovedale portrays the timeless design of a stunning Loudspeaker cabinet with an authentic Legacy. Traditional. simple, beautiful yet highly evolved and a thoroughly modern design.

Bang up to date – utilising a mixture of traditional and advanced technology, for optimum performance whilst staying true to the legacy.

Critical analysis of the performance of each cabinet has resulted in the application of precision shaped and positioned internal bracing. This ensures that cabinet resonances are controlled to well below the level of the music signal, allowing you to hear through to the recording without coloration intruding on your listening enjoyment.

Three-way to Perfection

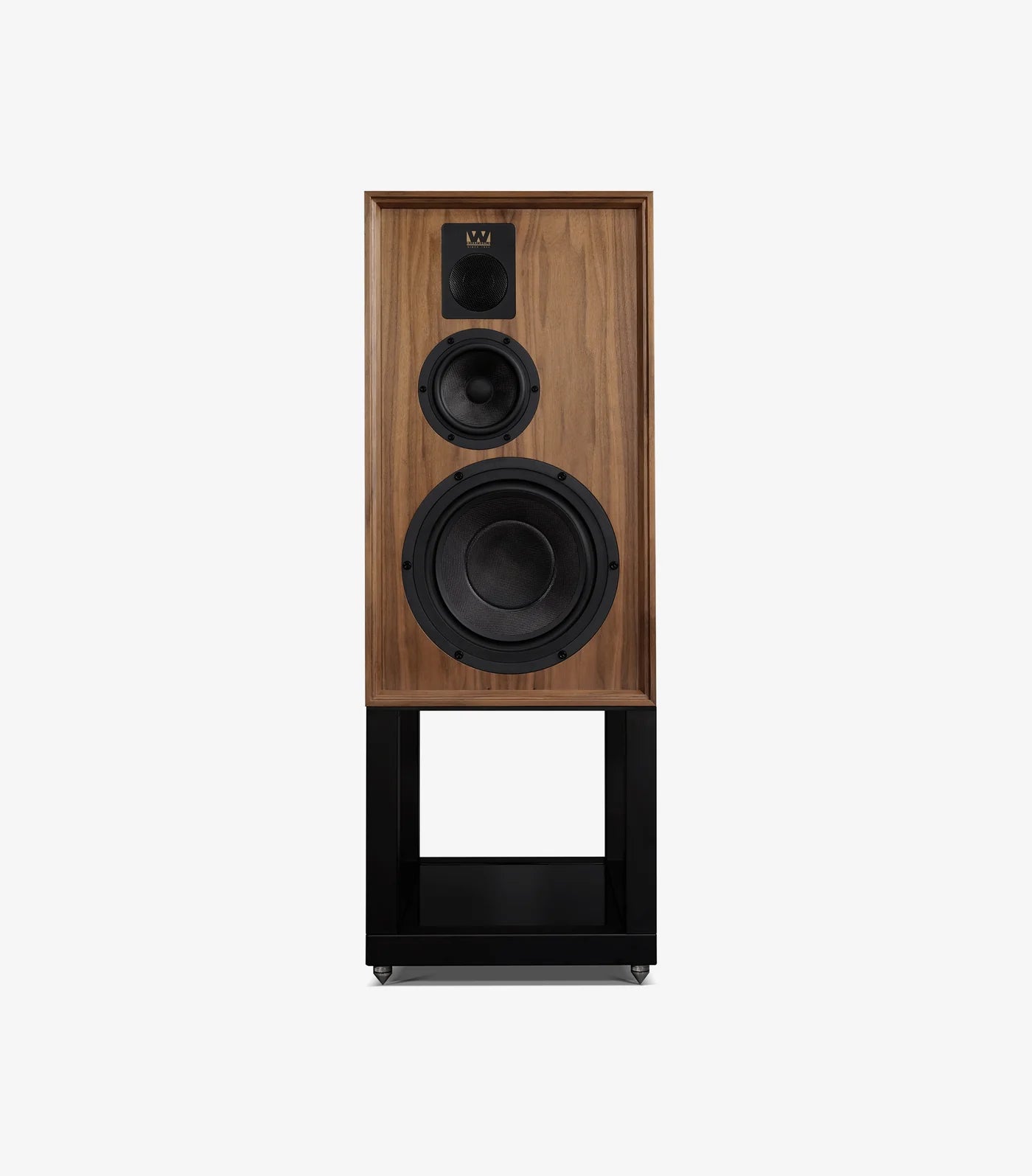

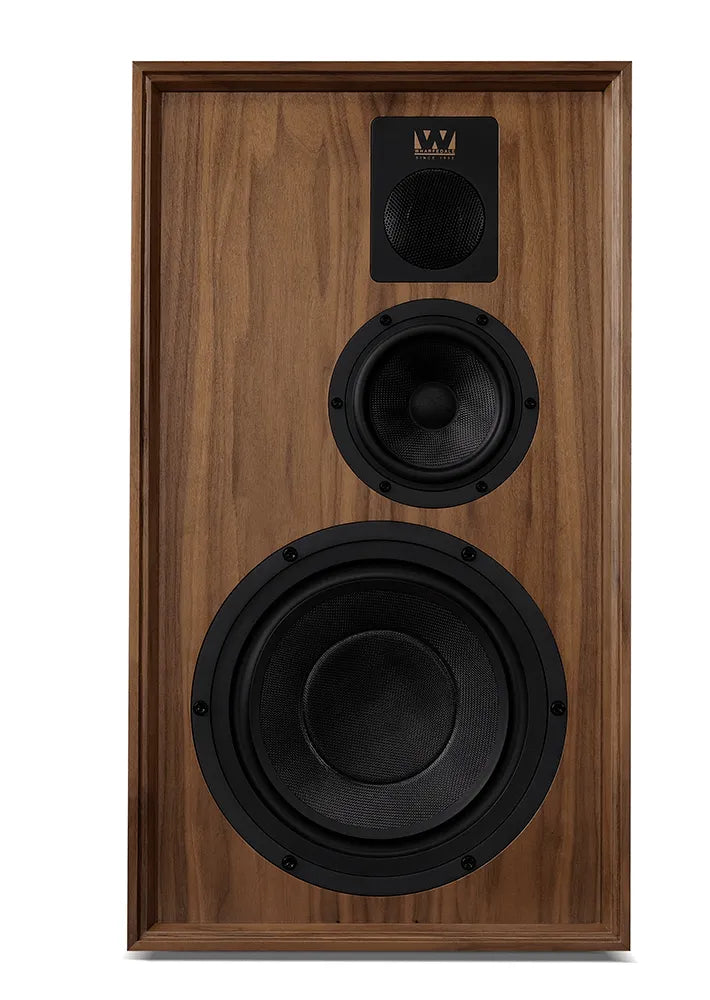

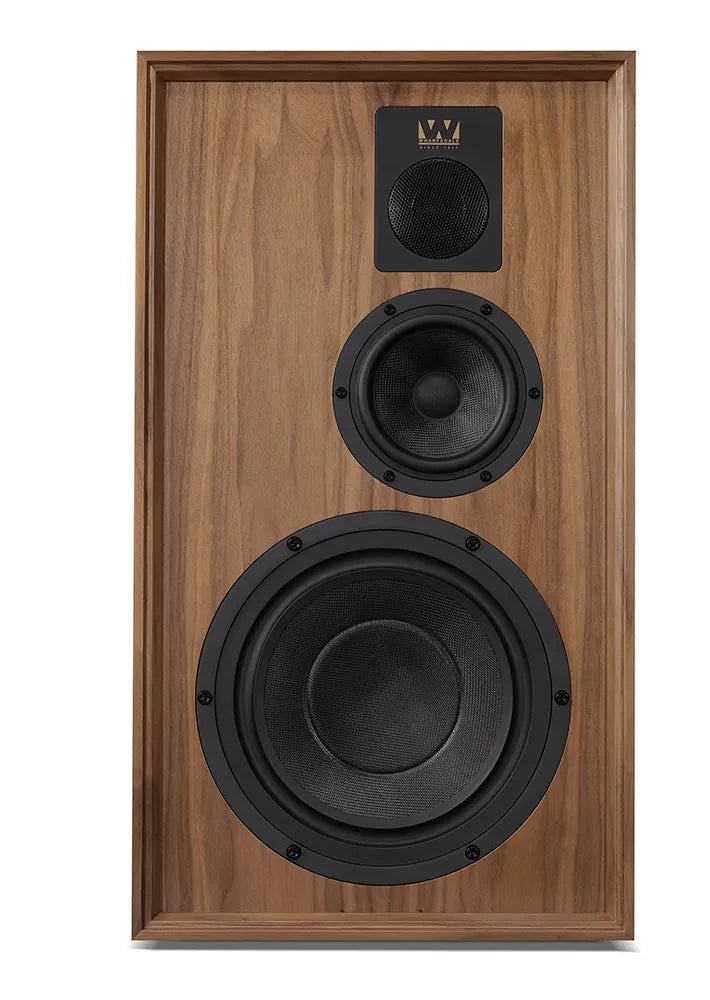

A three-way speaker in the classic Wharfedale tradition – beautifully hand veneered with an inset front baffle and traditional cloth grille.

Both the midrange unit and treble unit are offset on the front baffle to scatter reflections from the cabinet edges and provide superior focus of the stereo image, and the speakers are provided in handed pairs so that sonic images in the stereo sound field are always accurately placed. The speakers have been fine-tuned acoustically through hundreds of hours of listening tests with all manner of music to ensure the cabinet, crossover and drive units work together coherently and seamlessly.

Dovedale Bass

Dovedale makes use of its wide baffle by incorporating a large (by modern standards) bass driver with a 260mm (10-inch) Kevlar® cone – mounted on a rigid die cast chassis, this combination delivers a rich, controlled bass output with superb dynamic performance.

Dovedale Midrange

The 10in (25cm) bass and 5in (13cm) midrange drivers incorporate cones made from woven Kevlar – an exceptionally strong and stiff synthetic fibre discovered in the same year as the original Dovedale’s release and not used for loudspeaker diaphragms until a decade later.

Dovedale Treble

The 25mm fabric-dome treble unit with a ceramic magnet, featured throughout Wharfedale’s Heritage Series, has been further improved by incorporating a rear chamber, damped to absorb the output from the back of the dome. This also has the advantage of reducing the resonant frequency of the treble unit to well below the crossover region, allowing full treble detail and harmonics to be revealed without affecting the smoothness of the high-frequency performance.

TECHNINIAI DUOMENYS

General Description    3-way vented-box/ standmount
Enclosure Type    Bass reflex
Transducer Complement    3-way
Bass Driver    10' (250mm) black woven Kevlar® cone
Midrange Driver    5" (135mm) black woven Kevlar® cone
Treble Driver    1" (25mm) soft dome
AV Shield    No
Sensitivity (2.83V @tm)    89dB
Recommended Amplifier Power    25-250W
PeakSPL    112dB
Nominal Impedance    6½
Minimum Impedance    3.6½
Frequency Response (+/-3d8)    36Hz ~ 20kHz
Bass Extension (-6dB)    25Hz
Crossover Frequency    560Hz & 2.9kHz
Cabinet Volume (in litres)    8.6L, 64.7L
Dimensions (mm)
Height (on plinth)    660mm
Width    370mm
Depth (with terminals)    (417+30)mm
Carton Size    570 x 520 x 835mm
Net Weight    26.2kg/pc
Finish    Real Wood Veneer - Walnut Finish
Standard accessories    protective feet
Optional accessories    Dovedale Stand
