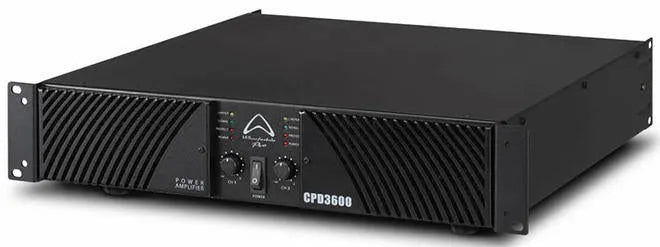

Wharfedale Pro CPD 3600, garso stiprintuvas

CPD3600 naujausias Wharfedale Pro produktų linijos gaminys. Tai profesionalus galios stiprintuvas su žeme drebinančio garso galimybe.

• Galia: 1300W.
• Dažnių juosta: 20Hz - 30KHz.
• 2 x XLR jungtys.
• 2 x Speakon išėjimai.

APRAŠYMAS

The CPD3600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back. - For using in stereo the amplifier delivers 870W RMS per channel at 8 Ohms and 1300W RMS per channel at 4 Ohms; a suitable power for medium to large sized complete PA systems for mobile and fixed installation. In bridged mode at 4 Ohms the amplifier generates 3600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

• - 8 Ohms x 2: 870W RMS
• - 4 Ohms x 2: 1300W RMS
• - 8 Ohms Bridged: 2600W RMS
• - 4 Ohms Bridged: 3600W RMS
• - class H Technology
• - status and clip LEDs
• - thermal, overcurrent, DC and output short protect circuitry
• - 2 x Speakon outputs
• - 2 x XLR outputs to link other audio equipment
• - 2 x XLR inputs
• - peak and protect LEDs
• - built-in switchable limiter
• - continuously variable speed fan
• - suitable for touring, rental and installation

• - Stereo Output
• - 8 Ohms x 2 - 870W RMS
• - 4 Ohms x 2 - 1300W RMS

• - Bridged Mono Output
• - 8 Ohms: 2590W RMS
• - 4 Ohms: 3600W RMS

• - inputs: 2 x XLR
• - outputs: 2 x XLR, 2 x Speakon
• - frequency Response: 20Hz - 30KHz
• - topology: Class H
• - sensitivity: 0dBu (0.775Vrms)
• - input Impedance: 20K Ohms
• - maximum Input Level: 22dBu (9.7Vrms)
• - slew Rate: >40V / us
• - crosstalk: <-70dB
• - signal to Noise: >100dB
• - protection: Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
• - display: 4 segment LED
• - cooling: Variable Speed Fan

Naudotojo instrukcija / User manual.
