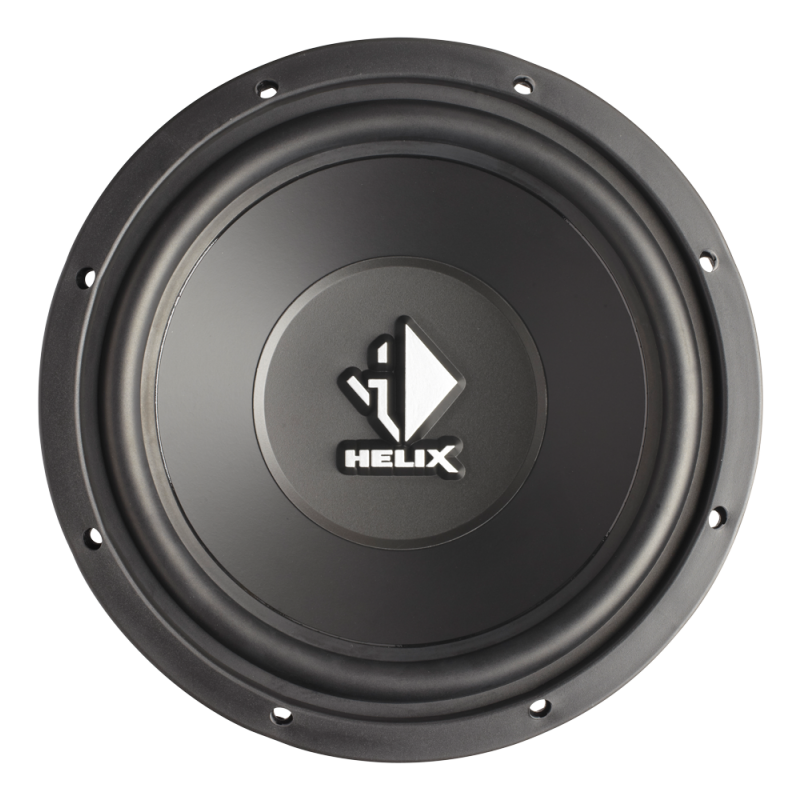

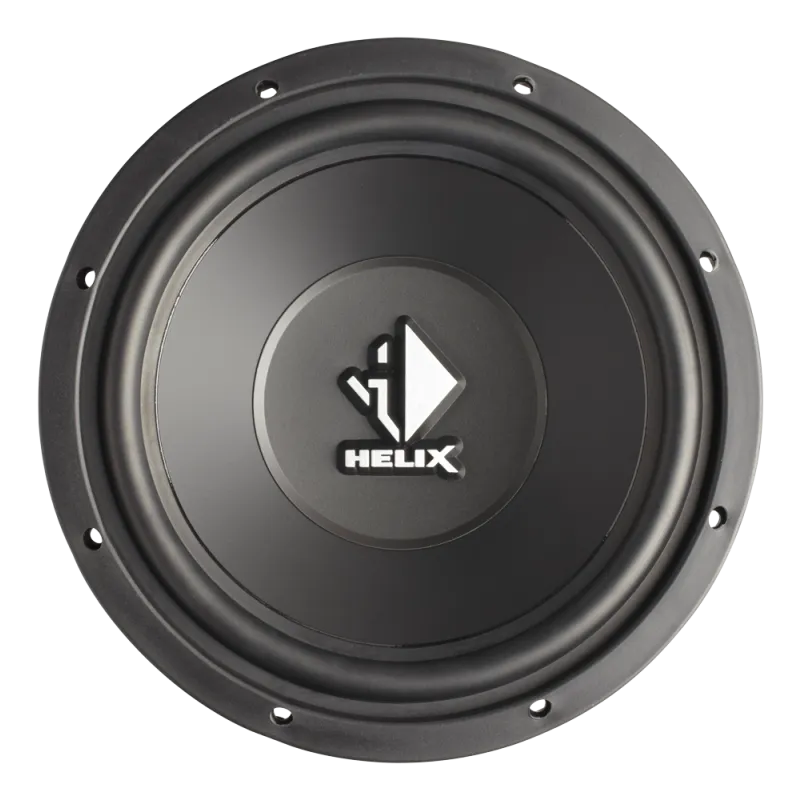

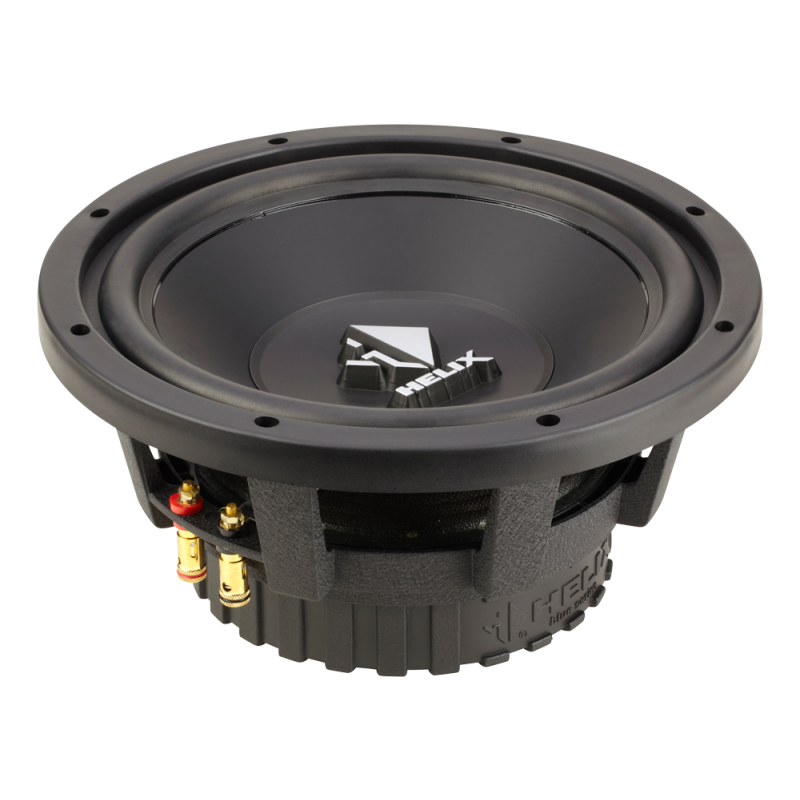

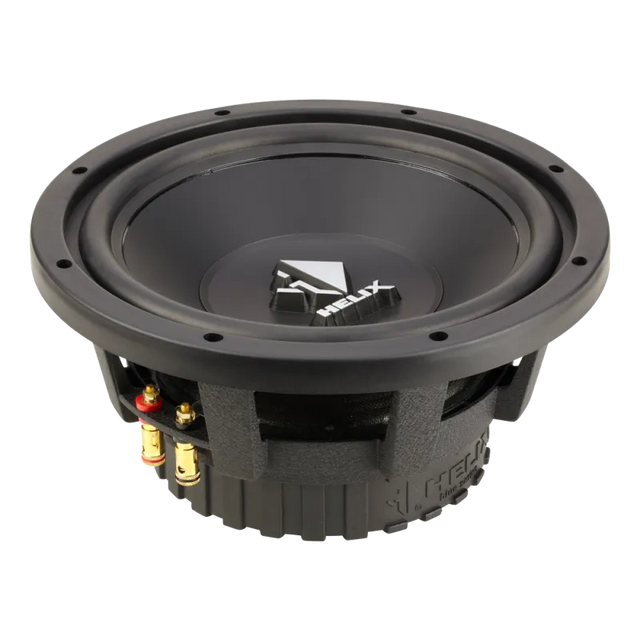

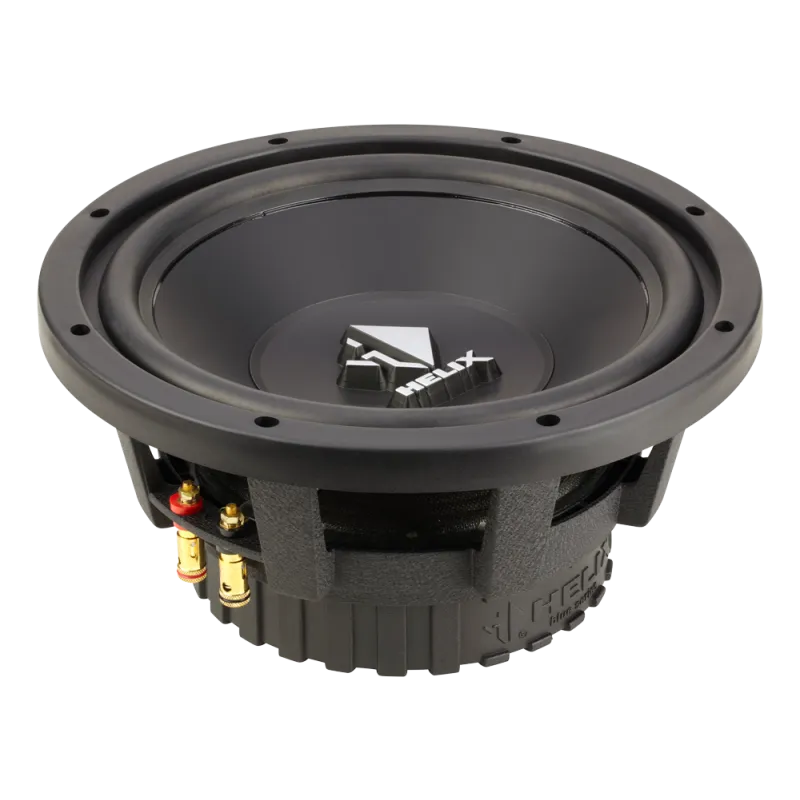

Žemų dažnių garsiakalbis Helix B 10W, 500W, 25cm

Galia: RMS 250W  /  MAX 500W Varža: 2 x 2 Omai Jautrumas: 1 W / 1 m 87 dB Rezonansinis dažnis: 33 Hz Montavimo gylis: 116 mm / 4.57“ Garso ritės skersmuo: 50.8 mm FEATURES Low resonant cone made from injected polypropylene Massive and rigid aluminum die-cast basket Massive gold-plated terminals Solid rubber magnet protection ring with HELIX logo 2 x 2 Ohms dual voice coil Chrome-plated and polished pole plate with HELIX logo TECHNINIAI DUOMENYS Voice coil winding height 20 mm Max. linear excursion +/- 6 mm Cone area 340 cm² Moving mass 97 g DC resistance 2 x 1.6 Ohms Mechanical Q factor 4.35 Electrical Q factor 0.50 Total Q factor 0.45 Equivalent air volume 41 L Voice coil inductance 1.25 mH Force factor 11.3 Tm Outer diameter 265 mm / 10.43“ Cutout diameter 234 mm / 9.21“ Sealed net volume 21 L DOKUMENTAI Daugiau informacijos

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 95.00 €
Kaina: 95.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Žemų dažnių garsiakalbis Helix B 10W, 500W, 25cm

  • Galia: RMS 250W  /  MAX 500W
  • Varža: 2 x 2 Omai
  • Jautrumas: 1 W / 1 m 87 dB
  • Rezonansinis dažnis: 33 Hz
  • Montavimo gylis: 116 mm / 4.57“
  • Garso ritės skersmuo: 50.8 mm
  • Low resonant cone made from injected polypropylene
  • Massive and rigid aluminum die-cast basket
  • Massive gold-plated terminals
  • Solid rubber magnet protection ring with HELIX logo
  • 2 x 2 Ohms dual voice coil
  • Chrome-plated and polished pole plate with HELIX logo
    • Voice coil winding height 20 mm
    • Max. linear excursion +/- 6 mm
    • Cone area 340 cm²
    • Moving mass 97 g
    • DC resistance 2 x 1.6 Ohms
    • Mechanical Q factor 4.35
    • Electrical Q factor 0.50
    • Total Q factor 0.45
    • Equivalent air volume 41 L
    • Voice coil inductance 1.25 mH
    • Force factor 11.3 Tm
    • Outer diameter 265 mm / 10.43“
    • Cutout diameter 234 mm / 9.21“
    • Sealed net volume 21 L
