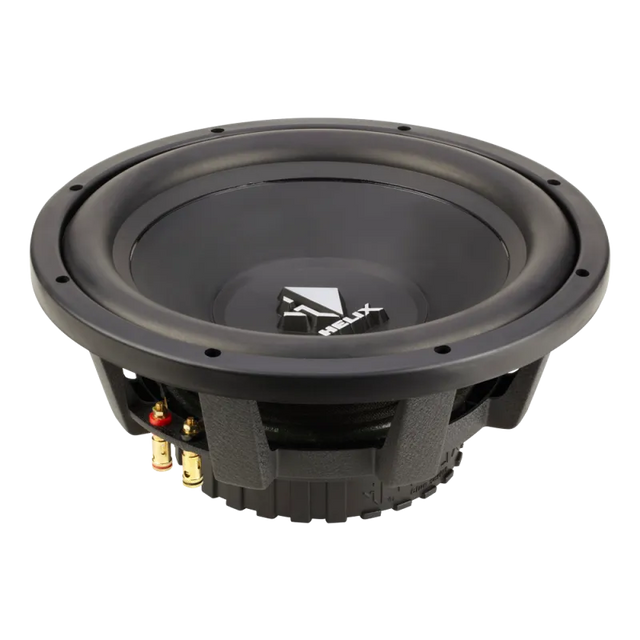

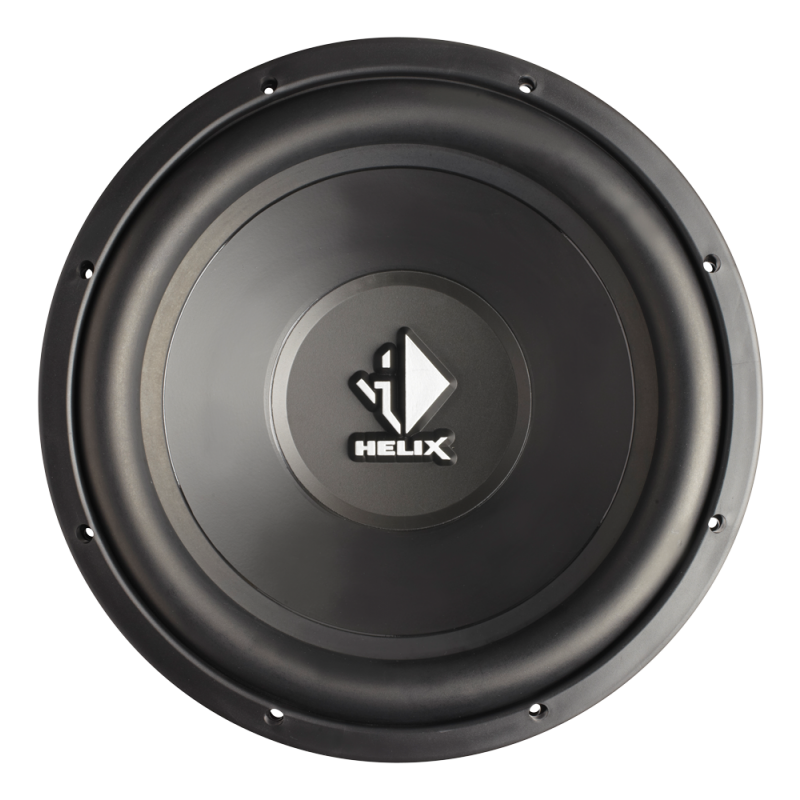

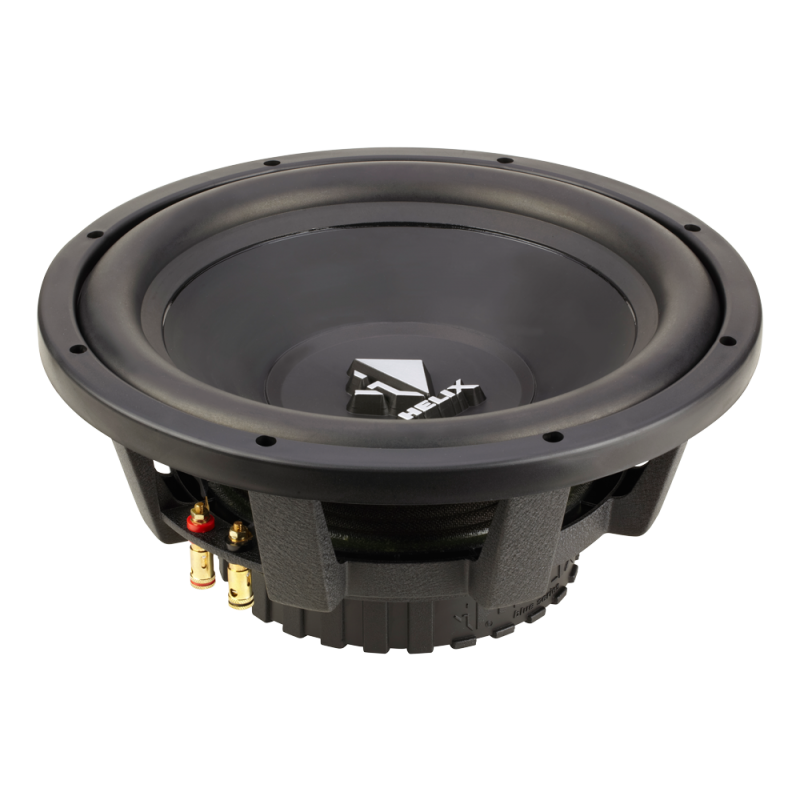

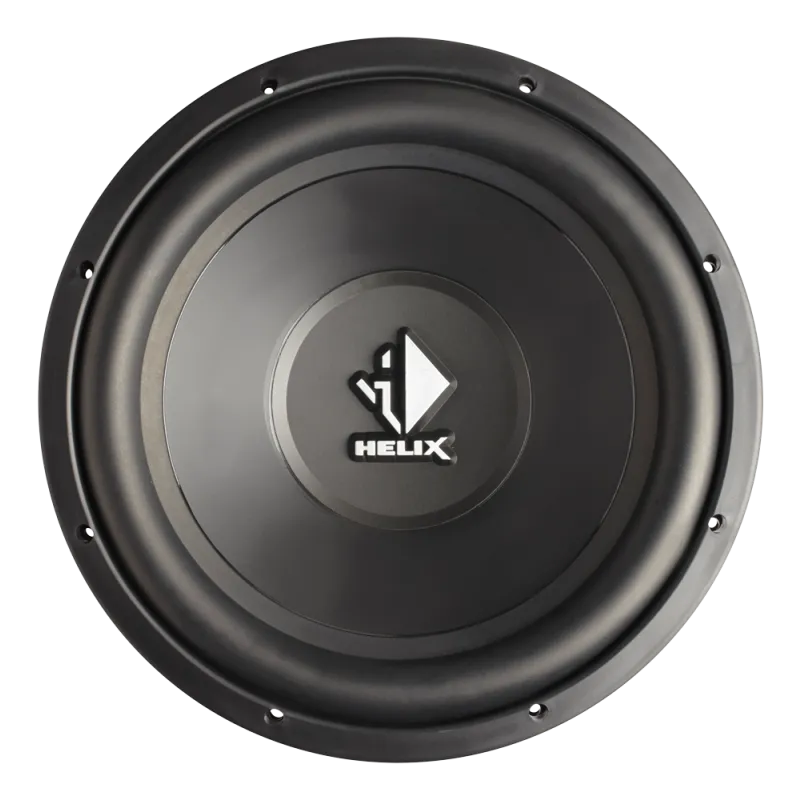

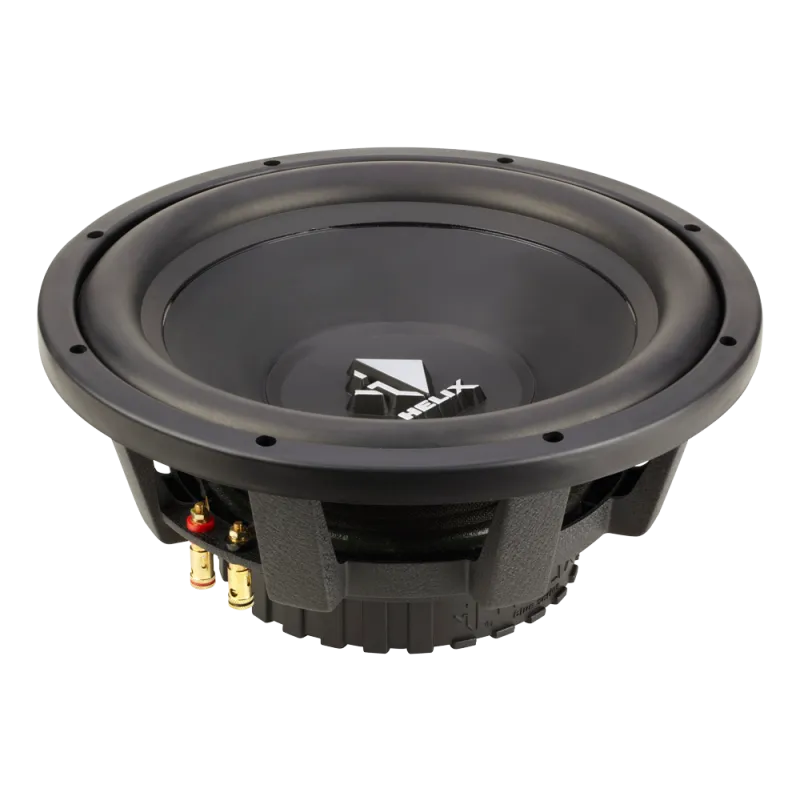

Žemų dažnių garsiakalbis Helix B 12W, 600W, 30cm

• Galia: RMS 300W  /  MAX 600W
• Varža: 2 x 2 Ohms
• Jautrumas: 1 W / 1 m 90 dB
• Rezonansinis dažnis: 29 Hz
• Montavimo gylis: 127 mm / 5.00“
• Garso ritės skersmuo: 50.8 mm

• Low resonant cone made from injected polypropylene
• Massive and rigid aluminum diecast basket
• Massive gold-plated terminals
• Solid rubber magnet protection ring with HELIX logo
• 2 x 2 Ohms dual voice coil for flexible system configuration

• Chrome-plated and polished pole plate with HELIX logo

• Voice coil winding height 20 mm
• Max. linear excursion +/- 6 mm
• Cone area 480 cm²
• Moving mass 116 g
• DC resistance 2 x 1.6 Ohms
• Mechanical Q factor 4.72
• Electrical Q factor 0.58
• Total Q factor 0.52
• Equivalent air volume 90 L
• Voice coil inductance 1.29 mH
• Force factor 11 Tm
• Outer diameter 313 mm / 12.32“
• Cutout diameter 282 mm / 11.10“
• Sealed net volume 27 L
