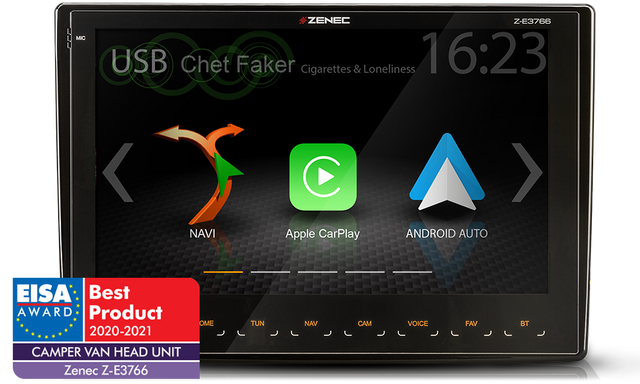

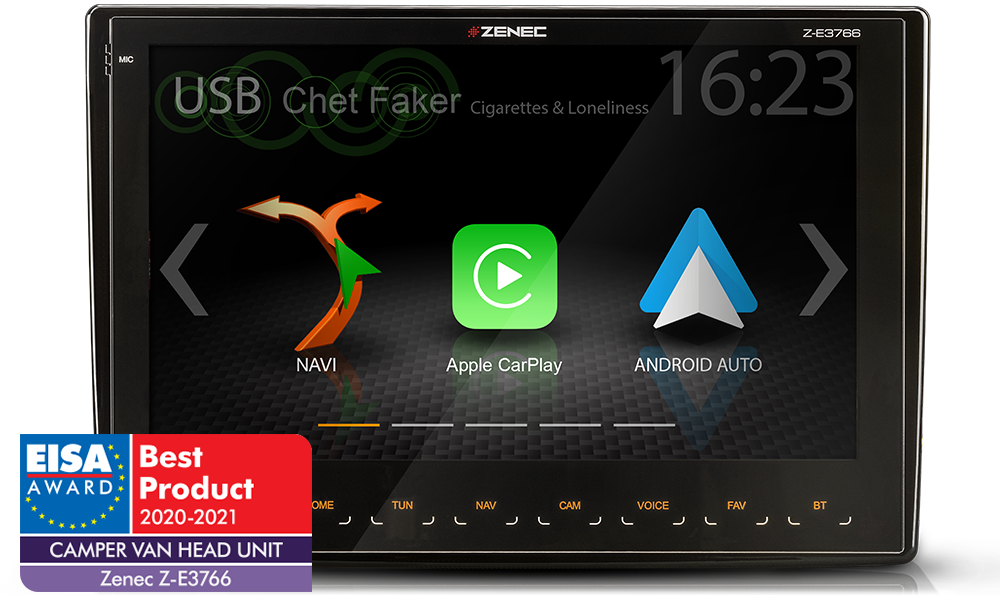

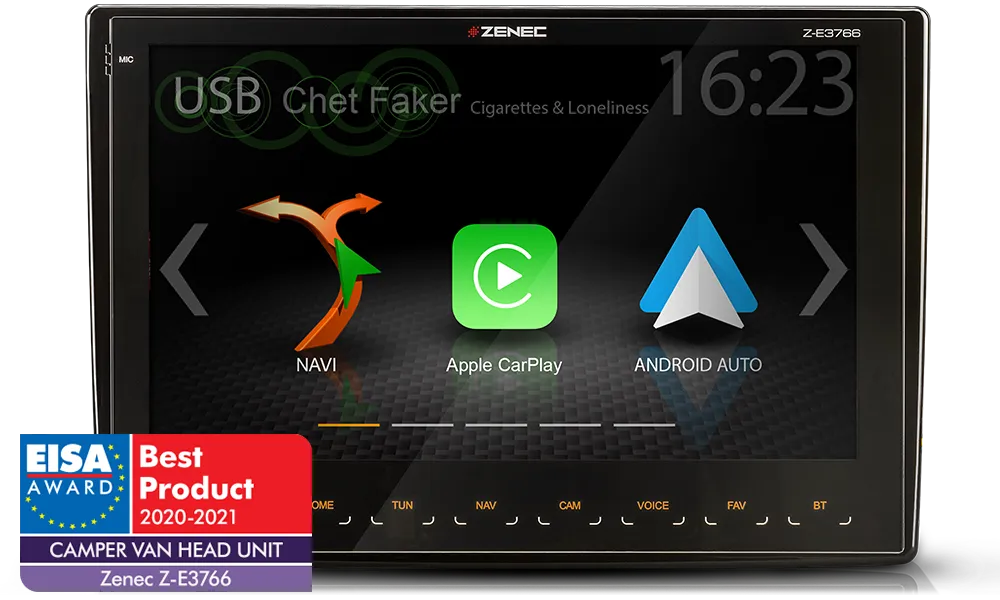

Zenec Z-E3766, automobilinė multimedija

€899.00 EUR

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Z-E3766 EISA apdovanota itin pažangi bei patogi automobilinė multimedija.

  • Bluetooth palaikymas.
  • Android Auto palaikymas.
  • AirPlay palaikymas.
  • DAB+ imtuvas.







Suderinamumas

MODEL TYPE MODEL YEAR
FIAT Ducato III 250/251 2006 - 2011
FIAT Ducato III 250/251 2011 - 2014
FIAT Ducato III 250/251 (X290) as of 2014
CITROËN Jumper II 250/250D/250L as of 2006
PEUGEOT Boxer II 250/251 as of 2006


SPECIFIKACIJOS

Main features:

Car specific motor-caravan navigation system*1 for FIAT Ducato III, Citroën Jumper II und Peugeot Boxer II
Touch sensitive, capacitive 9”/22.9 cm 16:9 LCD-TFT (1024 x 600 p) display with glass surface
OSD menu in 15 different EU languages
DAB+ twin-tuner with dynamic station list, DAB<>FM and DAB<>DAB Service Following, MOT slideshow and DLS-text
FM RDS radio with 18 preset stations
Google Android AutoTM
Apple CarPlay
Bluetooth 4.1 hands-free module with A2DP music streaming
Control of up to three cameras systems with auto switching, adjustable grid lines
CAM sensor key for direct camera control
SP-REM remote control App (iOS / Android) for smartphone operation of audio playback functions
Bicolor sensor key illumination with white/”amber”
2 x IR remote control incl. Maxi-remote
Interface for SWC button function integration
4 x 50 W amplifier



Bluetooth


Bluetooth 4.1 hands-free module
Import of 1,000 phone book entries with 3 phone numbers each)
Memory-resident phonebook with direct access to sync’d contacts
Fast dial function for contact favorites
Phonebook contact search function via keypad for given and last name
Source mode for wireless music streaming to external Bluetooth loudspeakers and headphones
iD3-Tag display in A2DP mode (artist, title, album)
Internal Bluetooth microphone, additional input for external microphone*2



Multimedia and Audio


DAB+ receiver with twin tuner
FM RDS radio with 18 station presets and DSP noise masking
Multi-zone function (with fixed level A/V-out)
USB(1) 2.0 port on device backside for CarPlay and Android Auto
USB(2) 2.0 port on device backside for A/V file*3 playback from USB memory device
Time alignment function by audio DSP (5CH with 0 to 10 mS delay each)
Graphical 10-band equalizer with 7 EQ-presets
Made for iPod/iPhone
High- + low-pass x-over for Front/Rear/Sub with 12 dB/oct. slopes
HDMI input for compatible accessories and mobile devices
24 Bit D/A converter



Connections


4.2 RCA line pre-out (3 V)
3 x RCA input for camera video signal (CVBS) with switched power supply and microphone-input (Cam1)
1 x DIN FM antenna input socket
1 x SMB DAB antenna input socket with 12 V phantom power supply
1 x USB(1) 2.0 port with ~1,000 mA charging current for Apple iOS and Android devices
1 x USB(2) 2.0 port for A/V file playback (and ~1,000 mA battery re-charging current)
1 x RCA A/V input for 2CH audio and video (CVBS) signal
1 x RCA A/V output for 2CH audio and video (CVBS) signal (M-Zone)
1 x input for external Bluetooth microphone*2
Input for the connection of the programmable SWC interface
1 x IR-in for external CAN / SWC interface
HDMI port

Naudotojo instrukcija / User manual.
