AMPIRE BTR200-HD, Bluetooth audio receiver with aptX HD

INFORMACIJA

AMPIRE BTR200-HD - allows you to upgrade your car's audio system with wireless Bluetooth music streaming. The device connects to the vehicle's 12V electrical system and transmits the audio signal via a 3.5 mm jack. The integrated Qualcomm QCC3034 chip supports high-quality aptX HD, aptX, aptX Low Latency, AAC, and SBC audio codecs. This allows for high-quality music streaming and reduced audio latency when used with a compatible smartphone or other device. The receiver automatically turns on with the vehicle's ignition and can restore the connection to the last paired device. Up to 9 Bluetooth devices can be saved, although only one can stream music at a time.

AMPIRE BTR200-HD will not be suitable for cars whose audio systems lack a 3.5 mm AUX input or a 12V power supply. It is also important to note that Apple iPhones do not support the aptX codec, and not all Android phones have it, so it is worth checking your phone's compatibility before purchasing. The device is intended for use in vehicles.

Bluetooth: 5.0
Bluetooth chip: Qualcomm QCC3034
Audio codecs: aptX HD, aptX, aptX Low Latency, SBC, AAC
Frequency range: 18 Hz – 25 kHz
Bit rate: up to 384 kbps / 48 kHz
Audio output: 3.5 mm

DESCRIPTION

If you want to listen to your music, audio books or navigation from your Apple iPhone or Android smartphone wirelessly via Bluetooth® in maximum sound quality in your car, then the Bluetooth® receivers of the BTR series with aptX are the solution. You can upgrade to wireless A2DP Bluetooth audio streaming on most navigation and car stereo systems with Ampire's Bluetooth receivers.

The connection is easily set up and automatically restored via Bluetooth®. The BTR series uses the Bluetooth® protocol for headphones on your smartphone and does not affect the functionality of your Bluetooth® hands-free car kit.

The BTR200-HD Bluetooth® receiver is designed for navigation and car radio systems with a 3.5 mm jack input and an on-board power supply of 12 volts.

Bluetooth® listening in CD quality with aptX(TM)?
As an alternative to standard Bluetooth®, we also have receivers with the Bluetooth® aptX(TM) codec. This codec is becoming more and more popular. If you use devices with the aptX(TM) standard, you can significantly improve the sound quality of your Bluetooth® streams.

What does Bluetooth® aptX(TM) improve?
The aptX® codec uses a more efficient method of compressing audio data that makes better use of the available bandwidth. The prerequisite for aptX® streams is that the playback device as well as the transmitter also support Bluetooth® aptX(TM). The function can be recognised by the aptX(TM). lettering on the device. The codec supports the common audio formats such as MP3 and FLAC.

Which smartphones support Bluetooth® aptX(TM)?
Not all Android smartphones support the Bluetooth® codec aptX(TM). You can check whether your Android smartphone is compatible in the technical data of your smartphone. An Apple iPhone does not support the Bluetooth® codec aptX(TM).

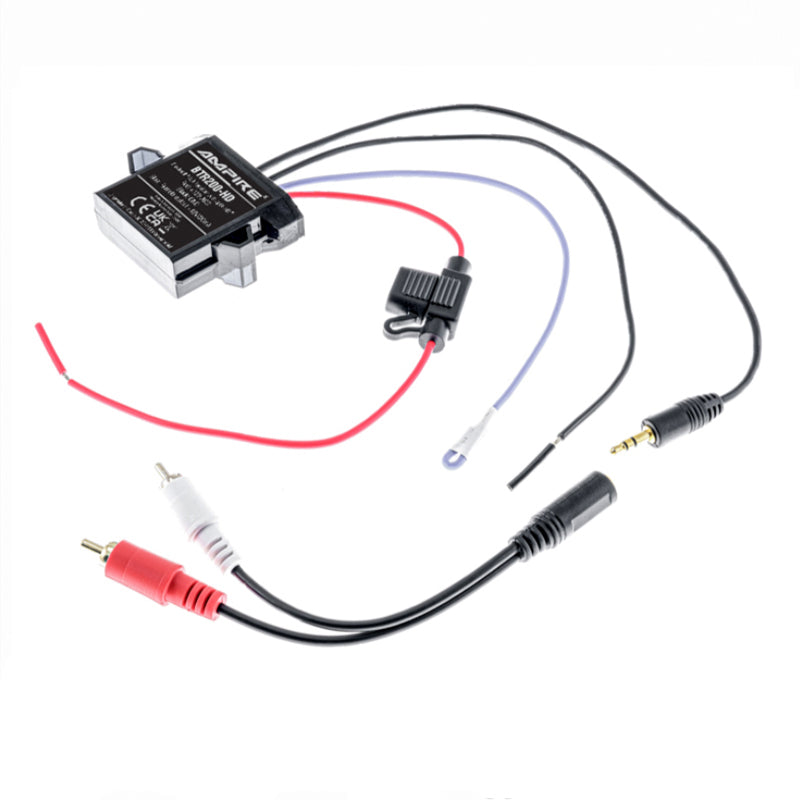

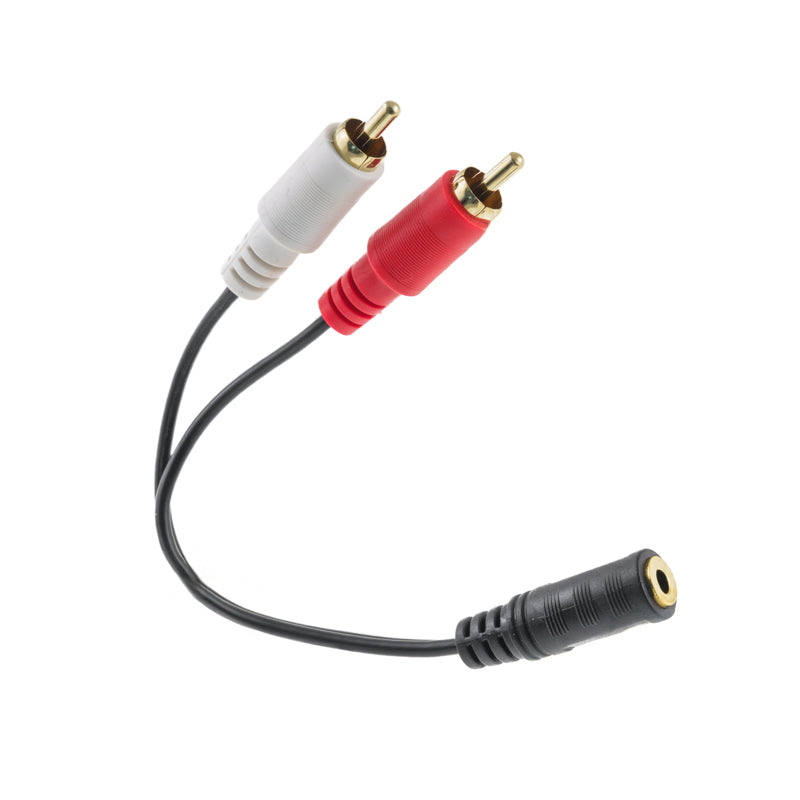

CONNECTIONS
- Sound output: 3.5mm jack plug with 4V RMS
- Power supply: +12V ignition (ACC/K15) with fuse 2A
- Remote output: Blue cable +12VDC/20mA

EQUIPMENT
- 3.5mm jack plug with signal output 4V RMS
- splash-proof, marine certified
- automatic power on
- Automatic remote output (+12V DC)
- QDL licensed Bluetooth® QCC3034 chip
- A2DP in highest EDR specification
- aptX(TM) HD, aptX(TM), aptX(TM) Low Latency, SBC and AAC audio codec from Qualcomm®.
- BT audio streaming of lossless files such as Wave, Flac, Lossless, etc.
- SSID display name: BTR200-HD
- 10m range

SMARTPHONE COMPATIBILITY
- Android (Bluetooth® and Bluetooth® aptX(TM))
- Apple iOS (Bluetooth®)

OPTIONAL ACCESSORIES
55100-KLINKE AMPIRE interference suppression filter

TECHNICAL DATA

- Voltage: +12V DC
- Current consumption including remote output: <65mA
- Voltage/current remote output: +12V DC, max.20mA
- Bluetooth V5.0
- QCC3034 chip
- aptX(TM) HD, aptX(TM), aptX(TM) Low Latency, SBC and AAC audio codec from Qualcomm®.
- Frequency range: 18Hz-25kHz
- Encoding: Low Complexity Subband Codec (SBC)
- Bit rate: up to 384 kbps (48 kHz sampling)
- Audio output voltage: 4V RMS
- Bluetooth 5.0 / Transmit power <10mW EIRP and aptX
- Housing dimensions: Height: 20mm, Width: 65mm, Length: 50mm
- Red cable: +12V (0.459mm² or 26x 0.15mm), 305mm length
- Black cable: ground (0.459mm² resp. 26x 0.15mm), 305mm length
- Blue cable +12VDC/20mA (0.459mm² resp. 26x 0.15mm), 305mm length

BLUETOOTH APPROVAL
- Declaration ID D068331
- Referenced Qualified Design ID 173056
- Listing Date 2024-04-18

CONNECT A NEW DEVICE
- make sure Bluetooth is switched on in your device
- switch on the ignition
- the LED (6) flashes blue (pairing mode)
- Select "BTR200-HD" in the Bluetooth menu of your device to connect.
- after successful connection, the LED lights up permanently and a single beep sounds over the audio system

NOTE
- up to 9 devices can be connected to the BTR200-HD, but only one device can stream music at a time
- The BTR200X always remembers the last tuned-in device and connects automatically when switched on.
- a connection to another device must be made manually, as described above
- if the connected device is out of range for more than one minute, the connection is automatically interrupted and the BTR200-HD goes into pairing mode [the LED (6) flashes].
- can only be used in vehicles and not in continuous operation

OPERATION
- all settings, such as volume, music selection and play/pause, are done on your unit
- the BTR200-HD can be installed out of sight, as it has no controls or buttons to operate

OTHER SEARCH TERMS
BTR200, btr200, BTR200X, btr200x

LEGAL NOTICE
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Used with permission of the owner. aptX is a trademark of Qualcomm Technologies International, Ltd. registered in the United States and other countries. Used with permission of the owner. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Ampire Electronics GmbH & Co.KG is under license. Other trademarks and trade names are those of their respective owners.

DOCUMENTS

User Manual (EN)
