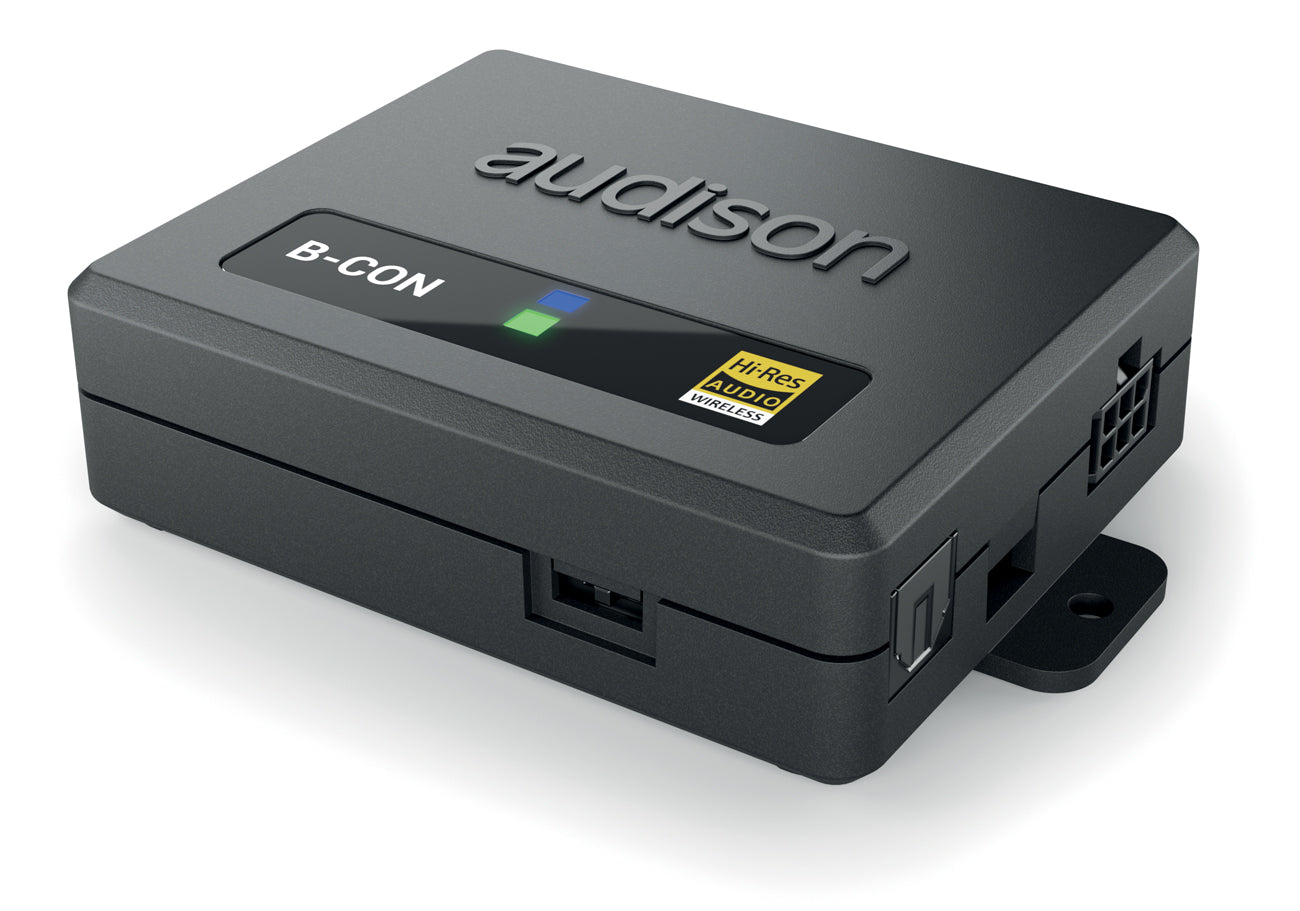

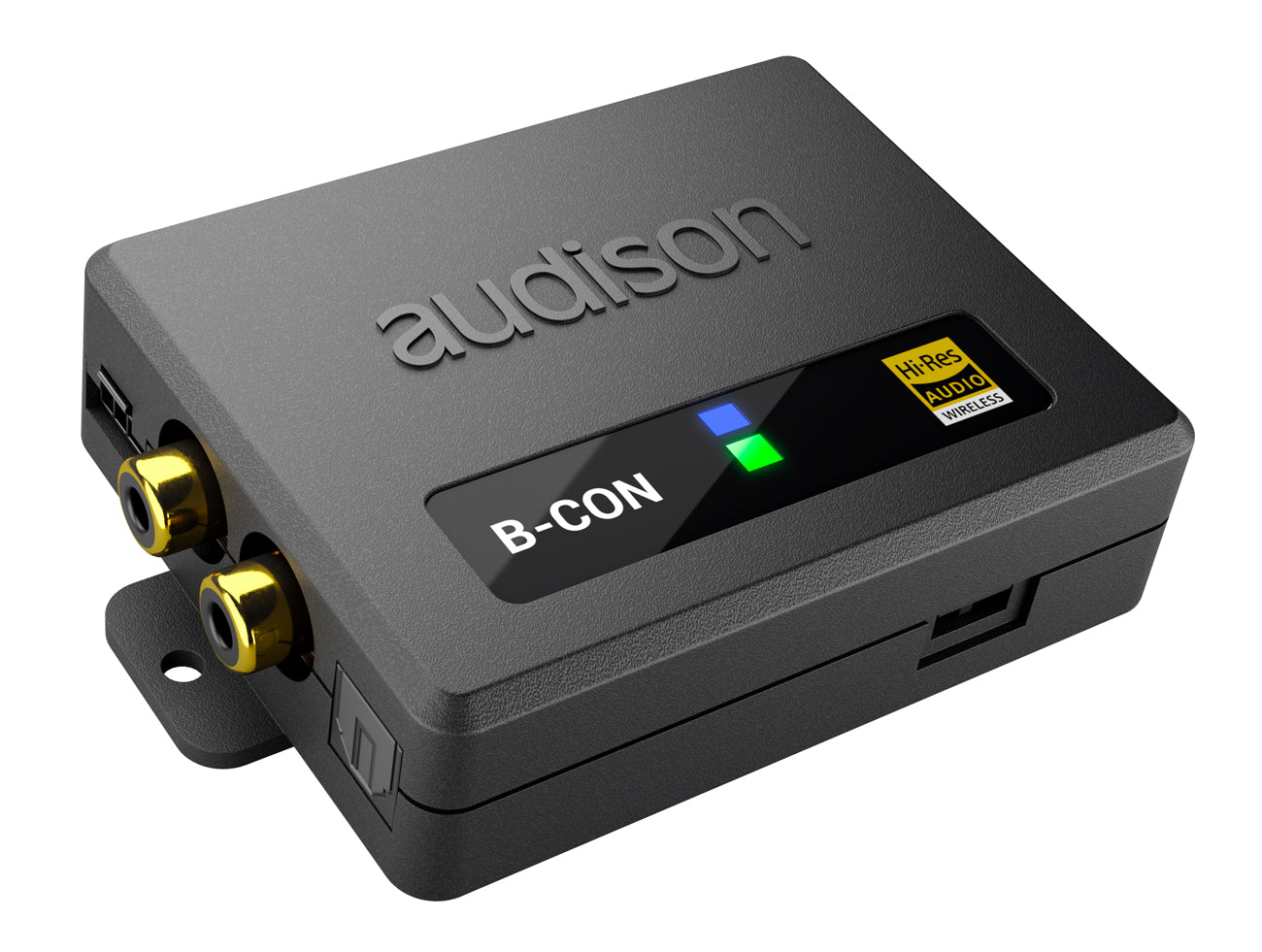

Audison B-CON, Hi-Res Bluetooth receiver
Audison B-CON, Hi-Res Bluetooth receiver - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
0® car receiver to receive JAS (Japan Audio Society) certification.
- Bluetooth 5.0 + EDR
- Codecs: LDAC, AAC, SBC.
- Profile: Bluetooth A2DP 1.3, AVRCP 1.6.
DESCRIPTION
The Audison B-CON is the only Bluetooth 5.0® receiver designed for automotive use that has obtained the “ Hi-Res audio wireless ” certification from JAS ( Japan Audio Society ) . B-CON is the ideal choice for streaming audio from a Hi-Res player (FIIO, Sony Walkman...) and from the latest generation Android/Apple mobile devices, fully supporting the car's Hands-Free Bluetooth profile.
B-CON is compatible with all audio formats and reaches maximum performance with uncompressed BT streaming (max 96kHz / 24bit , only with Android LDAC devices), both playing local files and with Apps that provide Hi-Res streaming (Tidal, Qobuz...)
Pure digital signal transfer with a resolution up to 24 bit / 96 kHz
According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), B-CON achieves the 24 bit / 96 kHz digital to analog conversion processing requirement.
TECHNICAL DATA
SPECIFICATIONS
| POWER SUPPLY | |
| Voltage: | 6 ÷ 24 VDC |
| Idling current: | 70mA @ 12V |
| Remote IN voltage: | 3 ÷ 12 VDC (0.5 mA) |
| + 12 Remote IN voltage: /td> | 6 ÷ 12 VDC (70 mA) |
| USB Micro | 5V (500mA) |
| BLUETOOTH | |
| Type: | Bluetooth 5.0 + EDR |
| Codec: | LDAC, AAC, SBC |
| Profile: | Bluetooth A2DP 1.3, AVRCP 1.6 |
| INPUT | |
| Optical digital: | S/PDIF Optical (Max 24 bit/192 kHz) |
| INPUT/OUTPUT MANAGEMENT | |
| Digital IN delay switch: | 1 sec. |
| Power Connector: | AUX SEL wire, MASTER ENABLE wire |
| ADC: | Serial RS232, to manage other Audison devices that support this standard |
| Mode Switch: | Absolute volume ON/OFF, upgrade mode |
| OUTPUT | |
| Optical digital: |
From Optical input: 24 bit/192 kHz From Streaming Bluetooth: 24 bit 96 kHz max. |
| analog: |
Bandwith (MAX) 20 ÷ 48 kHz Output Level 2 VRMS Distortion - THD @1 kHz, 1 VRMS 0.003% S/N RATIO (A weighted) 100 dBA |
| SIZE | |
| W x H x D mm / In. | 90 x 60.4 x 23 / 3.54 x 2.38 x 0.91 |
| Weight | 0.054 / 0.119 |
DOCUMENTS
INSTRUCTIONS
Audison B-CON, Hi-Res Bluetooth receiver
