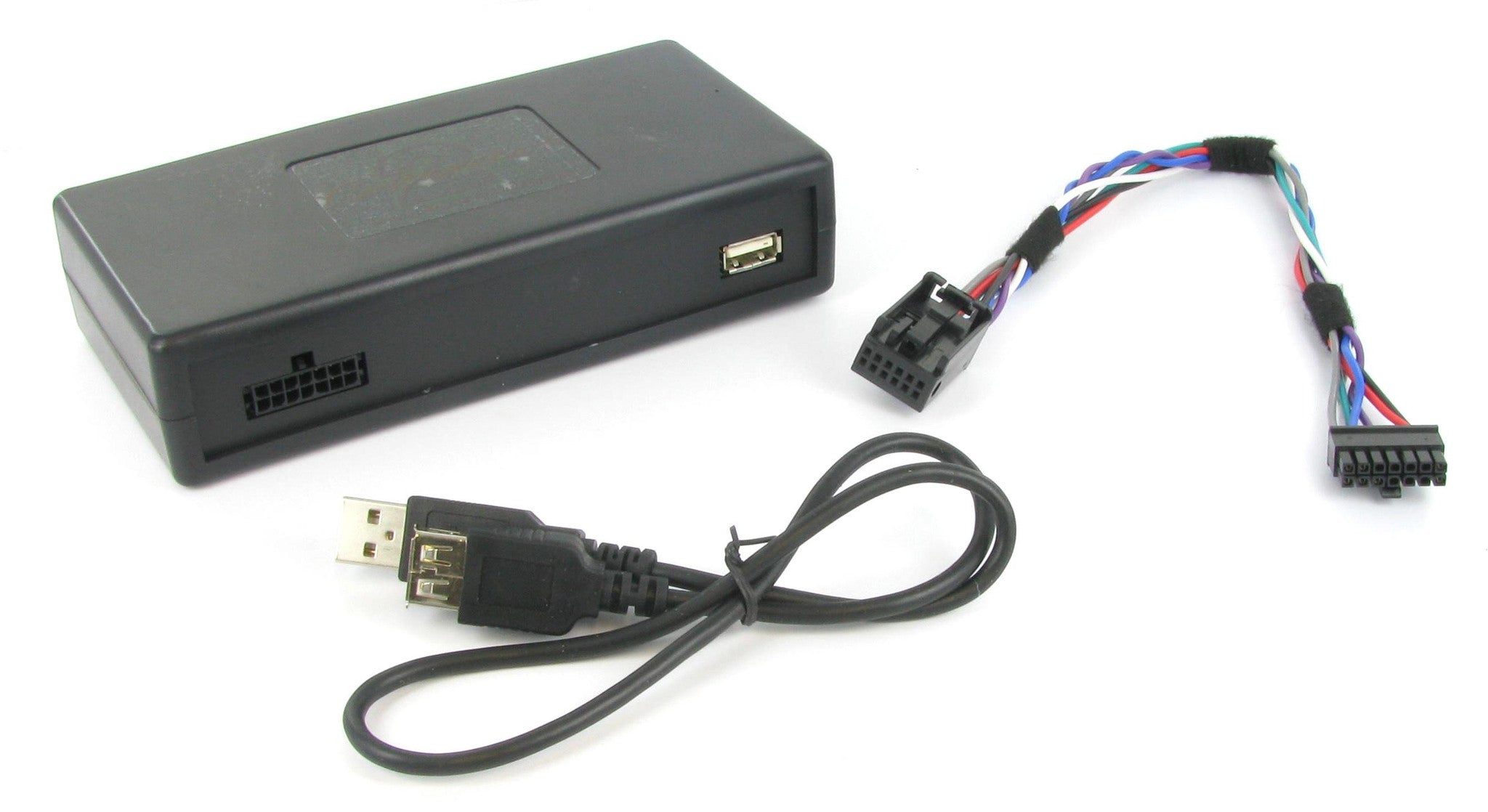

Car USB/SD adapter CTACTUSB002 for Citroen RD4

INFORMACIJA

The USB adapter retains full functionality of the car radio and its steering wheel controls (if present) and is controlled like a standard CD changer. Additionally, any external audio sources can be connected to the adapter via the AUX input.

• Plays MP3 and WMA files from USB drives, SD memory cards, and any other audio sources via the AUX input
• The USB adapter is controlled using standard car radio buttons or steering wheel controls (if present)
• The car radio display shows the track number and playback time of the current file
• Supports all standard MP3 files up to 320Kbps
• The adapter does not require additional external power
• Devices that support charging (mobile phones, MP3 players, etc.) can be charged via the USB port
• Supports USB drives and SD memory cards up to 4GB

Connects to the original player!

FITS THESE MODELS

• Citroen C2 (2005-2009)
• Citroen C3 (2006->)
• Citroen C5 (2005-2008)
• Citroen C8 (2005-2014)
• Citroen C4 (2004-2010)
• Citroen DS3 (2009->)
• Citroen DS4 (2010->)

• Factory Siemens VDO and Blaupunkt RD4 car radios

Note: If the CD changer was not factory-installed in the car, then the CD changer connector in the car radio must be activated by the car manufacturer's representatives using DIAG2000 or PP2000 diagnostic equipment. To display the CD and track number on the car radio screen, the CD changer Display function must be activated.

FEATURES

• The audio signal is transmitted to the car radio via cables, thus ensuring the quality of the transmitted sound, which is significantly lost when using any FM modulators
• Tracks are stored in folders CD01, CD02... (up to max. CD10 - depending on the car radio changer capabilities) with a maximum of 99 songs in each, so you can choose from up to 900 tracks at once!
• Supports repeat and random play functions
• No traces of the adapter remain after it is removed
• The USB extension cable is routed to a convenient location for the driver
• Extremely simple device installation procedure
• The USB adapter is installed in an inconspicuous location, thus preserving the factory appearance of the car's interior and minimizing the risk of theft
• The last position memory is saved, so playback resumes from where it was interrupted
• Adding/removing new music tracks to a USB drive is much faster and more convenient than burning them to a CD

INFORMATION

Included:

• USB/SD MP3 adapter (virtual digital CD changer)
• USB extension cable
• Installation instructions

Manufacturer: Connects2, United Kingdom

IMPORTANT! The file system of the USB drive or SD memory card must be FAT/FAT32 format. The internal folder structure must be: CD01, CD02, CD03... up to max. CD10, depending on the car radio/CD changer capabilities. A maximum of 99 songs can be uploaded to each folder. File names must consist only of Latin letters (Lithuanian, Russian, German, etc. are not allowed) and numbers. Do not use periods in the name, e.g., "feat." or "01.". In such cases, use spaces " ", underscores "_" or hyphens "-" in the name. All adapter connections must be connected as required or indicated in the instructions. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE ADAPTER NOT WORKING OR MALFUNCTIONING!

DOCUMENTS

User manual
