Car USB/SD adapter CTALXUSB002 for Lexus up to 2004

INFORMACIJA

The USB adapter retains full functionality of the radio and its steering wheel controls (if available) and is operated like a regular CD changer. Furthermore, any external audio sources can be connected to the adapter via the AUX input.

• Plays MP3 and WMA files from USB drives, SD memory cards, and any other audio sources via the AUX input
• The USB adapter is controlled by standard radio buttons or steering wheel controls (if available)
• The radio display shows the track number and playback time
• Supports all standard MP3 files up to 320Kbps
• The adapter does not require additional external power
• Devices that support charging (mobile phones, MP3 players, etc.) can be charged via the USB port
• Supports USB drives and SD memory cards up to 4GB

SUITABLE FOR THE FOLLOWING MODELS

• Lexus GS 300/400/430/450h (2001-2003)
• Lexus GX 470 (<2003)
• Lexus IS 200/250/300/350 (1999-2005)
• Lexus LS 430 (2001-2003)
• Lexus RX 300/350
• Lexus SC 300/400

• 16408
• 16810
• 17809
• 18302
• 18403
• 35407
• 35802
• 38408
• 55838
• 56816
• 57412
• 57414
• 58806
• 58812
• A 56811
• A 56817
• A56818
• W 58300
• W 58802
• WH 8406

FEATURES

• Audio signal is transmitted to the radio via cables, thus ensuring the quality of the transmitted sound, which is significantly lost when using any FM modulators
• Tracks are stored in folders CD01, CD02... (up to max. CD10 - depending on the capabilities of the radio changer) with a maximum of 99 songs in each, so you can choose from up to 900 tracks at once!
• Repeat and Random play functions are supported
• After removing the adapter, there are no signs of its presence
• The USB extension cable is routed to a location convenient for the driver
• Extremely simple device installation procedure
• The USB adapter is installed in an invisible place, thus preserving the factory appearance of the car interior and minimizing the possibility of theft
• Last position memory is retained, so playback resumes from where it was interrupted
• Adding/removing new music tracks to a USB drive is much faster and more convenient than burning them to a CD

INFORMATION

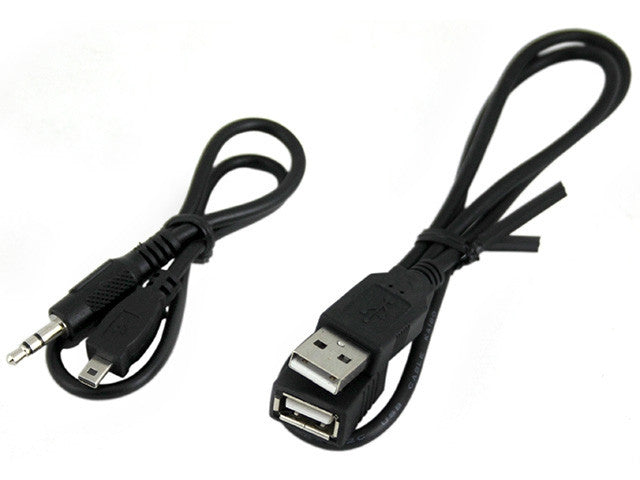

Included in the kit:

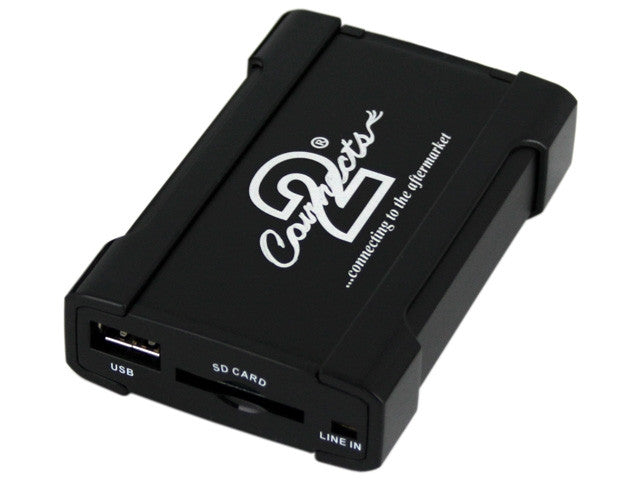

• USB/SD MP3 adapter (virtual digital CD changer)
• AUX cable (3.5 mm jack)
• USB extension cable
• Installation instructions

Manufacturer: Connects2, Great Britain

IMPORTANT! The file system of the USB drive or SD memory card must be FAT/FAT32 format. The internal directory structure must be: CD01, CD02, CD03... up to max. CD10, depending on the capabilities of the radio/CD changer. A maximum of 99 songs can be uploaded to each directory. File names must consist only of Latin letters (no Lithuanian, Russian, German, etc. characters are allowed) and numbers. Also, do not use dots in the name, e.g., "feat." or "01.". In such cases, use spaces " ", underscores "_" or hyphens "-" in the name. All adapter connections must be connected as required or indicated in the instructions. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE THE ADAPTER TO MALFUNCTION OR NOT WORK AT ALL!

DOCUMENTS

Installation instructions
