Car USB/SD adapter CTAVGUSB009 for VW 12-pin Quadlock

INFORMACIJA

The USB adapter retains full functionality of the car stereo and its steering wheel controls (if present) and is operated like a regular CD changer. Furthermore, any external audio sources can be connected to the adapter via the AUX input.

• Plays MP3 and WMA files from USB drives, SD memory cards, and any other audio sources via the AUX input
• The USB adapter is controlled by standard car stereo buttons or steering wheel controls (if present)
• The car stereo display shows the track number and playback time of the playing file
• Supports all standard MP3 files up to 320Kbps
• The adapter does not require additional external power
• Devices that support charging (mobile phones, MP3 players, etc.) can be charged via the USB port
• Supports USB drives and SD memory cards up to 4GB

COMPATIBLE WITH THESE MODELS

• VW Beetle (2009-2010)
• VW Polo (2005-2010)
• VW EOS (2007-2010)
• VW Golf (2003-2010)
• VW Jetta (2005-2010)
• VW Passat (2002-2010)
• VW Touran (2003-2010)
• VW Touareg (2002-2010)
• VW Tiguan (2004-2010)
• VW T5 (2003-2010)

Compatible with these factory car stereos (with 12-pin Quadlock connector):

• Delta
• Delta 6
• MFD 2
• Navigation 7L6 Z6Z7
• Premium 6
• Premium 7
• R100
• RCD 200
• RCD 300
• RCD 300 MP3
• RCD 310 (except 2011-2012 models)
• RCD 500
• RCD510
• RNS 2
• RNS 300

FEATURES

• Audio signal is transmitted to the car stereo via cables, ensuring transmitted sound quality, which is significantly lost when using any FM modulators
• Tracks are stored in folders CD01, CD02... (up to max. CD10 - depending on the car stereo's changer capabilities) with a maximum of 99 songs in each, so you can choose from up to 900 tracks at once!
• Supports repeat and random playback functions
• No traces of the adapter's presence remain after its removal
• The USB extension cable can be routed to a convenient location for the driver
• Extremely simple device installation procedure
• The USB adapter is installed in an invisible location, preserving the original appearance of the car's interior and minimizing the risk of theft
• The last position memory is retained, so playback resumes from where it was interrupted
• Adding/removing new music tracks to a USB drive is much faster and more convenient than burning them to a CD

INFORMATION

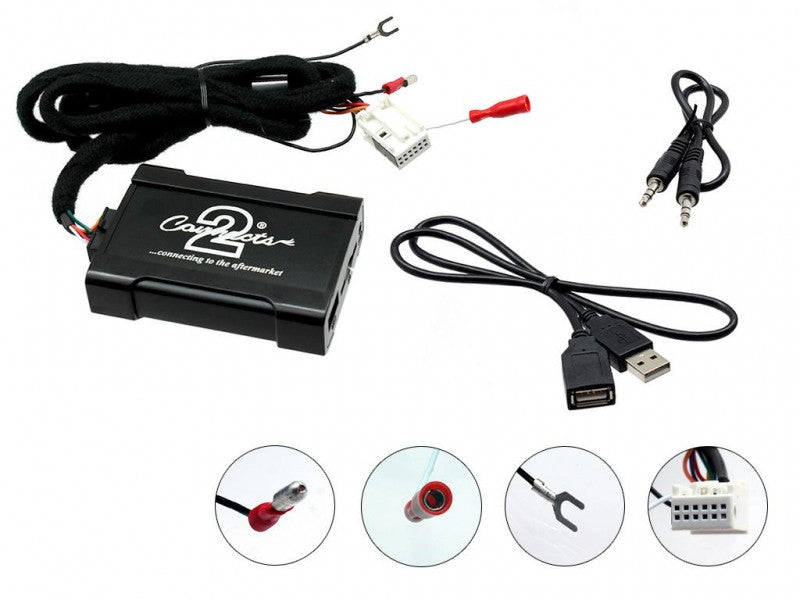

Included in the kit:

• USB/SD MP3 adapter (virtual digital CD changer)
• AUX cable (3.5 mm jack)
• USB extension cable
• Installation instructions

Manufacturer: Connects2, Great Britain

IMPORTANT! The file system of the USB drive or SD memory card must be FAT/FAT32 format. The internal directory structure must be: CD01, CD02, CD03... up to max. CD10, depending on the car stereo/CD changer's capabilities. A maximum of 99 songs can be uploaded to each directory. File names must consist only of Latin letters (no Lithuanian, Russian, German, etc. letters allowed) and numbers. Do not use periods in the name, e.g., "feat." or "01.". In such cases, use spaces " ", underscores "_" or hyphens "-" in the name. All adapter connections must be connected as required or indicated in the instructions. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE ADAPTER NOT WORKING OR WORKING INCORRECTLY!

DOCUMENTS

Installation instructions
