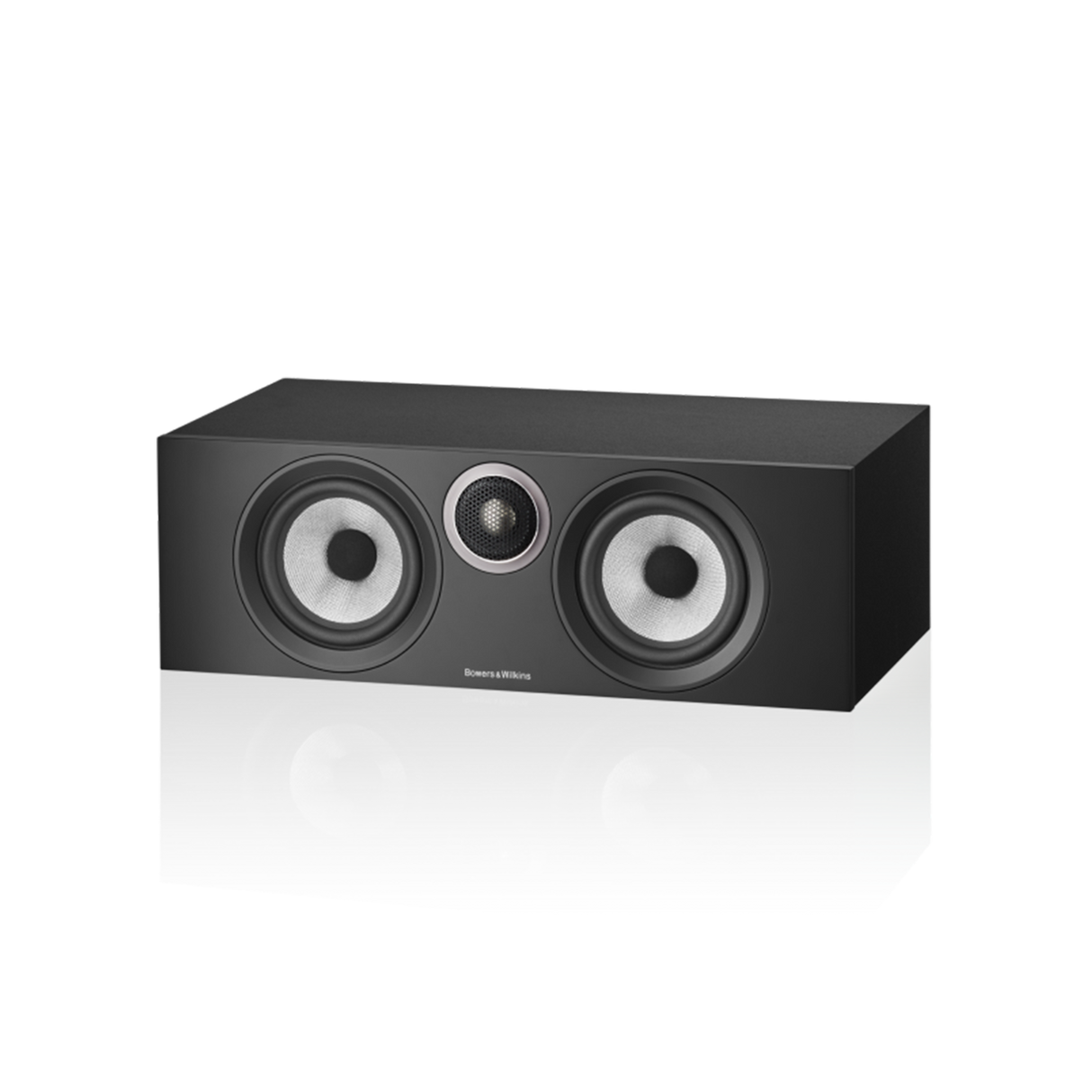

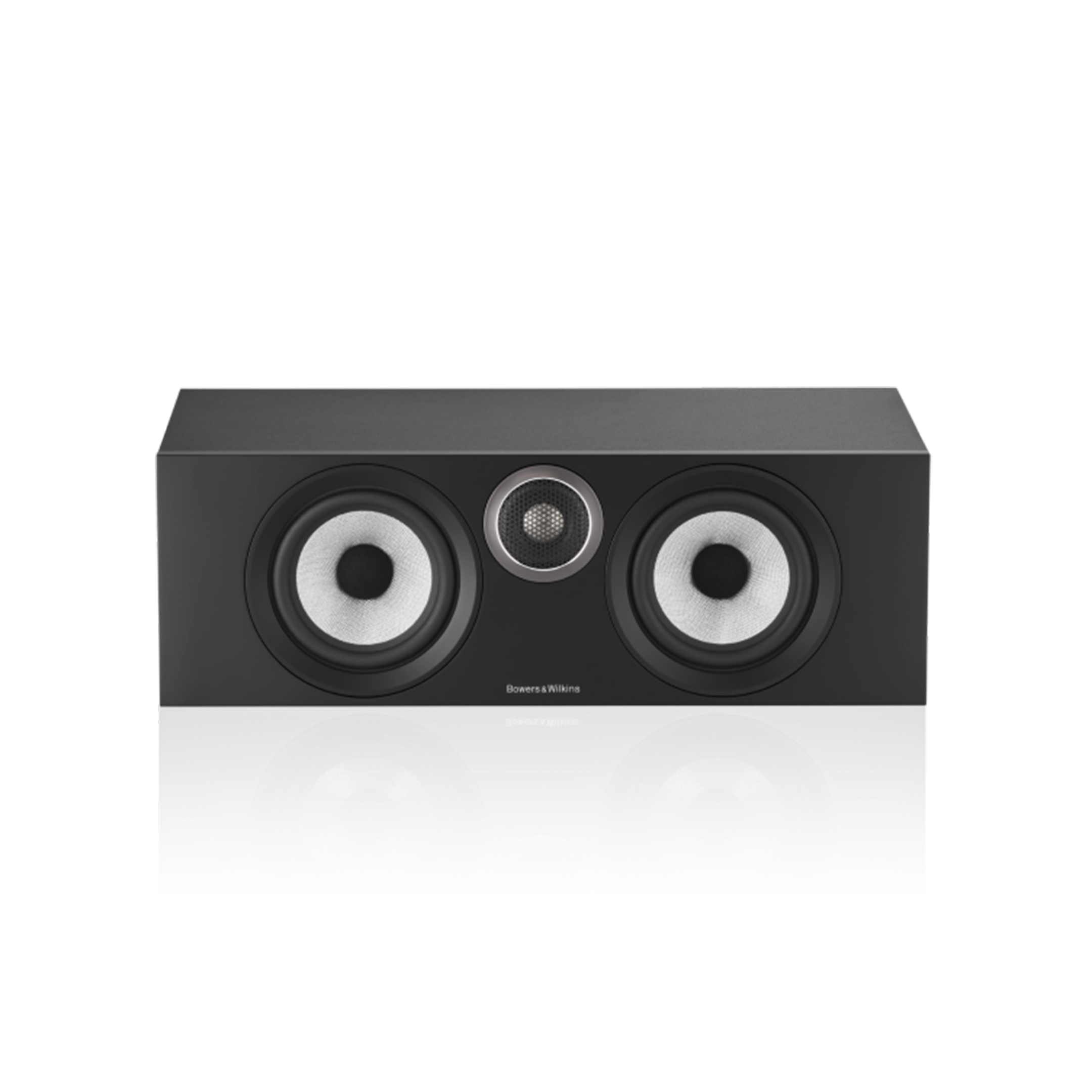

Bowers & Wilkins HTM6 S3, 2-way center speaker, 87dB, 120W

INFORMACIJA

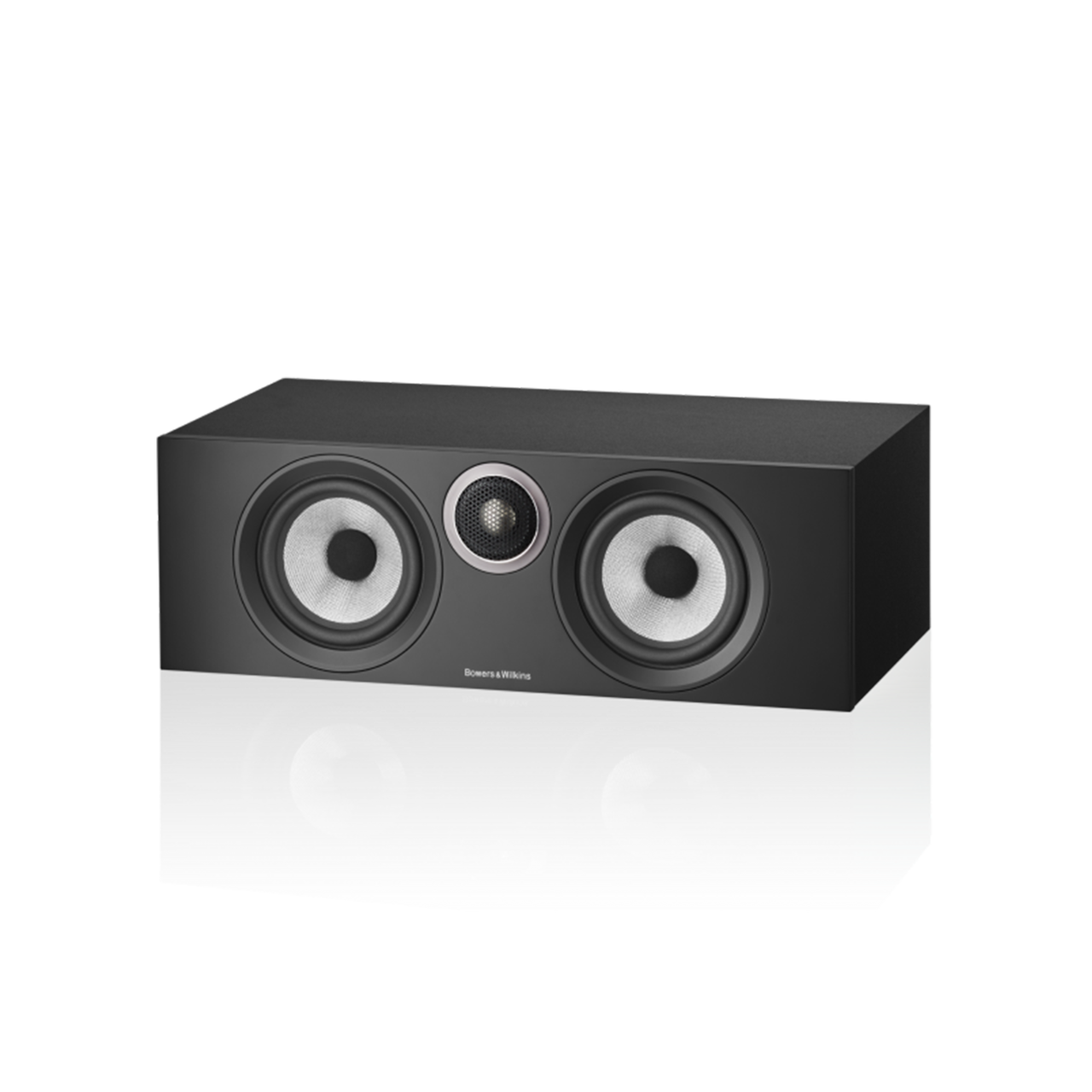

The Bowers & Wilkins HTM6 S3 is a compact yet powerful center channel speaker that is the perfect complement to the Bowers & Wilkins 603 S3 or other 600 Series speakers. It is designed to deliver dialogue, vocals and detail with stunning clarity and precision. A next-generation Titanium Dome™ tweeter and dual Continuum™ mid/bass cones give the sound a sense of life, warmth and space, making movies and music sound immersive and realistic.

Frequency range: 42 Hz - 33 kHz (−6 dB).
Sensitivity: 87 dB (2.83 Vrms / 1 m).
Nominal impedance: 8 Ω (minimum 4.3 Ω).
Recommended amplifier power: 30 – 120 W (into 8 Ω load).

DESCRIPTION

The HTM6 S3 is small enough to fit into convenient spaces in your home but powerful enough to partner with the 603 S3 floorstanding speaker. It combines our all-new Titanium Dome™ tweeter with the powerful accuracy and transparency of twin Continuum™ bass/midrange cones. Celebrate clarity with the HTM6 S3 center channel speaker.

Celebrate clarity
Powerful enough to partner with 603 S3 and compact enough to fit with any piece of furniture, HTM6 S3 brings more realism and accuracy to your home theater experience.

Layered, beautiful details
The new HTM6 S3 introduces our all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.

Truly amazing sound
HTM6 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism are exceptional.

Precision and transparency
Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. With HTM6 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency.

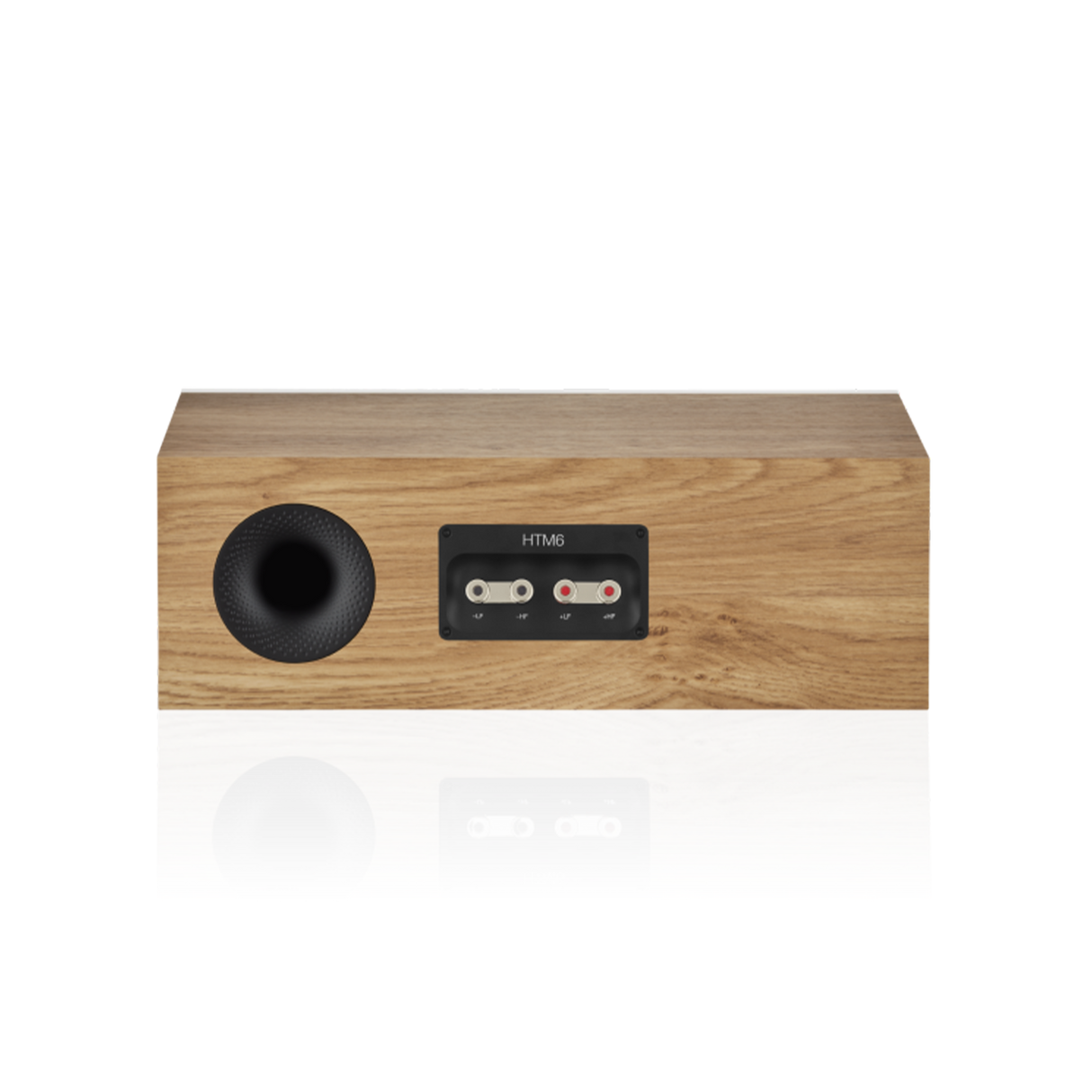

Upgraded speaker terminals

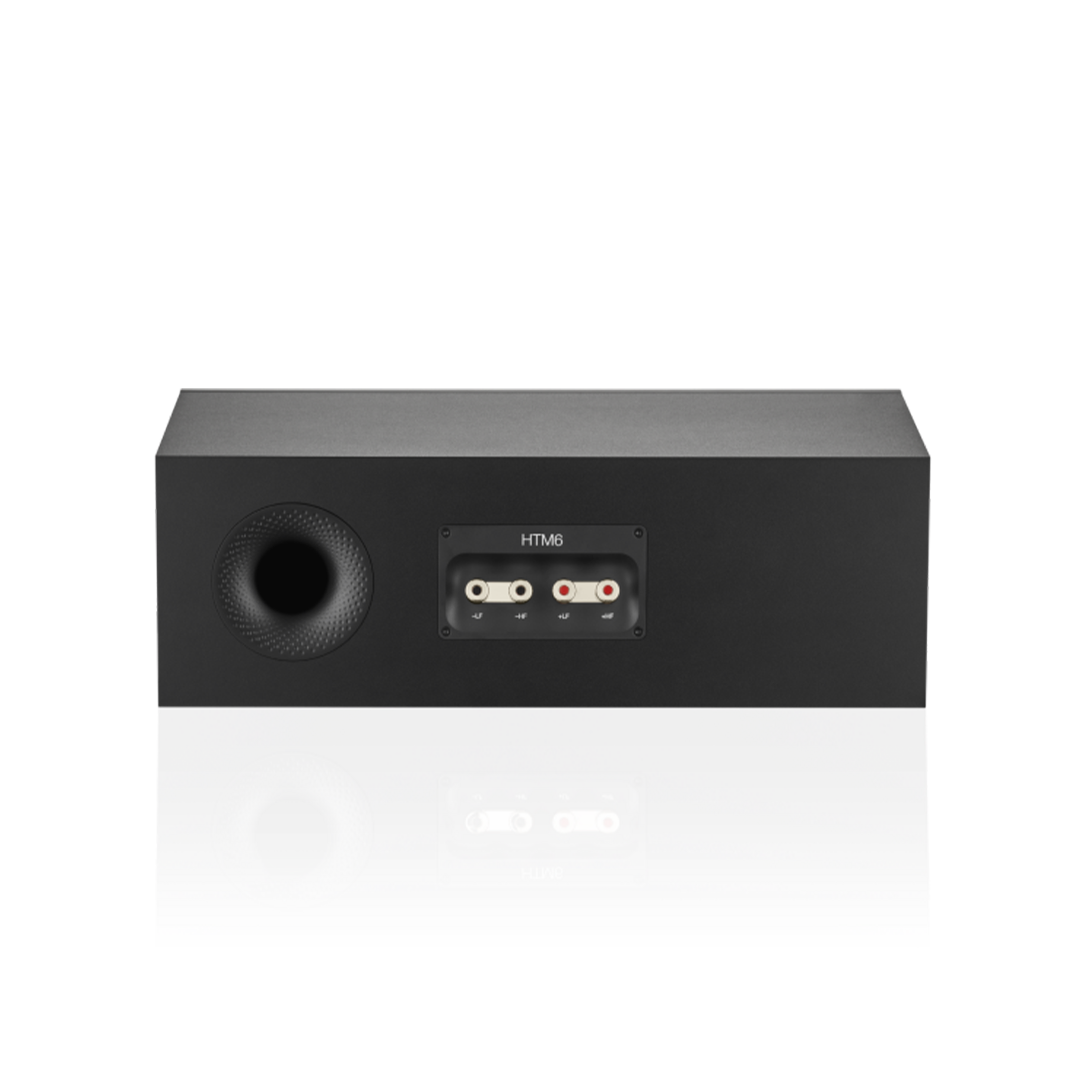

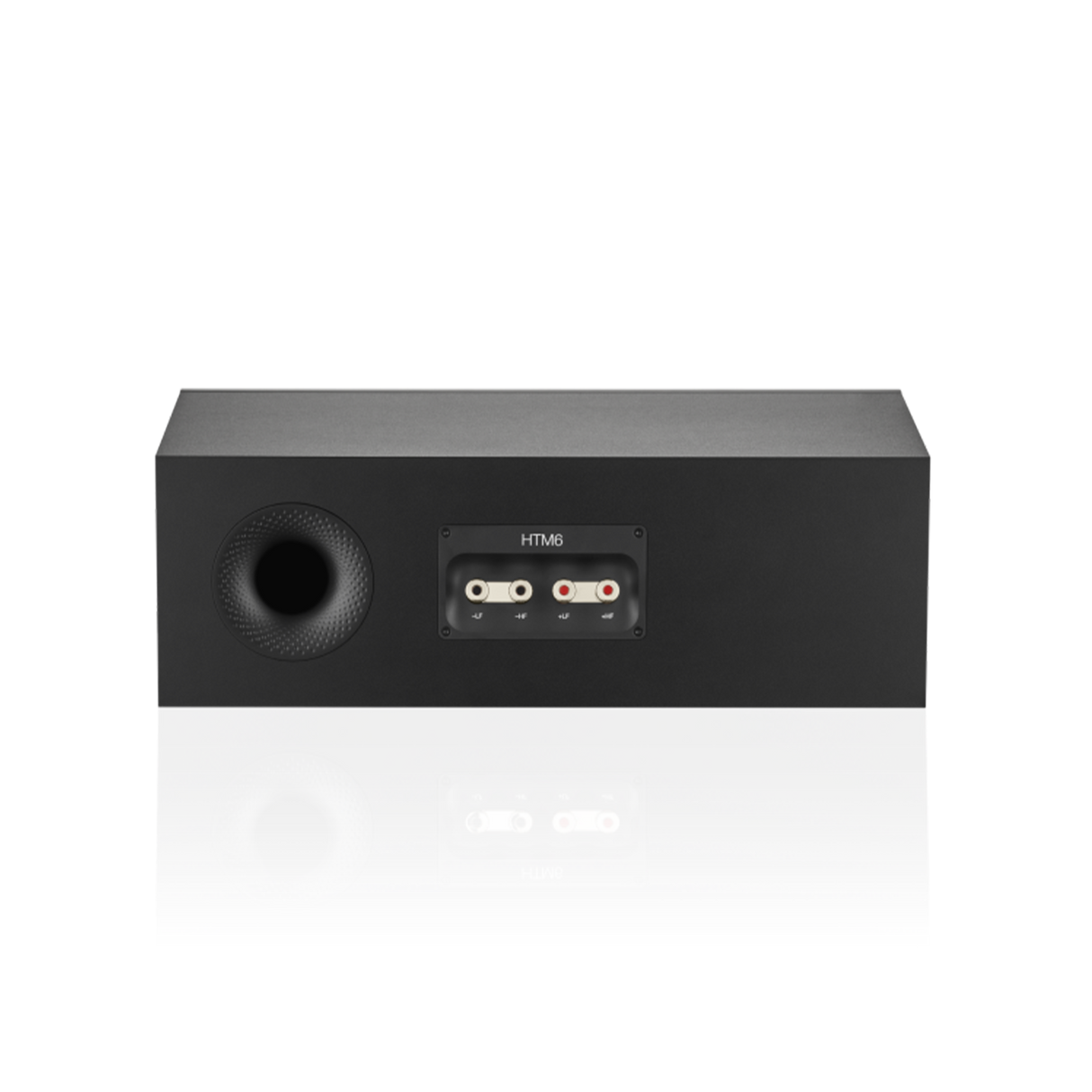

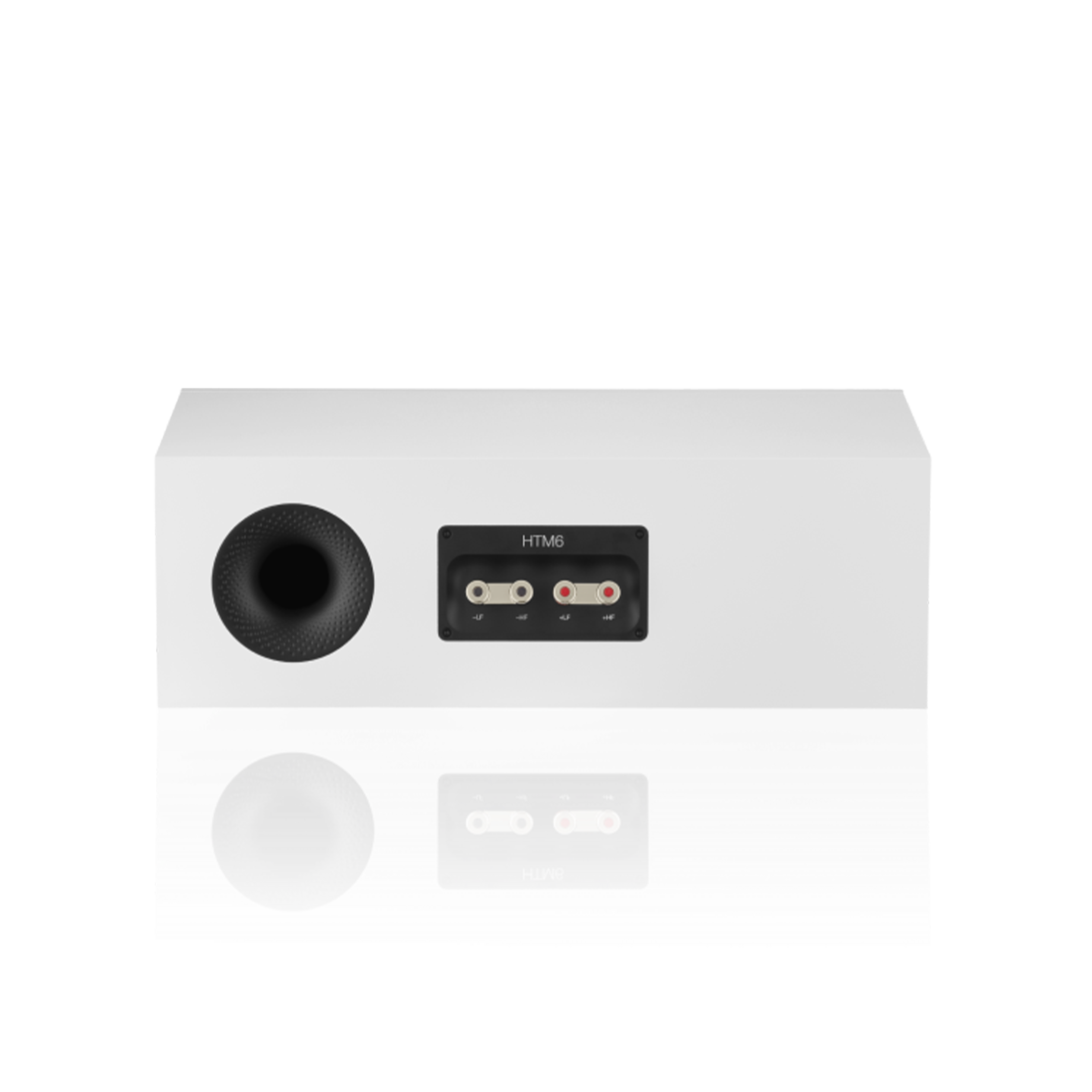

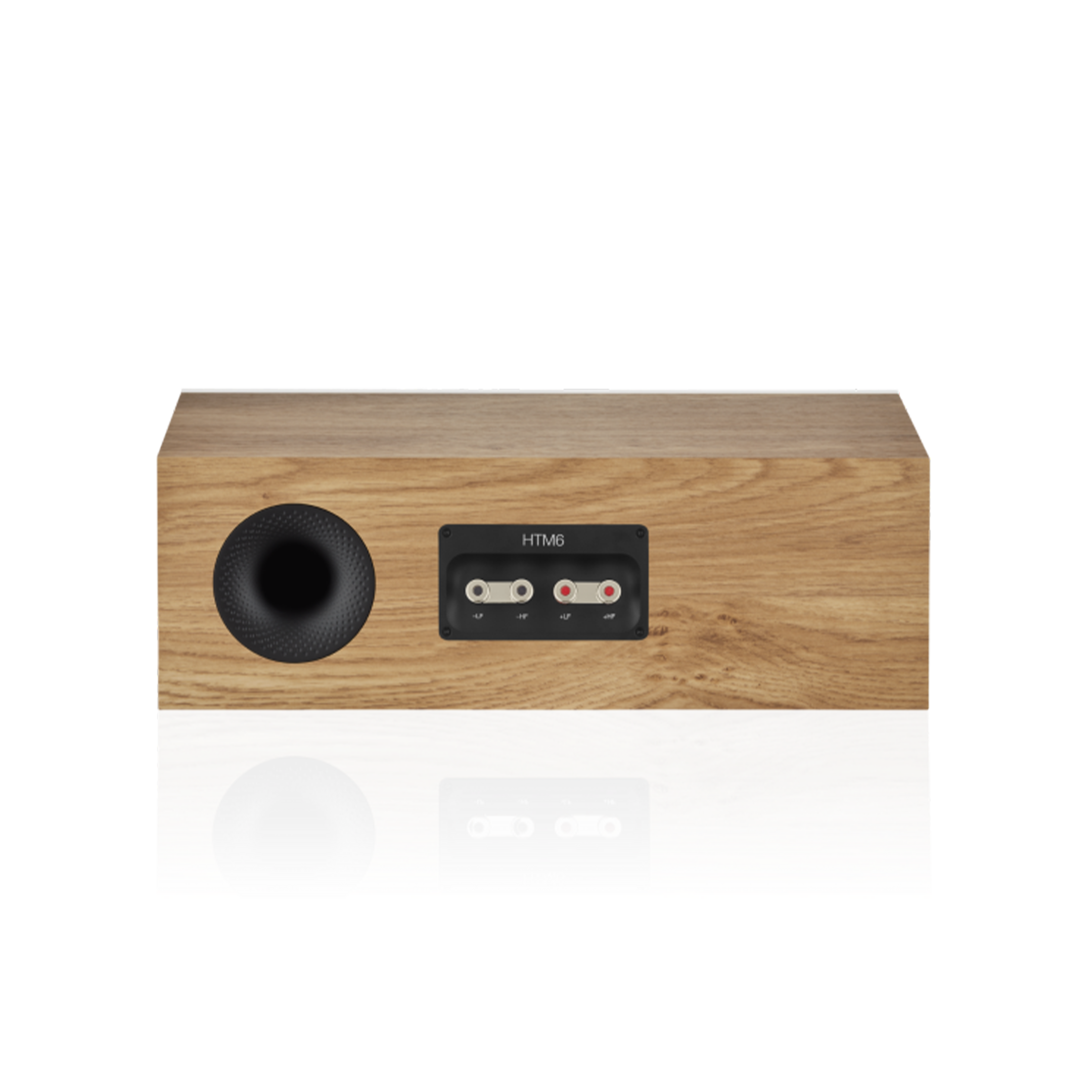

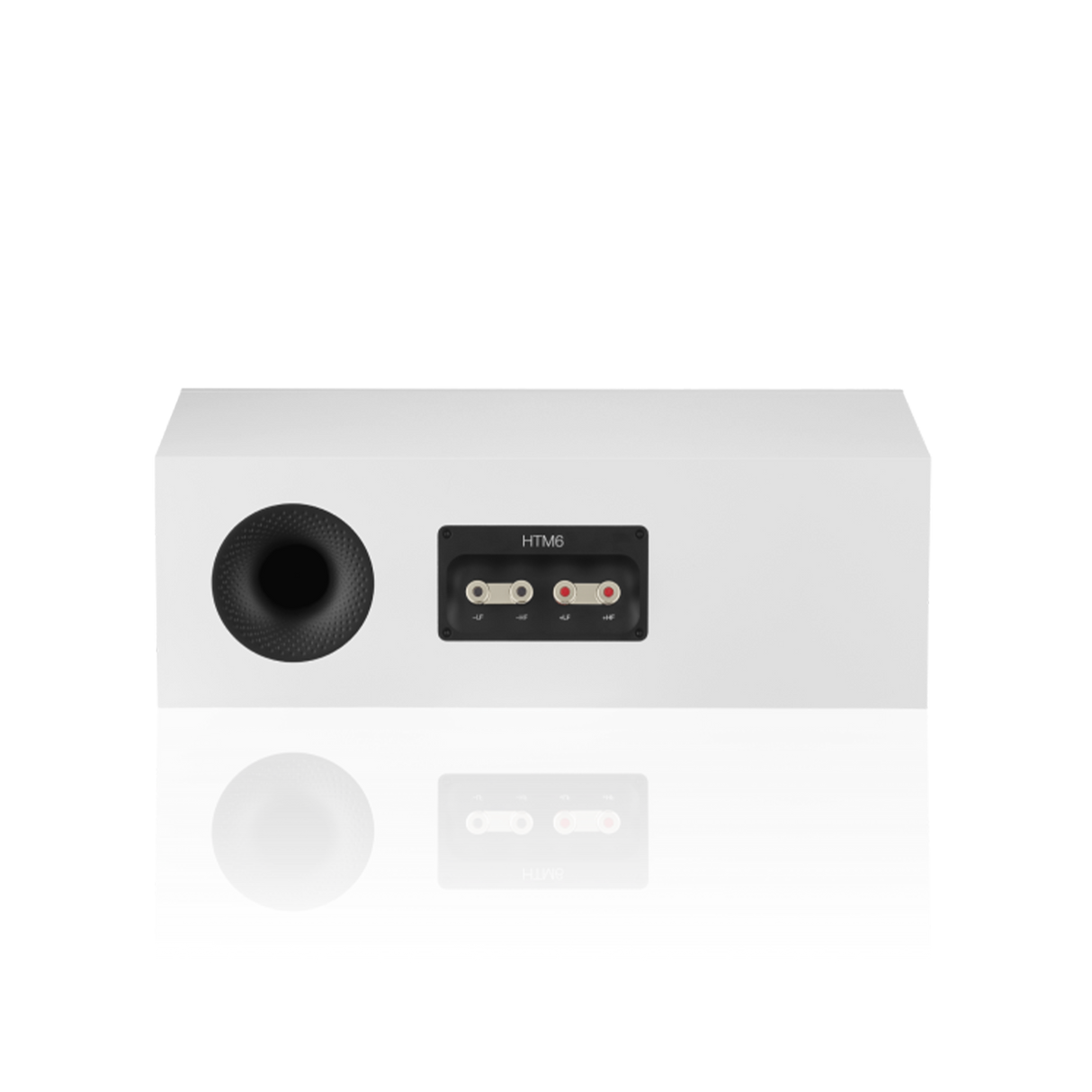

Derived from those recently introduced in our 700 Series range, the speaker terminals on the new HTM6 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.

TECHNICAL DATA

Size & weight
Dimensions
Height: 160 mm (6.3 in) Cabinet only
Width: 480 mm (18.9 in) Cabinet only
Depth: 255 mm (10 in) Cabinet only
283 mm (11.2 in) including grille and terminals
Net weight
7.7kg (17lb)
Technical details
Technical features
Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™
Description
2-way vented-box system
Drive units
1x ø25mm (1 in) Titanium Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range
-6dB 42Hz - 33kHz
Frequency response
72Hz - 28kHz ±3dB
Sensitivity
87dB spl (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 120Hz - 12kHz
Nominal impedance
8Ω (minimum 4.3Ω)
Recommended amplifier power
30W - 120W into 8Ω on unclipped program
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

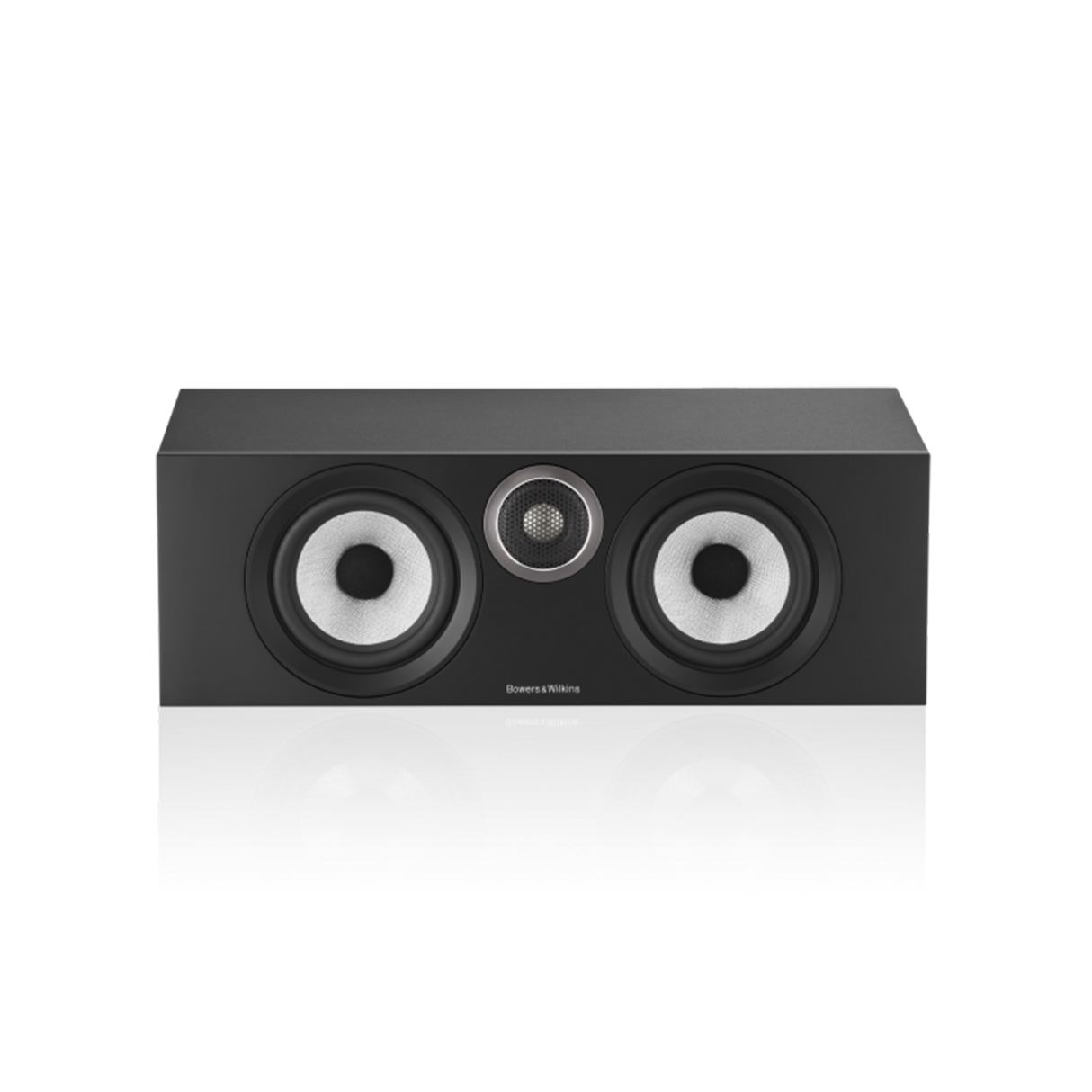

Black

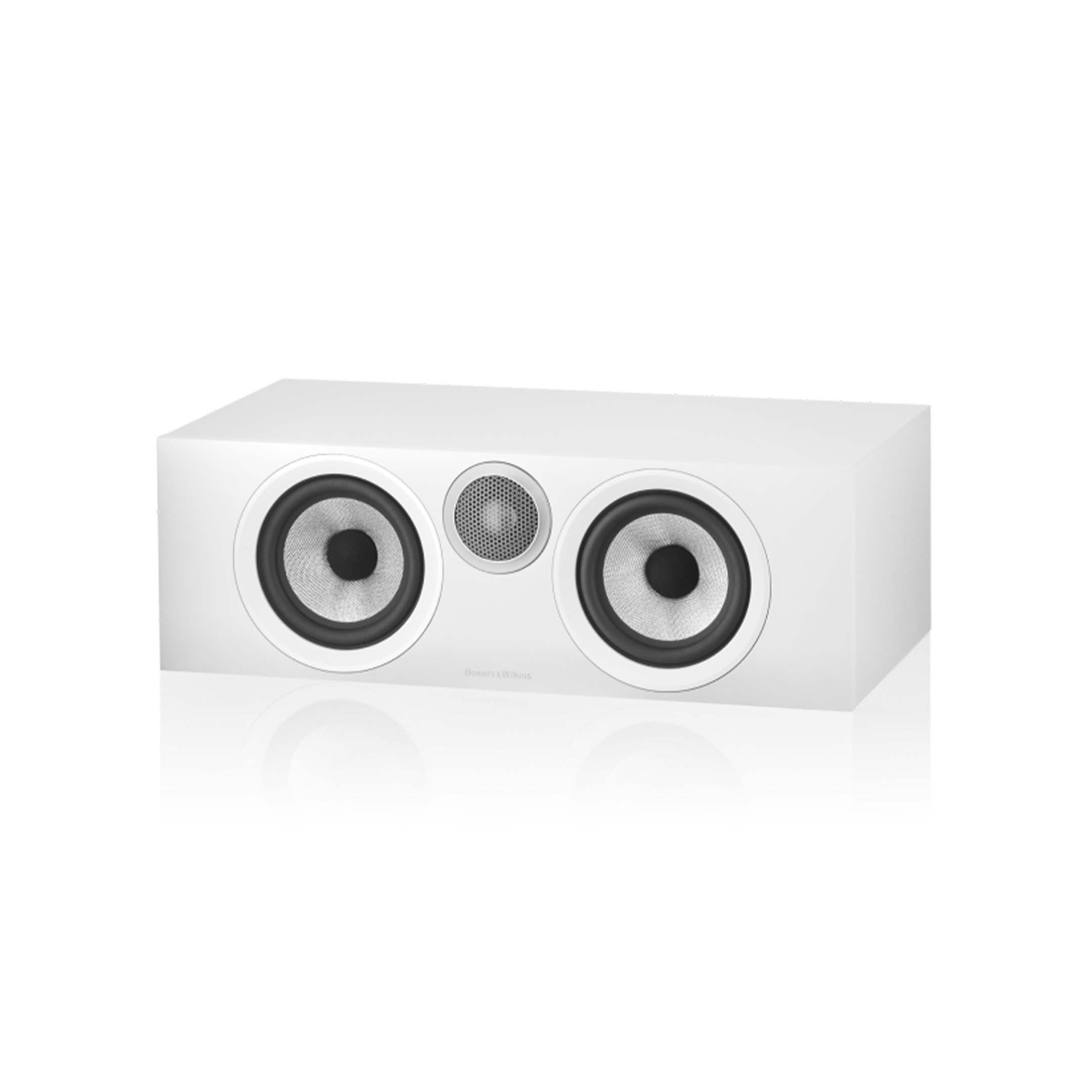

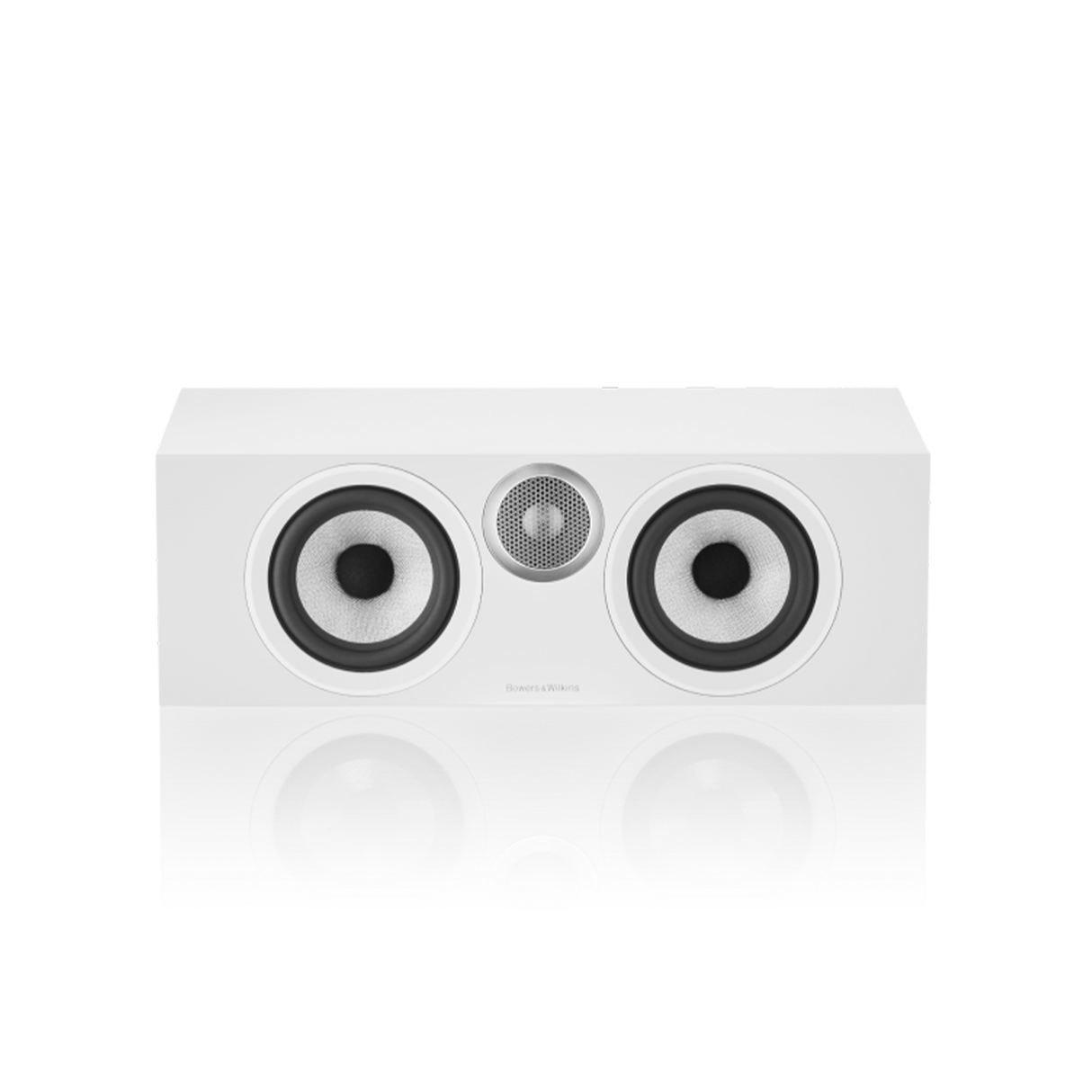

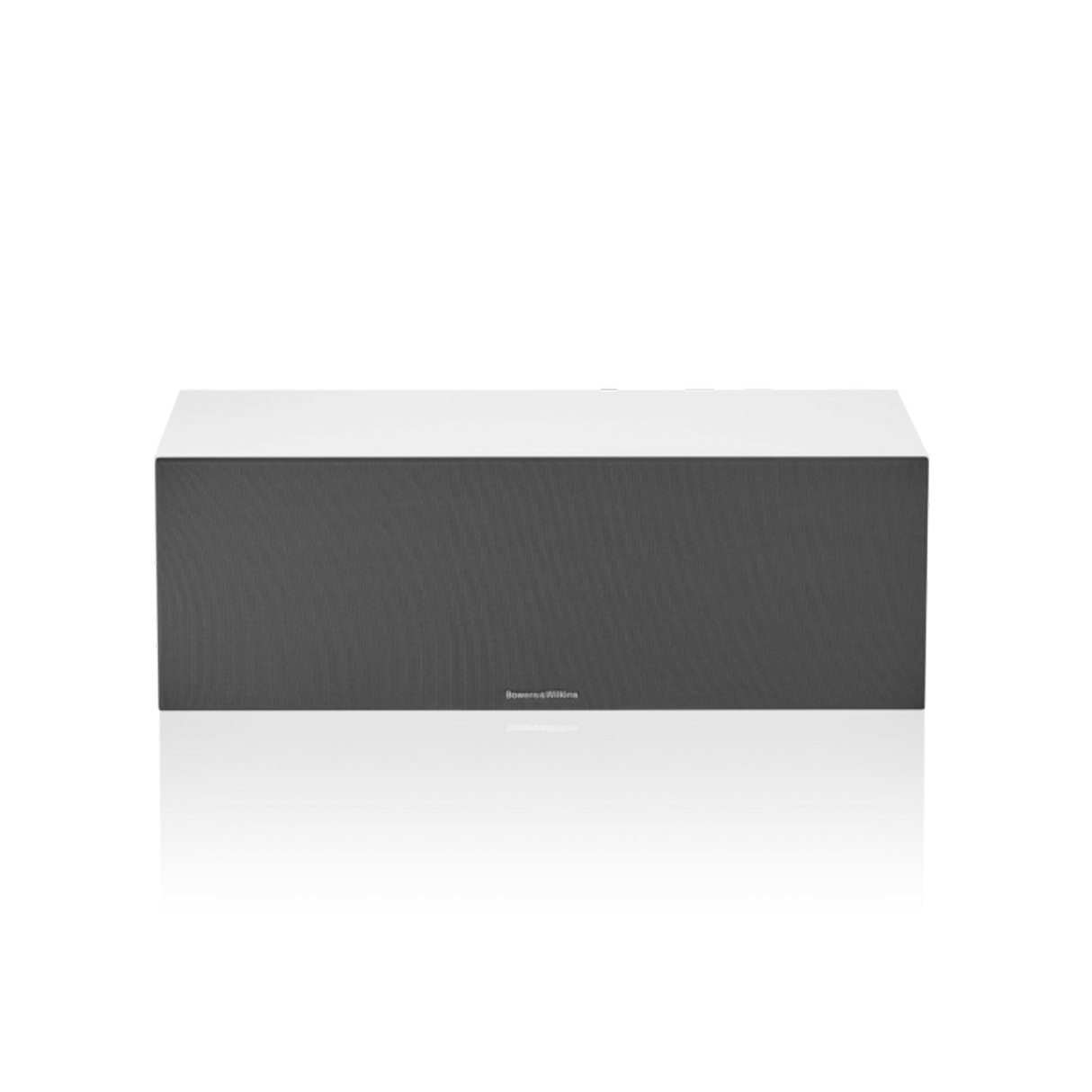

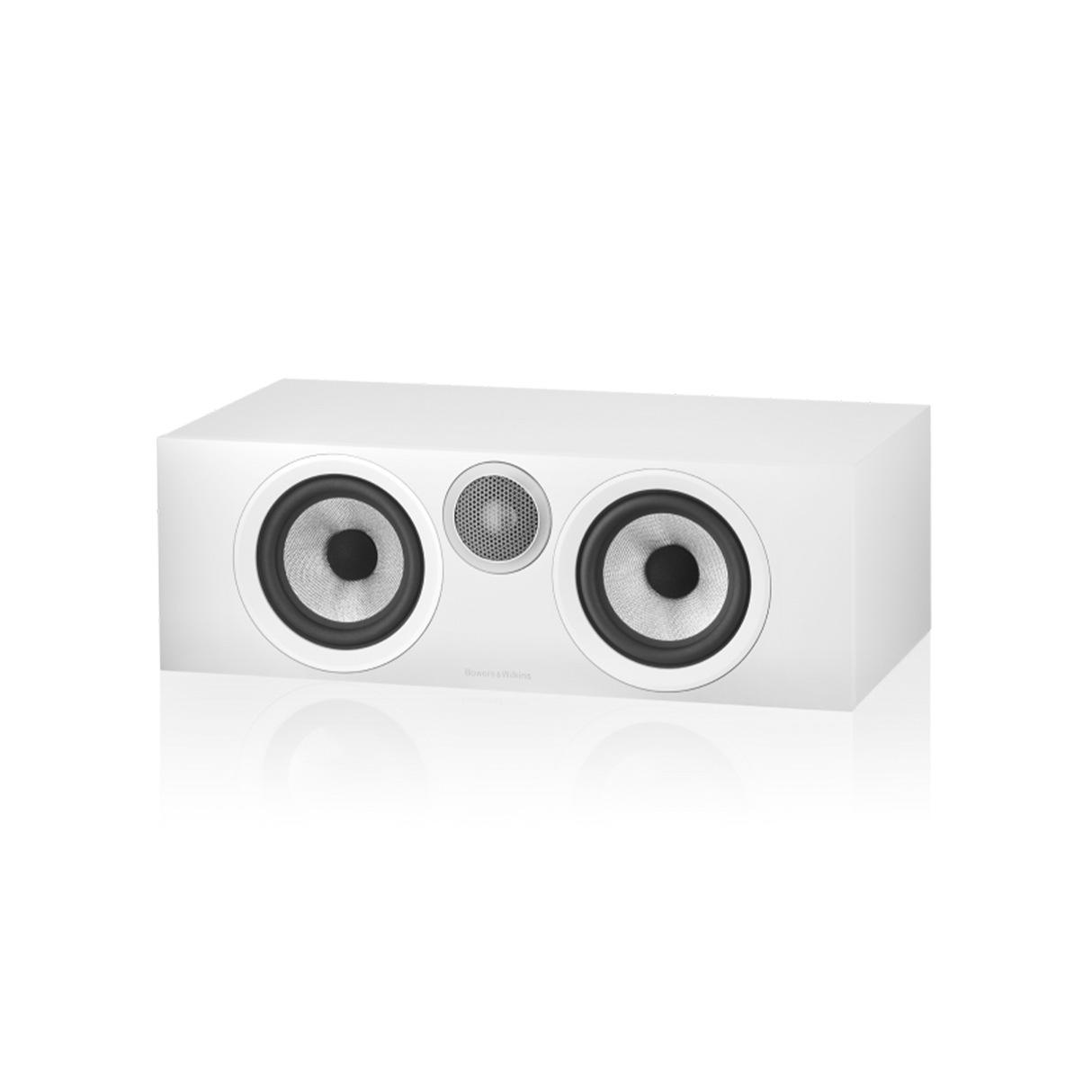

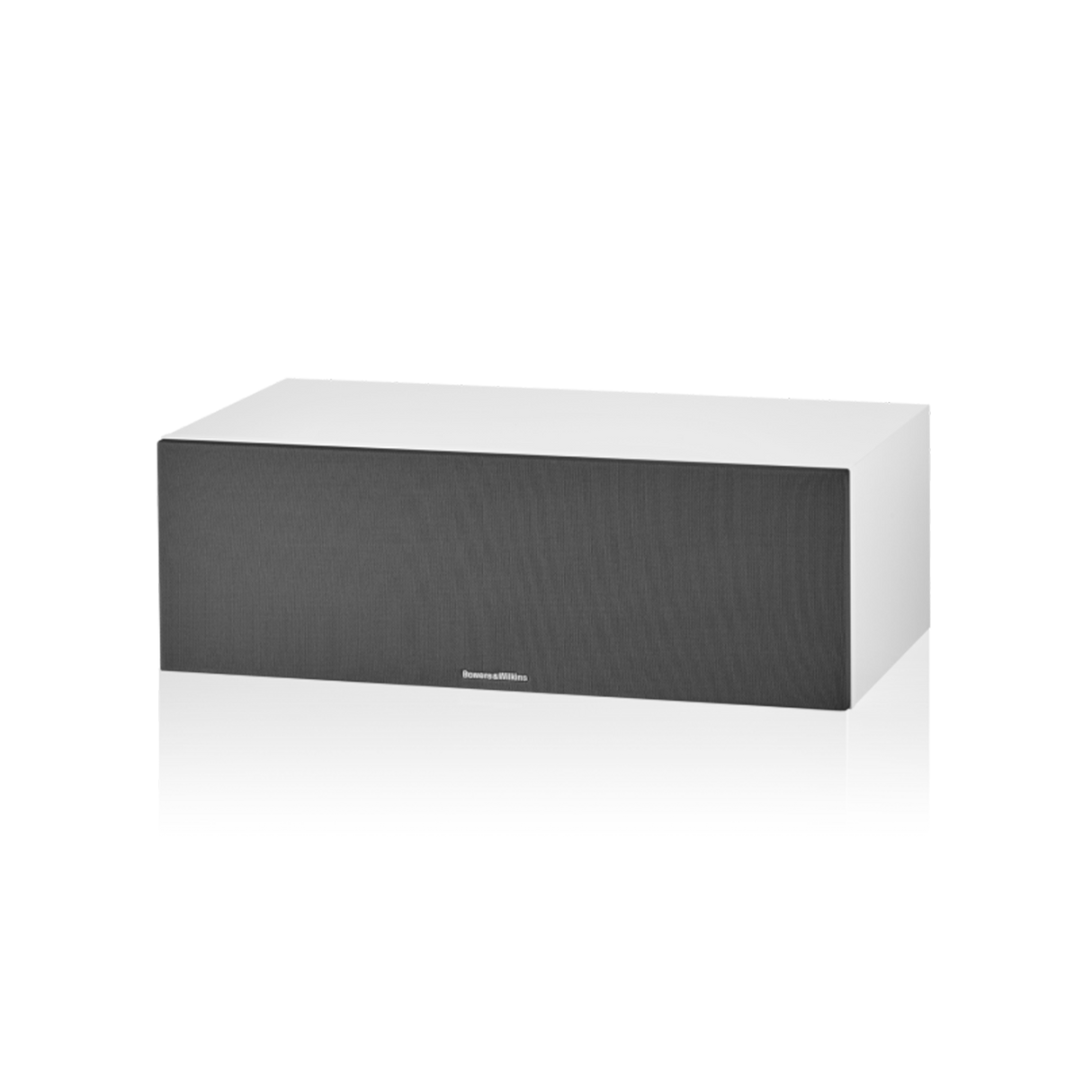

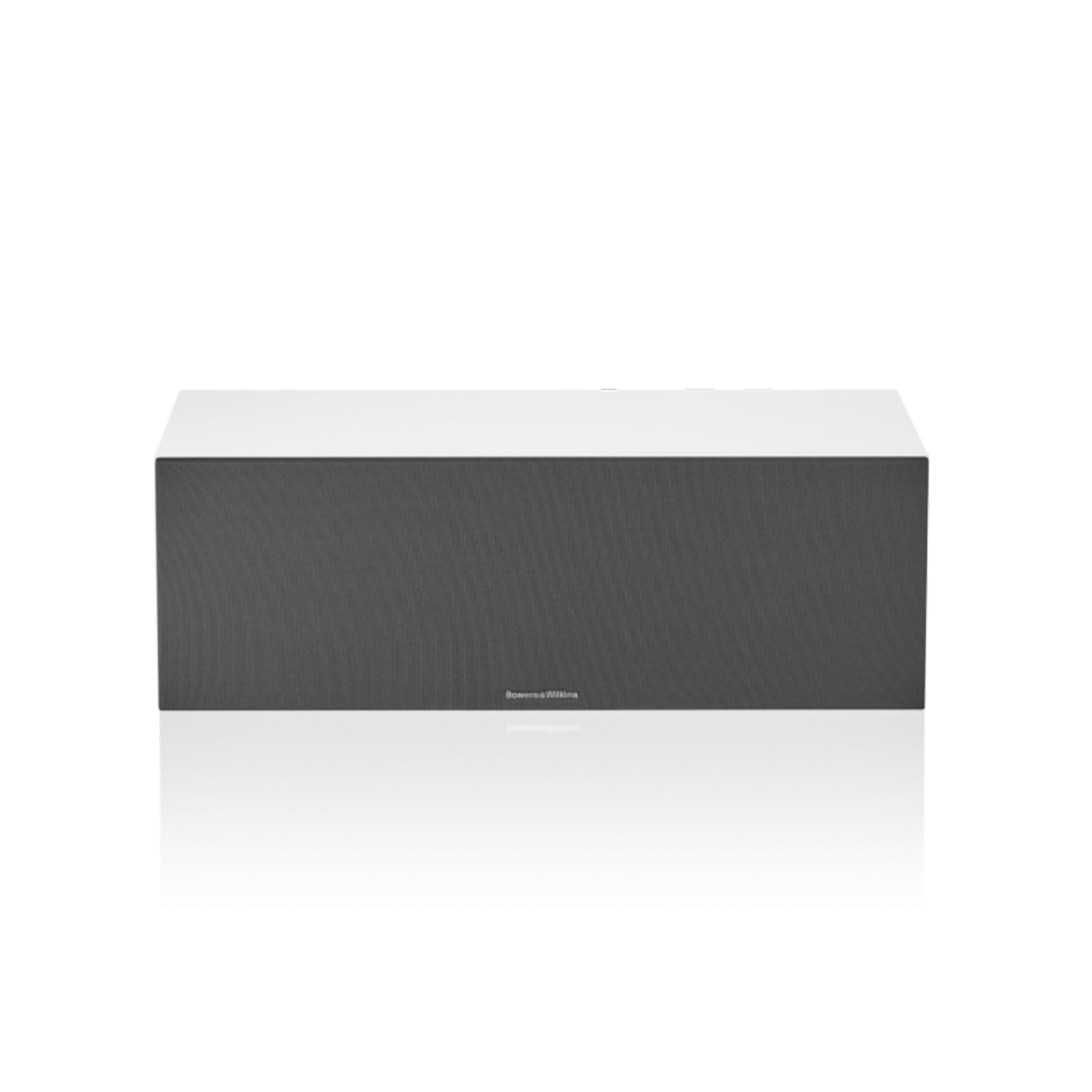

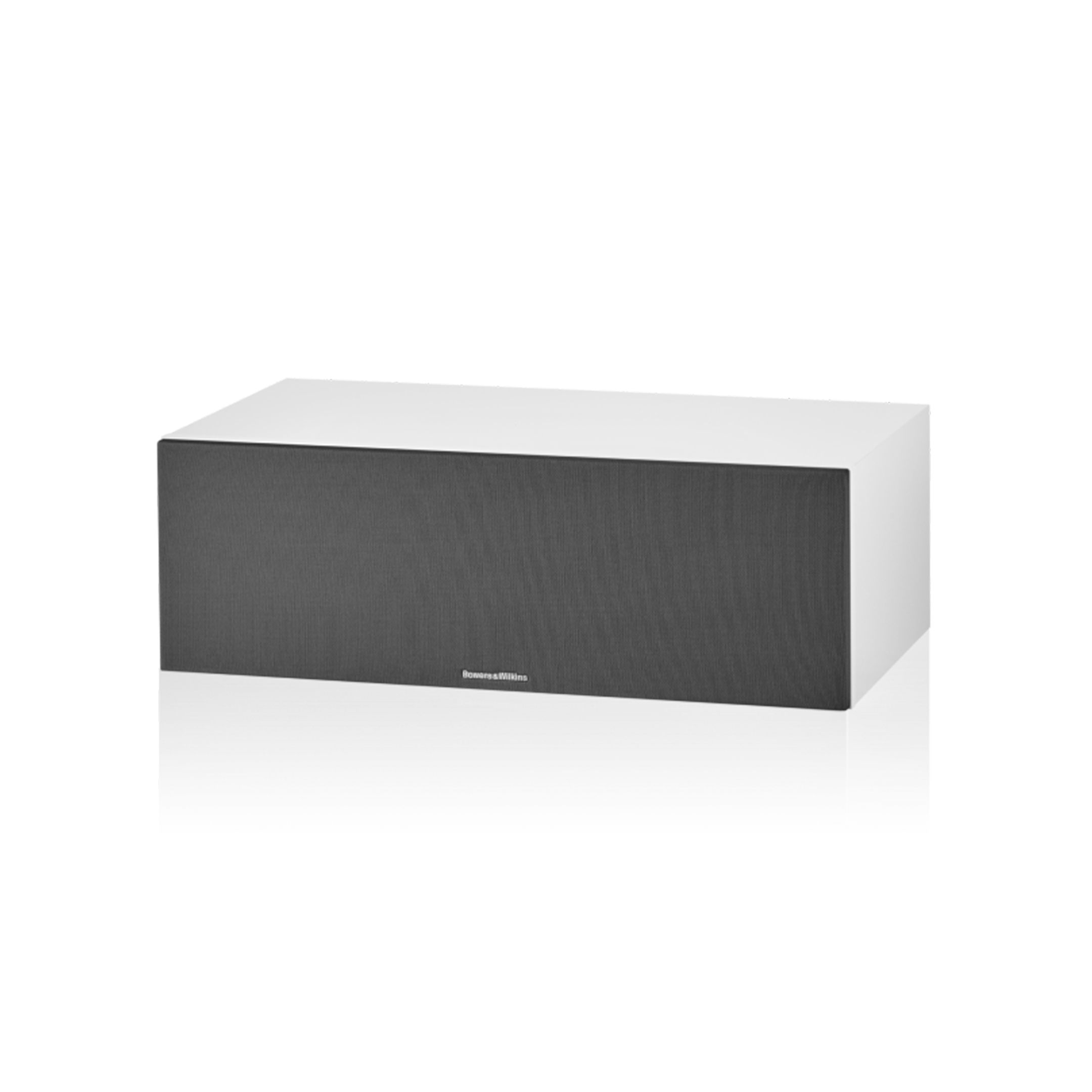

White

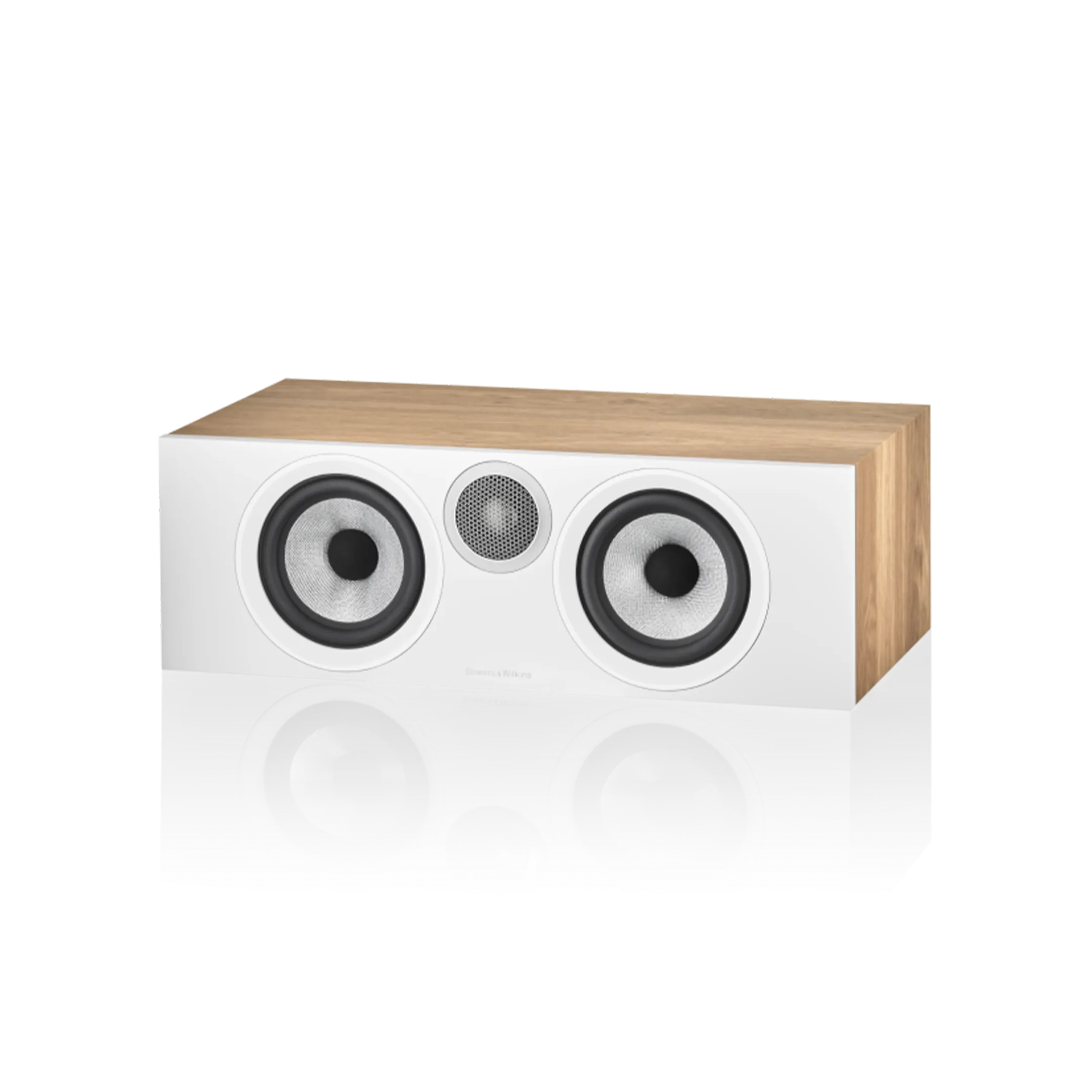

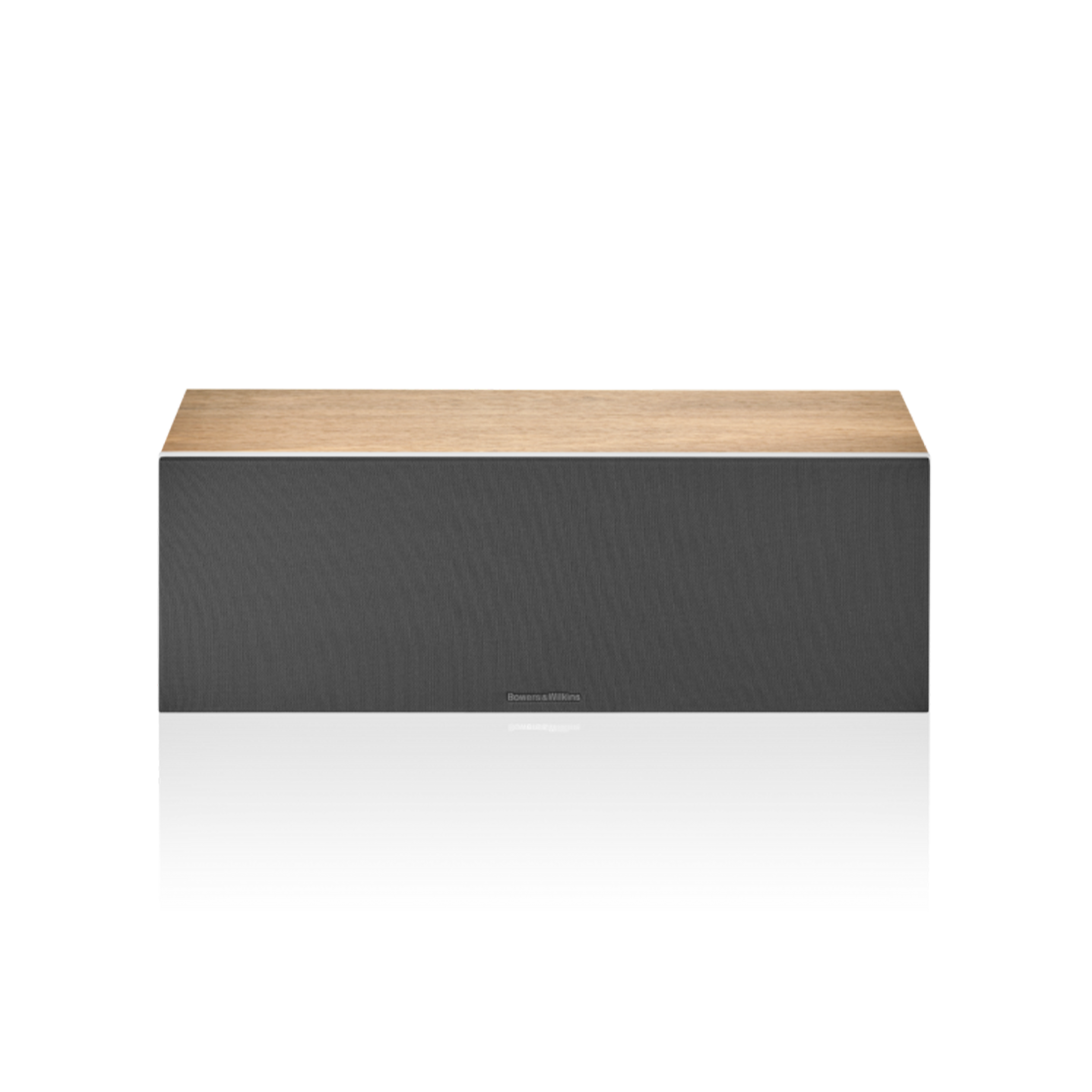

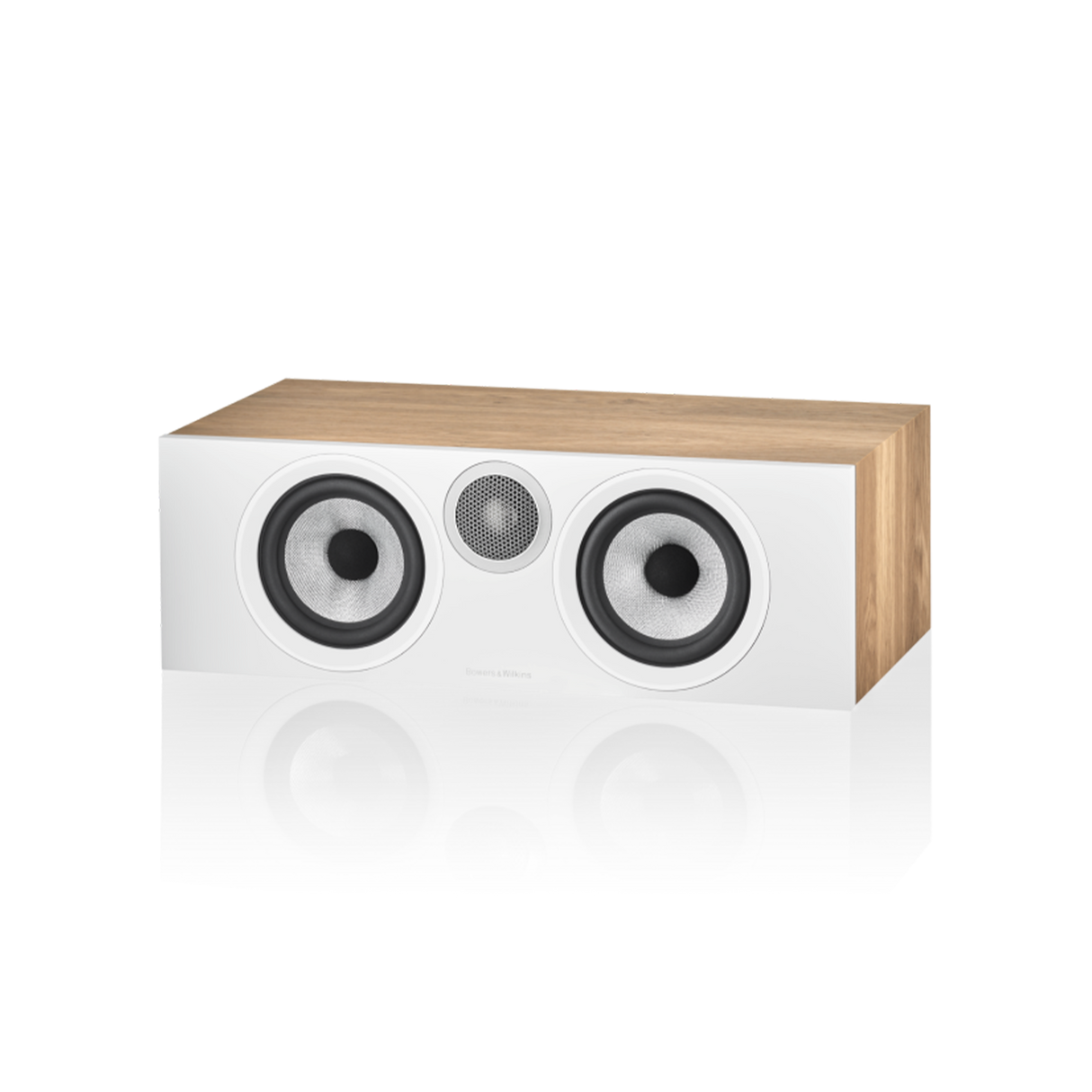

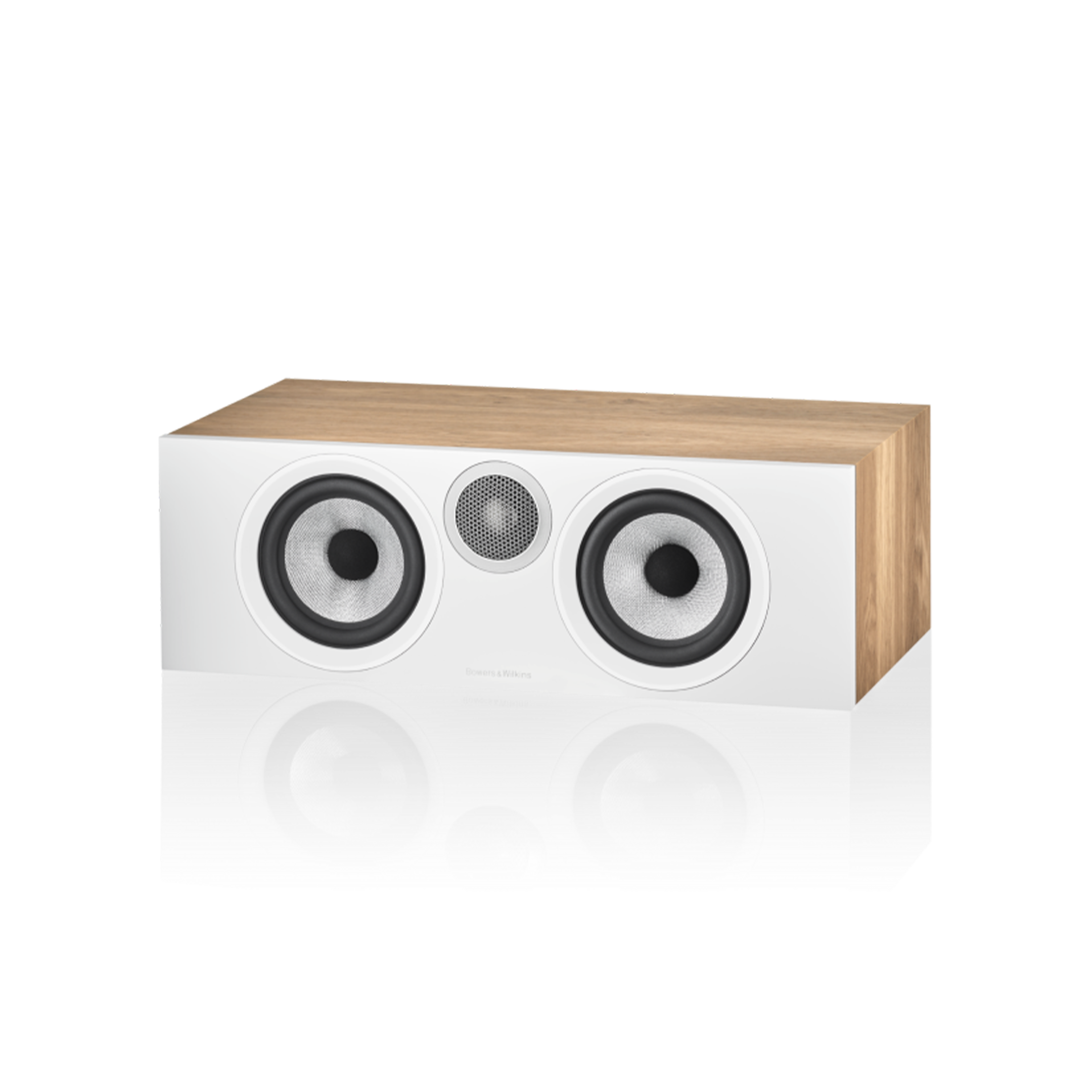

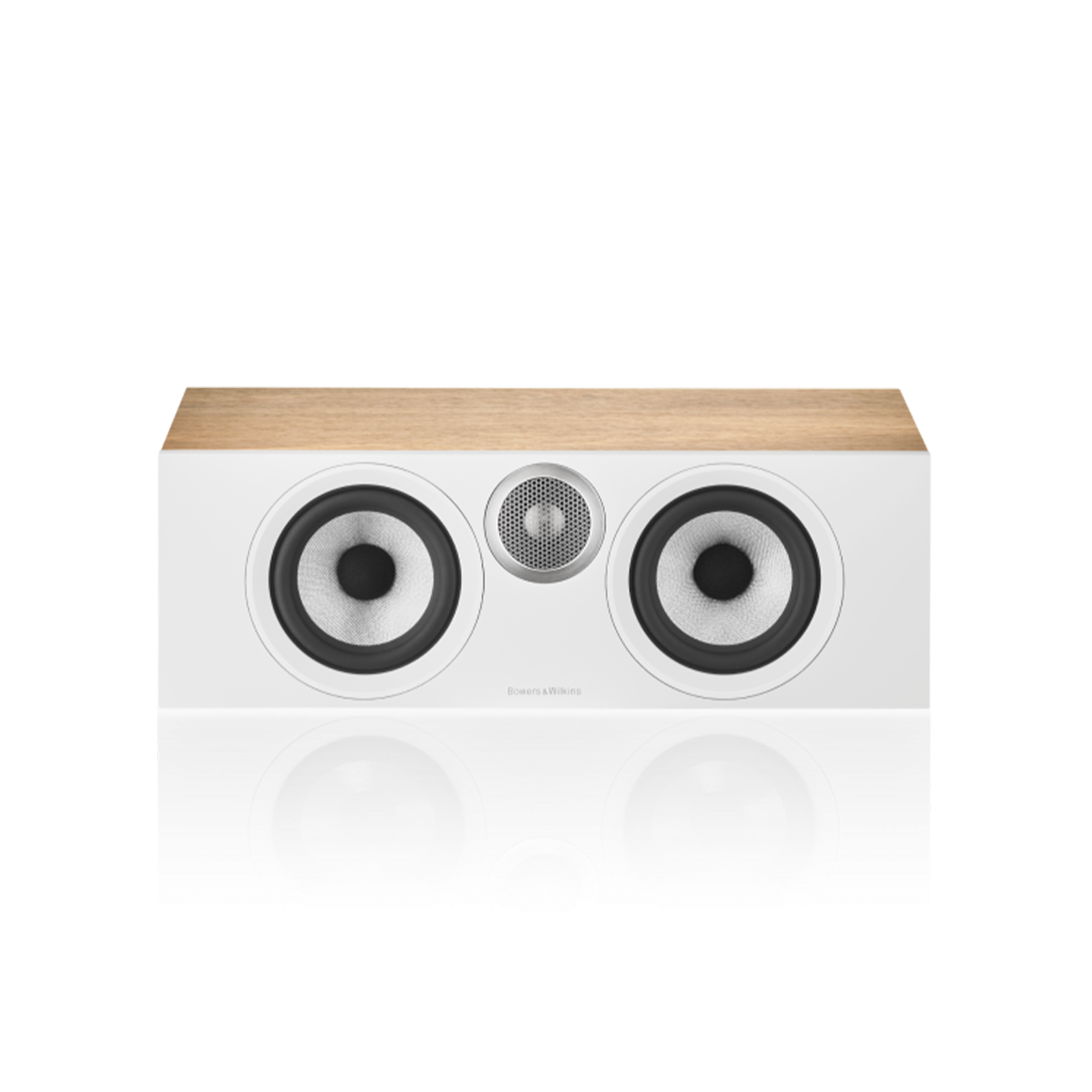

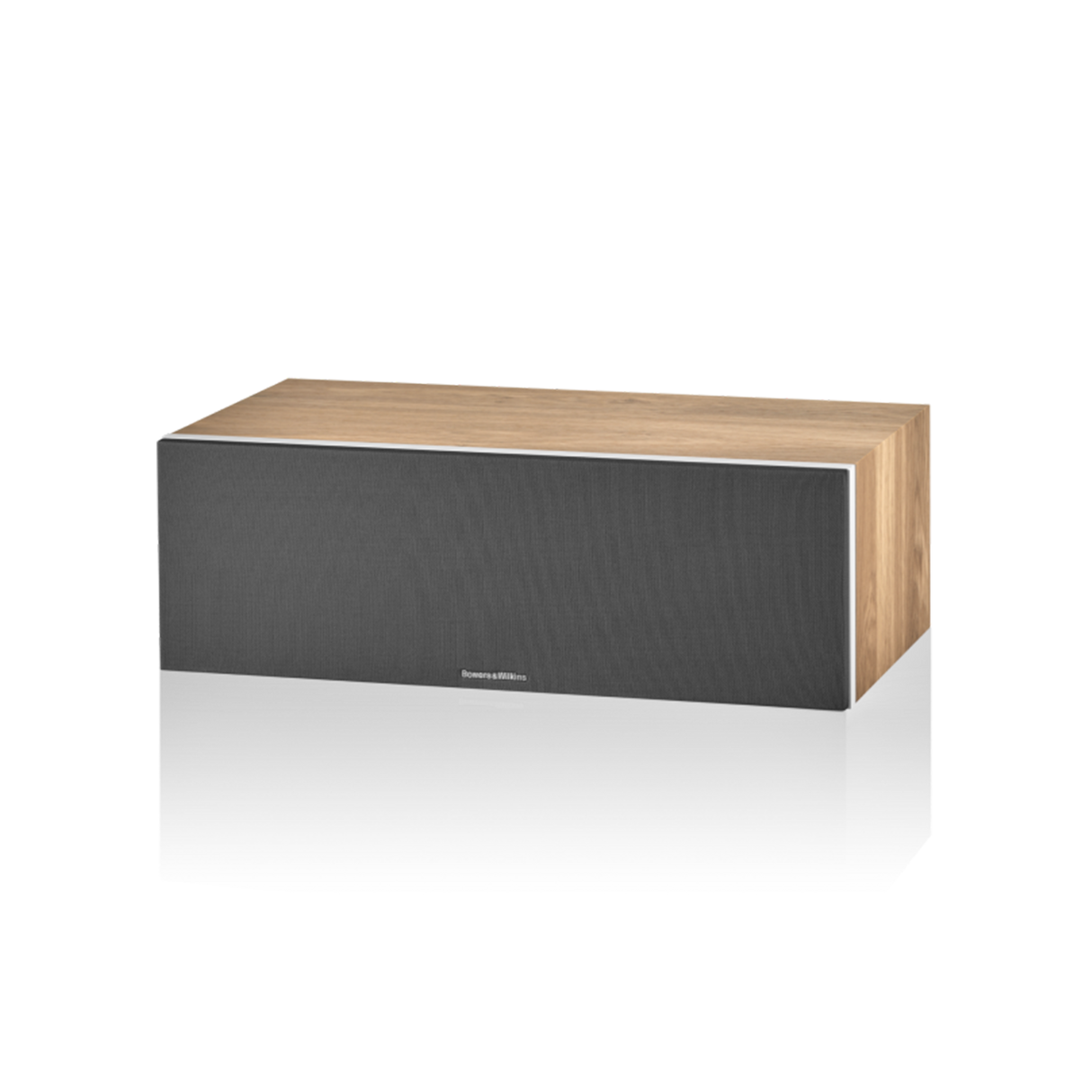

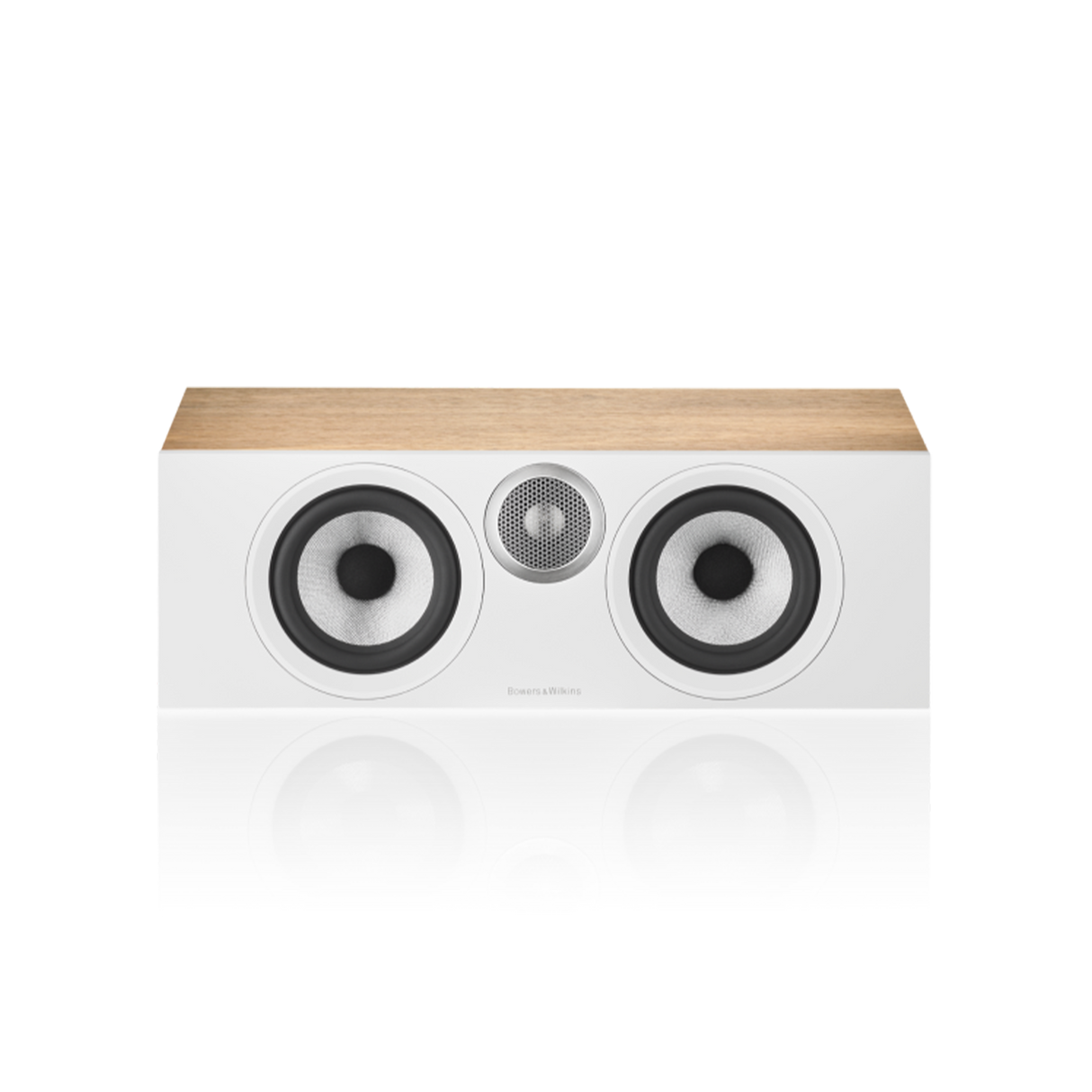

Oak

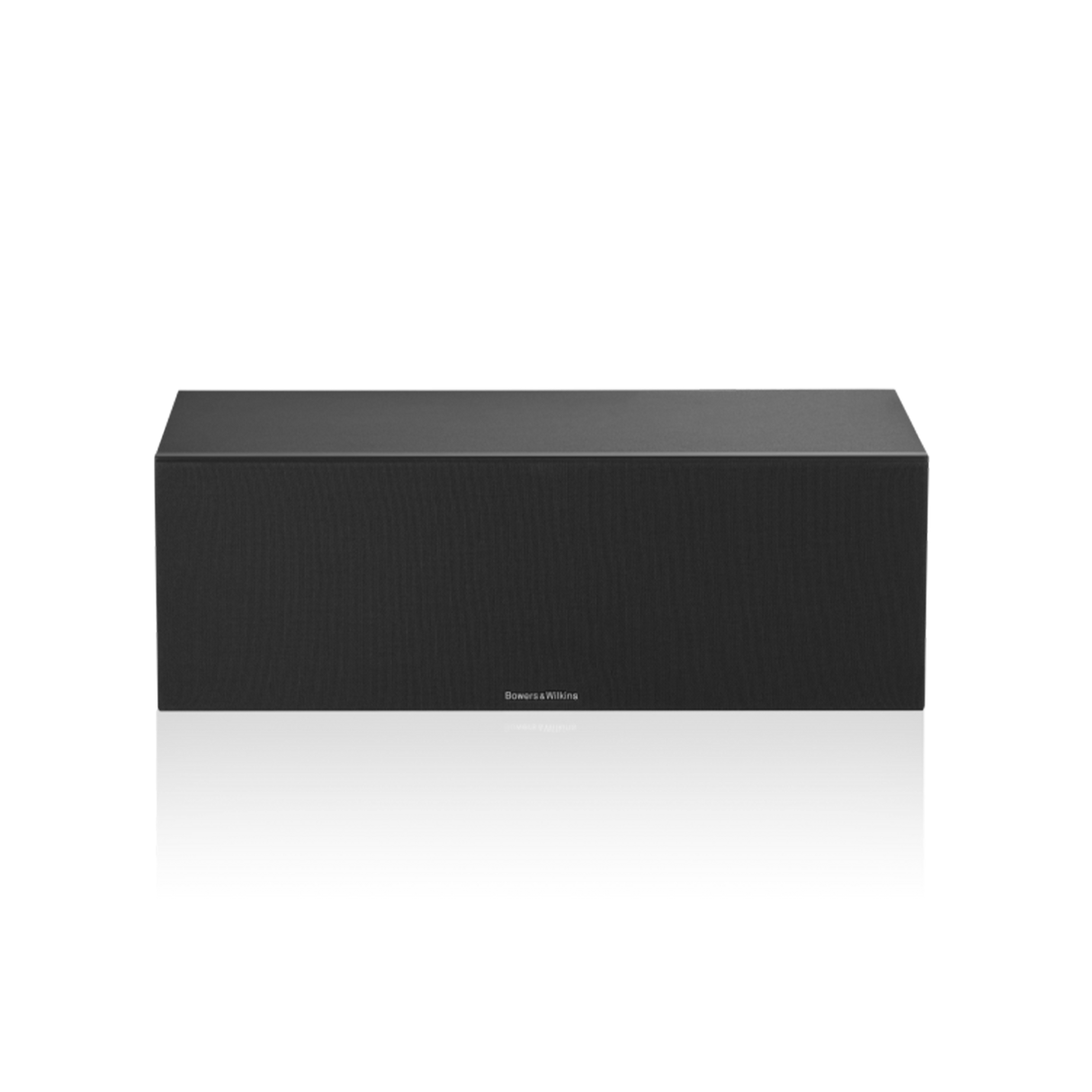

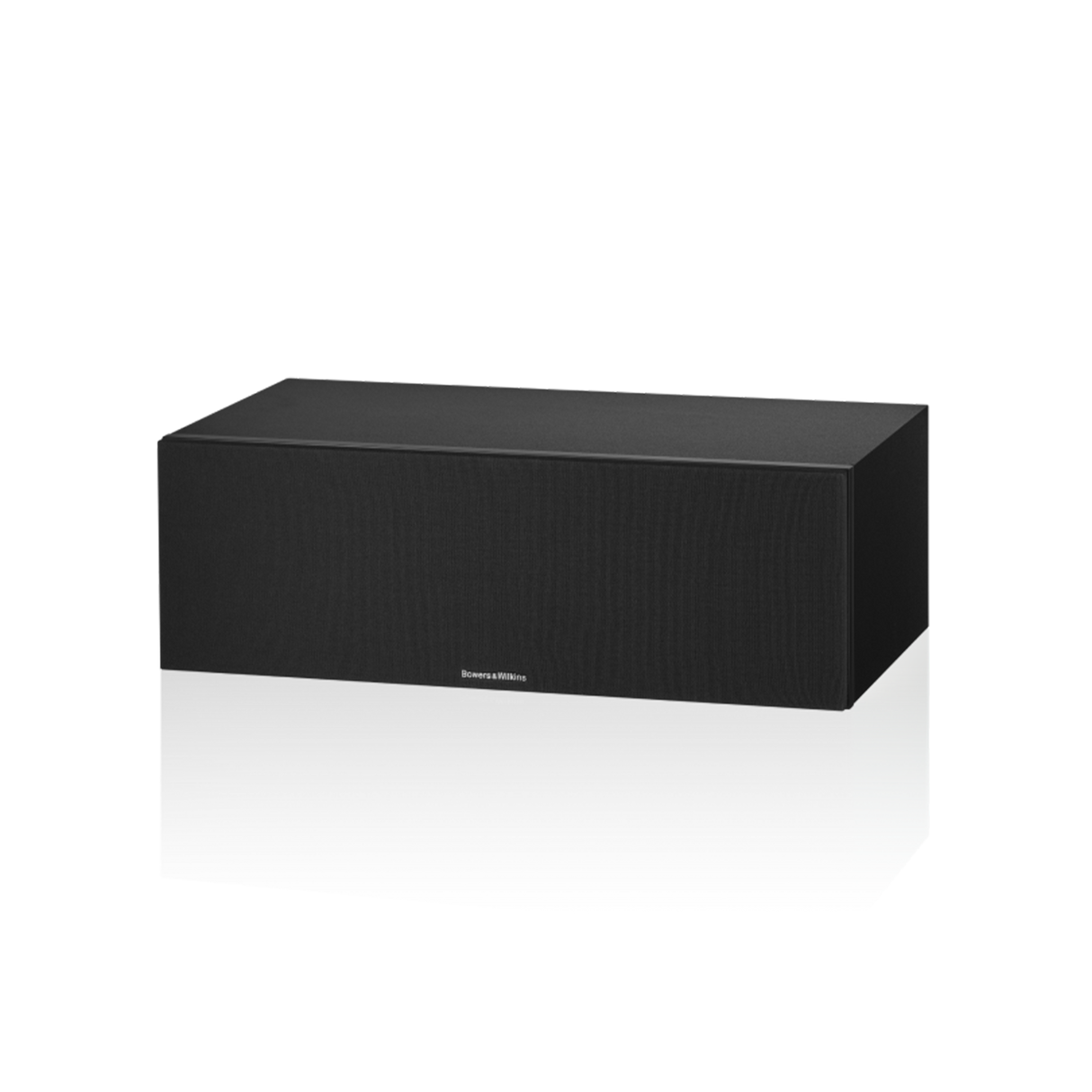

Grille finishes

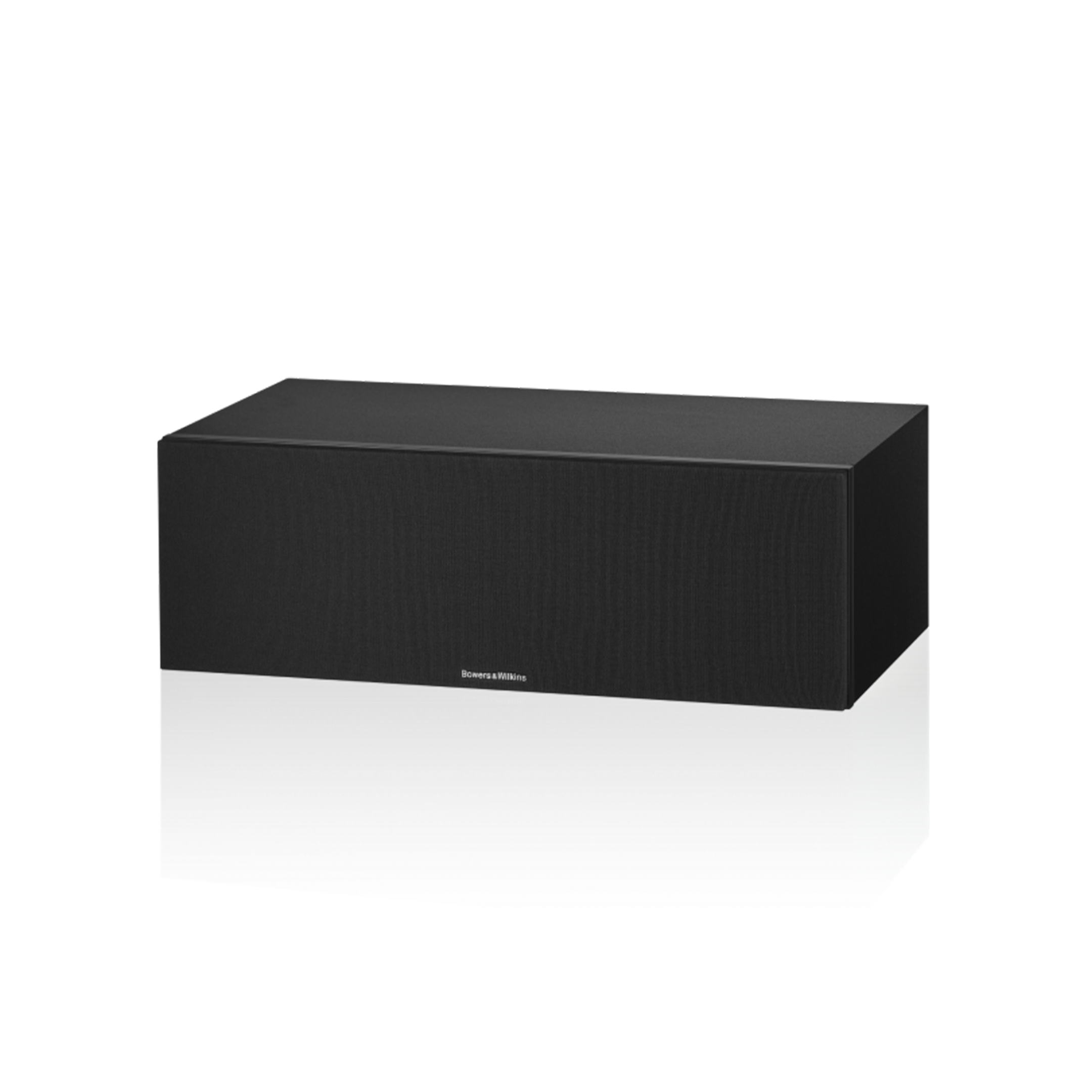

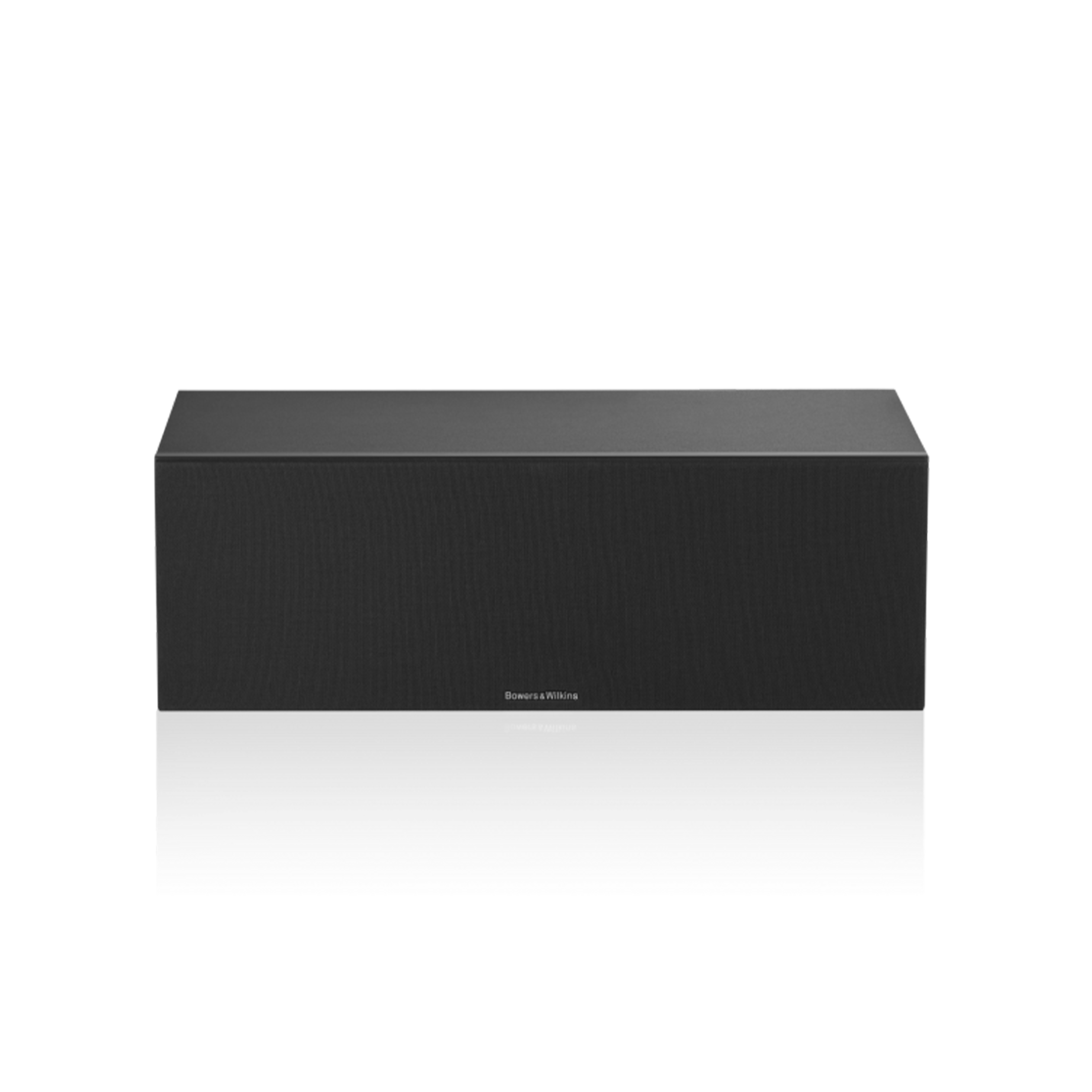

Black (Black)

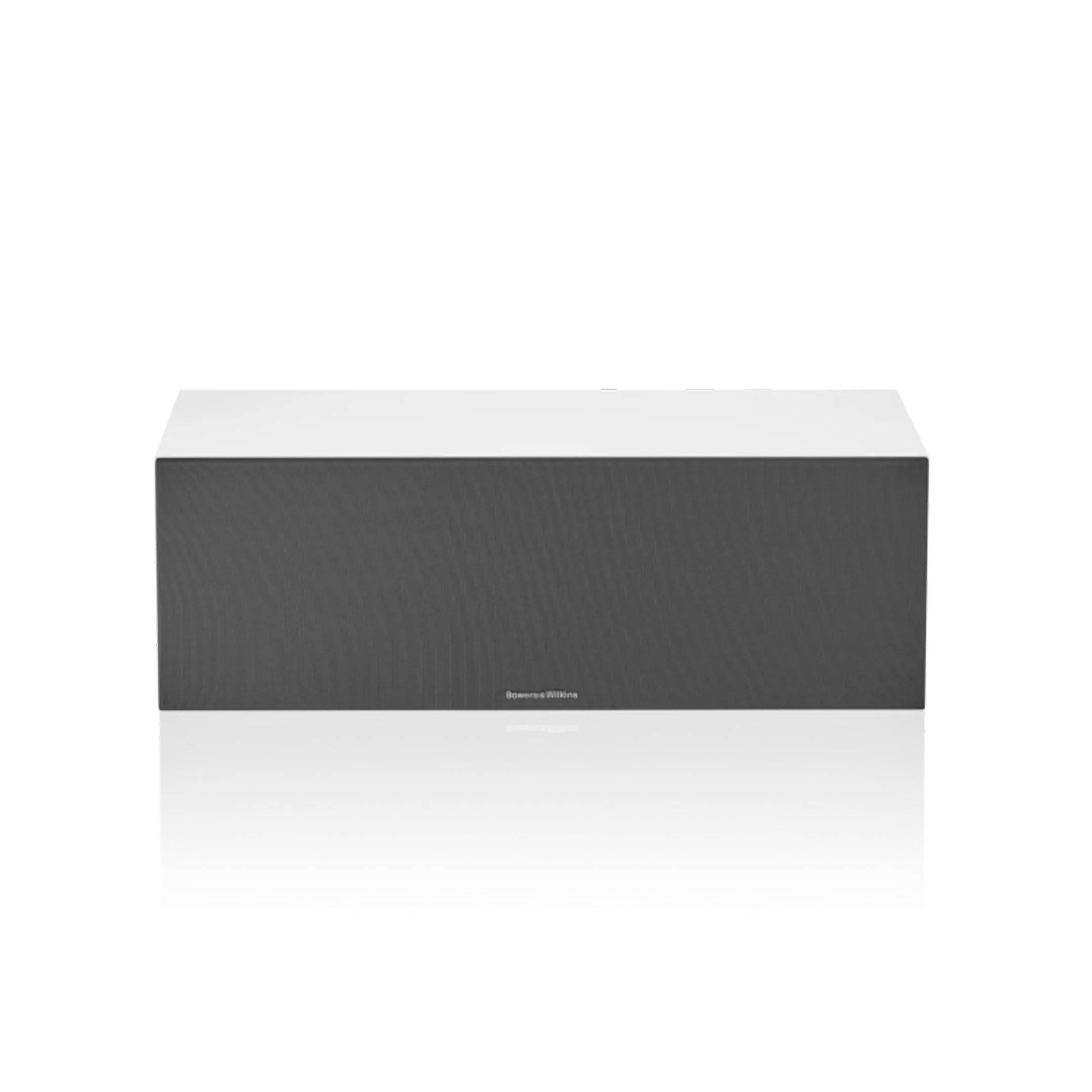

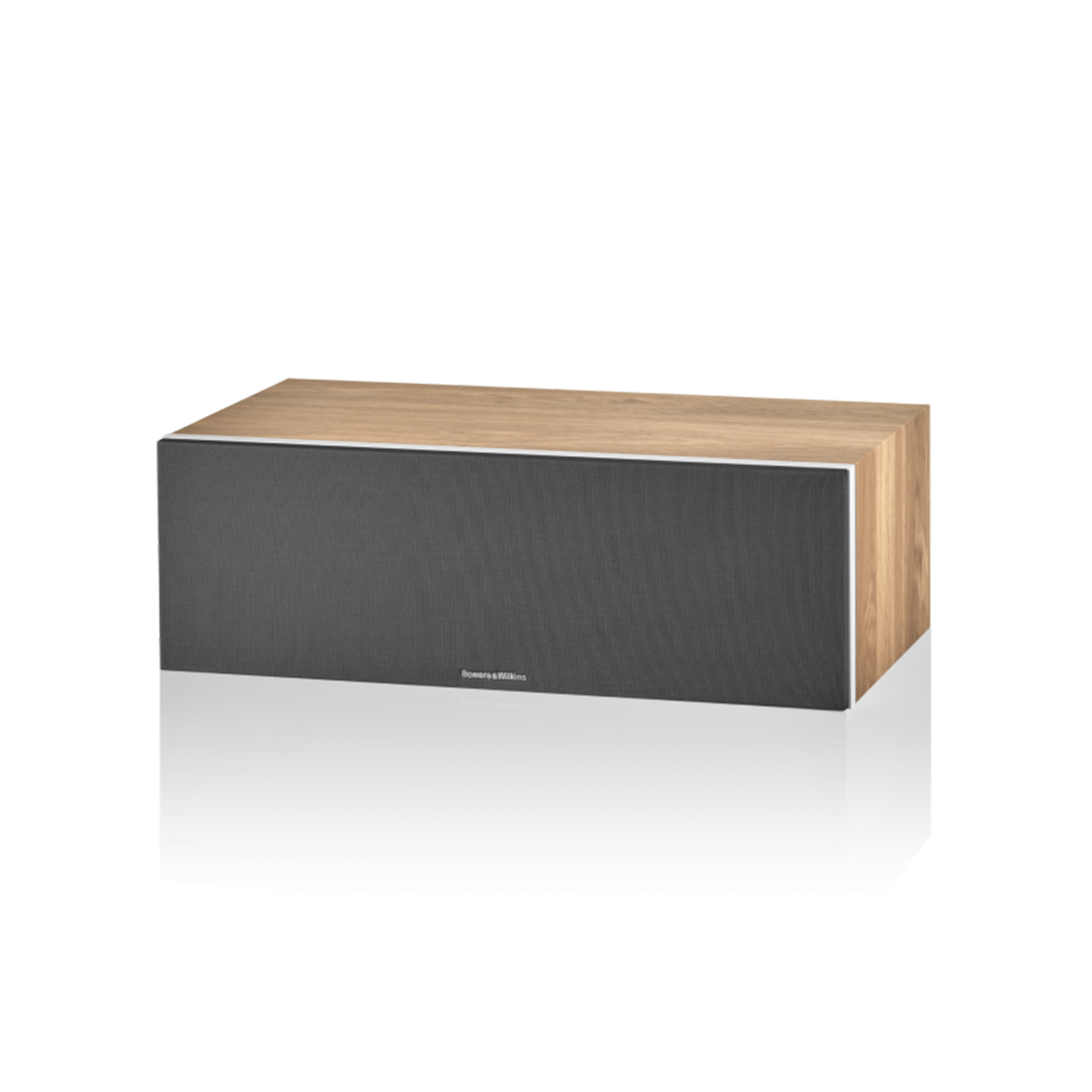

Grey (White and Oak)

DOCUMENTS

User manual (EN)
