FiiO BTA30, Bluetooth adapter

INFORMACIJA

FiiO BTA30 Bluetooth adapter is a universal device for high-quality wireless Bluetooth transmission. A choice of three functions allows this event to be used as a Bluetooth wireless receiver, transmitter or S/A converter.

• Three possible operating modes: Bluetooth receiver; transmitter; S/A converter
• Bluetooth support: SBC/AAC/aptX/HD/LDAC
• Signal transmission distance: up to 30 meters
• Optical connector support: 96k/24-bit

DESCRIPTION

FiiO BTA30 A Bluetooth adapter is a universal device for high-quality wireless Bluetooth transmission. A choice of three functions allows this event to be used as a Bluetooth wireless receiver, transmitter or S/A converter. FiiO BTA30 Bluetooth adapter supports next-generation Bluetooth V5.0 with LDAC/aptX HD support. The new generation Qualcomm CSR8675 Bluetooth module not only helps maintain a stable connection and ensure a long operating distance, but also transmits even high-resolution audio formats. The Hi-Res certificate logo visible on the device also reminds us of this possibility of transmitting high-resolution audio formats. The general package includes a USB cable, which is intended for connecting the module to a computer and an RCA cable, so you will definitely no longer need to buy these cables.

This device can also be used as an S/A signal converter. The built-in DAC AK4490 is of high enough quality to process the digital audio signal and convert it to analog. The internal DSP processor is factory-set to interact with other device components and process the audio signal. The components that ensure an exceptional wireless transmission distance allow the device to operate at a distance of up to 30 meters, so the device sending the signal does not necessarily have to be always at hand. As for the S/A audio signal converter capabilities, the FiiO BTA30 has a special USB connection that allows the device to be connected to a computer and used in stationary mode.

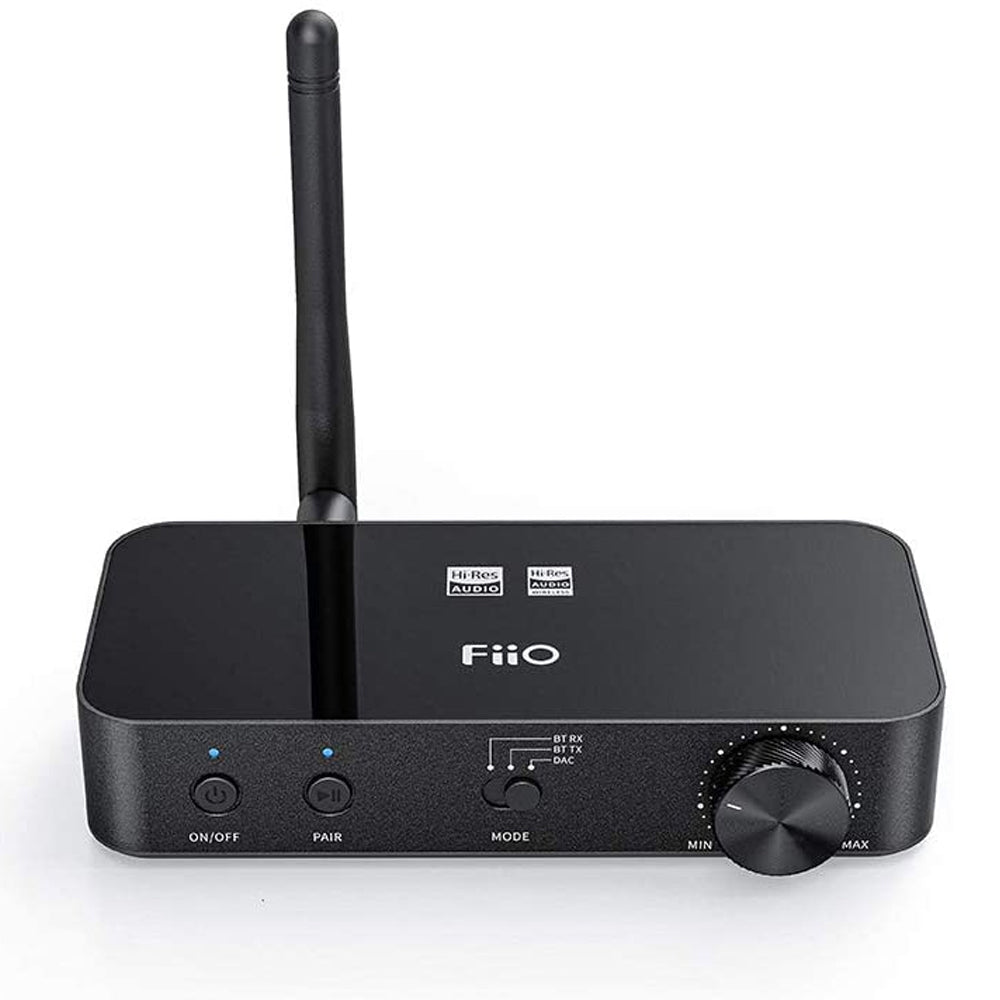

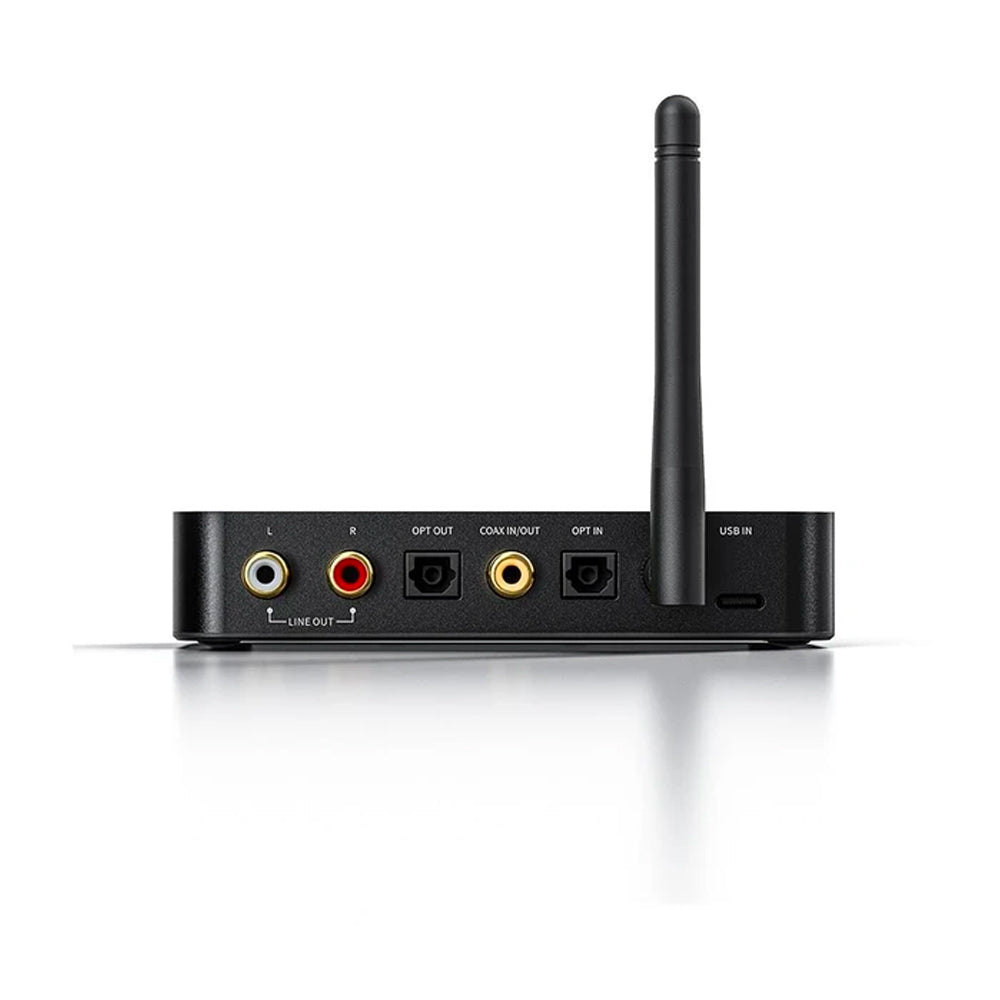

The LED lights on the front of the BTA30 are a guarantee of comfortable control. Light signals of different colors make it much easier to get caught between the current settings and modes of the device. The potentiometer on the front, which allows you to instantly control the sound level of the broadcasted content, has a great influence on the comfortable use of this device. It is also important to mention the convenient management of the app. The app allows you to conveniently control the sound level remotely. You can also choose the desired sound filter, control the sound balance of the sides and, of course, much more. The device has a built-in analog RCA audio signal output, an optical digital output, an optical input and a coaxial connector that can function as a signal input or output.

TECHNICAL DATA

SPECIFICATIONS

• 1.Optical decoding support: 96k/24bit
• 2.Coaxial decoding support: 192k/24bit; DSD64 (dop)
• 3.USB AUDIO out support: 44.1/48k 16bit
• 4.Analog output: RCA (Max 3Vrms)
• 5.RCA out THD+N:0.002% (SPDIF 48k/24b input, 1kHz -3dB)
• 6.RCA output SNR: 115dB
• 7.Dimensions: 120x55x23.5mm
• 8. Weight: 115g
