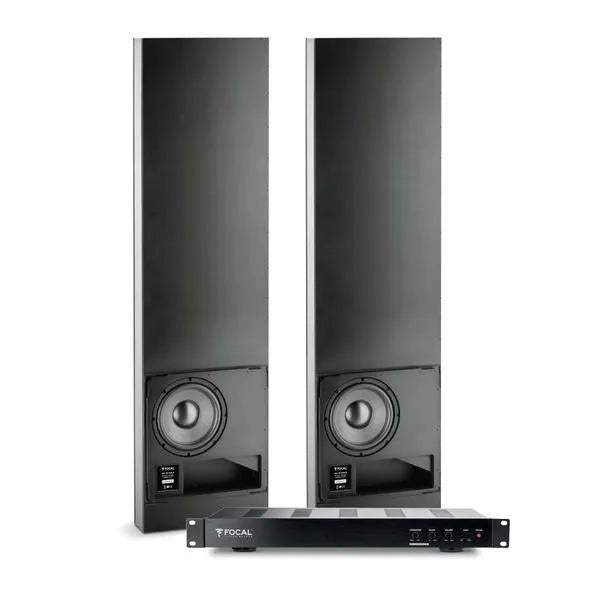

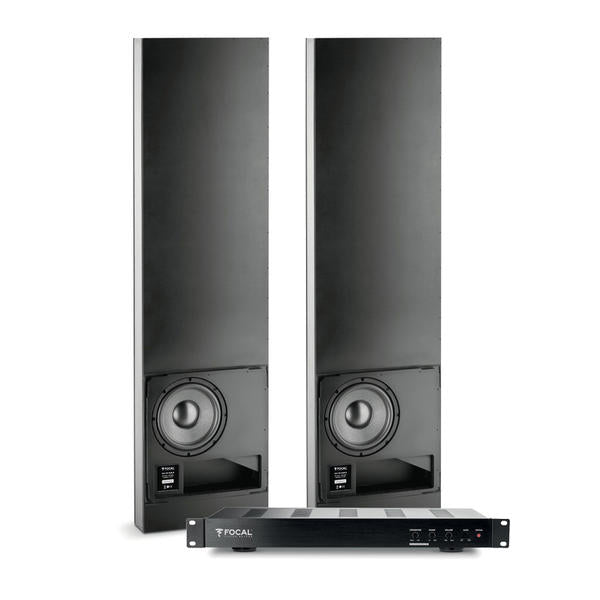

Focal 100 IWSUB8, a set of two wall-mounted subwoofers and an amplifier

A set of built-in speakers and an amplifier will enrich your home with powerful and deep low frequencies typical of Focal! Power: 150 W (Resistance: 4 Ohms).
€1,699.00 EUR

Focal 100 IWSUB8, a set of two wall-mounted subwoofers and an amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

A set of built-in speakers and an amplifier will enrich your home with powerful and deep low frequencies typical of Focal!

  • Power: 150 W (Resistance: 4 Ohms).
  • Bandwidth: (+/-3dB): 34 - 140 Hz.
  • Subsonic filter: 18dB/oct.
  • High level protection against electrical system failures.
  • Passive Bass-Reflex technology.
  • Magnetic fixation on the mounting frame.

DESCRIPTION

SENSATIONAL BASS

HIGH POWER PASSIVE BASS-REFLEX SUBWOOFER

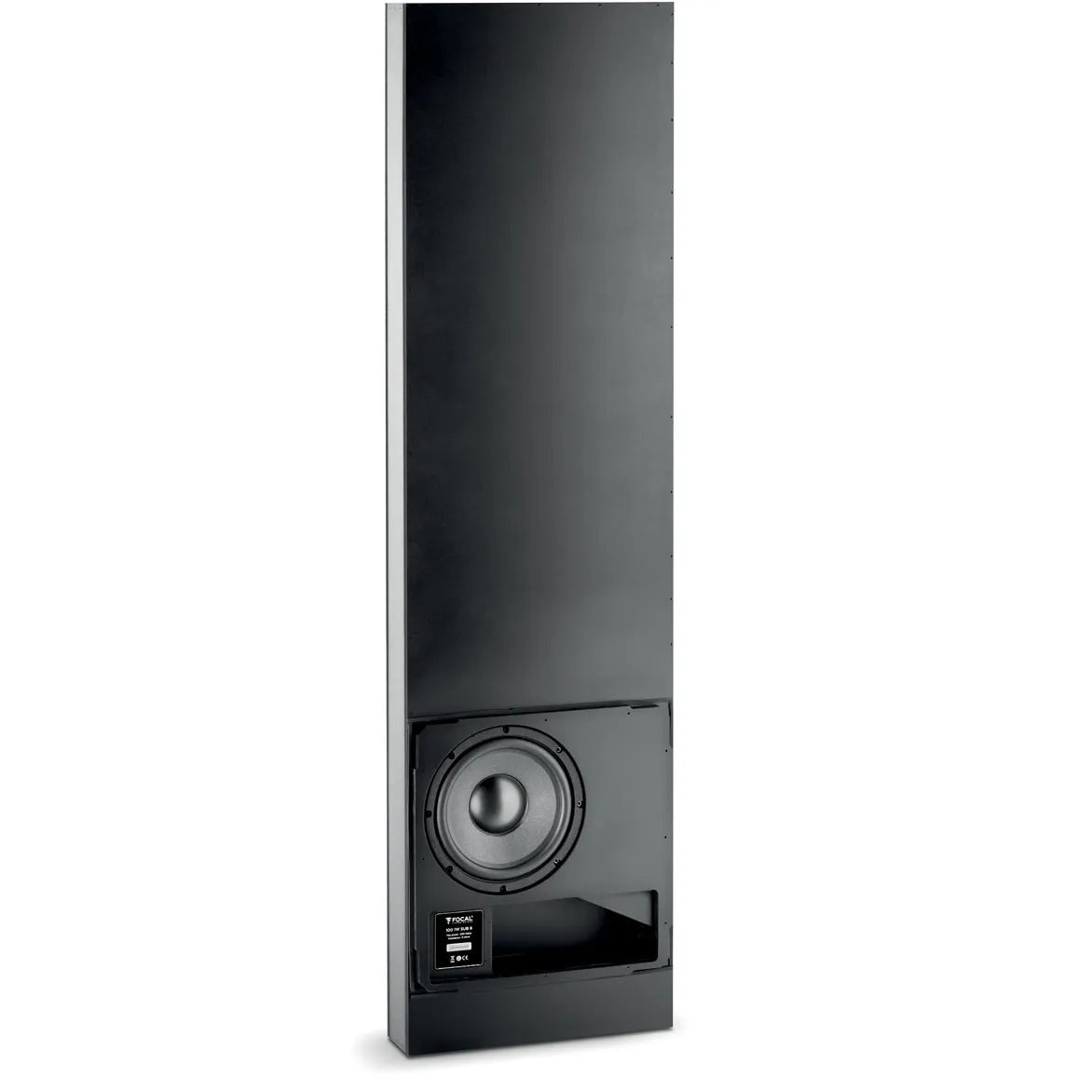

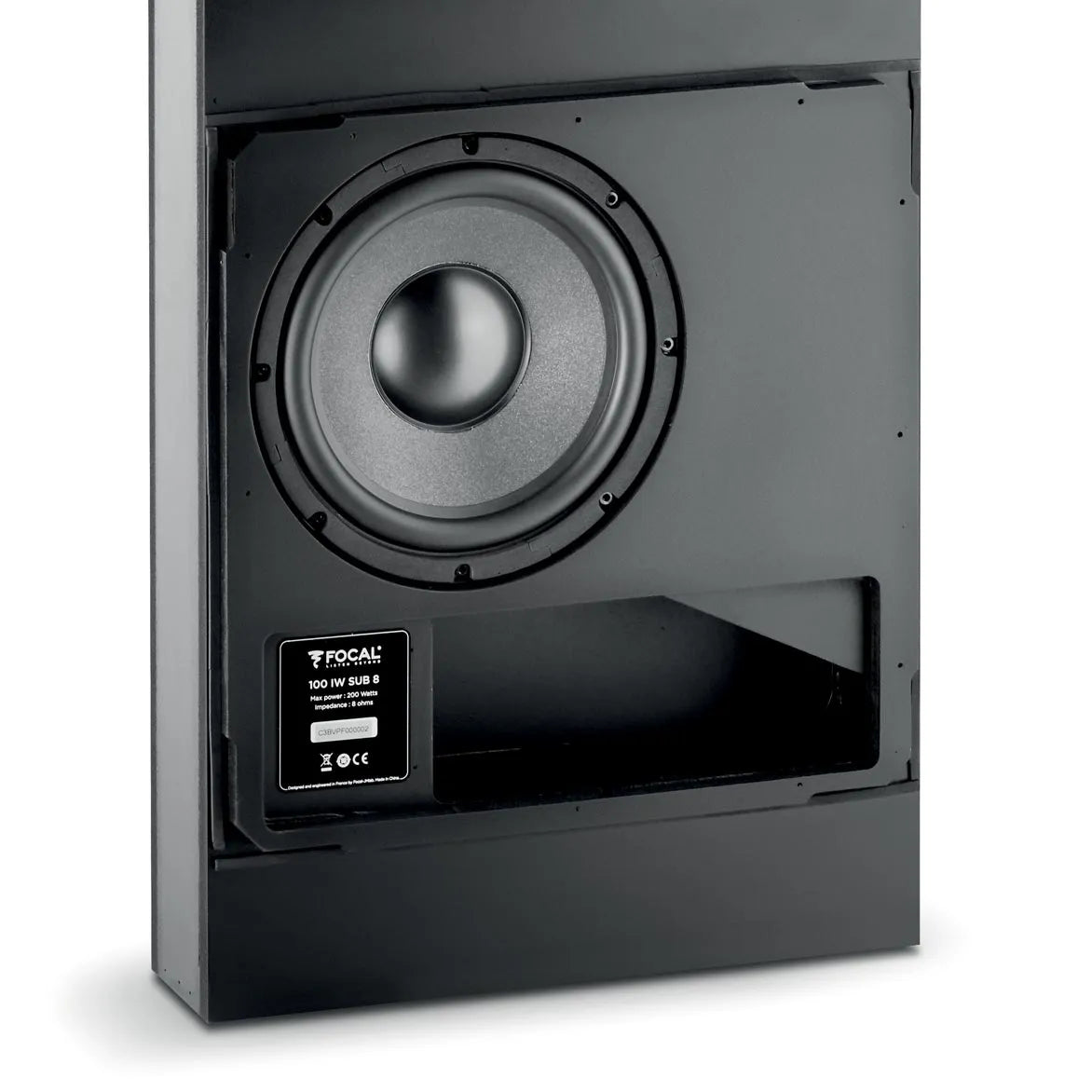

Complete your 100 Series audio/video system with the subwoofer 100 IWSUB8 . Including an 8" Polyglass speaker driver and a front vent with a streamlined inner frame to guarantee no-noise operation, this passive bass-reflex subwoofer can be installed during pre-construction of the walls using 16" OC joists. With a shallow in-wall depth (33/8"), a high-quality bass reproduction and covered with a low profile magnetic grille which can be painted, it is as high-performance as it is discreet!

Installation

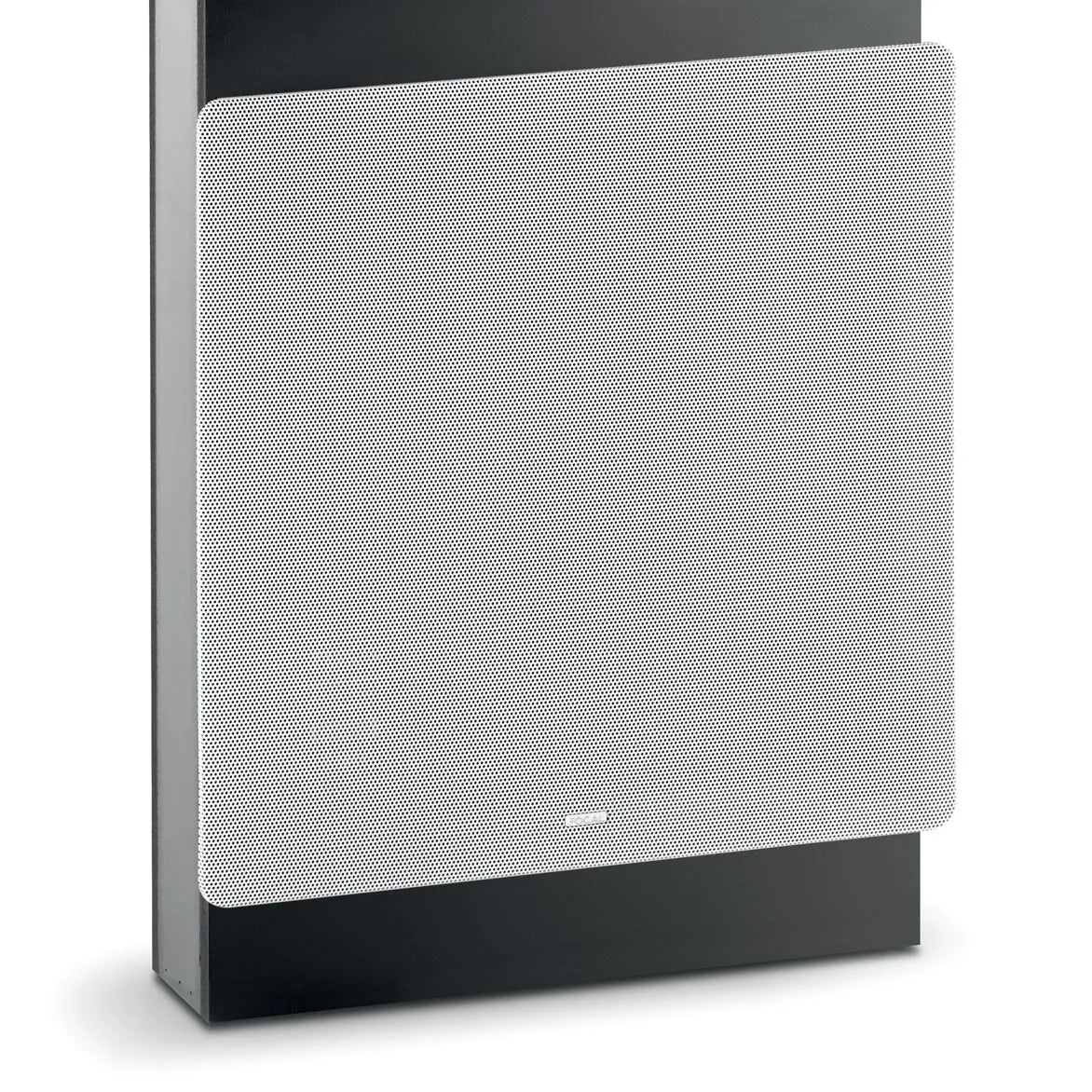

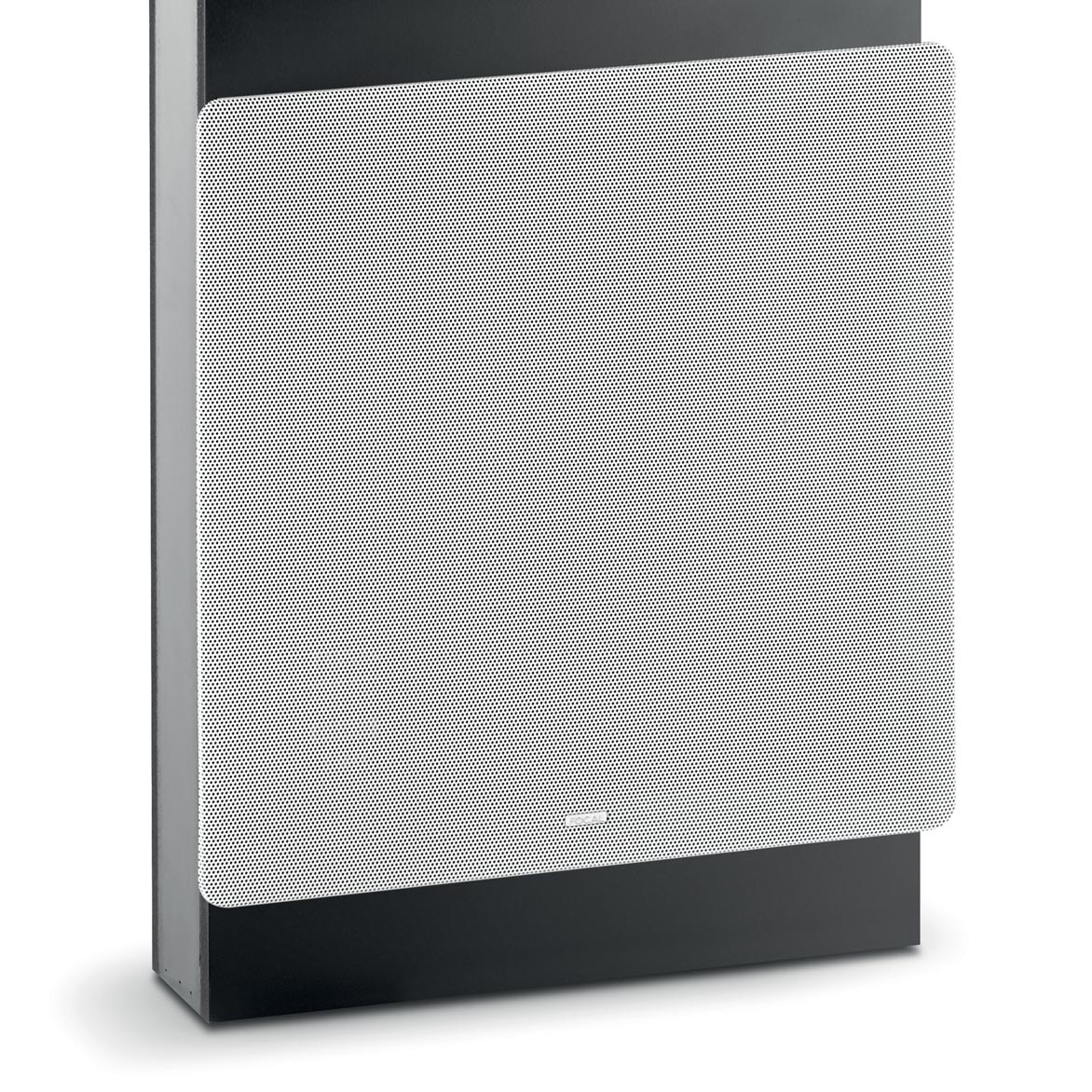

READY-TO-PAINT GRILL

  • metal low profile grille
  • ready-to-paint
  • magnetic fixing on mounting frame


KEY POINTS

  • Bass cut-off frequency: 30Hz is -6db
  • Low depth (3⅜" / 86mm) fitting 16" OC studs in-wall installation.
  • Nominal impedance of 8Ω, able to be connected by pairs with 100 IWSUB8 Amplifier .
  • Dimensions (HxWxD) : 51 3/16 x 13⅞ x 3⅞ " (1,300 x 352 x 98mm)

AN IMMERSIVE LISTENING EXPERIENCE

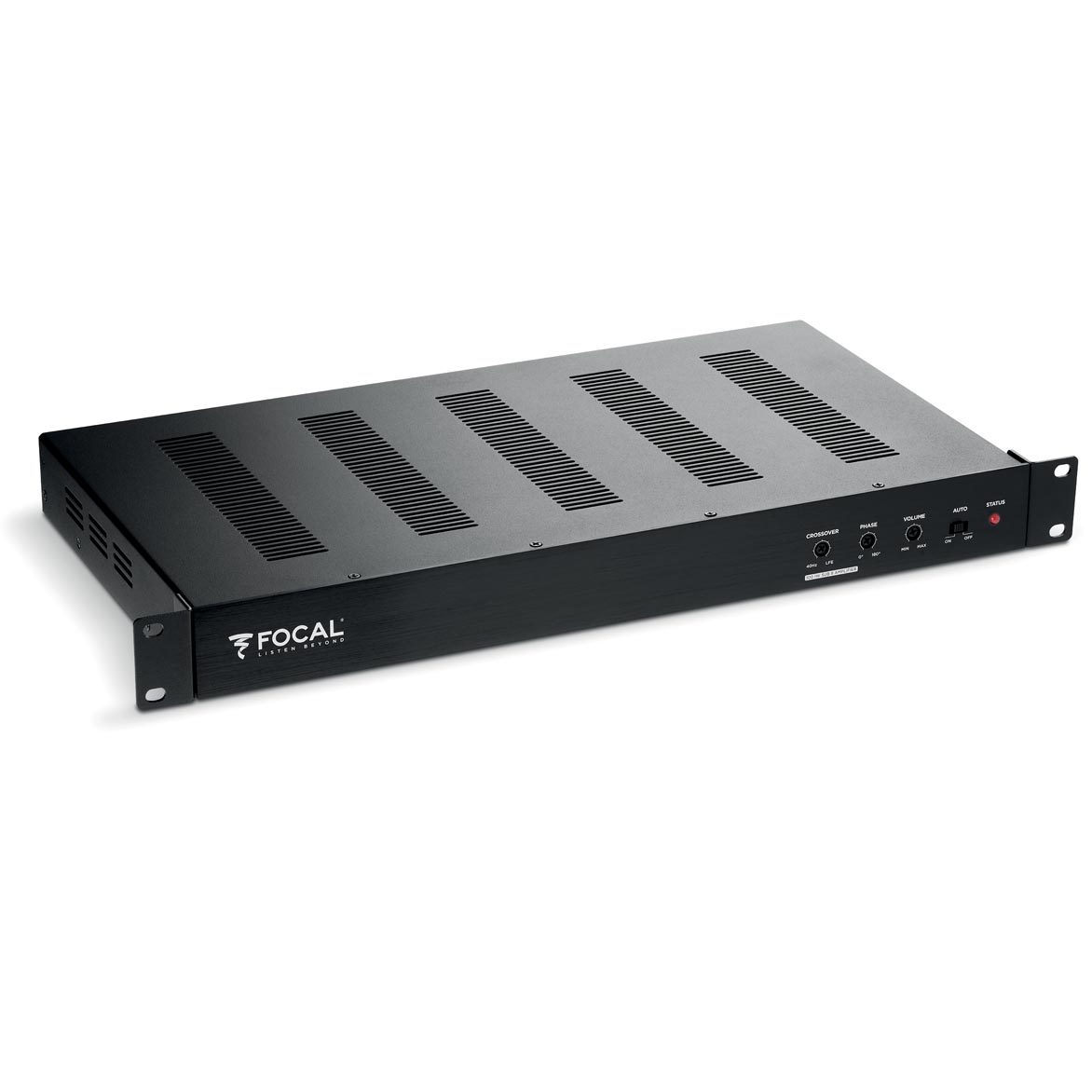

THE HIGH-POWER SUBWOOFER AMPLIFIER

Designed for integration, with rack-mountable design, 100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, while ensuring a high-level electronic protection. Specially tailored for the passive subwoofer 100 IWSUB8 , this amplifier is able to power up to two subwoofers connected in parallel.

This powerful combination is the ideal add-on to a 100 Series audio/video setup , delivering a unique ambiance and sound coverage in your living spaces.

KEY POINTS

  • Peak power: 200W (continuous power: 150W under 4Ώ).
  • Amplifier able to drive 2 x 100 IWSUB8 subwoofers connected in parallel.
  • High-level electronic protection (dynamic power control, thermal protection, short circuit, fuse, and over-current protection).
  • Flush potentiometers .
  • Dimensions (HxWxD): 1¾ x 16⅞ x 10⅛ " [44.5 x 429 x 257mm]
    - Height with stands: 2⅟ 16 "
    - Width with brackets: 19"
High-power
ABLE TO POWER UP TO TWO 100 IWSUB8 SUBWOOFERS

100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, while ensuring a high-level electronic protection. This amplifier is able to power up to two subwoofers 100 IWSUB8 connected in parallel.

TECHNICAL DATA

SPECIFICATIONS

SPECIFICATIONS OF COLUMNS

  • Speakers: 8" (21cm) Polyglass Woofer
  • Bandwidth (+/-3dB): 34 - 140 Hz
  • Cut-off frequency (-6dB): 30Hz
  • Nominal impedance: 8Ω
  • Recommended amp power: Max 200W / 4Ώ

PHYSICAL DATA

  • Product dimensions: 352 x 1300 x 98 mm
  • Net weight (pcs): 14.60 kg

    • AMPLIFIER SPECIFICATIONS

    • Power (continuous): Max 200W, 150W continuous (4Ώ)
    • Minimum load: 4Ώ
    • Voltage range: 100-120V~60Hz / 220-230V~50Hz
    • Power consumption: 150W
    • Stand-by power consumption: 0.5W
    • Bandwidth: 20 - 250 Hz
    • Subsonic filter: 18dB/oct.

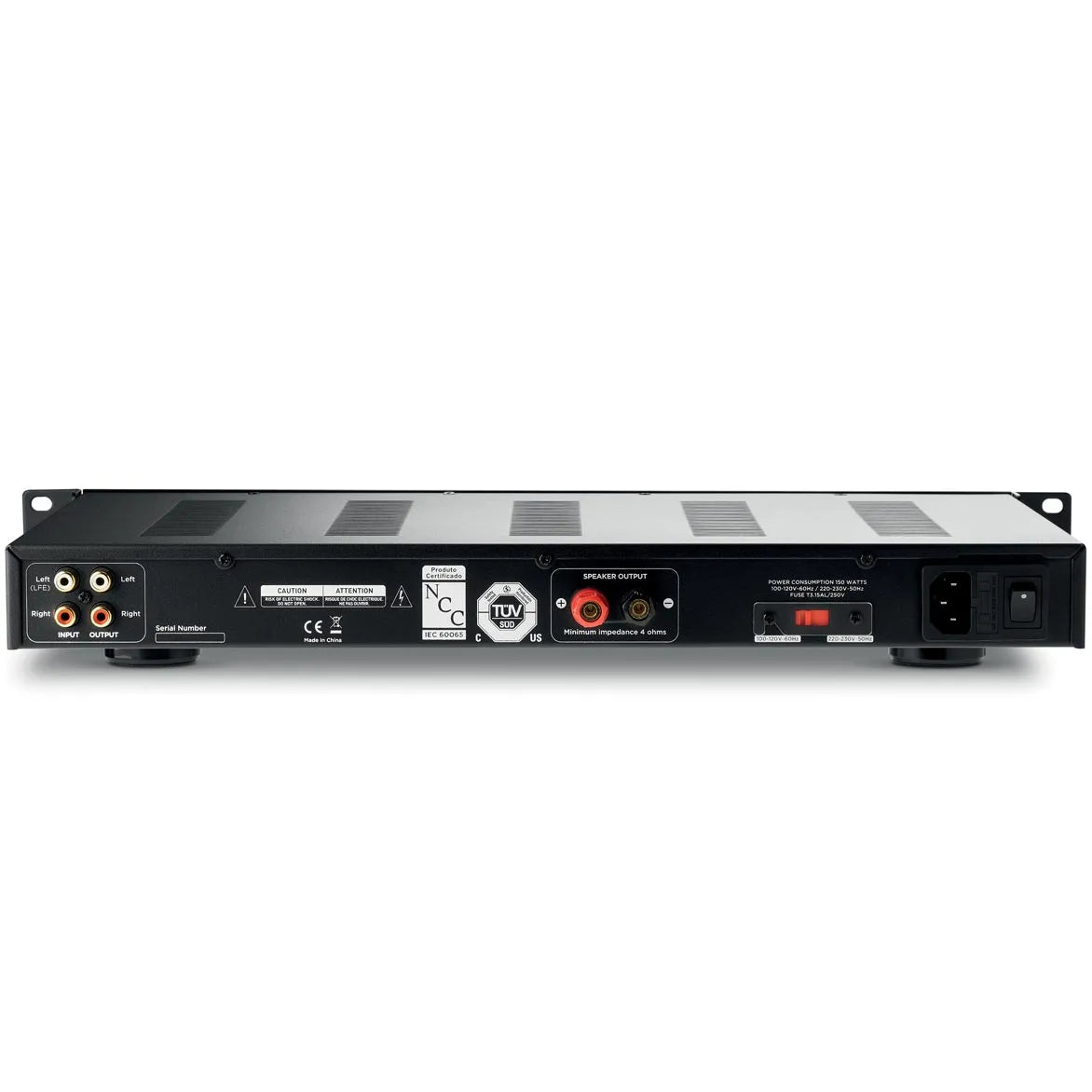

    • Inputs: LFE, Line in L/R
    • Outputs: Line out L/R and subwoofer power output on speaker terminal
    • Cord: Detachable IEC power cord

    • Protection: Dynamic power control, thermal protection, short circuit, fuse, and over-current protection


    DOCUMENTS

    INSTRUCTIONS

    Focal 100 IWSUB8 Speakers - User Manual (EN).

    Focal 100 IWSUB8 Amplifier - User Manual (EN).
