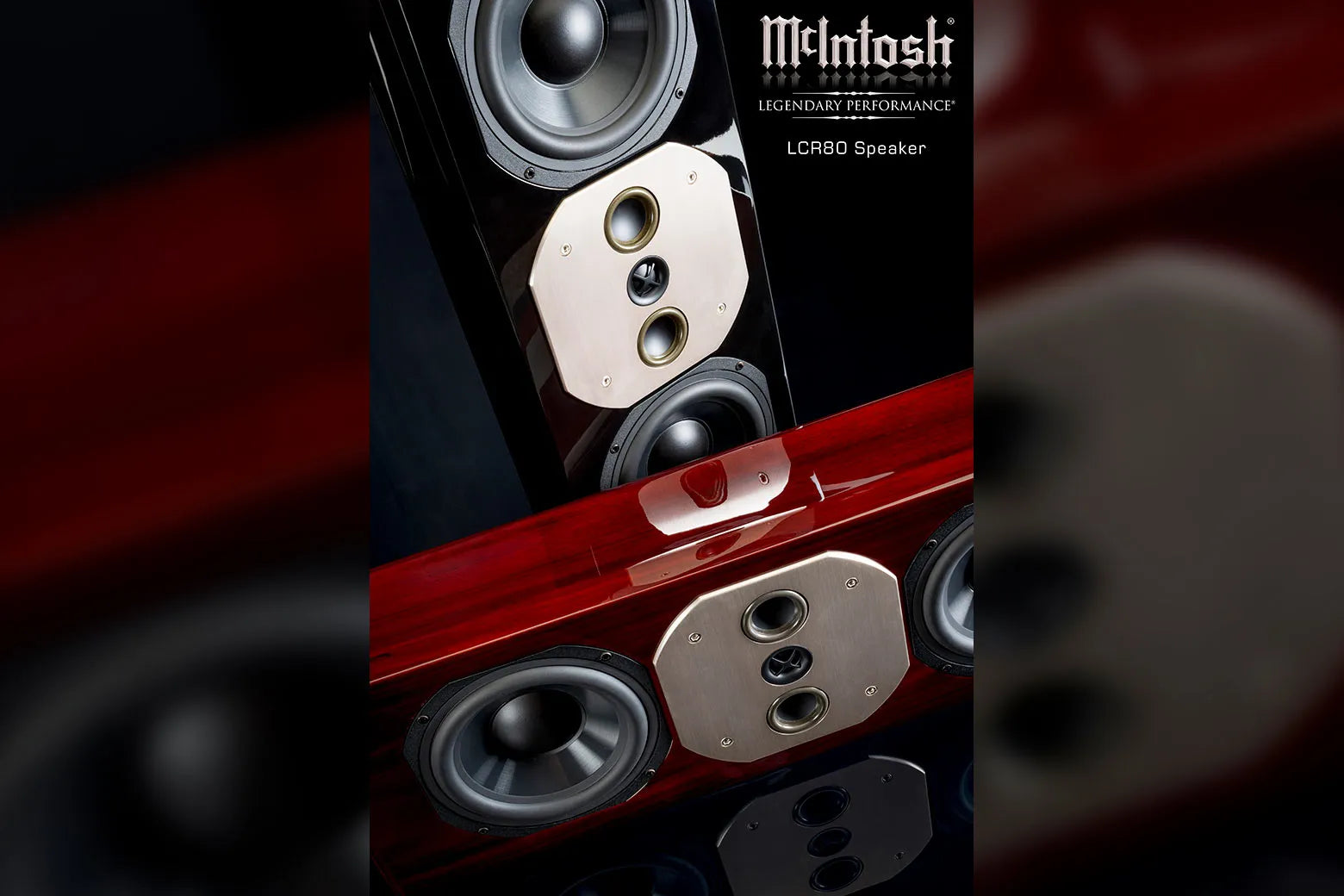

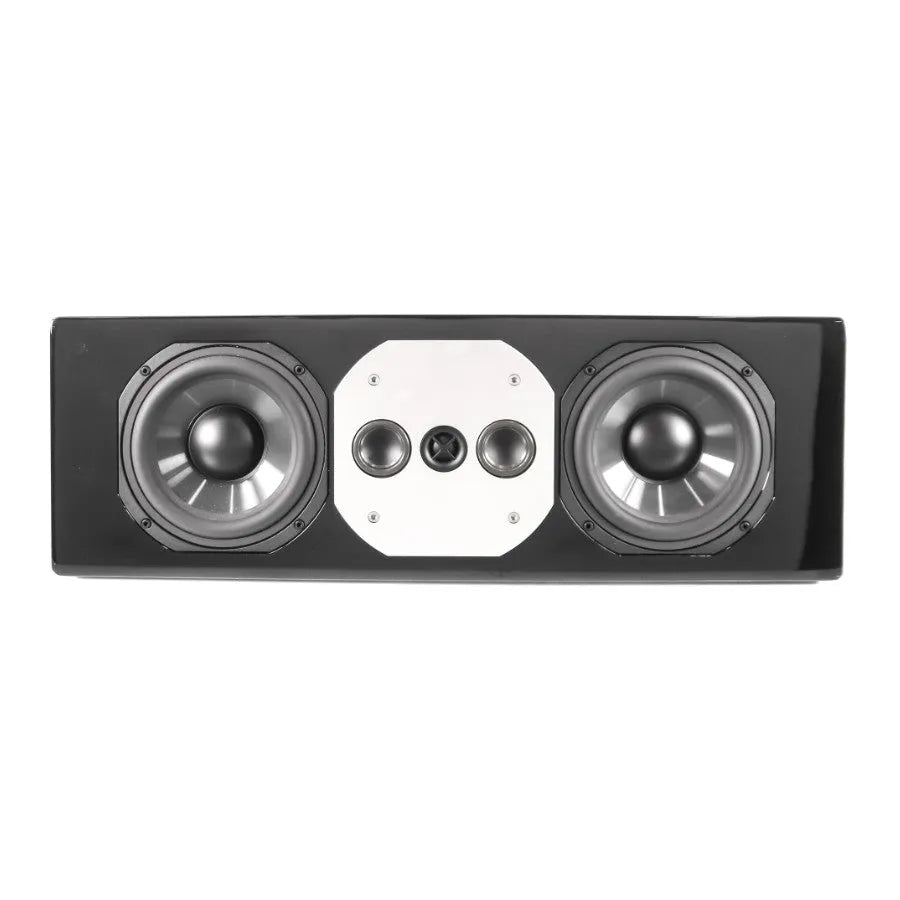

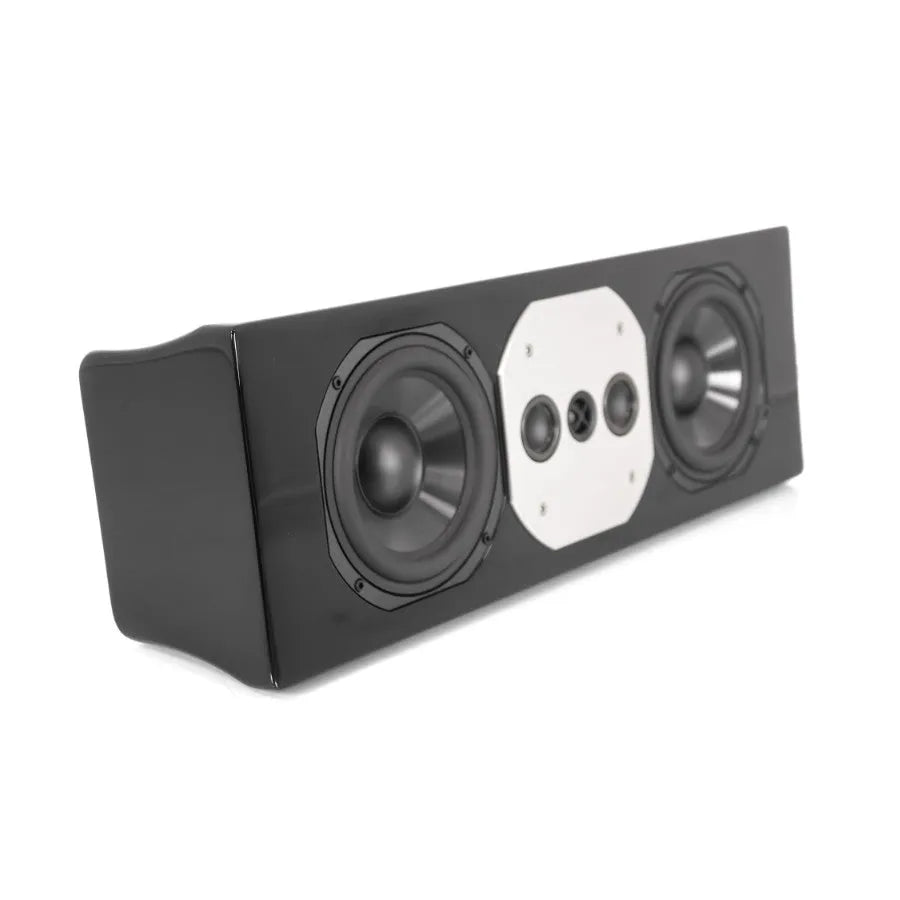

McIntosh LCR80, 3-way center channel speaker

INFORMACIJA

McIntosh LCR80 - 3-way universal LCR-type closed-back loudspeaker for use as left, center or right channel in home theater or stereo systems. Thanks to its flexible design, the loudspeaker can be mounted horizontally, vertically or placed on a shelf. McIntosh's patented LD/HP® (Low Distortion/High Performance) woofers, two midrange drivers and a dedicated tweeter deliver realistic, natural sound. Solid Cinch™ speaker connectors allow for easy but secure wiring, ensuring maximum sound performance. The LCR80 is recommended for use with amplifiers with a power of 75-300 W.

Nominal impedance: 8 ohms
Power: from 75 to 300 W
Frequency range: 80 Hz - 45 kHz
Sensitivity: 81 dB (2.8V/1m)

DESCRIPTION

The LCR80 speaker projects an extremely wide sound-stage for a greater listening experience from a variety of seating positions, delivering an amazingly full-sounding performance for a speaker of such compact dimensions.

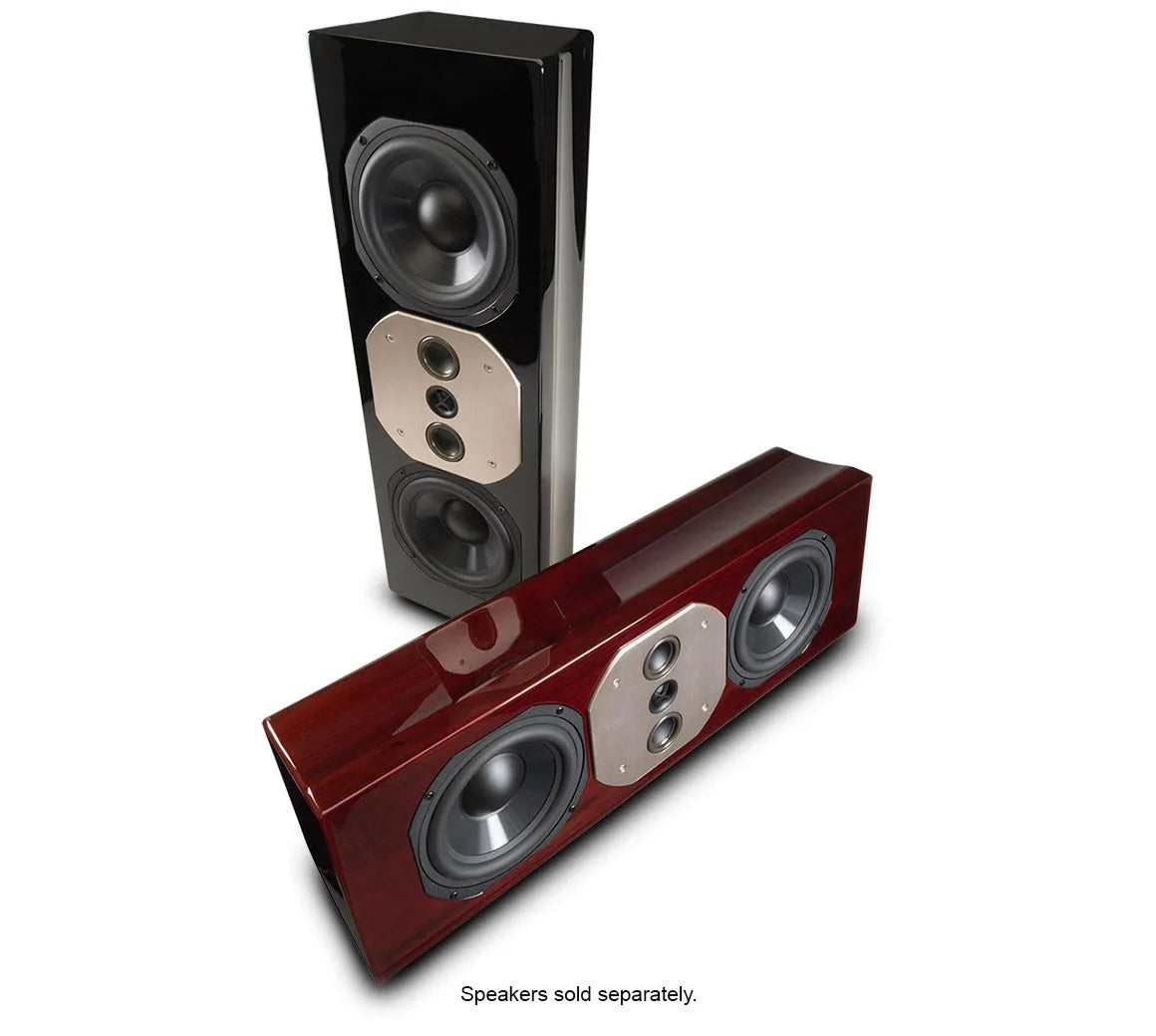

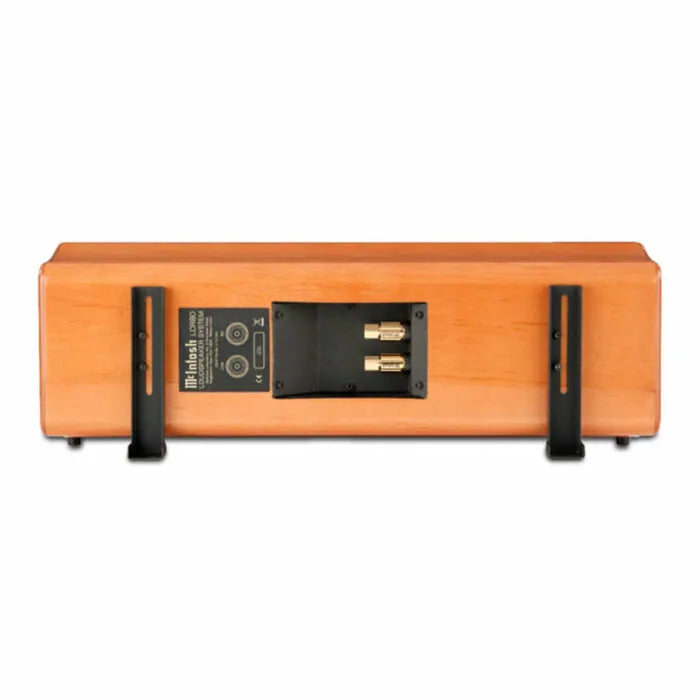

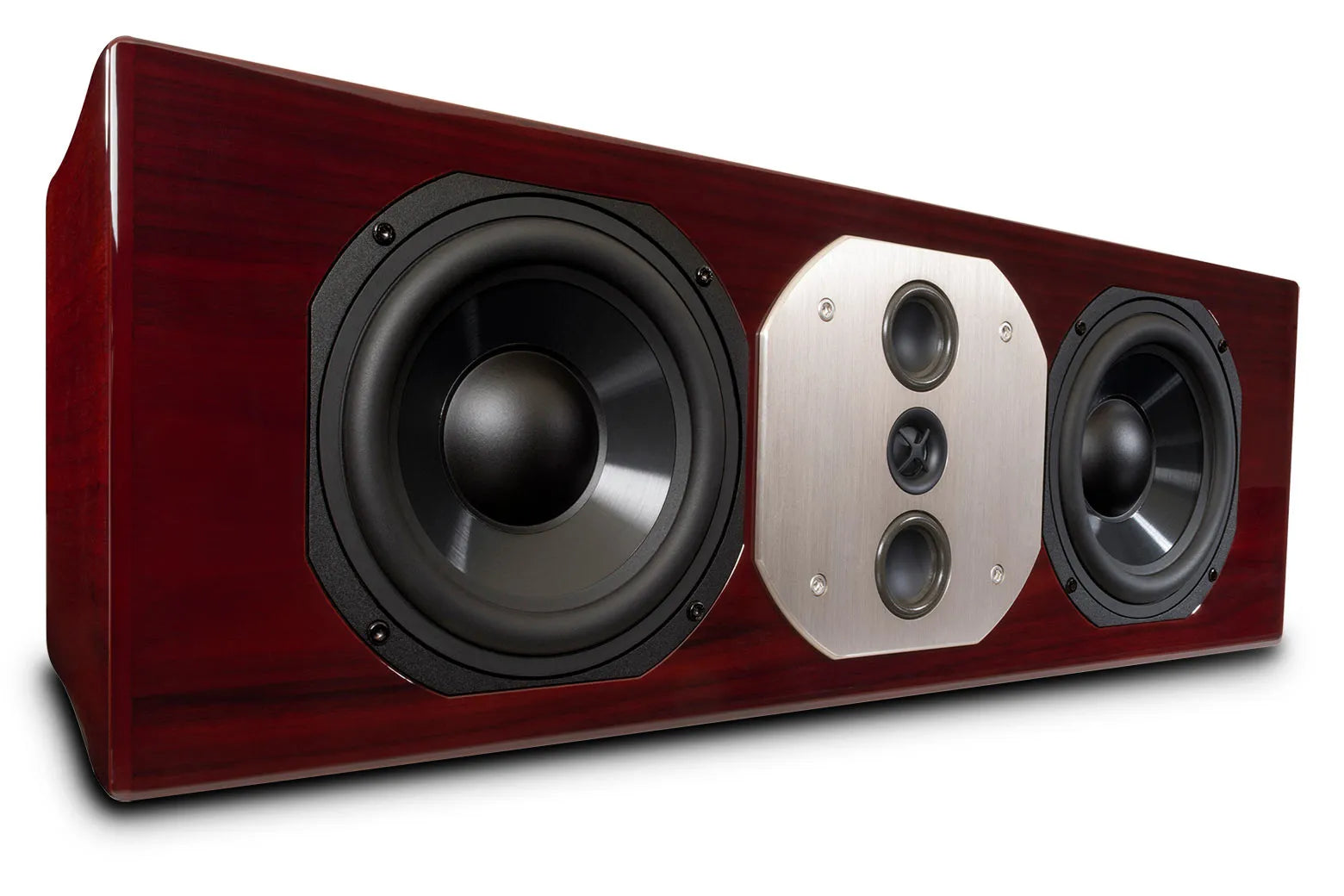

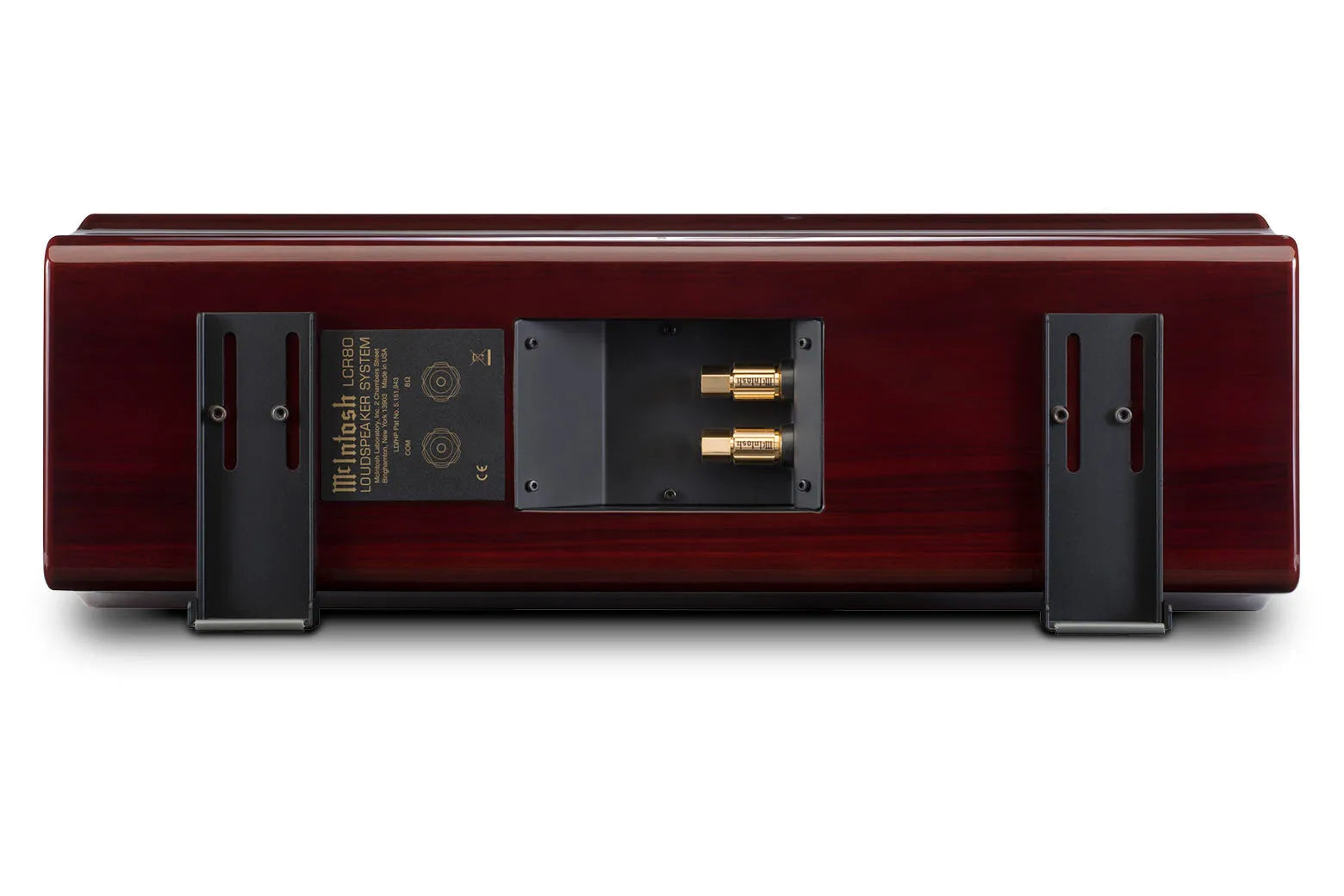

With its flexible design, it can be placed in horizontal, vertical or shelf-mounted orientations. Complete mounting hardware is supplied for all positions. The machined alloy, high-frequency array is rotatable to optimize the sound for either vertical or horizontal placement without sonic compromise. McIntosh patented Low Distortion/High Performance (LD/HP ^® ) woofers are combined with two midranges and a dedicated tweeter to deliver lifelike sound. Voiced to match the XR50 and XR100 speakers, the LCR80 may be used for the left, center or right channels in home theater systems or in special stereo applications.

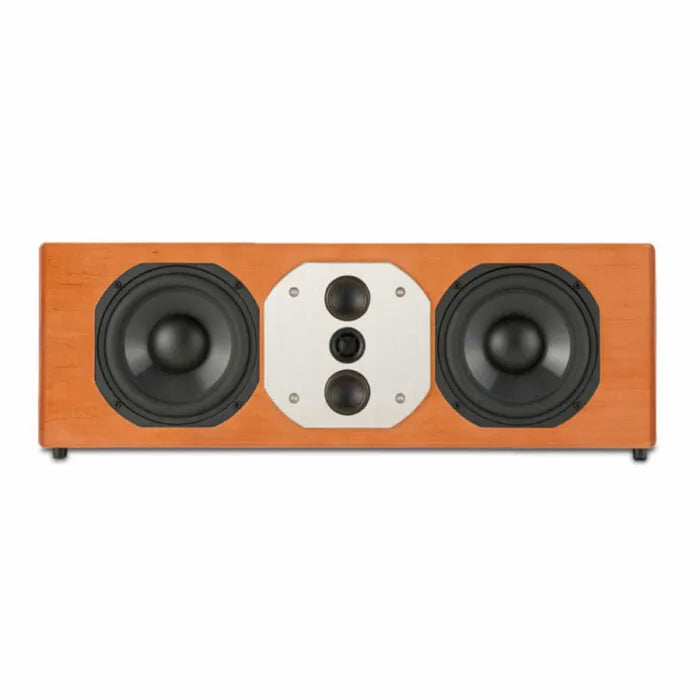

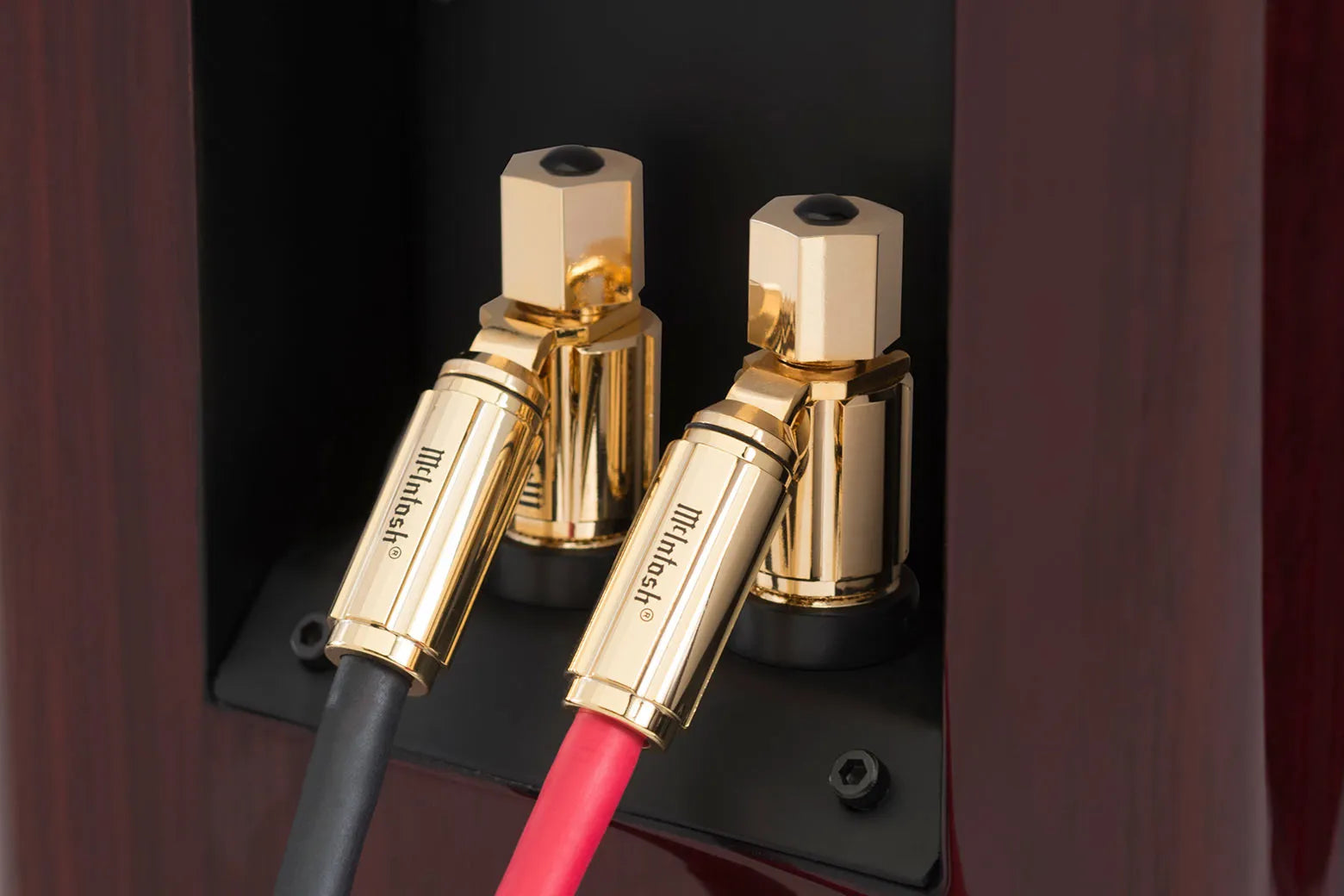

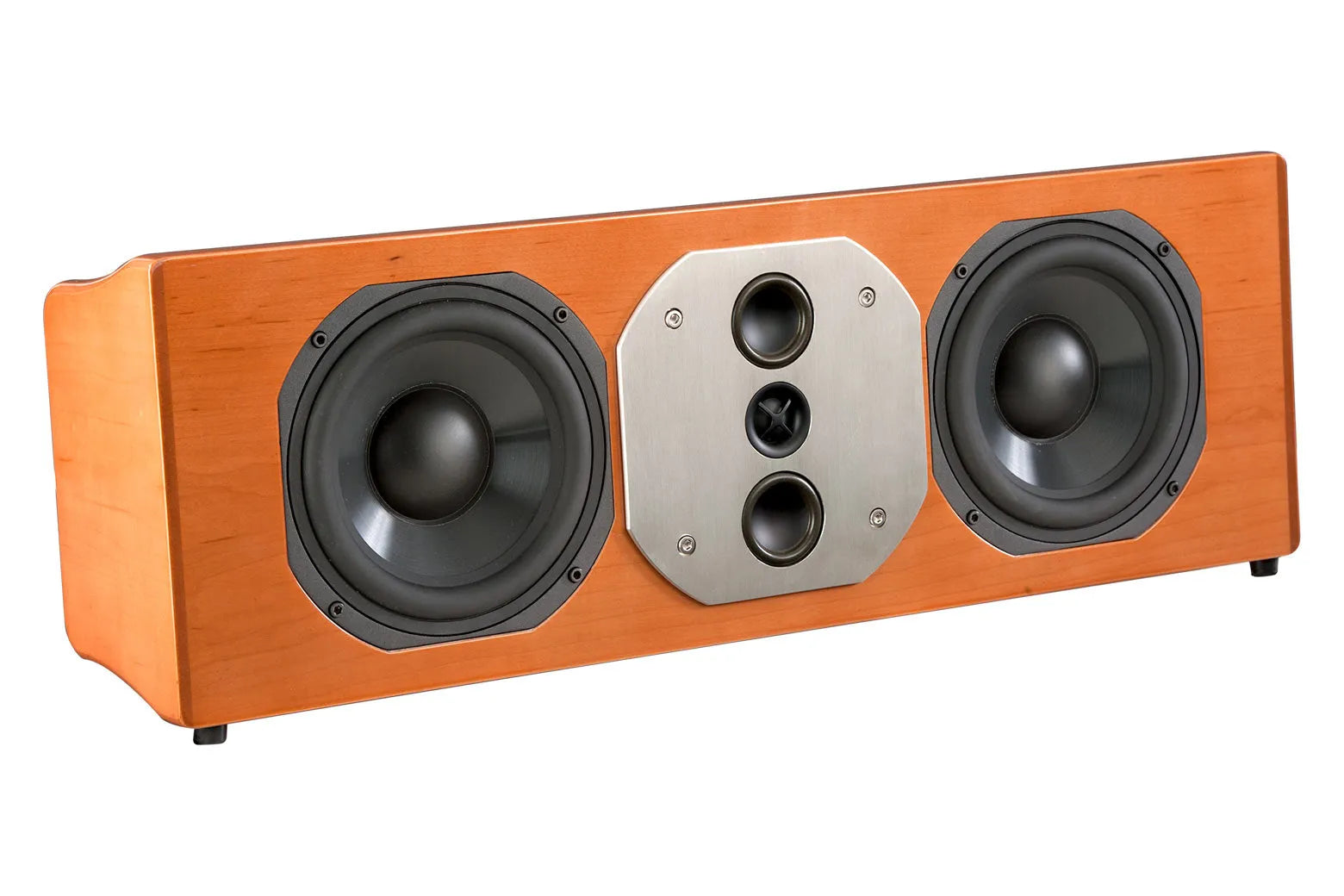

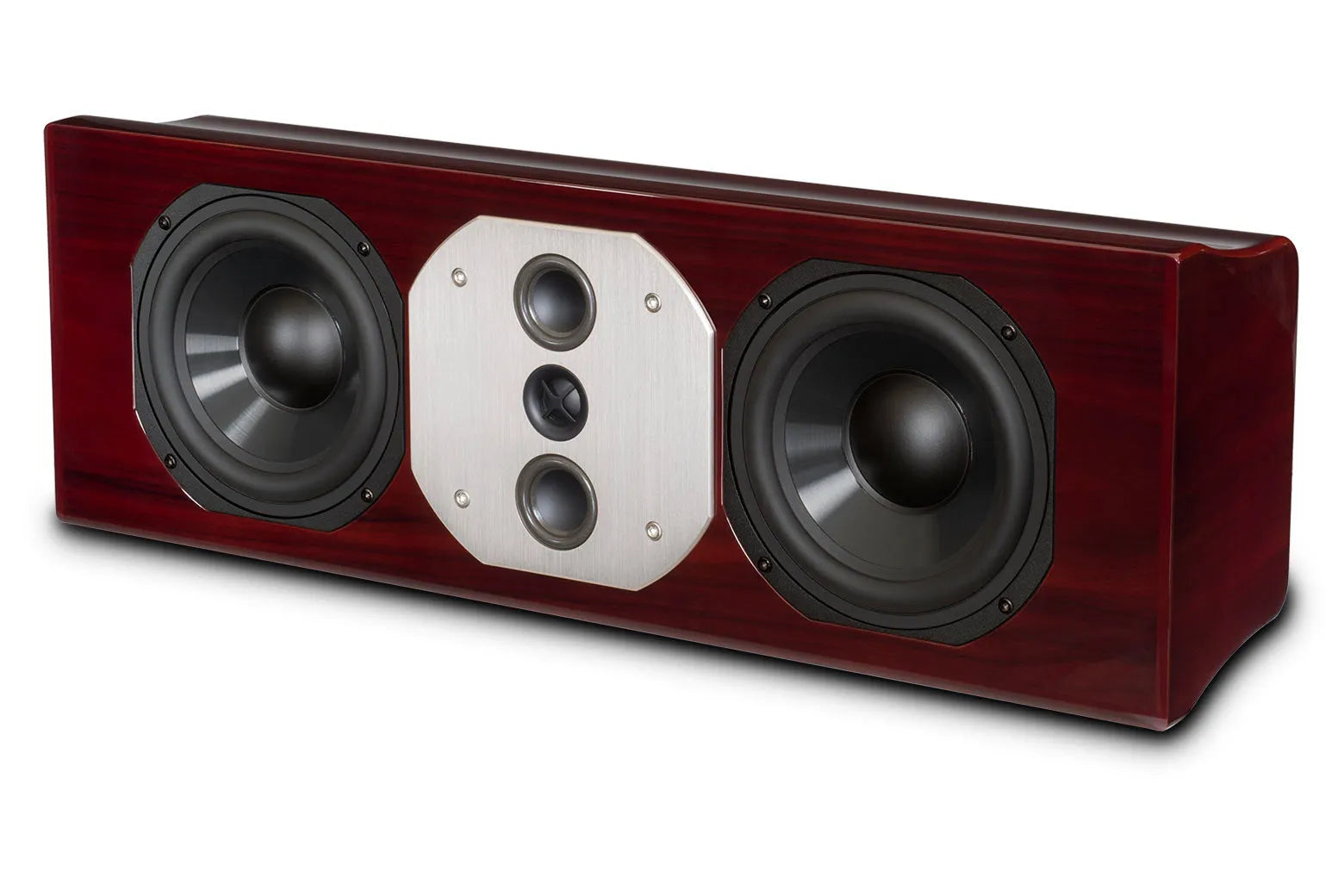

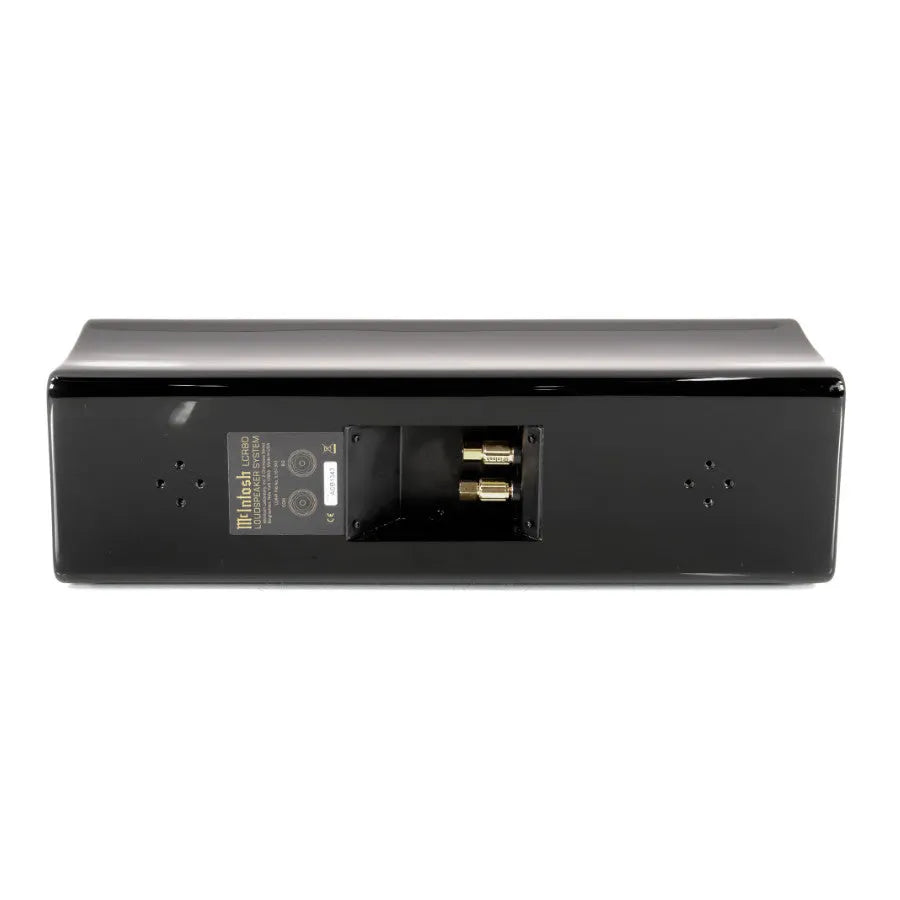

Patented McIntosh Solid Cinch™ speaker binding posts allow for a simple yet secure connection to your speaker cables , helping to ensure the best possible audio performance. Fine gloss wood finishes are offered in Black, Pear Maple and Red Walnut. Amplifiers from 75 to 300 Watts are appropriate power for LCR80.

TECHNICAL DATA

Electronic Specifications
Impedance Nominal
8 Ohms
Power Rating
75 to 300 Watts
Frequency Response
80Hz to 45kHz
Sound Pressure Level, 2.8V/1m
81dB
Crossover
500Hz, 8kHz
Driver Specifications
Number of Woofers
2
Woofer Size
6"
Woofer Type
Cast Frame, LD/HP®, Poly Cone
Number of Midranges
2
Midrange Size
2"
Midrange Type
Inverted Titanium Dome
Number of Tweeters
1
Tweeter Size
3/4"
Tweeter Type
Titanium Dome
General Specifications
System Type
Sealed 3-Way Flexible Placement
Grill

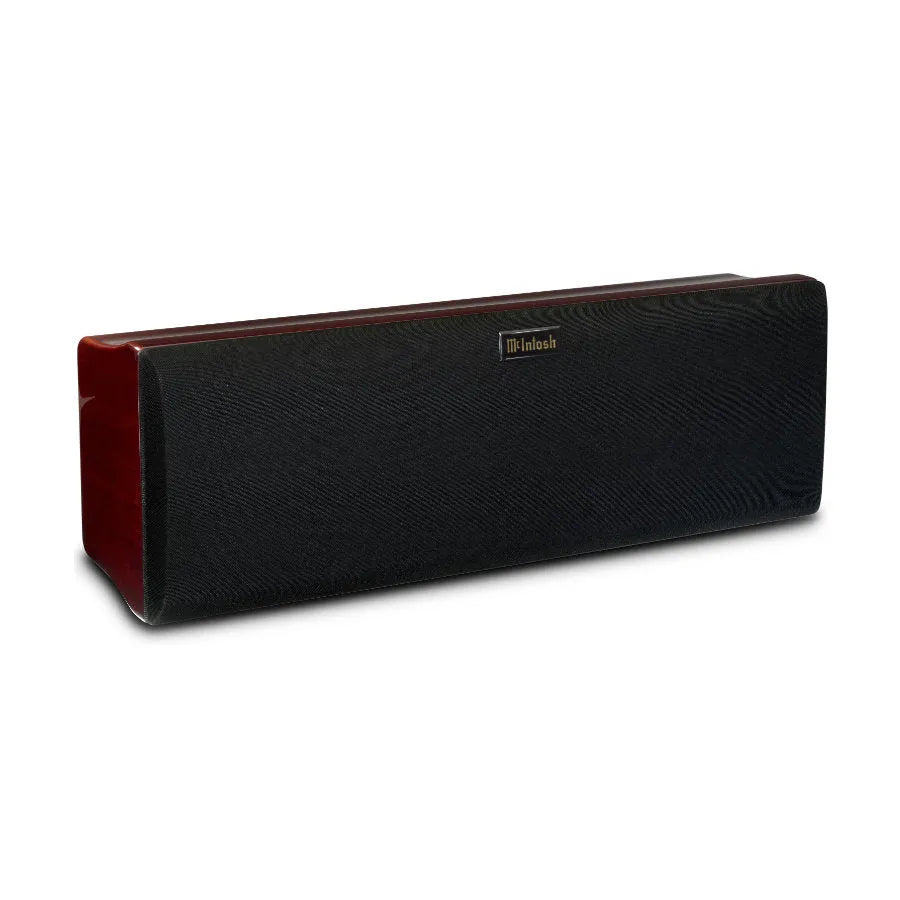

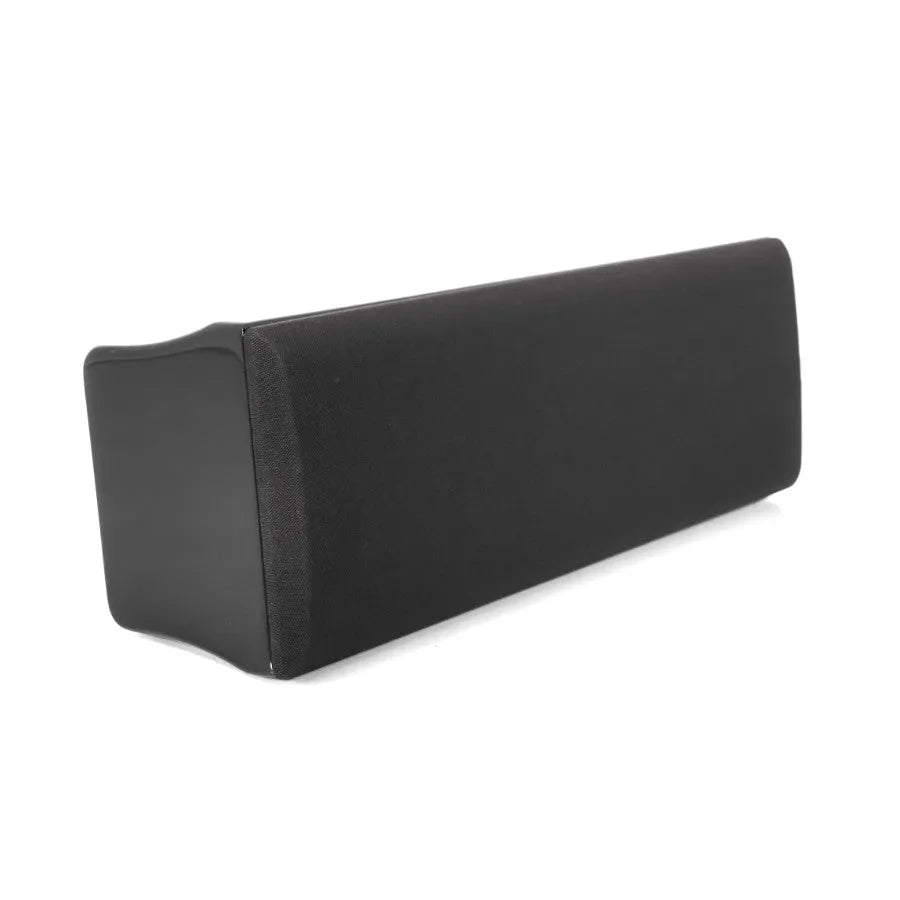

Black knit cloth, magnetically attached
Available Finishes
Red Walnut, Black, Pear Maple
Weights & Dimensions
Unit Dimensions (W x H x D)
24" (61cm) x 8" (20.3cm) x 8-3/8" (21.3cm) (including angled wall mounting brackets)
Unit Weight
24 lbs (10.9 kg)
Shipping Weight
30 lbs (13.6 kg)

DOCUMENTS

User manual (EN)
