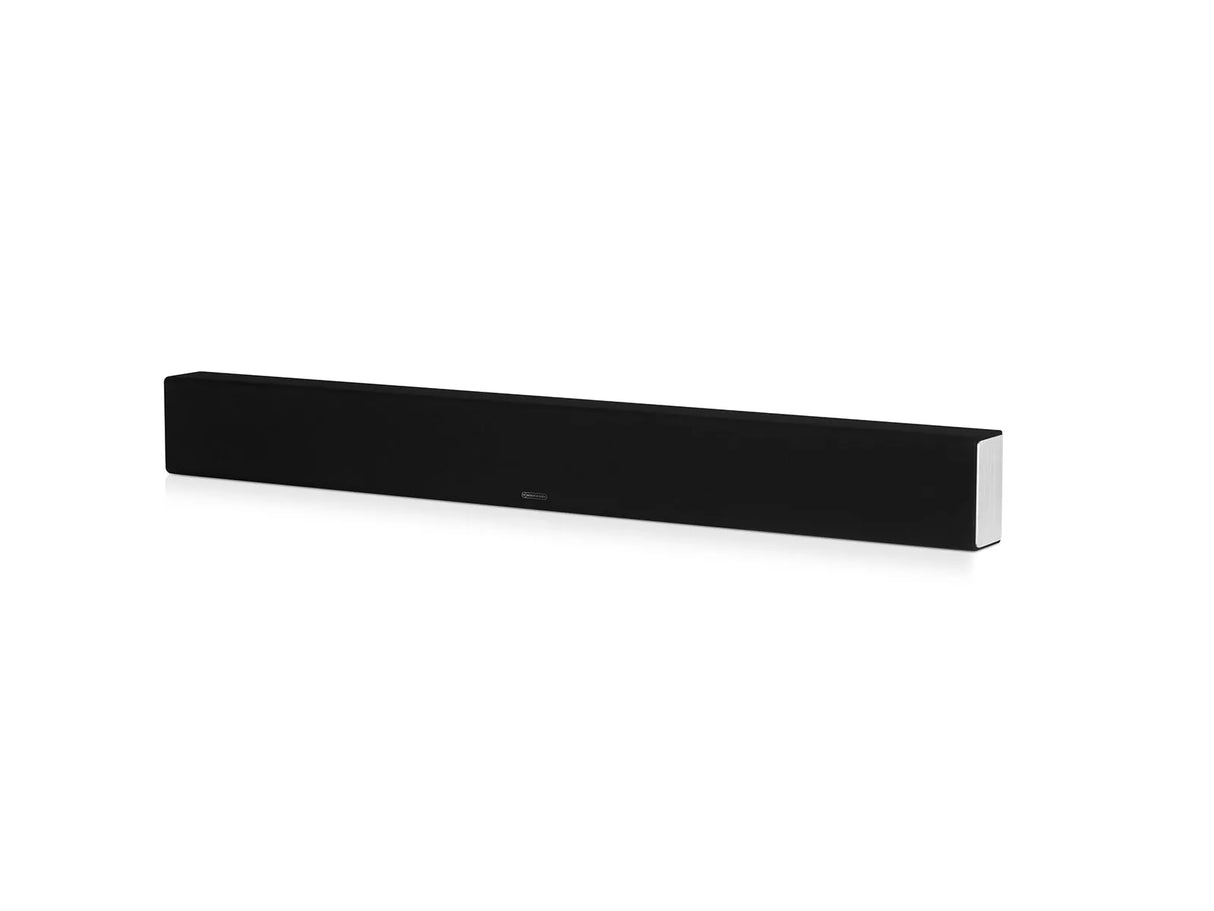

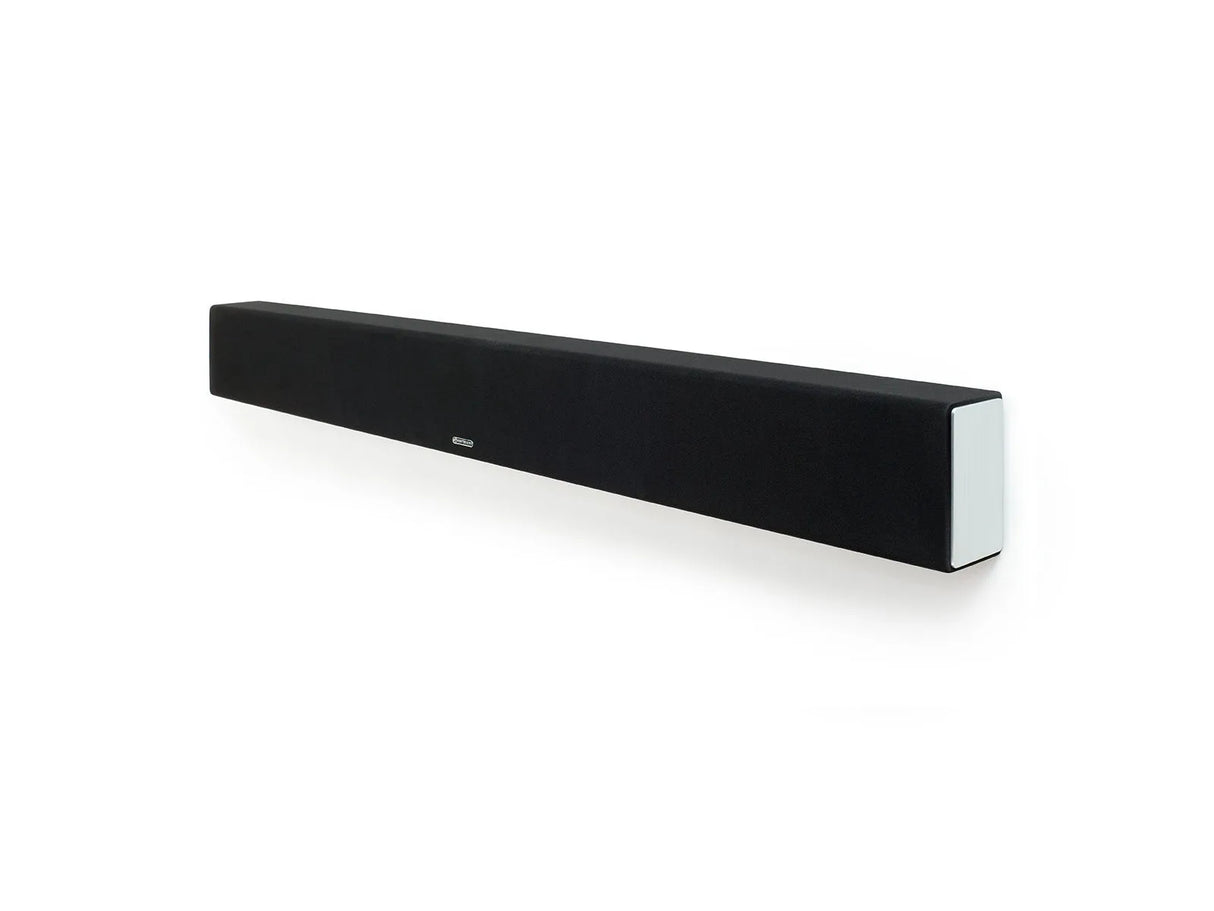

Monitor Audio SB-3, passive soundbar
Passive, compact SB-3 soundbar.
Monitor Audio SB-3, passive soundbar - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
You do not collect sound columns ?
You do not collect sound columns ?
We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.
Delivery home from € 4.99
Delivery home from € 4.99
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up in the store for € 0
Pick up in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. This soundbar works best with TVs larger than 60 inches.- Power: 100W.
- Frequency band: 8 0 Hz - 30 kHz .
- Sensitivity: Left/Right speakers: 84 dB.
- Sensitivity: Center speaker: 87 dB.
- Resistance: 8 ohms.
DESCRIPTION
Twin C-CAM bass drivers, twin ABR s (Auxiliary Bass Radiators) and a single C-CAM tweeter in the center section to provide the SB-3 with higher acoustic output and power handling for critical center channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.
In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Technology
- individual C-CAM (Ceramic-Coated Aluminum/Magnesium) bass/mid driver for left and right channels, twin drivers for the center channel
- C-CAM gold dome tweeters per channel
- Individual Auxiliary Bass Reflex ( ABR ) for left and right channels, twin ABRs for the center channel
- Three separate driver arrays for left, center, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
TECHNICAL DATA
SPECIFICATIONS
Frequency Response (-3 dB)
All Channels: 80 Hz - 30 kHz
Sensitivity (1W@1M)
Left and Right Channels: 84 dB
Center Channel: 87 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
Left and Right Channels: 40 W
Center Channel: 80W
System Power Handling (RMS)
All Channels: 100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements
All Channels: 30 — 100 W
Crossover Frequency
All Channels: 80 — 120 Hz
Maximum SPL
104 (108.8 all channels driven) dBa
Bass Alignment
Left and Right Channels: 2 x Auxiliary Bass Reflex ( ABR ) Loading
Center Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Center Channel: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1307 x 93 mm (5 13/16 x 51 7/16 x 3 11/16 ")
External Dimensions (Including Bracket (H x W x D))
145 x 1307 x 100mm (5 11/16 x 51 7/16 x 3 15/16 ")
Bracket
BSB
Weight
9.1 kg (20 lb)
Sold As
Single Unit
Product Video
DOCUMENTS
INSTRUCTIONS
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Passive, compact SB-3 soundbar. This soundbar works best with TVs larger than 60 inches.
- Power: 100W.
- Frequency band: 8 0 Hz - 30 kHz .
- Sensitivity: Left/Right speakers: 84 dB.
- Sensitivity: Center speaker: 87 dB.
- Resistance: 8 ohms.
Twin C-CAM bass drivers, twin ABR s (Auxiliary Bass Radiators) and a single C-CAM tweeter in the center section to provide the SB-3 with higher acoustic output and power handling for critical center channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.
In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Technology
- individual C-CAM (Ceramic-Coated Aluminum/Magnesium) bass/mid driver for left and right channels, twin drivers for the center channel
- C-CAM gold dome tweeters per channel
- Individual Auxiliary Bass Reflex ( ABR ) for left and right channels, twin ABRs for the center channel
- Three separate driver arrays for left, center, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
SPECIFICATIONS
Frequency Response (-3 dB)
All Channels: 80 Hz - 30 kHz
Sensitivity (1W@1M)
Left and Right Channels: 84 dB
Center Channel: 87 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
Left and Right Channels: 40 W
Center Channel: 80W
System Power Handling (RMS)
All Channels: 100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements
All Channels: 30 — 100 W
Crossover Frequency
All Channels: 80 — 120 Hz
Maximum SPL
104 (108.8 all channels driven) dBa
Bass Alignment
Left and Right Channels: 2 x Auxiliary Bass Reflex ( ABR ) Loading
Center Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Center Channel: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1307 x 93 mm (5 13/16 x 51 7/16 x 3 11/16 ")
External Dimensions (Including Bracket (H x W x D))
145 x 1307 x 100mm (5 11/16 x 51 7/16 x 3 15/16 ")
Bracket
BSB
Weight
9.1 kg (20 lb)
Sold As
Single Unit
