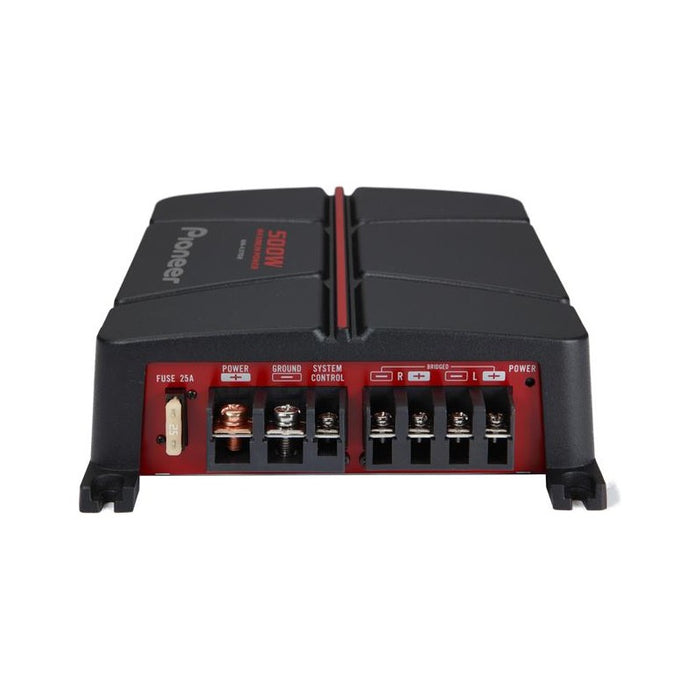

2 kanalų AB klasės garso stiprintuvas Pioneer GM-A3702, 500W

2 kanalų AB klasės garso stiprintuvas Pioneer GM-A3702, 500W

Pioneer GM-A3702 2 kanalų automobilinis stiprintuvas 500W. Sukurtas pagal vidinės erdvės technologijas. 500W galios Labai žemas iškraipymas.

Technology of the GM Series

From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.

Growing Power, Shrinking Size

New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient size for flexibility of installation in various car cabins.

Automatic Signal Sensing and Turn-On

Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.

When connected to an OEM receiver or a receiver without RCA output using speaker wire, the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.

GENERAL

• Number of Channels: 2
• Amplifer Class: Class AB
• Maximum Power Output: 500W
• Maximum Power Output at 2 Ω: 250W x 2
• Maximum Power Output at 4 Ω: 170W x 2
• Maximum Power Output - Bridged at 4 Ω: 500W
• Nominal Power (RMS) Output at 2 Ω: 95W x 2
• Nominal Power (RMS) Output at 4 Ω: 60W x 2
• Nominal Power (RMS) Output - Bridged at 4 Ω: 190W x 1
• Frequency Response: 10Hz ~ 70kHz
• Total Harmonic Distortion (THD): <0.05 %
• Signal-to-Noise (SN) Ratio: >95 dB
• Fuse Rating: 25A

SPECIFICATIONS

• RCA Inputs: 2-Ch.
• Speaker Level Inputs: Yes
• Crossover Type: LPF
• Low-Pass Crossover Frequency: 80Hz
• Low Pass Slope (dB/octave): -12db/oct
• Automatic Signal Sensing and Turn-On: Yes
• Hi-Volt Input Level Control: 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
• Terminal Type: Screw-Type Terminal
• Load Impedance Allowance (W): 2 to 4
• Bridgeable: Yes
• Protection Control System: Yes
• Dimensions (WxHxD)(inches): 246(W) X 60(H) X 180(D) mm
• Warranty: 1 Year
