Alpine HDA-F60, galios stiprintuvas automobiliams

€850.00 EUR

Alpine HDA-F60, galios stiprintuvas automobiliams - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

"Alpine" pristato visiškai naują "Alpine Status" garso sistemą: "Alpine" sukūrė "Alpine Status", naudodama tas pačias inžinerijos ir dizaino koncepcijas, kurios buvo panaudotos trečiosios kartos itin didelės raiškos "AlpineF#1Status" sistemoje, kad pasiektų didelės raiškos garsą už prieinamesnę kainą. Be to, "Alpine Status" sistema yra itin lanksti: visus komponentus galima įsigyti ir naudoti atskirai.

  • Galia: 4 x 150W prie 2 omų.
  • Dažnių juosta: 10Hz - 60kHz.
  • D- klasės, 4 kanalų stiprintuvas.
  • Gali dirbti 4/3/2 kanalų rėžimu.





Hi-Res Audio Made Accessible

Hi-Res Audio Made Accessible

The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

Class-D 4-Channel Amplifier

Excellent Sound Quality

Class-D 4-Channel Amplifier

The HDA-F60 4-Channel Power Amplifier features a Class-D amplification circuit with Sierra-H technology (see below for more details on Sierra-H). It features an RMS power output of 4x 100 Watts @ 4Ohm, 4x 150 Watts @ 2Ohm or 2x 300W @ 4Ohm bridged and a frequency response of 10Hz to 60kHz.

Excellent Sound Quality

Alpine Status amplifiers feature many audiophile technologies and selected high-end components to reproduce excellent sound quality. A copper shield keeps electromagnetic interferences away from the black PCB board, to ensure best audio reproduction. The Signal to noise ratio is >87dB (1W into 4 Ohm).

Alpine Status Full System

Alpine Status Full System

Alpine Status features many components that are optimized in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.

Sierra-H Circuit

One-Sided Terminal

Sierra-H Circuit

After the original analog sound wave is converted to a digital signal and amplified, the Sierra-H circuit compares and corrects the amplified signal with the original waveform twice, to reproduce a highly accurate signal without any gaps.

One-Sided Terminal

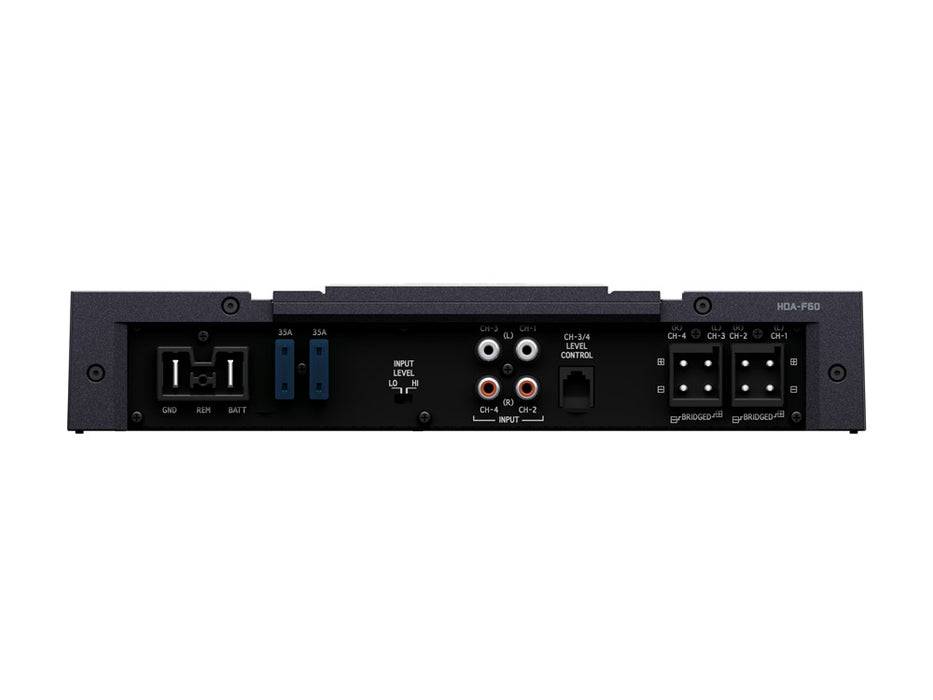

All connections (power supply, speaker outputs, RCA inputs / outputs and the remote bass knob connector), as well as all fuses are located on the down-side of the amplifier. This makes it much easier to achieve a clean installation in your vehicle. You can connect the RUX-KNOB2 for subwoofer level control (in bridged mode channel 3 + 4).

Thermal Protection

Power and Speaker Connectors

Thermal Protection

Along with Alpine’s new intelligent amplifier platform, the new Alpine Status amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

Power and Speaker Connectors

All Alpine Status amplifiers feature power supply and speaker terminal connectors for easier installation and handling. The very compact connector design features screw terminals and allows clean and simple installation with lossless connectivity.

Studio Recording Spec

Studio Recording Spec

Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.



SPECIFIKACIJOS

Features

General

  • Channel Design: 4/3/2 Channel
  • Class-D amplification circuit
  • Power supply and speaker channel connectors
  • Copper-plated chassis
  • Top control panel (below top cover)
  • Black circuit board
  • Non-Shutdown design
  • Thermal Protection
  • One-sided terminal
  • Blue power LED
  • Compatible with RUX-KNOB2 bass controller

Specifications

RMS Power Ratings

  • Per Channel into 2 Ohms, 14.4V: 4 x 150W
  • Per Channel into 4 Ohms, 14.4V: 4 x 100W
  • Bridged into 4 Ohms, 14.4V: 2 x 300W

Sound Tuning

  • Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )

General

  • Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
  • Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 60kHz
  • THD+N (@ 10W into 4 Ohms): <0.02%
  • Damping Factor (@ 10 W into 4 Ohms at 100 Hz): >500
  • Weight: 3.8kg

Dimensions:

  • Width 291 mm
  • Height 53.5 mm
  • Depth 189.5 mm



INSTRUKCIJOS

User Manual (EN).
