Alpine HDZ-65CS, automobilinių komponentinių garsiakalbių sistema

750.00 €

Alpine HDZ-65CS, automobilinių komponentinių garsiakalbių sistema yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

"Alpine" pristato visiškai naują "Alpine Status" garso sistemą: "Alpine" sukūrė "Alpine Status", naudodama tas pačias inžinerijos ir dizaino koncepcijas, kurios buvo panaudotos trečiosios kartos itin didelės raiškos "AlpineF#1Status" sistemoje, kad pasiektų didelės raiškos garsą už prieinamesnę kainą. Be to, "Alpine Status" sistema yra itin lanksti: visus komponentus galima įsigyti ir naudoti atskirai.

  • Rekomend. stiprintuvo galia: 100-300W.
  • Dažnių juosta: 55Hz-40Hz.
  • Jautrumas: (1W/1m): 88dB.
  • Varža: 4Ω.



Hi-Res Audio Made Accessible

Hi-Res Audio Made Accessible

The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

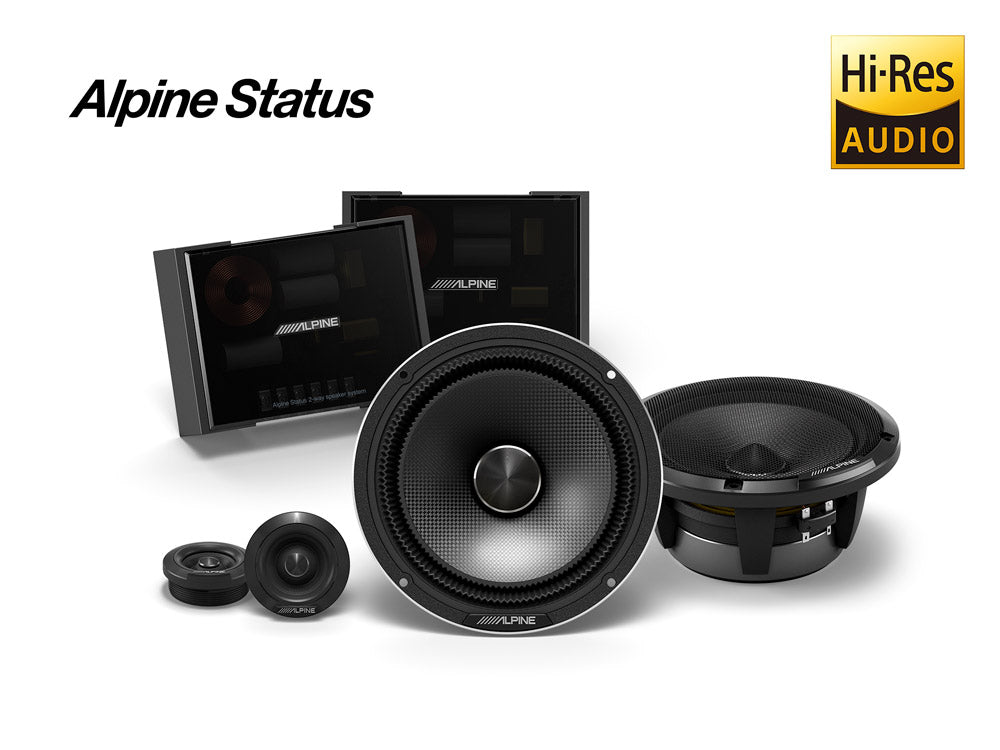

Slim-Fit 2-Way Speaker System

Carbon Fiber Cones

Slim-Fit 2-Way Speaker System

Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 2-way slim fit system consists of 170mm door woofers and 40mm Slim-Fit tweeters. They also include high-end X-over networks in the set.

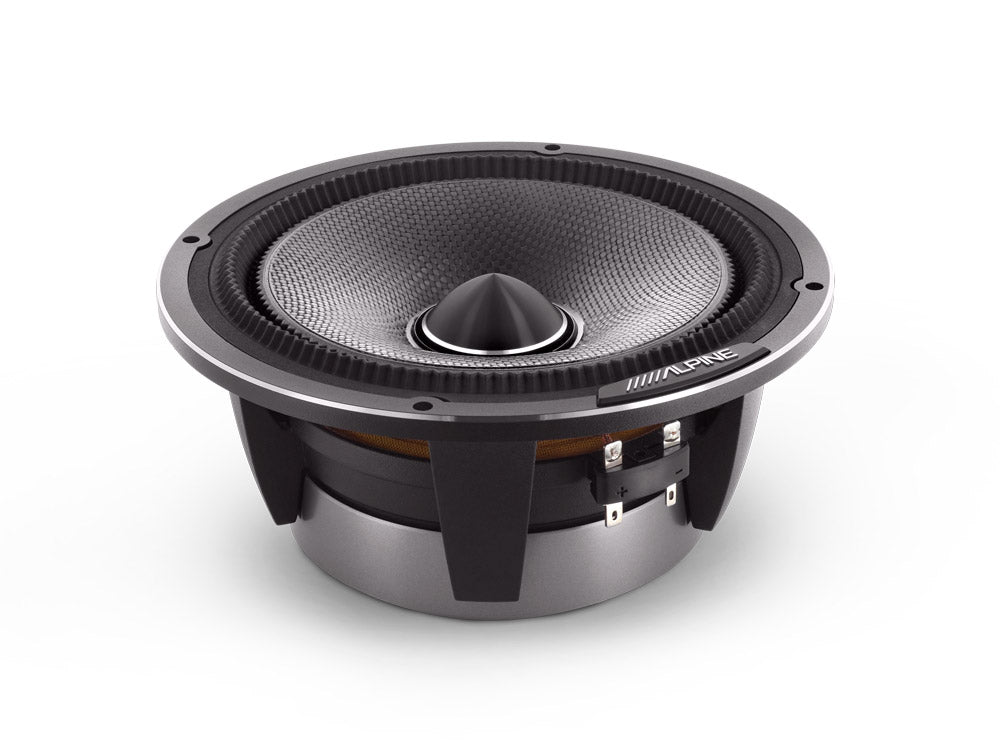

Carbon Fiber Cones

All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.

Double-Gathered Edge

Slim-Fit Tweeter

Double-Gathered Edge

Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.

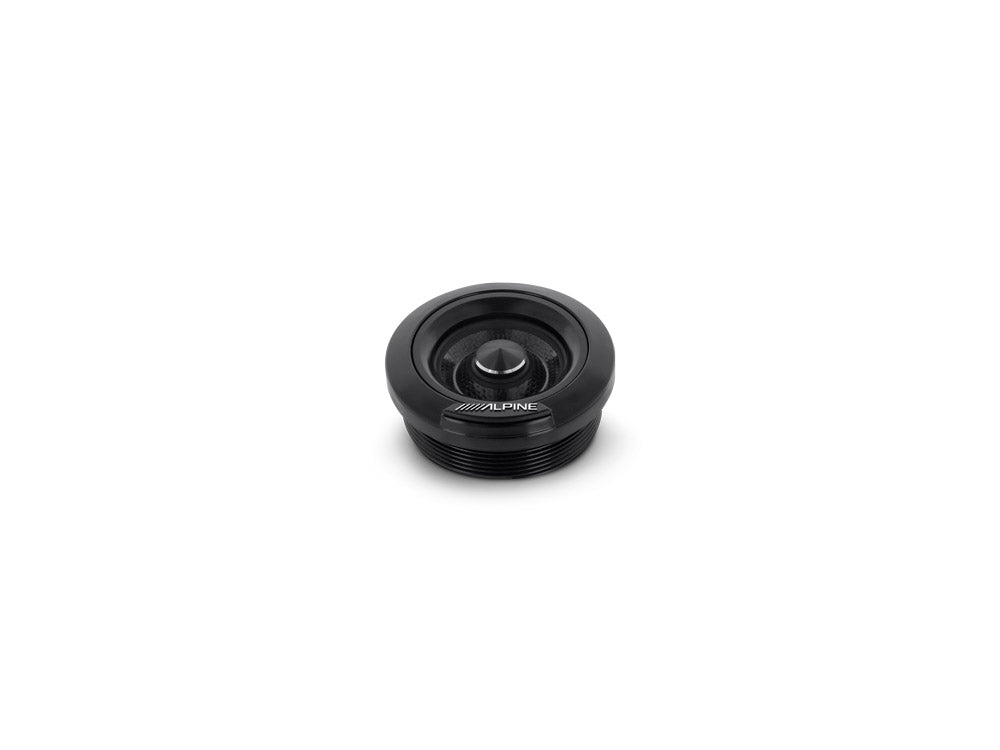

Slim-Fit Tweeter

The included 40mm Hi-Res Audio slim-fit tweeters sound simply amazing and play up to 40kHz. They are significantly smaller than the HDZ-653 tweeters, with the focus on easy installability. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.

Alpine Status Full System

Alpine Status Full System

Alpine Status features many components that are optimized in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.

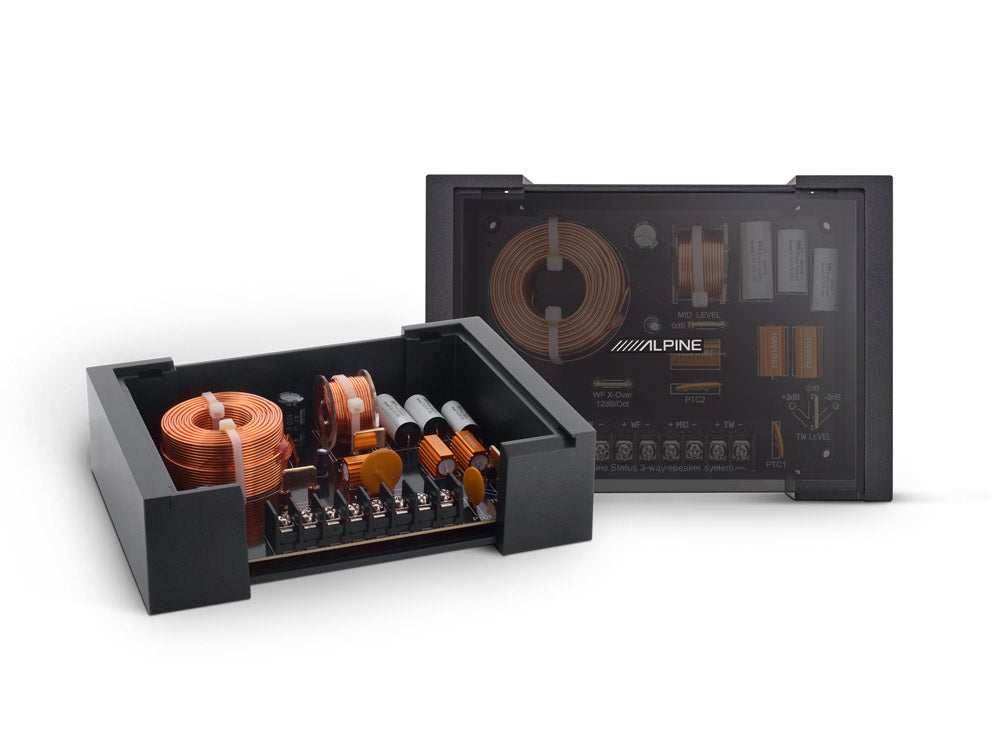

Audiophile Speaker X-Overs

Audiophile Tweeter Version

Audiophile Speaker X-Overs

The included 2-way x-over networks feature hand-selected, high-end components and offer many adjustment possibilities: you can adjust the tweeter level from +3dB, 0dB or -3dB and you can set the woofer X-Over to either 12dB/oct or 6dB/oct. The smoked acrylic cover bearing the Alpine logo can be slid-out to the front to gain access to the screw-terminals and jumpers.

Audiophile Tweeter Version

If you want to achieve the best possible sound quality and have space for a custom tweeter installation, we recommend to use the HDZ-653 instead. The 70mm Hi-res Audio ring-radiator tweeters sound simply amazing and play up to 40kHz. They feature a 25mm carbon fiber diaphragm that is tuned to perfectly harmonize with the mid-range speaker and woofer to achieve a fully unified timbre identity. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.

Studio Recording Spec

Studio Recording Spec

Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.


SPECIFIKACIJOS

Features

  • Hi-Res Audio certified 3-Way speaker system
  • AlpineF#1Status speaker trickle-down technology
  • Maximum Peak Power: 300 Watts
  • Maximum RMS Power: 100 Watts
  • Woofer diameter: 170mm (177mm with attached grill)
  • Tweeter diameter (slim-fit): 40mm (58mm with housing)
  • Aluminum die-cast baskets
  • Backed carbon fiber cones
  • Double-gathered edge
  • High-end X-Over networks
  • Included speaker grills
  • Integrated Wave Guide on all speakers

Specifications

  • Impedance 4Ω
  • Sensitivity 88dB SPL (2.83 V @ 1 m)
  • Frequency Response: 55Hz – 40kHz
  • Mounting depth: woofer 67mm / mid-range 39mm
  • Cutout diameter: woofer 142mm / mid-range 79mm
  • Recommended amplification: up to 100W RMS per channel
  • Ferrite magnet (woofer)
  • Neodymium magnet (mid-range speaker and tweeter)

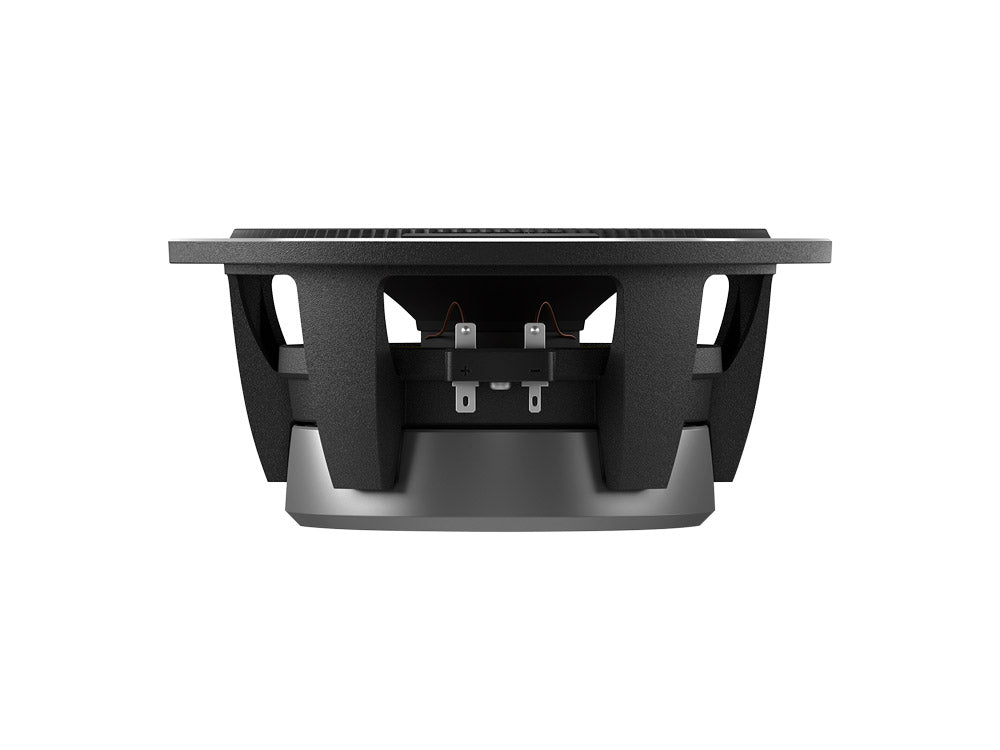

Thiele & Small Parameters Door Woofer:

  • Re: 3.58 Ohm
  • fs: 62 Hz
  • Mms: 18.341 g
  • Rms: 1.436 kg/s
  • Cms: 0.359 mm/N
  • BI: 6.407 N/A
  • Qms: 4,979
  • Qes: 0,624
  • Qts: 0,554
  • Vas: 8.9526 l
  • Sd: 132.73 cm2






INSTRUKCIJOS

User Manual (EN).
