AMPIRE KC203-BLK-2G, galinio vaizdo kamera automobiliui

99.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

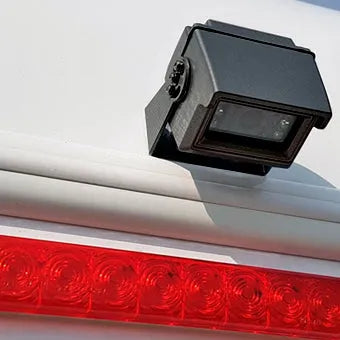

Galinio vaizdo kamera montuojama ant transporto stogo. Geras vaizdas bei ergonomiškas dizainas, neapkraus automobilio galo bei puikiai atliks funkcija.

  • Vaizdo sensorius: SHARP 1/4 '' Color.
  • Rezoliucija: 512 x 492 px.
  • IP67 atsparumo klasė.
  • Pajungimo kabelio ilgis: 10 m.

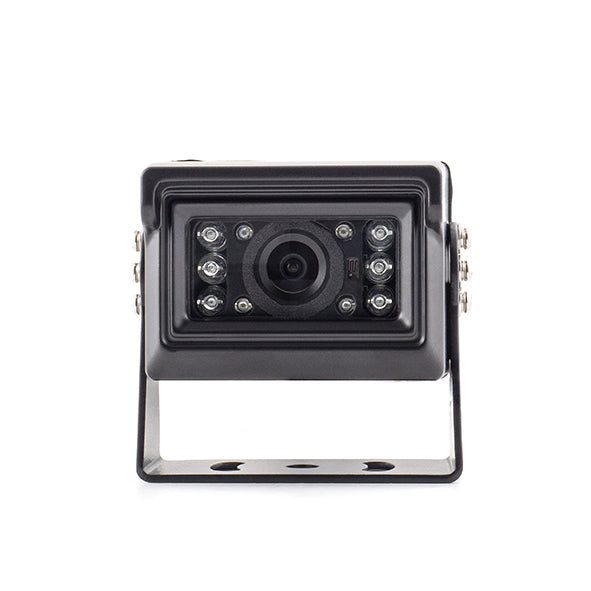

The KC203 body camera is a reversing / surveillance camera with unlimited areas of application in buses, mobile homes, trucks and trailers, or for monitoring properties, buildings and rooms. The aluminum housing is weatherproof, waterproof and very stable. You can choose between a white (KC203-WHI), a black (KC203-BLK) or a silver version (KC203-SIL). The 10 integrated infrared diodes, which switch on automatically at dusk, enable monitoring in complete darkness. Delivery includes bracket and 10m connection cable. The standard image display is "mirrored" and can be switched to "normal".

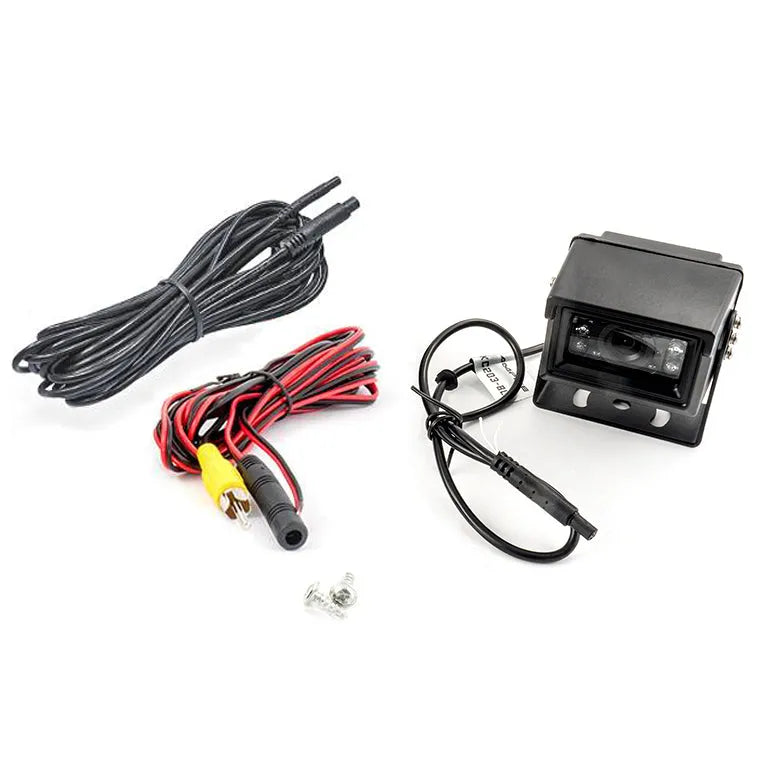

IRE SCOPE
Camera with bracket and screws
7.5m system extension cable
Adapter cable to 2.5m power and 0.5m cinch

IMPORTANT NOTE ON INSTALLATION
After installation, please tighten all screws on the housing again to ensure perfect tightness. When cleaning the vehicle, avoid direct contact between the camera and high-pressure cleaners. Do not install the camera at the front of the vehicle to avoid damage to the camera, e.g. from gravel from vehicles in front.

LEGAL NOTICE
An increase in vehicle dimensions, with the exception of cars and motorcycles, is subject to registration and must be assessed immediately by the technical test center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or converting the vehicle, ask an officially recognized expert for motor vehicle traffic or a test engineer from a monitoring organization whether the operating license will be affected or whether the change can be approved at all. The return of a used camera for credit is excluded.

IMPORTANT NOTE
The connection cable of the KC203 is compatible with the connection cable of the KC202 but not with the connection cable of the KC201 and KC200.

THE KC203-NTSC IS THE SUCCESSOR TYPE FOR
- KC202-NTSC-BLK

SPECIFIKACIJOS



  • Length of the connection cable: 10m
  • Cinch video plug (male)
  • Image sensor: SHARP 1/4 '' Color
  • Sensor type: CCD
  • Image standard: NTSC
  • Resolution in pixels: 512 x 492 (H x V)
  • Resolution in lines: 420 TVL (Enhanced)
  • Frame rate: 60Hz
  • Light sensitivity: 0 lux (IR lighting)
  • Number of infrared LED: 10 pieces
  • Lens opening: 2.4 mm
  • Horizontal viewing angle: 105 °
  • Vertical viewing angle: 50 °
  • Exposure time: 1/60 ~ 1 / 100,000 sec
  • Signal to noise ratio> 48dB
  • White balance: automatic
  • Level adjustment: automatic
  • Output signal: video via cinch 1.0 Vpp 75 Ohm
  • Working temperature: -30 ° C to + 70 ° C
  • Operating voltage: 12 volts DC
  • Power consumption without infrared lighting: 80mA
  • Power consumption with infrared lighting: 146mA
  • Dimensions: 50 x 50 x 60 mm
  • Protection class: IP67
  • Total weight: 0.2 kg
  • E approval: E13-10R00-10R02-3857-00,
  • CE: 960323L14,960323L13





INSTRUKCIJOS

User Manual (EN.)
