AMPIRE KCX802, galinio vaizdo kamera automobiliui

AMPIRE KCX802, galinio vaizdo kamera automobiliui

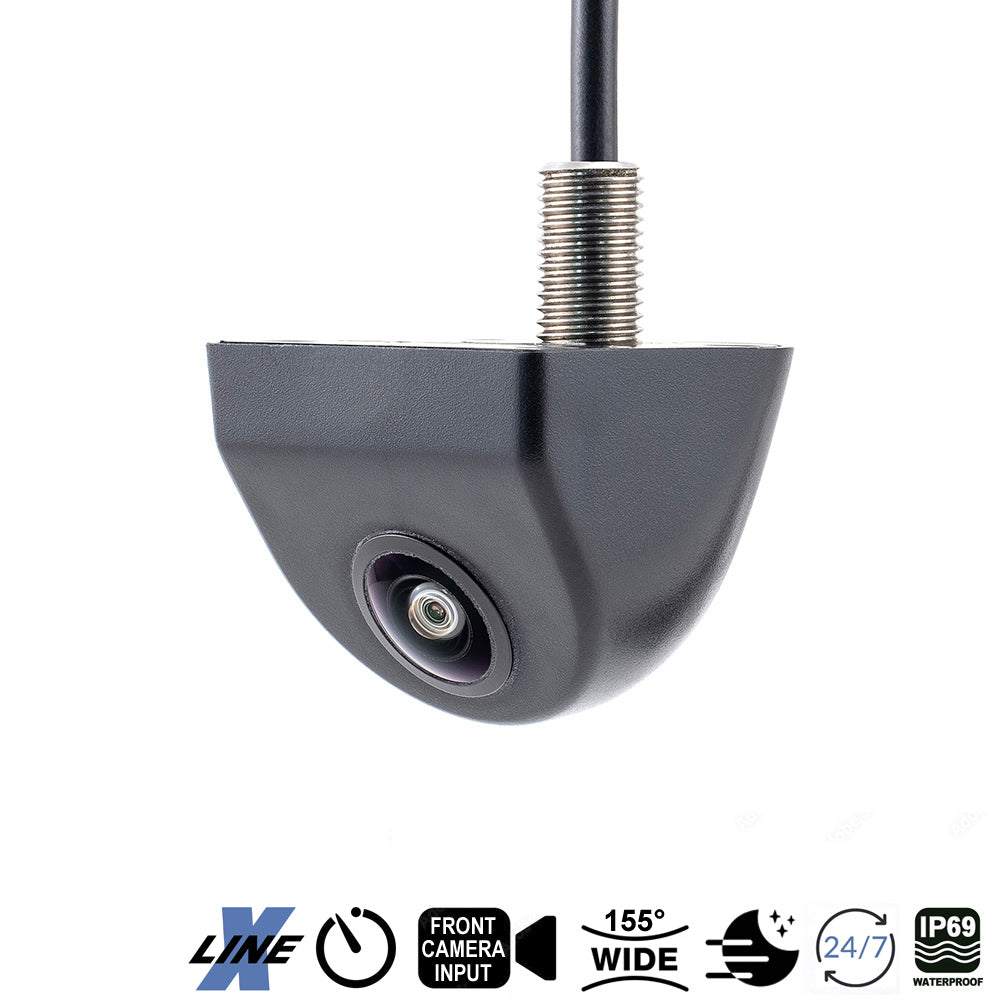

KCX802 miniatiūrinė plataus kampo galinio vaizdo kamera, kurios pritaikymo sritys neribotos ir kurią galima naudoti automobilyje, autobuse, mobiliajame namelyje, sunkvežimyje ar priekaboje.

• Vaizdo sensorius: 1/4 '' 1233 HD Color CMOS Low Light Sensor.

• Rezoliucija: 960x480 px.
• IP69 atsparumo klasė.

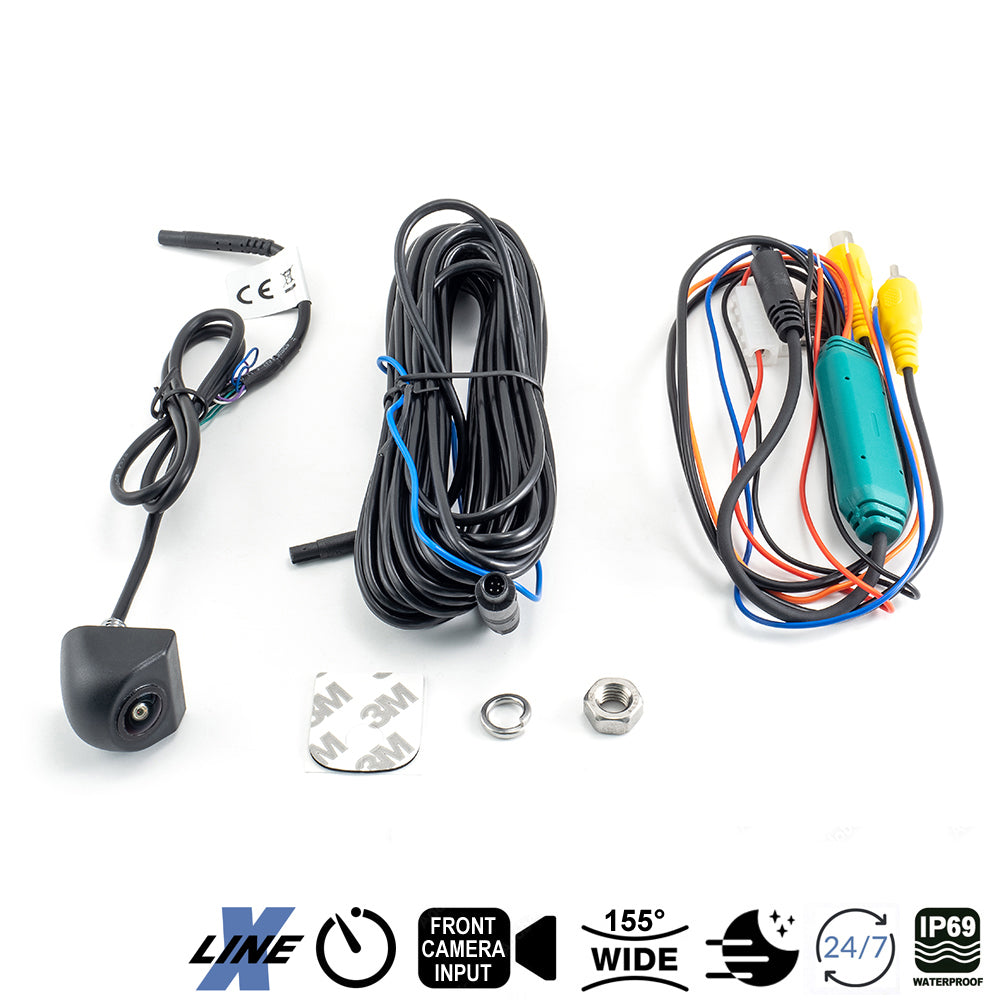

The KCX802 miniature wide-angle substructure camera is a rear view camera with unlimited areas of application in the car, bus, mobile home, truck or trailer. The matt black plastic housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow / wide) can be faded into the video signal, which enables the viewer to park better. The delivery is complete with an 8 meter extension cable with high-quality copper strands. Input for an optional front camera with turn-off delay function.

SPECIFIKACIJOS

- 2 different auxiliary lines: switched off at the factory (can be switched on)
- black matt plastic housing with stainless steel fastening
- Mirrored image reproduction (adjustable)
- Image display rotated 180° (adjustable)
- Image sensor type 1/4 '' 1233 HD Color CMOS Low Light Sensor
- NTSC video signal output
- Resolution 960H480V pixels
- DIN protection class IP69K
- 800 TV lines
- Exposure 60 fileds per seconds
- Signal to noise ratio >46dB
- Dynamic Range >74dB
- Light sensitivity <0.01 Lux / F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 12 volts DC
- Power consumption 25-55mA
- diagonal viewing angle 188°
- horizontal viewing angle 155°
- vertical viewing angle 113°

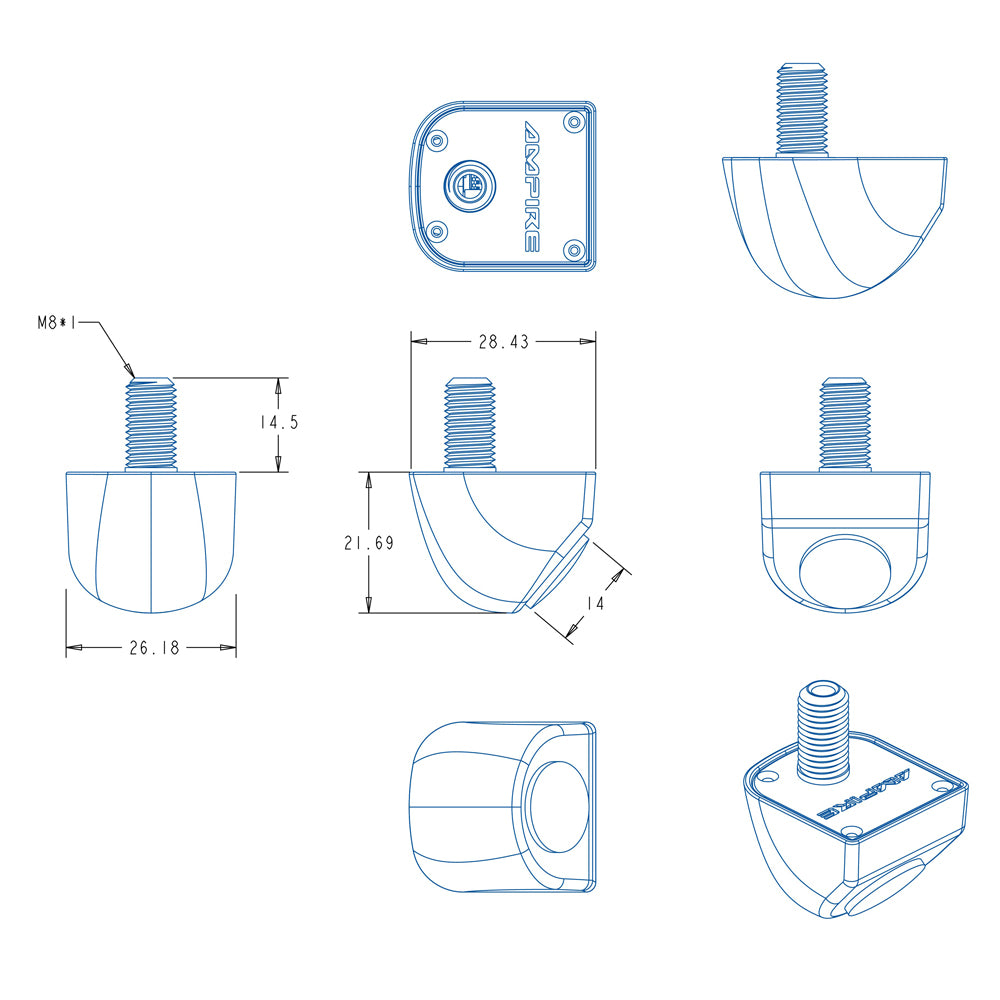

- Camera dimensions 25.8 x 28.2mm and 20.8mm high
- 8mm mounting hole
- Working temperature -40°C to +75°C
- Storage temperature -60°C to +105°C
- E certified
