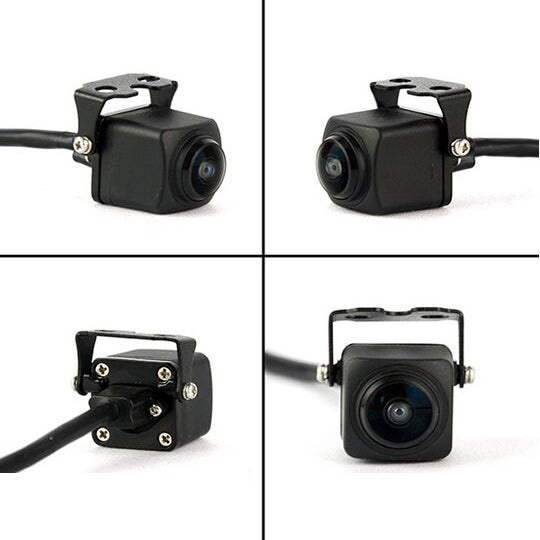

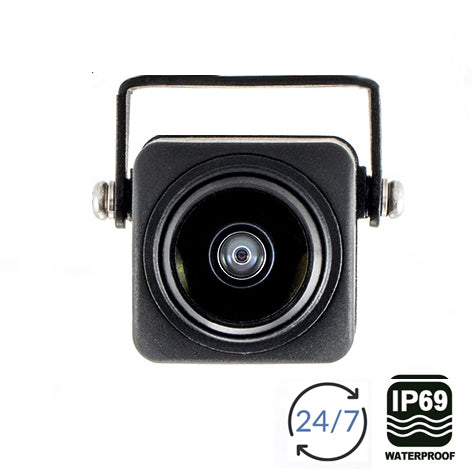

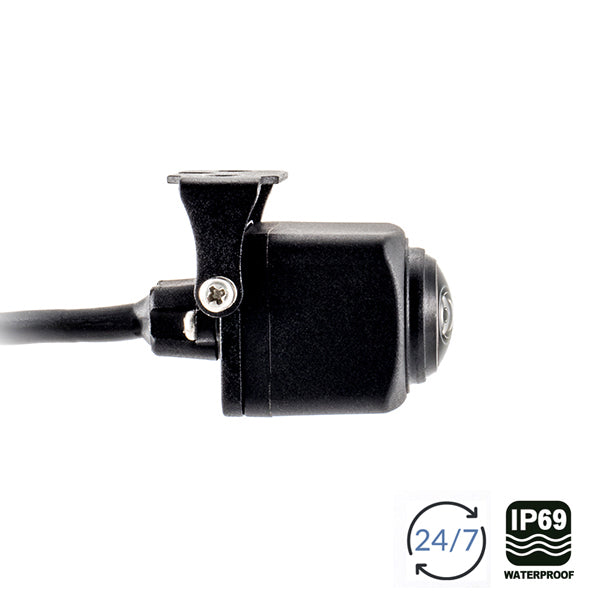

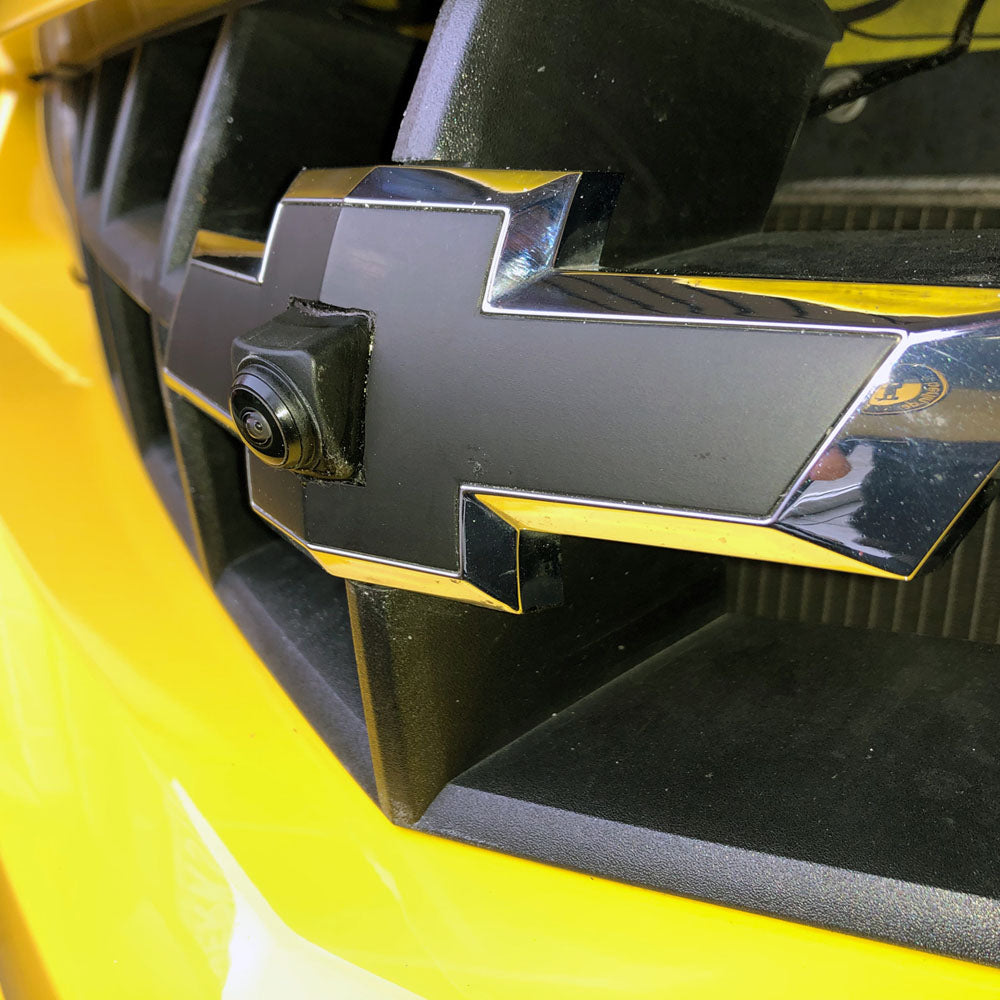

Ampire KIP100-F, Ultra-plataus matymo kampo priekinio vaizdo kamera

Ampire KIP100-F, Ultra-plataus matymo kampo priekinio vaizdo kamera

Universali Ultra-plataus matymo kampo spalvota priekinio vaizdo kamera.

• 720 x 480 px rezoliucija.

• Vaizdo sensorius: US Aptina.

• Objektyvas: Sankyo.
• IP69 K atsparumo vandeniui standartas.


SPECIFIKACIJOS

- normal image reproduction (not mirrorable)
- no auxiliary lines (cannot be switched on)
- Image sensor US Aptina with Sankyo lens
- Resolution 720x480 pixels
- diagonal viewing angle 205 °
- horizontal viewing angle 190 °
- vertical viewing angle 140 °
- vertical adjustability of the camera 0-90 °
- Image format: NTSC color
- 500 lines resolution
- Protection class IP69K waterproof
- Minimum lighting: 0.5 lux
- Operating voltage: 9-16 volts DC
- Power consumption: max.35mA
- Operating temperature: -30 ° to 70 ° C
- Color: Black
- Cable length: 6m video cable
- Cinch video plug (male)
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
- FCC approval ANSI C63.4-2003
- Dimensions: 24x24x28mm (38mm with connector)

INSTRUKCIJA

User Manual (DE).
