Universali stabdžių žibintų atbulinės eigos kamera su mikrofonu. Kameros korpuse integruotas infraraudonųjų spindulių apšvietimas, kuris užtikrina pakankamą apšvietimą net tamsoje.

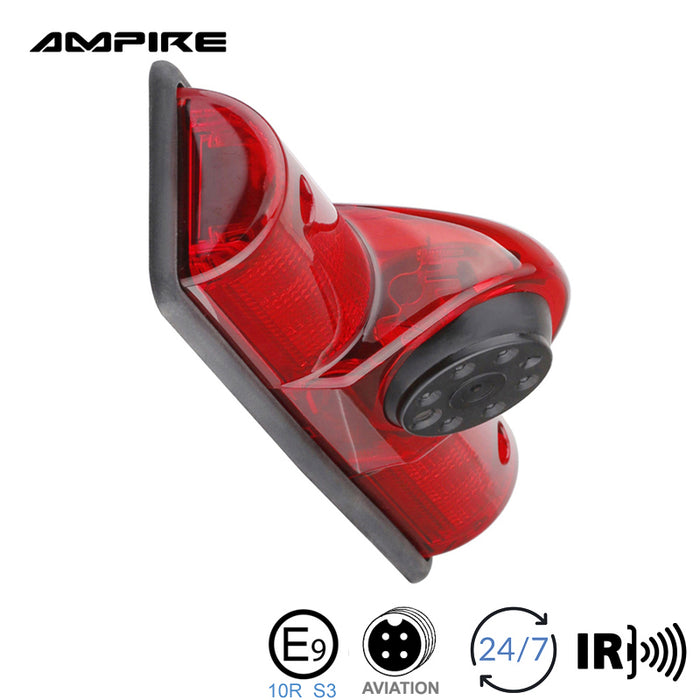

Universal brake light reversing camera with microphone. In the camera housing is integrated infrared lighting which ensures sufficient illumination even in the dark.
- Mounting screws accessible from the front
- Mirrored image display
- Auxiliary lines: factory switched on (can be switched off by disconnecting cable loop)
- image sensor: " CMOS PC7070
- resolution 648x488 pixels
- Viewing angle 170° diagonal
- viewing angle 120° horizontal
- vertical adjustability of the camera 20°
- Image format: NTSC
- 580 lines resolution
- IP68 waterproof
- Integrated infrared illumination
- Integrated microphone
- Operating voltage: 9-16 Volt DC
- Power consumption: max. 150mA
- Operating temperature: -30° to 70°C
- Minimum illumination: 0 Lux
- Color: black
- Cable length: 10 meters with 4-pin AVIATION connector
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003
SCOPE OF DELIVERY
Brake light rear view camera
AK1000
AK1001
AK1002
DIMENSIONS
- Total width: 211,7mm
- Width brake light: 199,7mm
- Length: 62mm
- Height: 62,7mm
- hole spacing: 166mm
