ARCAM rPhono, garso stiprintuvas
ARCAM rPhono, garso stiprintuvas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
ARCAM rPhono, garso stiprintuvas
Highlight title
Text to highlight a key feature of your product
apibūdinimas
apibūdinimas
Arcam rSeries produktai yra susiję su geriausio garso skleidimu iš bet kurio garso įrenginio. Šie produktai gali būti naudojami su bet kuria garso sistema ir yra puikus būdas pagerinti jūsų garso sistemą.
- Tinka MM ir MC tipo kartridžams.
- Tikslus RIAA filtro atsakas.
- Dažnių juosta: 45Hz-50kHz +/-0.2dB.
APRAŠYMAS
Designed specifically to replace an in-built phono amplifier or to add a turntable connection to your existing amplifier, the rPhono is the latest addition to the rSeries.
The rPhono benefits from Arcam’s more than forty years of analogue audio expertise and uses the finest quality parts in a layout that is optimised for low noise and minimum distortion. The multi-layer PCB allows our designers to maximise the quality of the ground plane so that interference between components is further reduced. The use of multiple, low-noise, individually regulated power supplies ensures the rPhono delivers the cleanest signal to the audiophile quality output stage.
Featuring a wealth of features specifically designed for optimal matching of your turntable’s cartridge, the rPhono is the perfect solution for the vinyl lover. Moving coil users benefit from precision impedance matching using high-quality trimmers instead of discrete steps, while moving magnet users have a wide variety of capacitance options. An optionally selectable low frequency “rumble” filter eliminates the effects of warping or pressing irregularities, which can be present on some vinyl.
Precision components give excellent RIAA response and classleading performance figures, meaning the rPhono will delight all music-lovers.
The rPhono is a simple way to improve the performance regardless of turntable and brings Arcam quality sound to any system.
The rPhono will be available from Q1 2017.
.jpg){kind=logo}
TECHNINIAI DUOMENYS
SPECFIKACIJOS
-

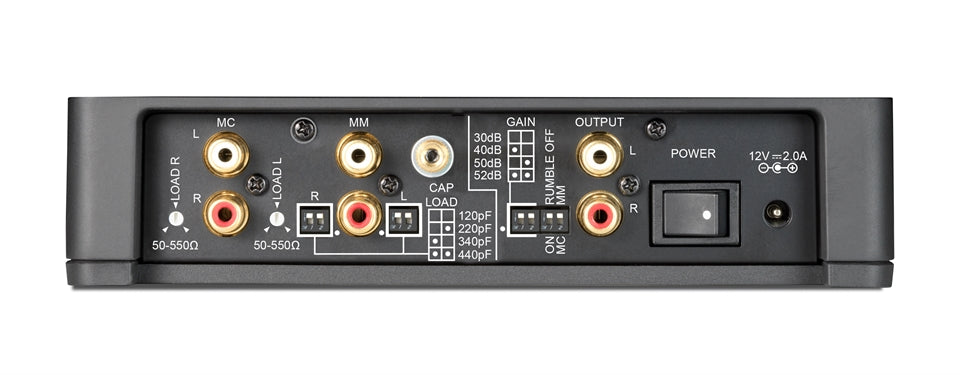

Moving coil & Moving magnet support
-
Adjustable input impedance 50-550Ω (MC)
-
Adjustable input capacitance (MM)
-
Rumble filter
-
Precision RIAA filter response
-
High-end audio circuitry
-
Stylish cast aluminium case
Frequency response, Rumble filter OFF
20Hz-50kHz +/-0.2dB, -3dB at 7Hz
Frequency response, Rumble filter ON
45Hz-50kHz +/-0.2dB, -3dB at 20Hz, -13dB at 10Hz
THD+N (at 1kHz, 5V Out), MC input, 30dB gain
0.005%
THD+N (at 1kHz, 5V Out), MM input, 30dB gain
0.0015%
System gain, MC input
60, 70, 80, or 82dB
System gain, MM input
30, 40, 50, or 52dB
Input impedance, MC input
50-550Ω + 1nF
Input impedance, MM input
47kΩ + 120, 220, 340 or 440pF
Equivalent noise (A-wgt, 40dB MM gain), MC input
0.06μV RMS
Equivalent noise (A-wgt, 40dB MM gain), MM input
0.5μV RMS
Output level, Nominal
0.5V RMS
Output level, Maximum
6V RMS
Power requirements (max)
12V DC, 2.0A
Dimensions (WxHxD)
194 x 44 x 124mm
Net weight
1.1kg
Supplied accessories
Power supply with interchangeable plugs
Stereo phono-phono cable
DIP switch and pot trim tool
User manual and registration card
