Audio-Technica

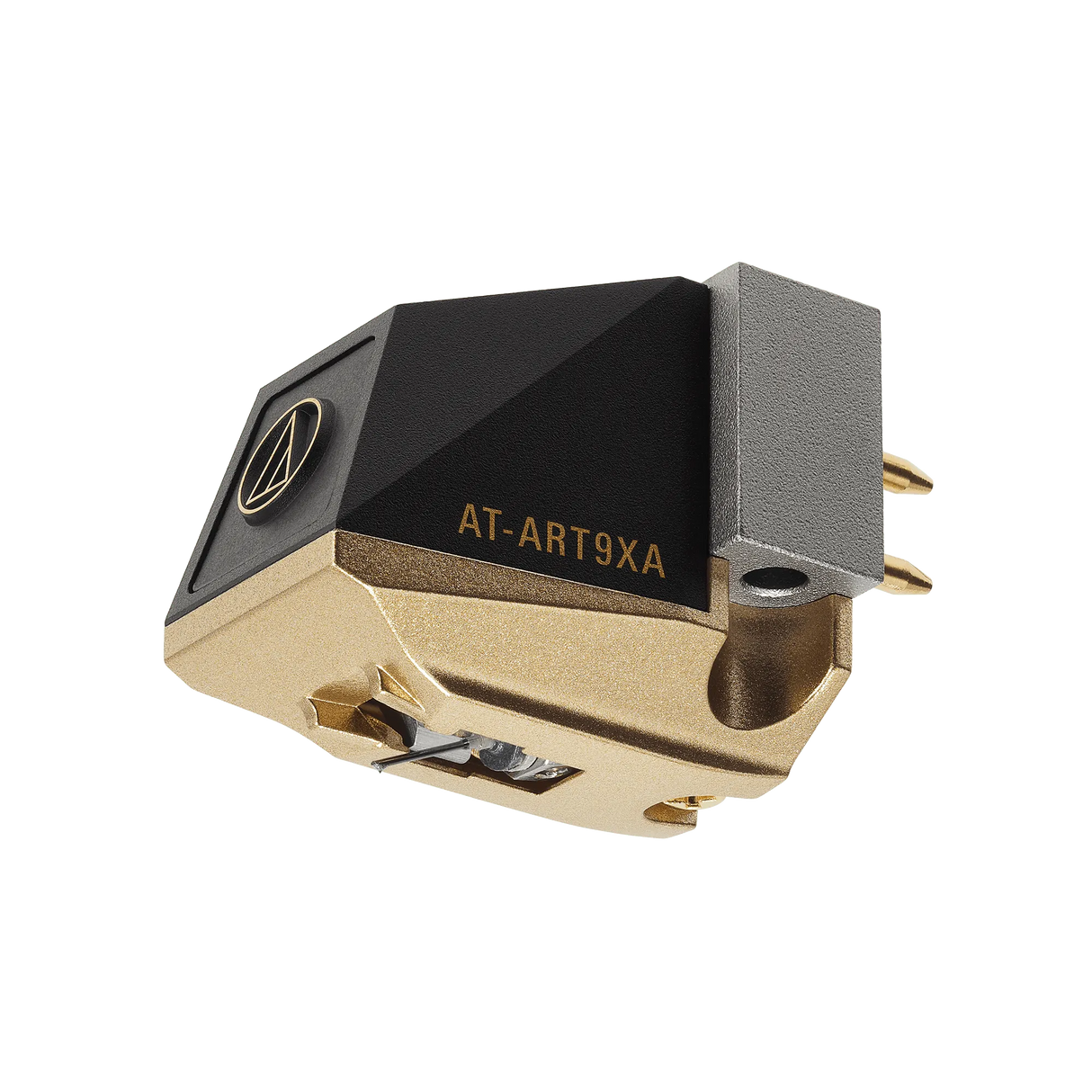

Audio-Technica AT-ART9XA, kartridžas

1,549.00 €

Audio-Technica AT-ART9XA, kartridžas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

AT-ART9XI turi specialų linijinį kontaktinį plunksną ant 0,28 mm skersmens kietos boro konsolės, todėl AT-ART9XI pakeičia AT-ART9 ir yra "Audio-Technica" pavyzdinė magnetinės šerdies MC kasetė.

  • Dažnių juosta: 20-50,000 Hz.
  • Kanalų atskirtis: 30 dB (1 kHz).
  • Nude tipo kartridžas.

An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.

The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
  • Non-magnetic core moving coil cartridge offers superior spatial representation

  • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

  • Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

  • Neodymium magnet and permendur yoke significantly increase magnetic energy

  • Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)

  • PCOCC coils ensure high-fidelity transmission

  • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
  • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm


    SPECIFIKACIJOS

    Cartridge & Stylus
    Frequency Response 20-50,000 Hz
    Channel Separation 30 (dB at 1 kHz)
    Vertical Tracking Angle 20°
    Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
    Stylus Construction Nude
    Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
    Coil Impedance 12 ohms (1 kHz)
    DC Resistance 12 ohms
    Coil Inductance 2.5 µH (1 kHz)
    Output Voltage 0.2 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 0.5 dB (1 kHz)
    Stylus Shape Shibata
    Cantilever 0.28 mm diameter solid boron
    Static Compliance 20 x 10-6 cm/dyne
    Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 8.5 g (0.30 oz)
    Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
    Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
    Threaded Hole M2.6 x 2
    Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
