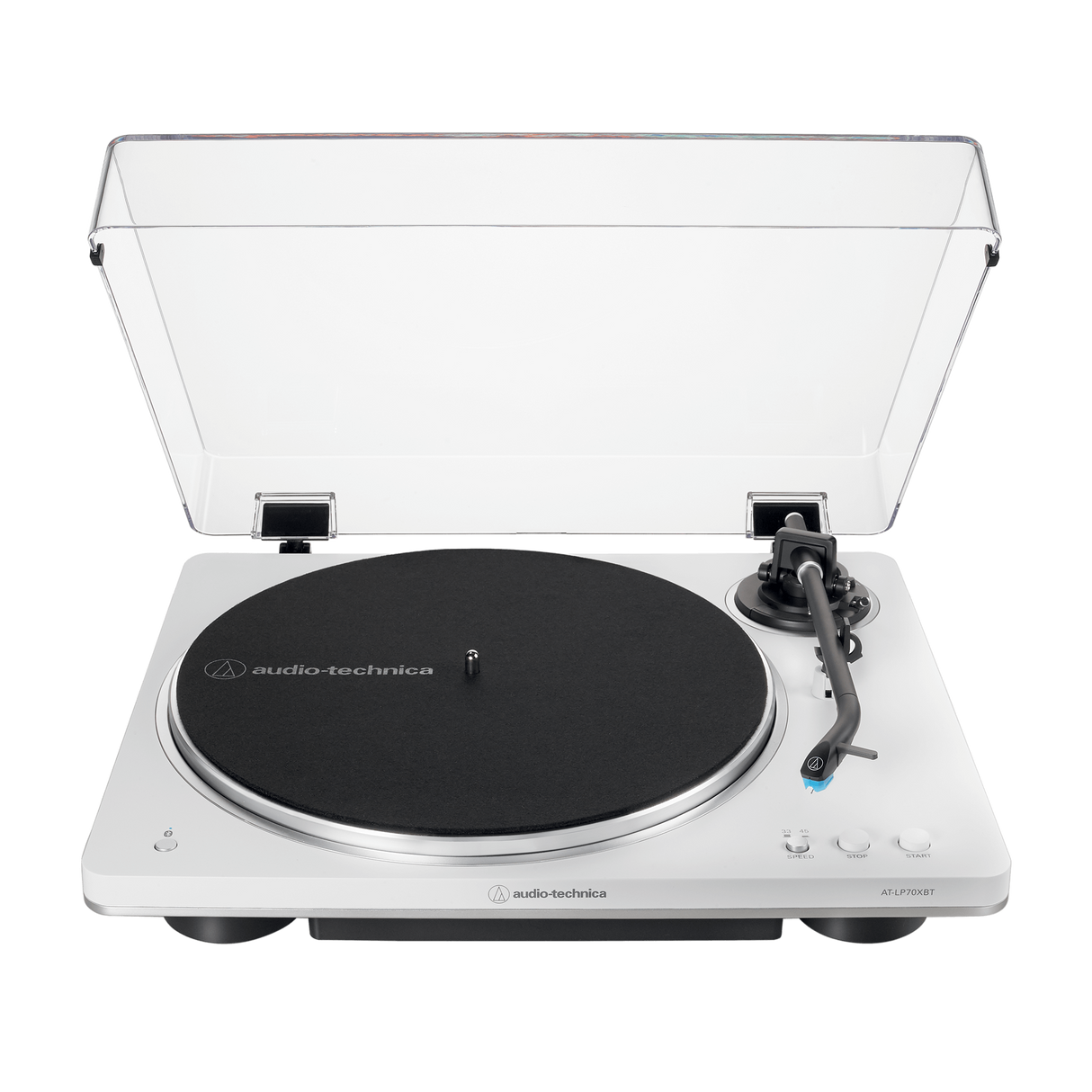

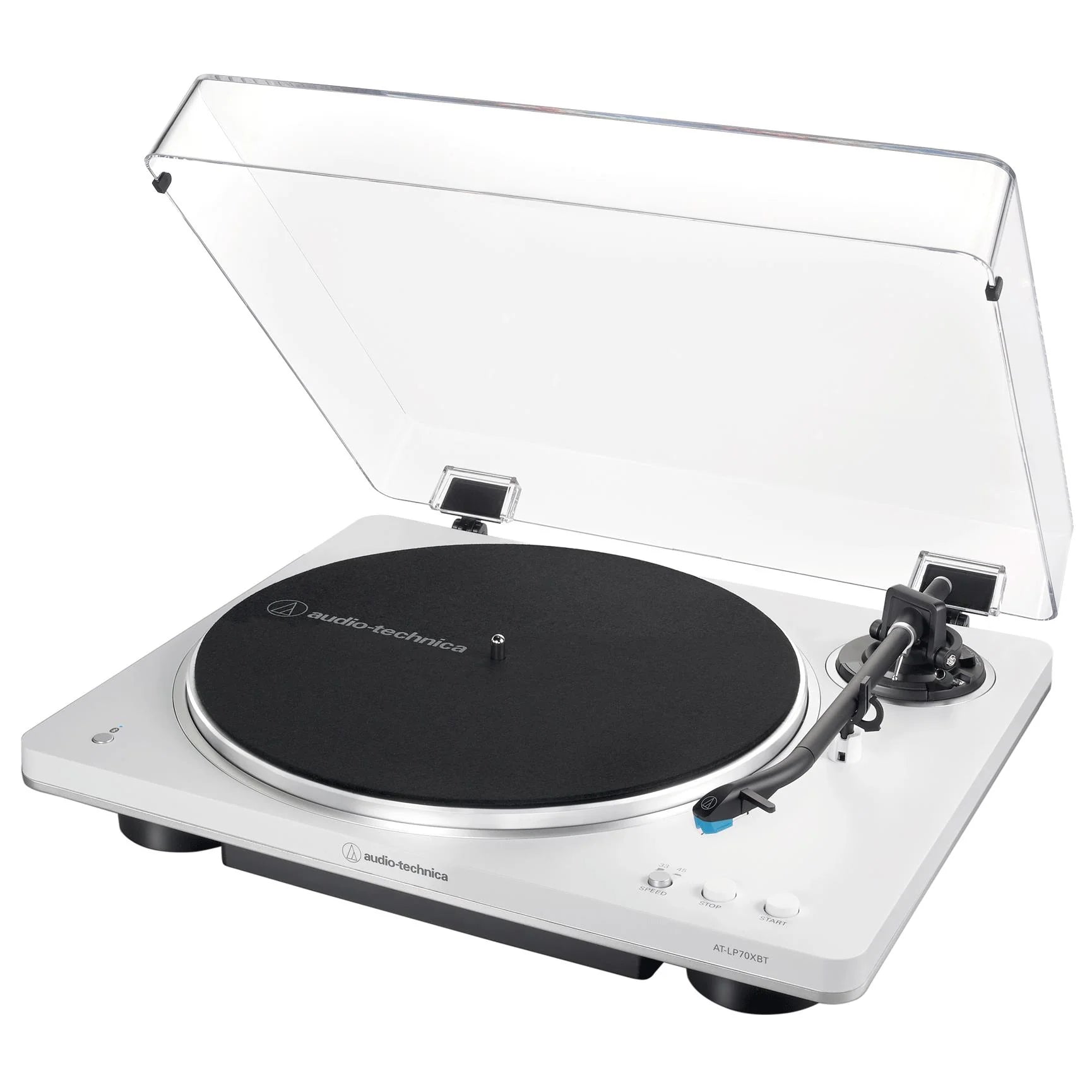

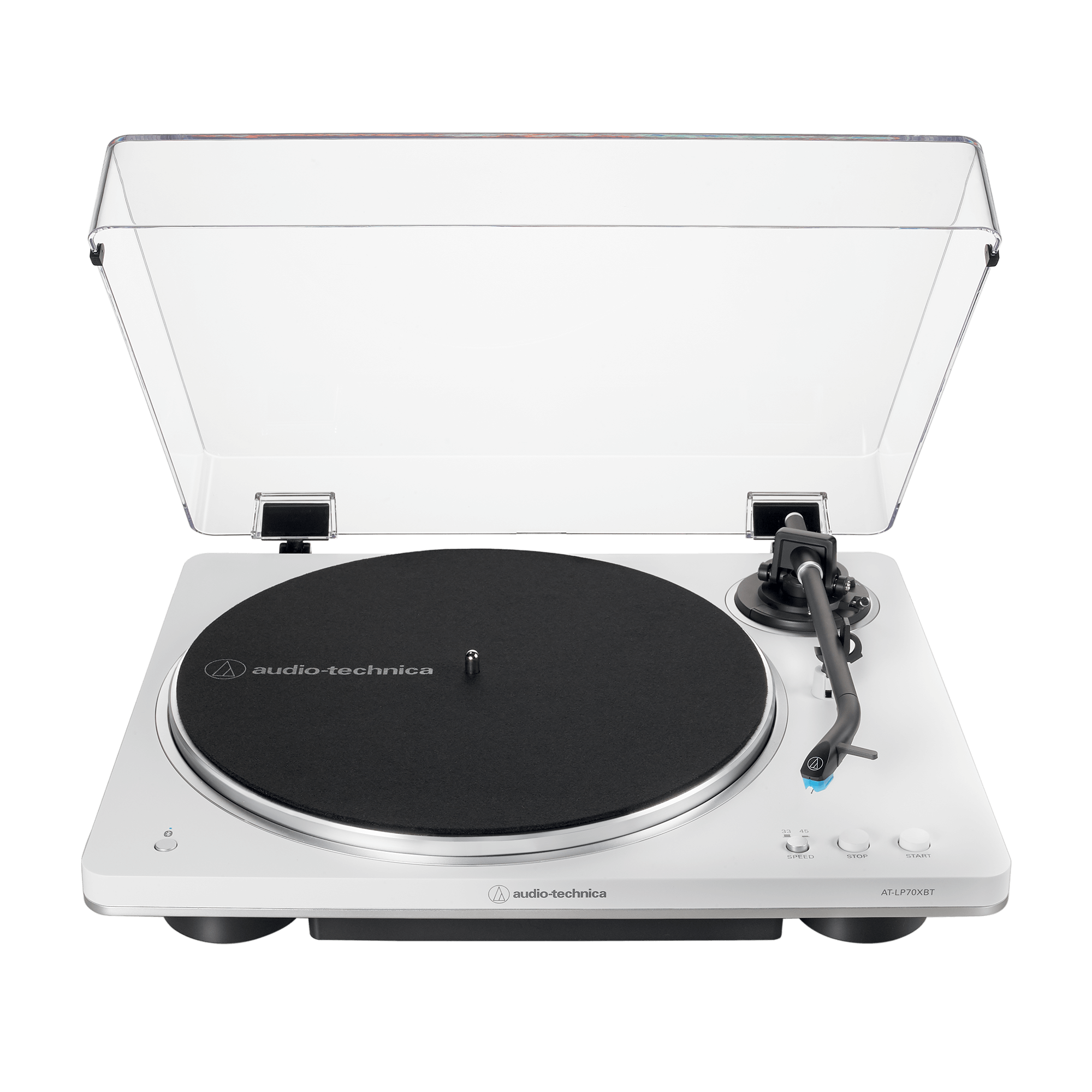

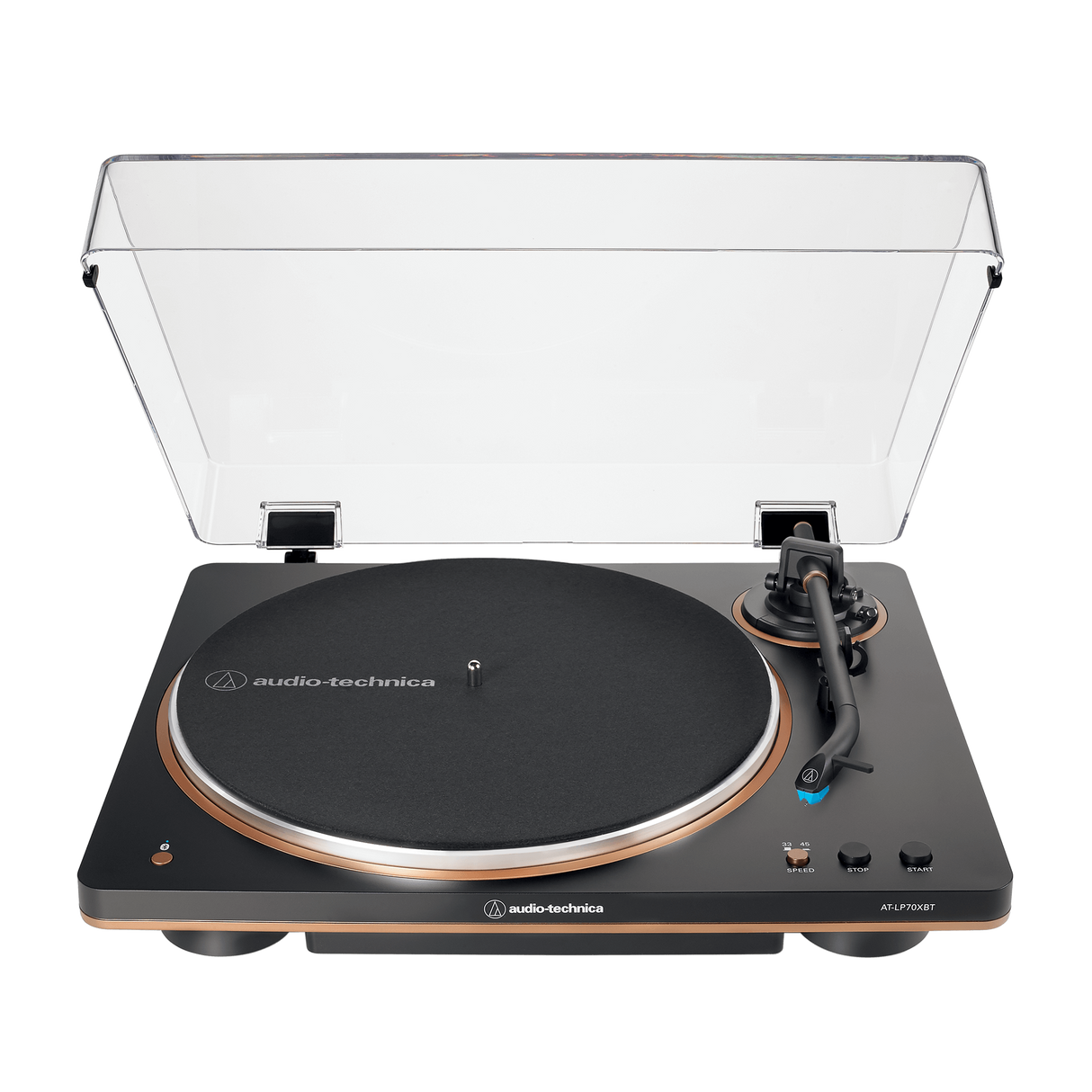

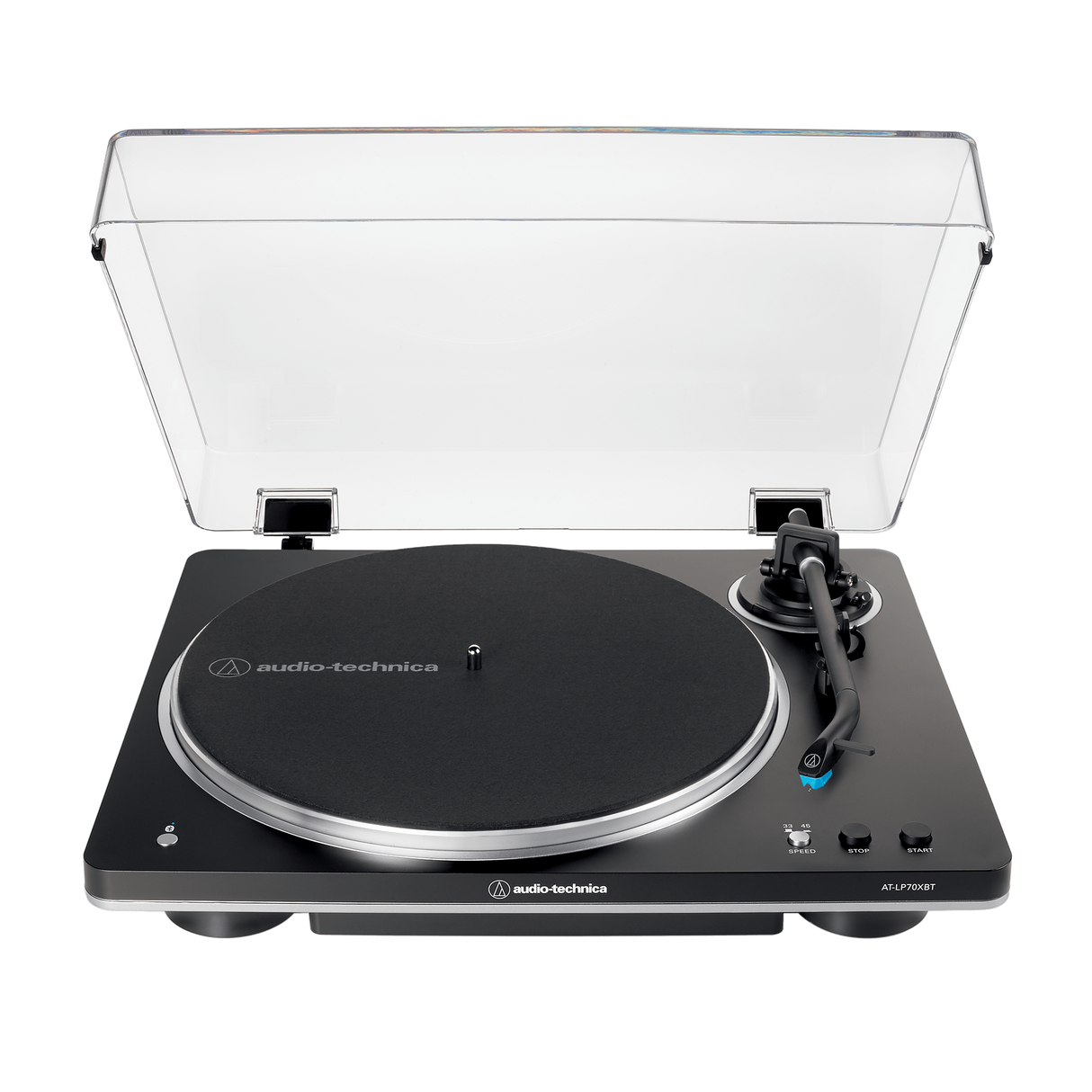

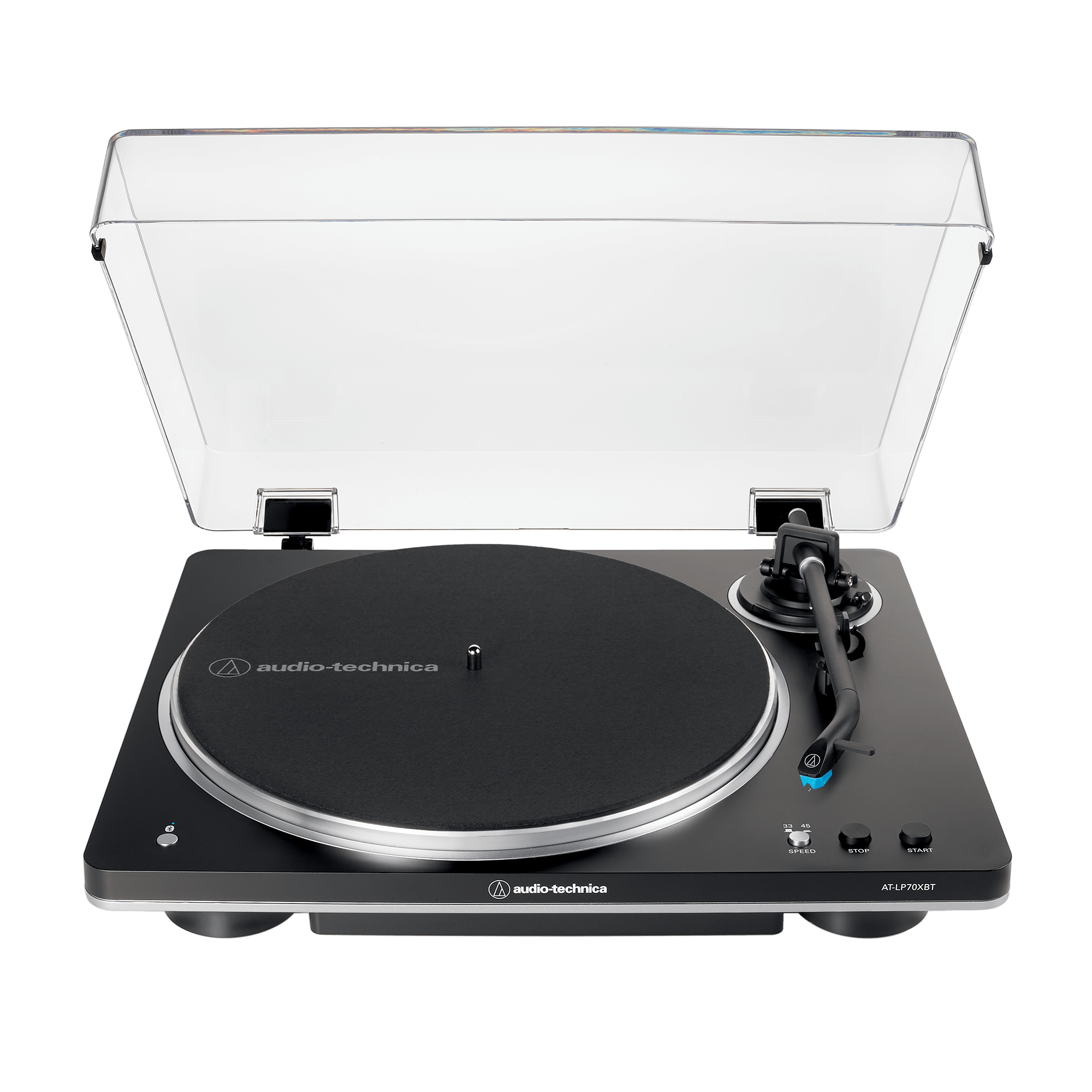

Audio-Technica AT-LP70XBT, belaidis automatinis Bluetooth patefonas

INFORMACIJA

Audio-Technica AT-LP70XBT - automatinis belaidis patefonas, suteikiantis analoginį vinilo skambesį su modernia Bluetooth aptX Adaptive garso kokybe.
Integruotas AT-VM95C Dual Moving Magnet™ garso ėmiklis, įmontuotas fono/linijos išėjimas ir automatinė 33⅓/45 RPM kontrolė leidžia mėgautis vinilais be sudėtingo nustatymo.

Greitis: 33⅓, 45 RPM
Diskas: Išlietas aliuminis
Wow & Flutter: < 0,25%
Signalas/triukšmas: > 55 dB

APRAŠYMAS

The AT-LP70XBT Automatic Wireless Turntable is the perfect beginner turntable for those beginning their audiophile journey. Combining the experience of warm, analog audio with the convenience of Bluetooth® technology, you can listen to your vinyl over Bluetooth-enabled speakers, headphones, or other devices, including those that support the high-quality Qualcomm® aptX™ Adaptive audio codec. This user-friendly turntable plays both 33-1/3 and 45 RPM records and, in addition to its Bluetooth wireless technology, has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.

Equipped with Bluetooth wireless technology for simple connection to powered speakers and headphones, the AT-LP70XBT plays 33⅓ and 45 RPM records automatically at the press of a button. And since the J-shaped tonearm features an integrated AT-VM95C cartridge there’s no installation, balancing or other tonearm setup required.

The turntable’s unique AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus (see list below on page), making it easy not only to replace the stylus when needed but also upgrade to a higher-quality stylus to enjoy more refined sound.

The AT-LP70XBT can be connected to Audio-Technica’s AT-SP3X powered bookshelf speakers via Bluetooth wireless technology or the included RCA cable for an easy-to-manage sound system that fits in any room and requires no external amplifier.

Features
Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM

High-fidelity audio with Bluetooth wireless technology

Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable

Compatible with the high-quality Qualcomm® aptX™ Adaptive audio codec

A fixed-body AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

Stylish three-piece chassis construction dampens resonance for improved sound quality*

J-shaped tonearm is engineered to minimize tracking errors

Tonearm lock reduces risk of stylus damage

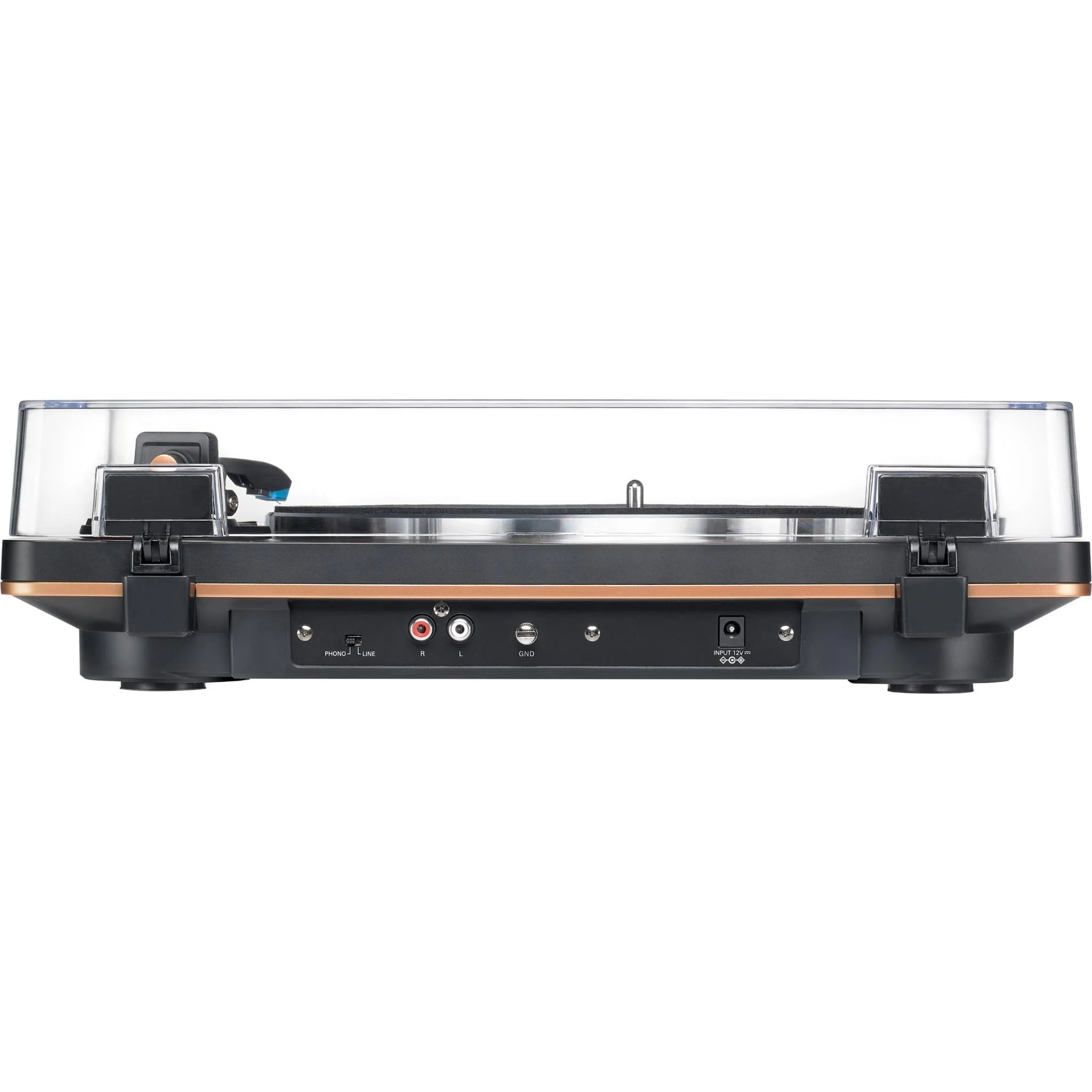

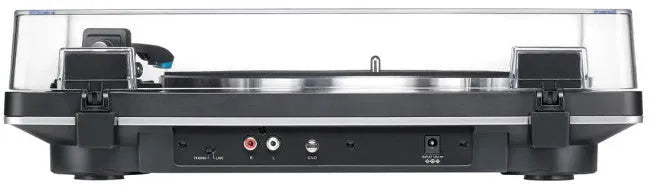

Built-in switchable phono/line pre-amplifier

Anti-resonance, die-cast aluminum platter with felt mat

AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

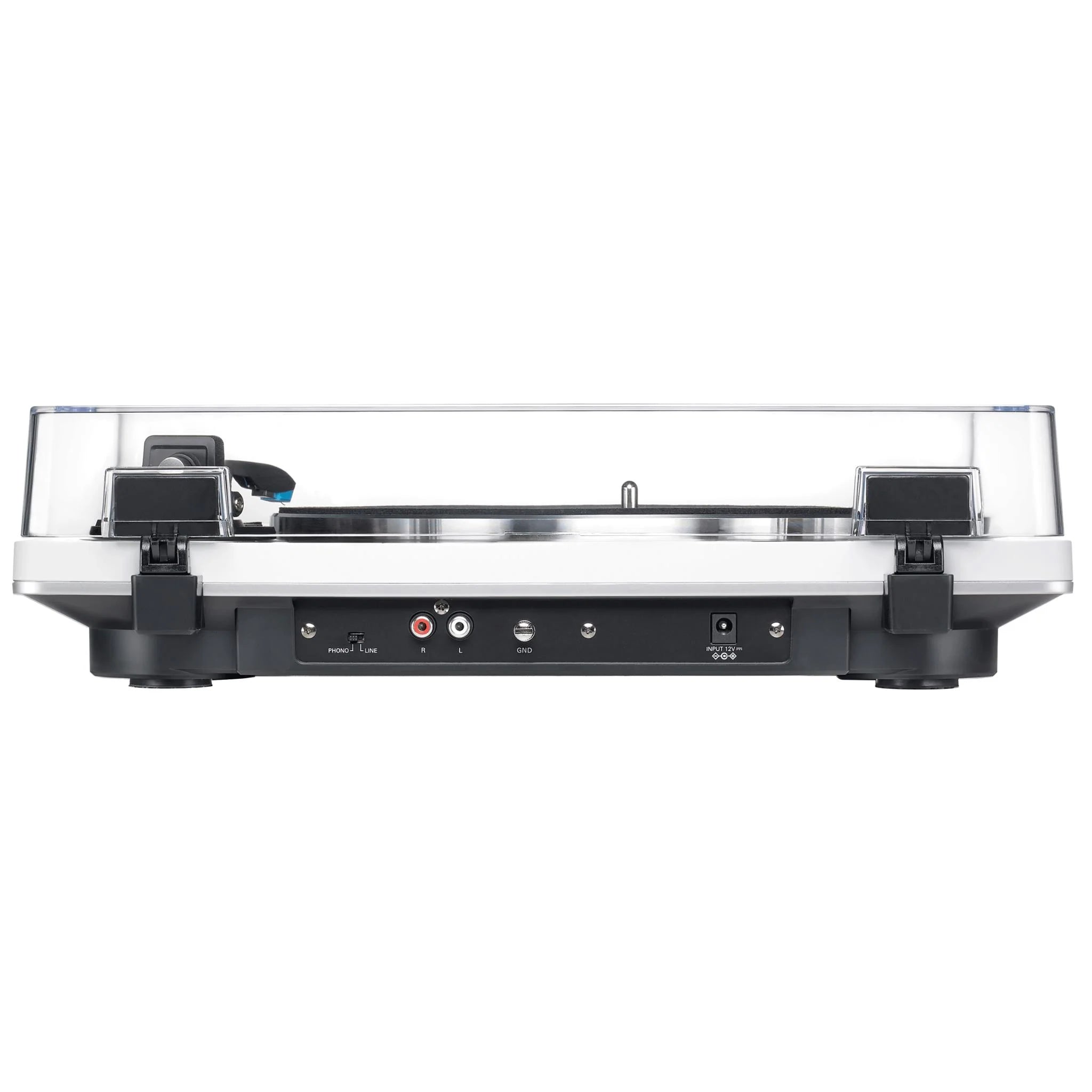

Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover

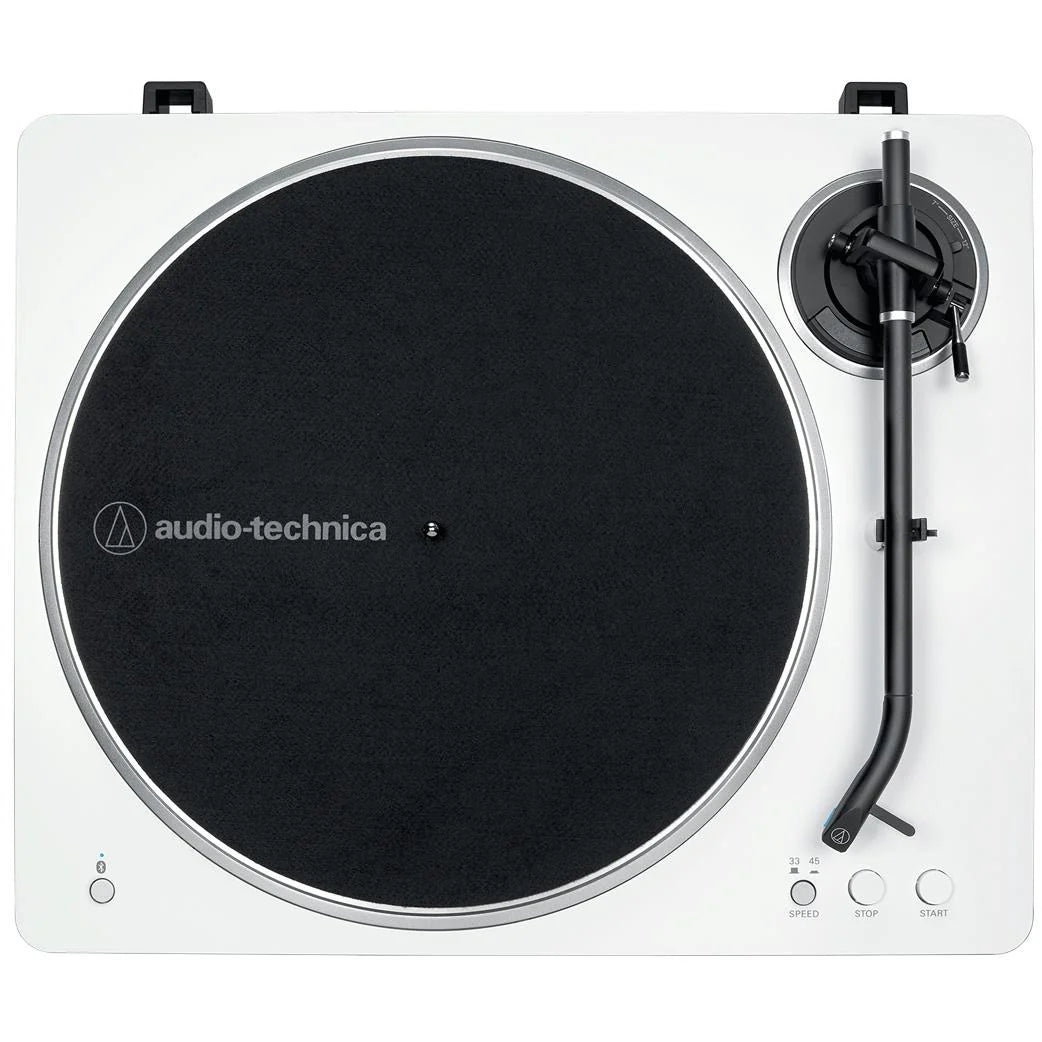

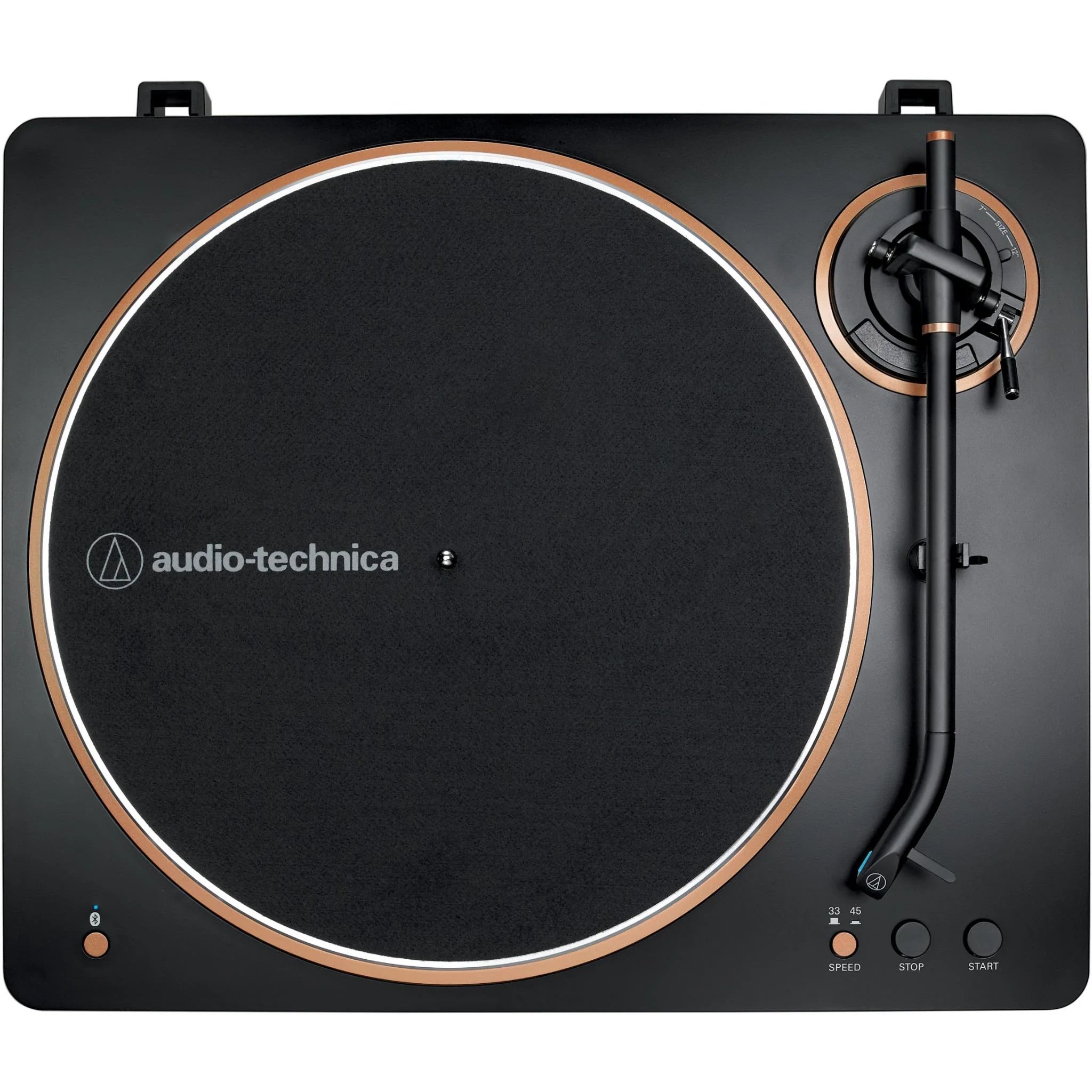

Available in Black/Silver, Black/Bronze, and White/Silver
*Compared to AT-LP60X.

TECHNINIAI DUOMENYS

Motor    DC motor
Drive Method    Belt-drive
Speeds    33-1/3 RPM, 45 RPM
Turntable Platter    Die-cast aluminium
Wow and Flutter    < 0.25% (WTD)
Signal-to-Noise Ratio    > 55 dB
Cartridge Type    This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed.
Output Level    PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain    36 dB nominal, RIAA equalized
Power Consumption    1.6 W
Dimensions    400 mm (16") × 330 mm (13") × 110 mm (4.3") (W × D × H)
Weight    Approx. 2.9 kg (6.4 lbs)

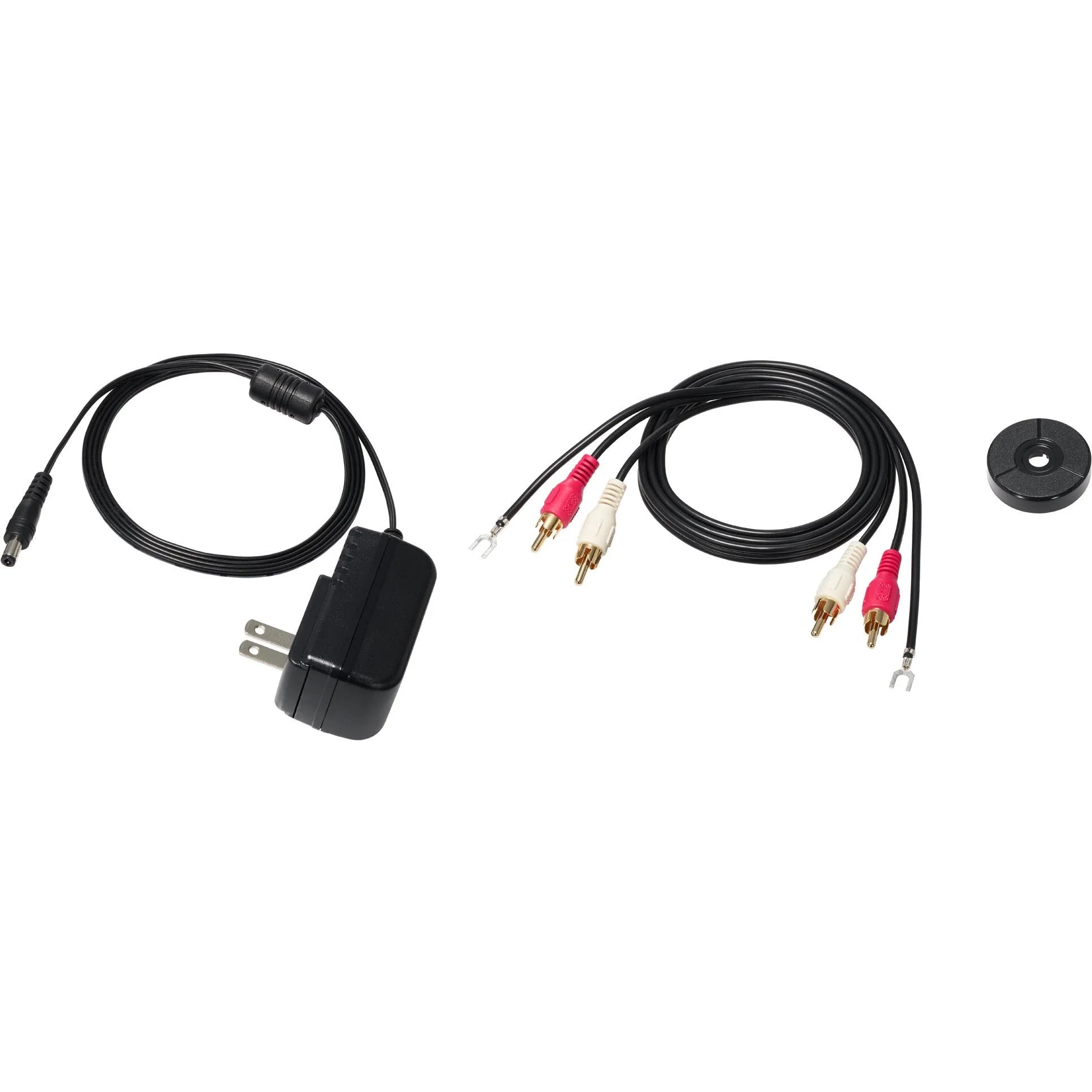

Accessories Included    • Dust cover
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m (3.3'))
• AC adapter (Approx. 1.5 m (4.9'))
AC Adapter    *Type: FJ-SW1261200500DN
Rated Input Voltage: 100 to 240 V AC
Rated Input Current: 0.4 A max.
Rated Frequency: 50 Hz / 60 Hz
Rated Output Voltage: 12 V DC
Rated Secondary Current: 0.5 A
Cable Length: Approx. 1.5m (4.9')
Effective Arm Length    220 mm (8.7")
Overhang    18 mm (0.71")
Tracking Error Angle    Less than 2.0°
Replacement Stylus    AT-VMN95C (sold separately)
Replacement Belt    AT-LP70X exclusive belt (sold separately)
Communication System    Bluetooth version 5.2
Frequency Band    2.402 GHz to 2.480 GHz
Maximum RF Output    2.5 mW EIRP
Maximum Communication Range    Line of sight - approx. 10 m (33')
Modulation Method    GFSK, Pi/4DQPSK, 8DPSK
Compatible Bluetooth Profile    A2DP
Support Codec    Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
Notes    *The included AC adapter may differ depending on the country of sale. Check the rating label on the AC adapter. For details, contact your local Audio-Technica dealer.

For product improvement, the product is subject to modification without notice.
