Audio-Technica AT-OC9XSH, Shibata stereo kartridžas

€649.00 EUR

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Naujos kartos kartridžas iš legendinės OC9 serijos Shibata kartridžas su dviguba judančia rite ir dangteliu.

  • Dažnių juosta: 20 - 47,000 Hz.
  • Kantileveris: 0.28 mm Ø baron.
  • Kanalų atskirtis: 27 dB (1 kHz).
  • DC varža: 12 omų.



Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Shibata profile diamond originally design for Quadraphonic replay offers a depth of sound, combined with high frequency response that has to be heard to be believed.

  • Features nude Shibata stylus and boron cantilever with rich low frequency reproduction and high transient response
  • A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer



    SPECIFIKACIJOS

    Model AT-OC9XSH
    Mounting 1/2” centers / Threaded inserts
    Frequency Response 20 - 47,000 Hz
    Body Material Aluminium
    Channel Separation 27 dB (1 kHz)
    Output Channel Balance 1.0 dB (1 kHz)
    Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
    Vertical Tracking Angle 20 degrees
    Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
    Stylus Shape Shibata
    Stylus Size 2.7 x 0.26 mil
    Stylus Construction Nude square shank
    Cantilever 0.28 mm Ø nude boron
    Coil Impedance 12 Ohms (1 kHz)
    Coil Inductance 25 μH (1 kHz)
    DC Resistance 12 Ohms
    Static Compliance 20 x 10 – 6 cm / dyne
    Dynamic Compliance 16 x 10 – 6 cm / dyne (100 Hz)
    Terminal Pins Brass
    Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
    Recommended Load Impedance Min 100 Ohms
    Cartridge Weight 7.6 g
    Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

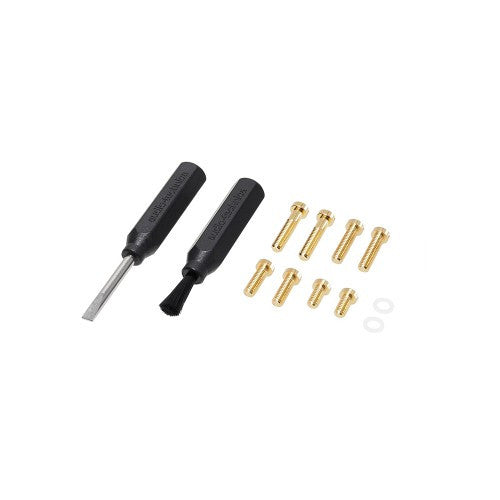

    Accessories Included 1 non magnetic screw driver
    1 brush
    2 washers
    4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
    1 plastic protector
