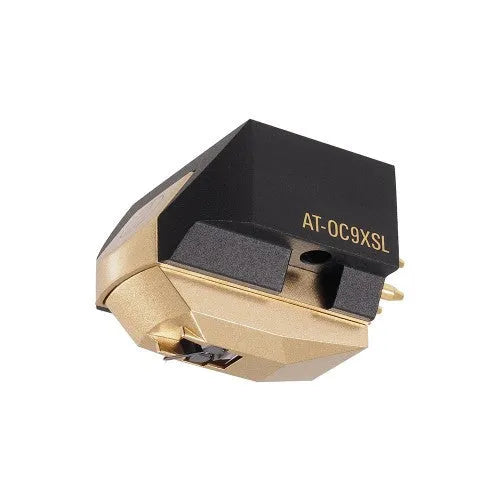

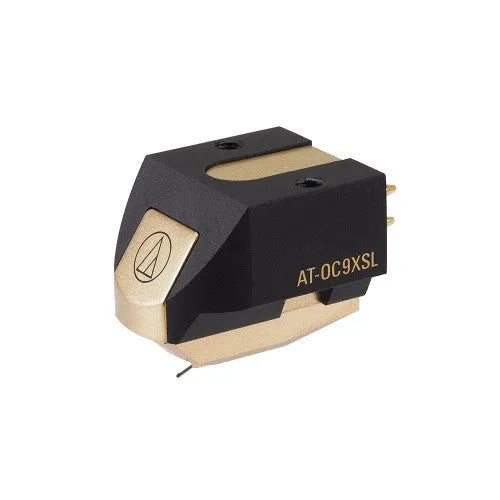

Audio-Technica AT-OC9XSL, kartridžas

€749.00 EUR

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Naujos kartos kartridžas iš legendinės OC9 serijos. Kartridžas su dviguba judančia rite ir dangteliu.

  • Dažnių juosta: 20 - 50,000 Hz.
  • Kantileveris: 0.28 mm Ø.
  • Kanalų atskirtis: 28 dB (1 kHz).
  • DC varža: 12 omų.



The next Generation of the legendary OC9 cartridge series

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Special Line Contact as featured in our flagship ART1000, this diamond profile offers the ultimate in accurate sonic reproduction with a sense of space and realism to all instruments that few other configuration can achieve.

  • Features Nude Special Line Contact stylus and boron cantilever with accurate tracking ability and high transient response
  • A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

Special Line Contact Stylus

Special Line Contact diamond profile offers the ultimate in accurate sonic reproduction

Easy mounting

Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.

Aluminium Body

Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction

Made in Japan

Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.



    SPECIFIKACIJOS

    Model AT-OC9XSL
    Mounting 1/2” centers / Threaded inserts
    Frequency Response 20 - 50,000 Hz
    Body Material Aluminium
    Channel Separation 28 dB (1 kHz)
    Output Channel Balance 0.5 dB (1 kHz)
    Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
    Vertical Tracking Angle 20 degrees
    Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
    Stylus Shape Special Line Contact
    Stylus Size 1.5 x 0.28 mil
    Stylus Construction Nude rectangular shank
    Cantilever 0.28 mm Ø nude boron
    Coil Impedance 12 Ohms (1 kHz)
    Coil Inductance 25 μH (1 kHz)
    DC Resistance 12 Ohms
    Static Compliance 22 x 10 – 6 cm / dyne
    Dynamic Compliance 18 x 10 – 6 cm / dyne (100 Hz)
    Terminal Pins Brass
    Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
    Recommended Load Impedance Min 100 Ohms
    Cartridge Weight 7.6 g
    Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

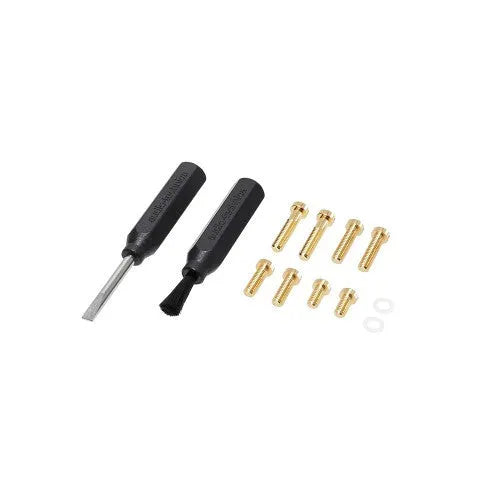

    Accessories Included 1 non magnetic screw driver
    1 brush
    2 washers
    4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
    1 plastic protector
