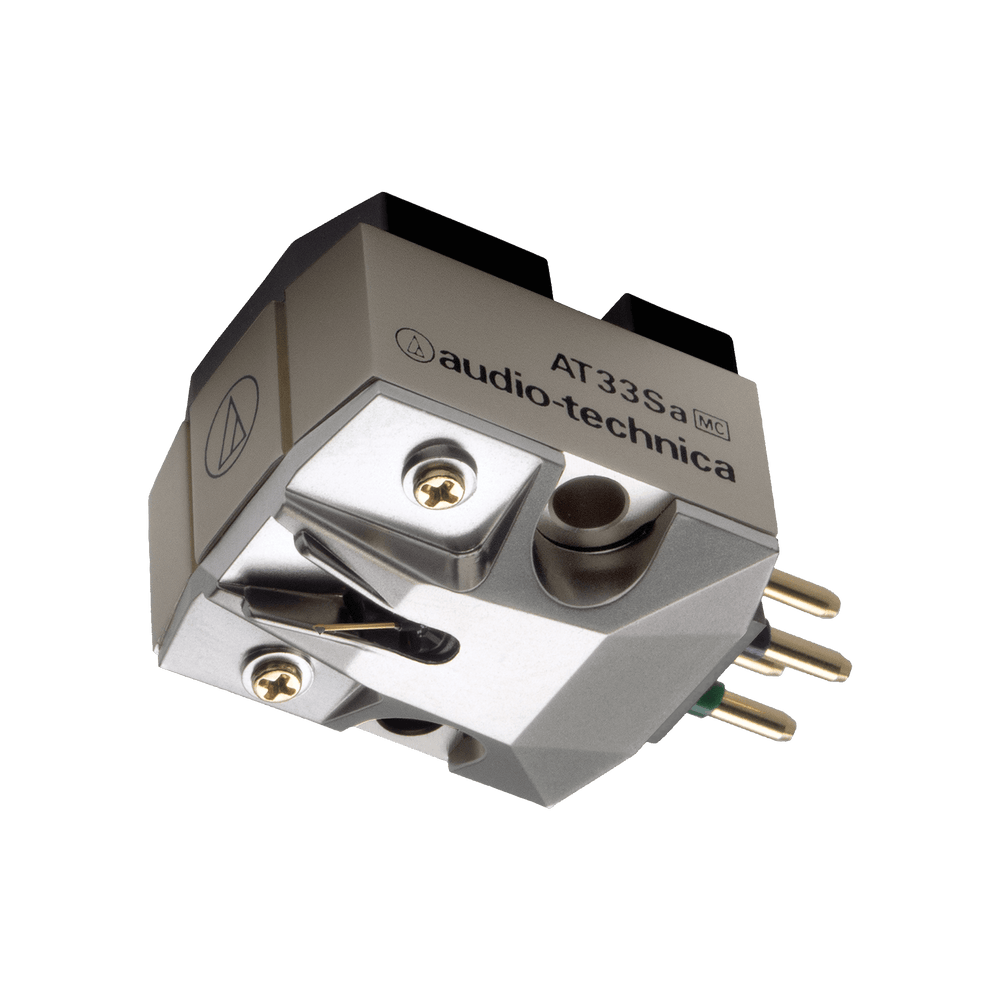

AT33Sa yra pirmoji "Audio-Technica" patefono galvutė su "Shibata" linijinio kontakto plunksna, garsėjanti puikiomis aukštų dažnių charakteristikomis ir stipriu vidutinių bei žemų dažnių skambesiu.
The AT33Sa is the first Audio-Technica moving coil cartridge to feature a Shibata line-contact stylus, known for its superior high-range performance and strong mid and bass sound. The stylus is mounted on a tapered boron cantilever with a double damper for reduced weight and better audio quality. The cartridge’s dual moving coils provide excellent channel separation and are affixed within a strong but lightweight VC mold to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.
Cartridge & Stylus | |
---|---|
Frequency Response | 15 - 50,000Hz |
Channel Separation | 30dB (1kHz) |
Vertical Tracking Angle | 23° |
Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
Stylus Construction | Nude square shank |
Recommended Load Impedance | Min 100Ω |
Coil Impedance | 10Ω (1kHz) |
DC Resistance | 10Ω |
Coil Inductance | 22 µm (1kHz) |
Output Voltage | 0.4mV (1kHz and 5cm/sec.) |
Output Channel Balance | 0.5dB (1kHz) |
Stylus Shape | Shibata |
Cantilever | Nude tapered boron |
Static Compliance | 40×10-6cm/dyne |
Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
Mounting | 1/2” centers |
Dimensions | H16×W16.6×D26.5mm |
Accessories Included | 1 non magnetic screw driver; 1 brush; 2 washers; 2 Nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101) |
Body Material | Aluminium/Synthetic Resin |
Stylus Curvature Radius | Shibata |
Type | Dual Moving Coil |
Weight | 6.9g |
