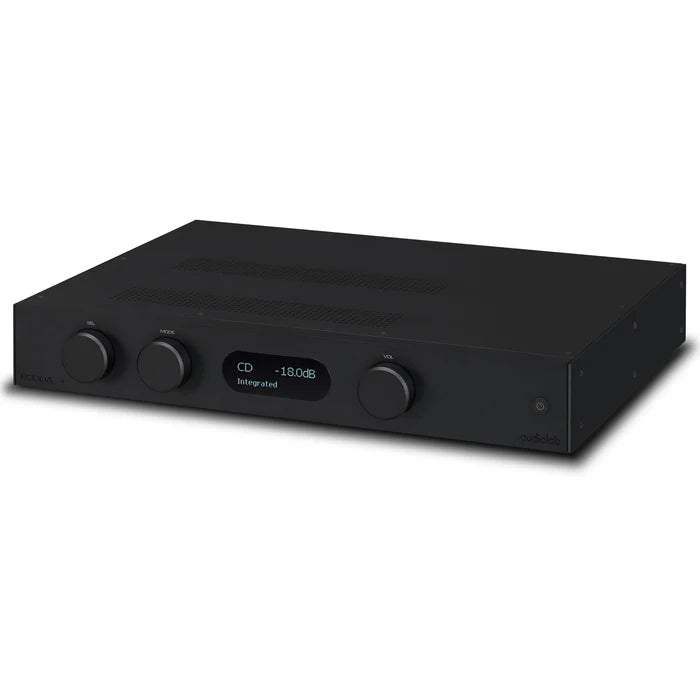

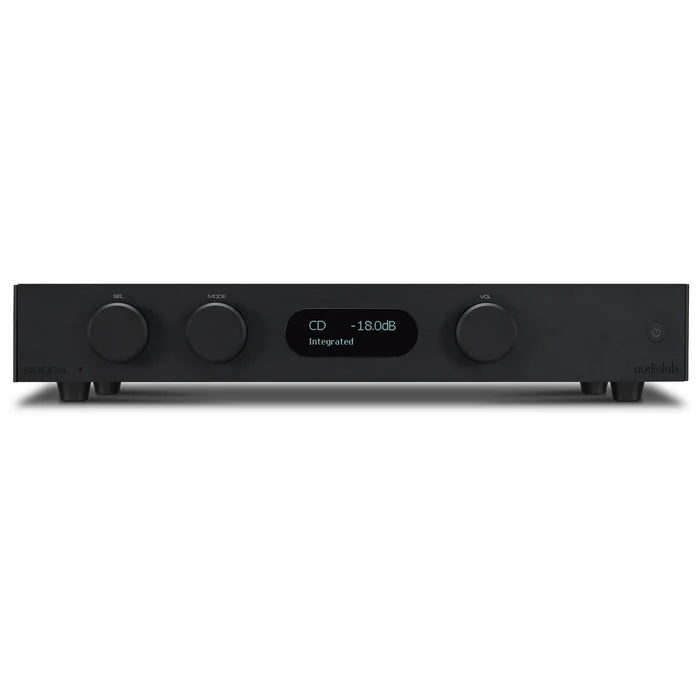

Audiolab 8300A, integruotas stereo stiprintuvas

INFORMACIJA

Audiolab 8300A - aukštos klasės integruotas stereo stiprintuvas, sukurtas reikliems muzikos mėgėjams. Dual Mono konstrukcija, MM/MC fonokorektorius ir balansinis XLR įėjimas užtikrina galingą, detalų ir natūralų skambesį įvairiems garso šaltiniams.

Galia: 2 x 75 W (8 Ω)
Galia: 2 x 115 W (4 Ω)
THD: <0.002 %
Signalo ir triukšmo santykis: >109 dB
Dažnių diapazonas: 10 Hz – 20 kHz (±0.1 dB)

APRAŠYMAS

Integrated Amplifier
Completely redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it’s new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.

Brilliance Evolved
The 8300A’s circuit design delivers all-new sound quality. The soundstage it produces is deeper and broader, with greater space and separation within. Instrument and voices are better defined, their character is vividly portrayed. Dynamic range is greater and frequency response is further extended, with greater bass definition and treble that is both crisper and sweeter. In short, it delivers an open window on the music being played, as all great HiFi should, engaging the listener with natural, unforced energy that is fully reflective of the source material.

Classic Hi-Fi For the Modern Age

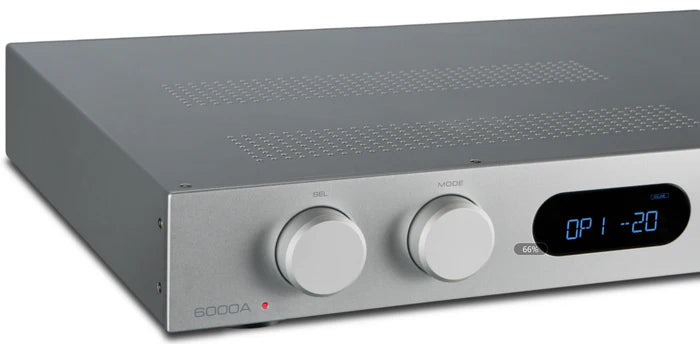

To incorporate all this functionality, there must be compromise under the lid, right? Wrong. The
6000A’s lead electronics designer is Jan Ertner – the same man responsible for the 8300A, as well as
many other award-winning audio components over the years. When challenged to deliver 6000A at
such a low price point, Jan returned to the technologies he implemented in the 8300A and
painstakingly redeveloped them, whilst adding high-quality digital circuitry to the mix. The result is a
new-generation amplifier evolved from the architecture of its pricier sibling, delivering exceptional
sound quality alongside those flexible facilities.

Versatile High End Integrated Amplifier

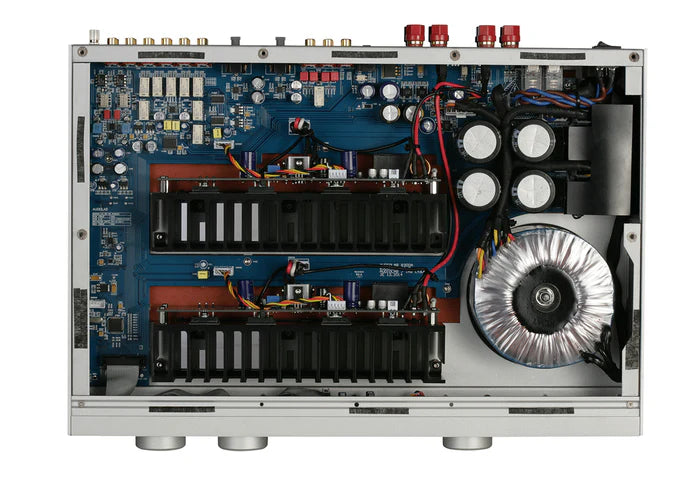

At this amplifier’s heart is a powerful dual-mono amplifier delivering 75W per channel into eight ohms. CFB or ‘Complementary Feedback’ topology offers superior linearity and ensures excellent thermal stability.

ACD or ‘Active Current Drive’ means current limiting is under microprocessor control, programmed to allow the amplifier to supply high currents into complex loads, on par with amplifiers that are bigger and more powerful on paper.

TECHNINIAI DUOMENYS

Model    8300A
General description    Integrated Amplifier
Design philosophy and core technology    Dual Mono Power Amp Design

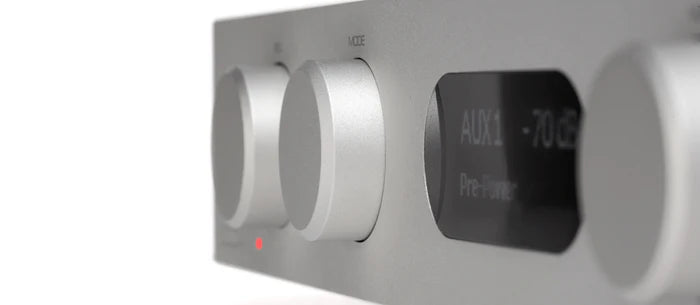

Display    OLED 128x64 pixels 2.7"
Controls    Logarithmic Ladder Volume Design

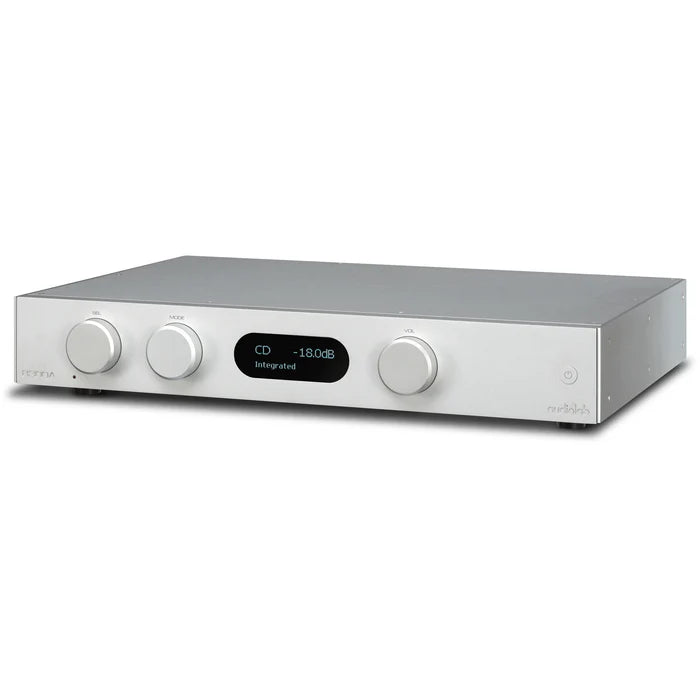

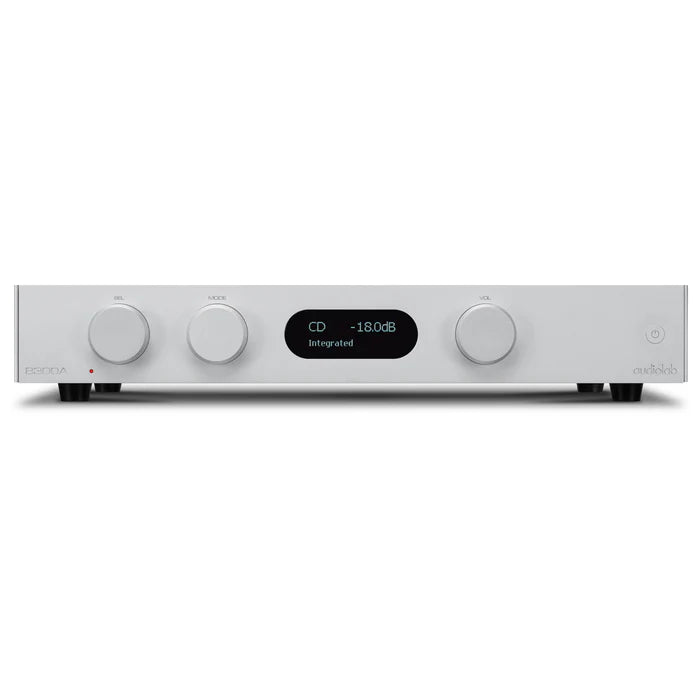

Finish    Fine Textured Aluminium (Black / Silver)
Standby Features    Yes
12V Trigger    Yes
Phono    Yes (MM/MC)
Balanced XLR Input    Yes
Pre-amplifier Section

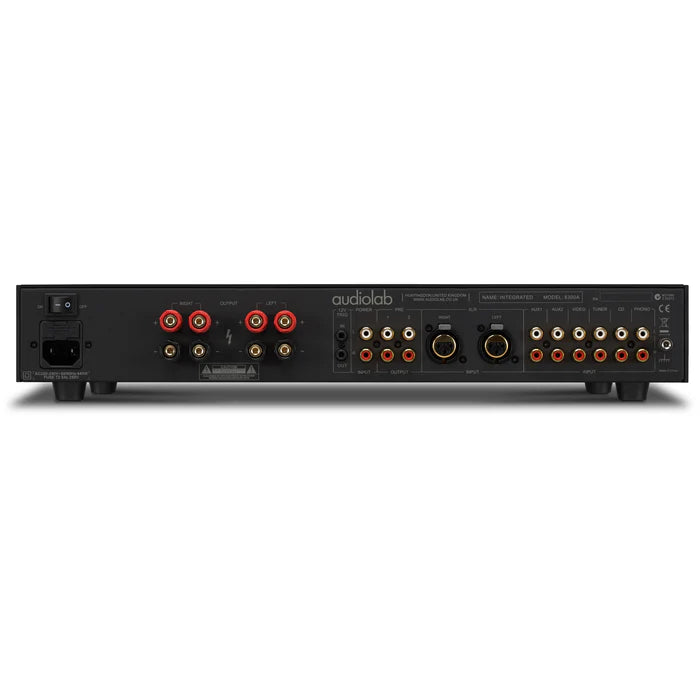

Inputs    CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & Phono
Outputs    2 x RCA
Input sensitivity (Phono RIAA)    50K // 100pF
Input impedance (line inputs)    50K // 100pF
Input impedance (phono inputs)    47K // 100pF (MM), 100R // 1.5nF (MC)
Output voltage    2.3V max. (< 0.02% THD)
Output impedance    120Ω
Frequency response (Line)    +/- 0.1dB (10Hz - 20kHz)
+/- 3.0dB (1Hz - 100kHz)
Frequency response (Phono RIAA)    +/- 1.0dB (20Hz - 20kHz)
Channel Imbalance    < 0.2dB (10Hz - 20kHz)
Total harmonic distortion (THD) Line    <0.001%
Total harmonic distortion (THD) Phono    <0.002%
Signal-to-noise ratio (Line)    > 107dB
>109dB(A-weighted)
Signal-to-noise ratio Phono (MM)    > 73dB
> 78dB(A-weighted)
Signal-to-noise ratio Phono (MC)    > 68dB
> 73dB(A-weighted)
Crosstalk    < 80dB (L-> R & R->L @10kHz)
Power amplifier Section
Gain    29dB (20Hz-20kHz)
Input Sensitivity    840mV (Power Out = 70W into 8Ω)
Input impedance    15K // 100pF
Rated max power output THD < 1%    2 x 75W RMS (8Ω) , 2 x 115W (4Ω)
(Vmains = 230V , THD < 1%)
Peak output current    +/- 15A
Frequency response    +/- 0.1dB (10Hz – 20kHz)
+/- 3.0dB (1Hz – 100kHz)
Channel Imbalance    < 0.2dB (10Hz – 20kHz)
Total harmonic distortion (THD)    <0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz)
Signal-to-noise ratio    > 107dB (BW = 20 – 20kHz )
>109dB(A-weighted BW = 20 – 20kHz)
Damping factor    >100 (8Ω Load @ 1kHz)
Inputs    1 x RCA
Outputs    Speaker Binding Post Terminals
Dimensions    80 x 444 x 330.3mm
Net weight    7.8kg

DOKUMENTAI

Vartotojo vadovas (EN)
